Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28A - VENTILATION SYSTEM
▶

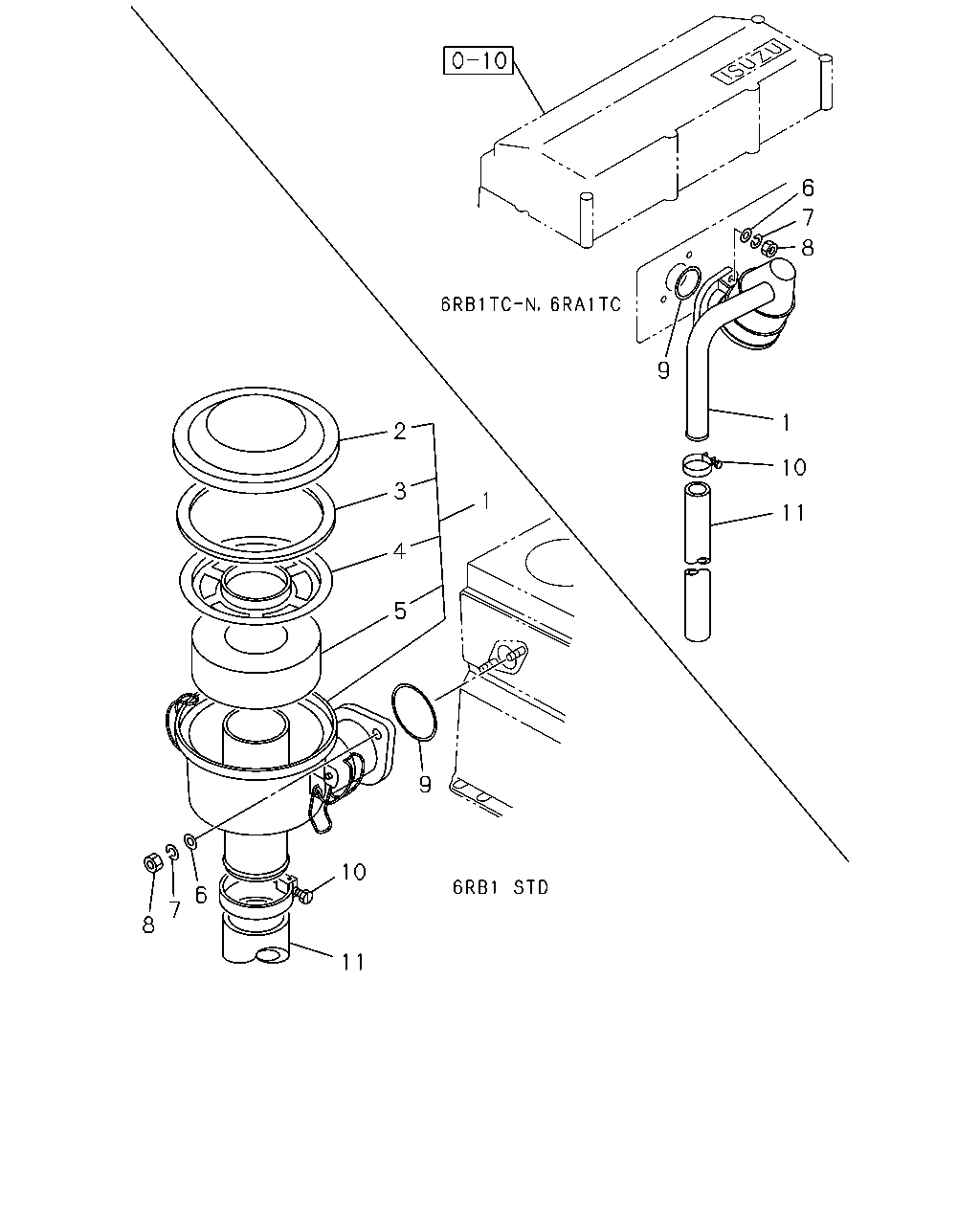

0-28A — VENTILATION SYSTEM
(#1862) — 22 parça
Tümü
A - 6RA1TC ENG
B - 6RB1 STD ENG
C - 6RB1TC-N ENG
6
7
8
9
1
2
10
3
1
11
4
5
9
10
6
7
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BREATHER; AIR
1-11740-156-2
01
1
9002-9306
●
1
BREATHER; AIR
1-11740-154-0
01
1
9002-
●
1
BREATHER; AIR
1-11740-182-1
01
1
9012-
●
2
CAP; AIR BREATHER BODY
9-11746-025-0
01
1
9002-
●
3
GASKET; BODY TO CAP
1-09630-100-0
01
1
9002-
●
4
RETAINER; ELEMENT
9-11746-028-0
01
1
9002-
●
5
ELEMENT; BRASS WOOL
9-11745-061-0
01
1
9002-
●
6
WASHER; BREATHER
ID=8.4
9-09160-508-0
02
1
9002-
●
●
6
WASHER; BREATHER
ID=8.4
9-09160-508-0
04
1
9012-
●
7
WASHER; LK,BREATHER
ID=8.2
9-09150-508-0
02
1
9002-
●
●
7
WASHER; LK,BREATHER
ID=8.2
9-09150-508-0
04
1
9012-
●
8
NUT; BREATHER
M8
9-09110-408-0
02
1
9002-
●
●
8
NUT; BREATHER
M8
9-09110-408-0
04
1
9012-
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7
1-09623-299-0
01
1
9002-9306
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48
9-09920-647-0
01
1
9002-9003
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7
1-09623-465-0
01
1
9004-
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-426-0
01
1
9012-
●
10
CLIP; AIR BREATHER
ID=32
9-09915-005-1
01
1
9002-
●
●
10
CLIP; AIR BREATHER
D=50 BAND
1-09707-046-0
01
1
9002-
●
11
HOSE; RUBBER,AIR
ID=25 L=660
0-02825-660-0
01
1
9002-
●
●
11
HOSE; RUBBER,AIR
L=520
1-09360-454-1
01
1
9002-9409
●
11
HOSE; RUBBER,AIR
0-02840-520-0
01
1
9410-
●
