Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

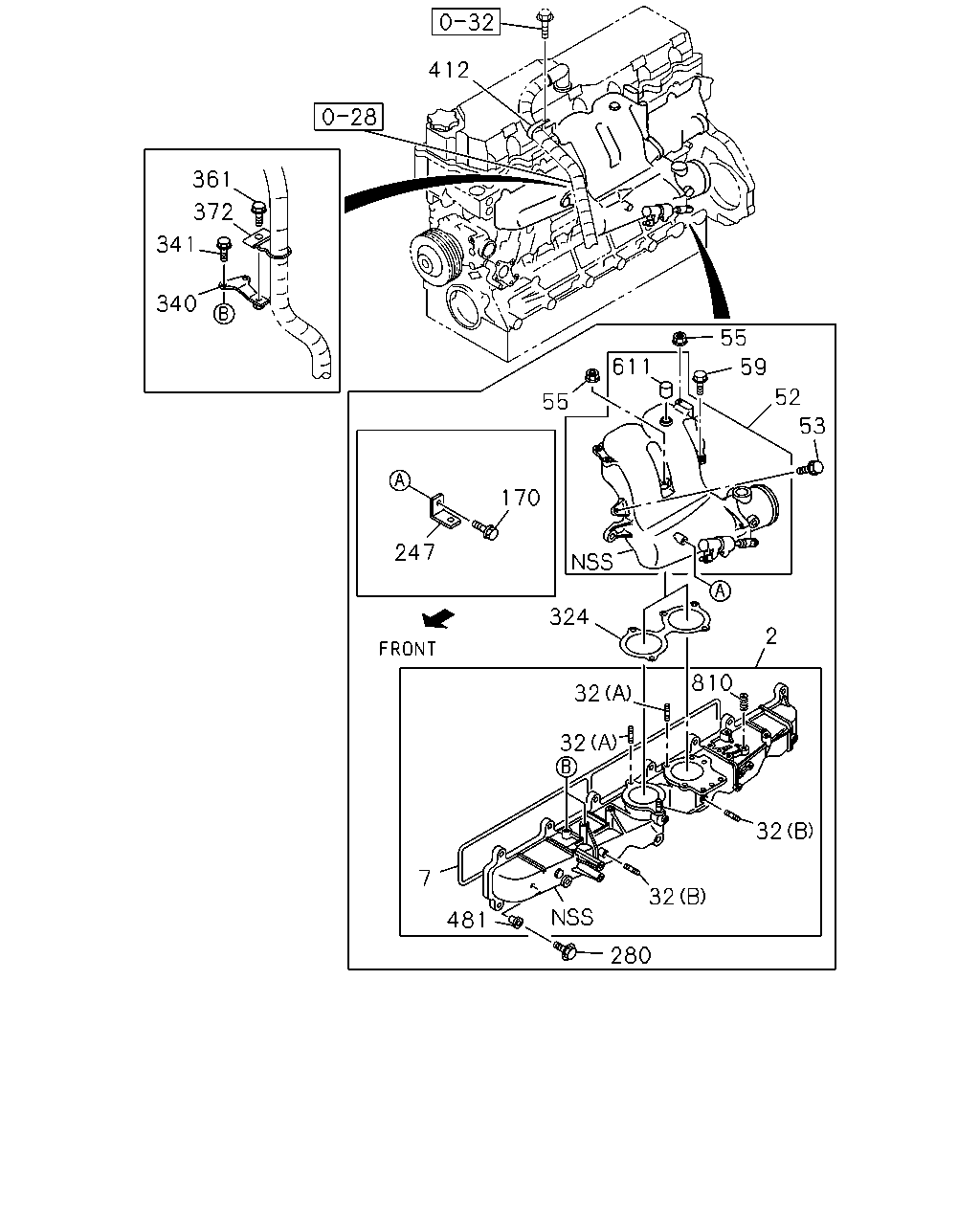

0-25 — INLET MANIFOLD
(#18611) — 31 parça
412
361
372
341
340
55
611
59
52
55
53
170
247
324
2
810
32
32
32
7
32
481
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
8-94395-823-1
01
1
0403-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94395-841-0
01
1
0403-
32
STUD; INL PIPE
(B) M6X30 L=38
9-04110-630-0
04
1
0403-0604
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
04
1
0605-
32
STUD; INL PIPE
(A) M8X30 L=41
9-04110-830-0
03
1
0403-0604
32
STUD; INL PIPE
(A) M8X30 L=41
0-41010-830-0
03
1
0605-
52
PIPE; INL
8-94391-607-4
01
1
0403-
53
BOLT; INL PIPE
M8X30 FLANGE
0-28680-830-0
01
1
0403-0512
53
BOLT; INL PIPE
M8X30 FLANGE
0-28650-830-0
01
1
0601-
55
NUT; INL PIPE
M8 FLANGE
0-91150-108-0
03
1
0403-0602
55
NUT; INL PIPE
M8 FLANGE MAL
0-91180-108-0
03
1
0603-
59
BOLT; INL PIPE TO MANIF
M8X30 FLANGE
0-28080-830-0
02
1
0403-0512
59
BOLT; INL PIPE TO MANIF
M8X30 FLANGE
0-28050-830-0
02
1
0601-
170
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
01
1
0403-0512
170
BOLT; BRKT
M8X16 FLANGE MAL
0-28050-816-0
01
1
0601-
247
BRACKET; CLIP
8-94392-277-0
01
1
0403-
280
BOLT; INL COVER
M8X28 FLANGE
0-28080-828-0
14
1
0403-
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94392-243-2
01
1
0403-
340
BRACKET; HARNESS INL MANIF
8-97601-325-0
01
1
0403-
341
BOLT; BRKT,INL COVER
M8X16 FLANGE
0-28080-816-0
02
1
0403-0512
341
BOLT; BRKT,INL COVER
M8X16 FLANGE MAL
0-28050-816-0
02
1
0601-
361
BOLT; CLIP
M10X12 FLANGE
0-28081-012-0
01
1
0403-0512
361
BOLT; CLIP
M10X12 FLANGE
0-28051-012-0
01
1
0601-
372
CLIP; HOSE
1-11369-115-0
01
1
0403-1506
372
CLIP; HOSE
8-98303-447-0
01
1
1507-
412
CLIP; HARNESS
5-09700-342-0
01
1
0403-
481
TUBE; DIST,INL COVER
OD=22
8-94395-684-0
14
1
0403-
611
CUP; SEALING,INT DUCT
OD=18
5-11219-008-0
01
1
0403-0503
611
CUP; SEALING,INT DUCT
OD=18
5-11219-008-0
02
1
0504-0507
611
CUP; SEALING,INT DUCT
OD=18
5-11219-008-0
01
1
0508-
810
HELISERT
9-09957-008-0
03
1
0403-
