Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#18607) — 49 parça
◀

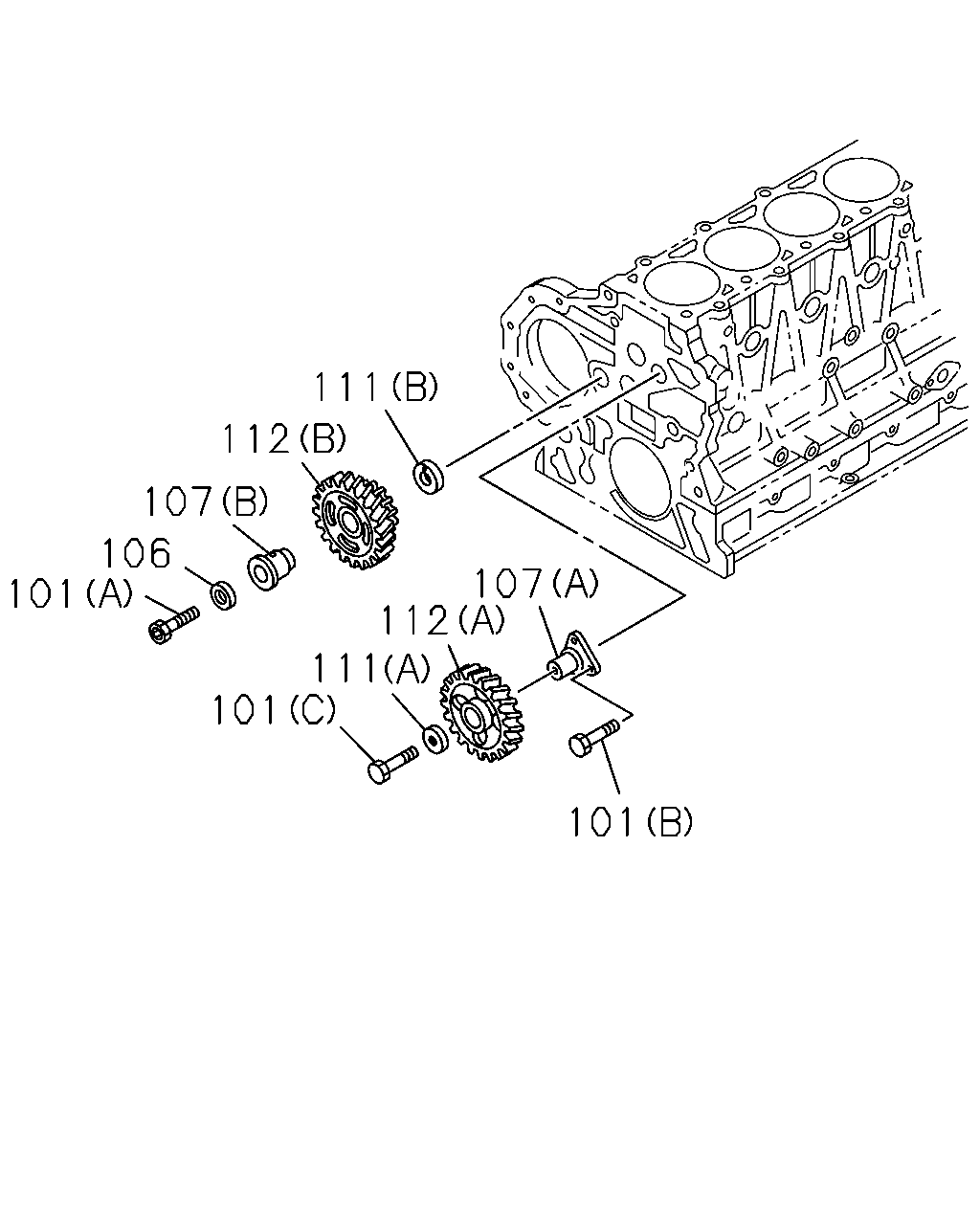

[014A] FIXING;IDLE GEAR (12 parça)

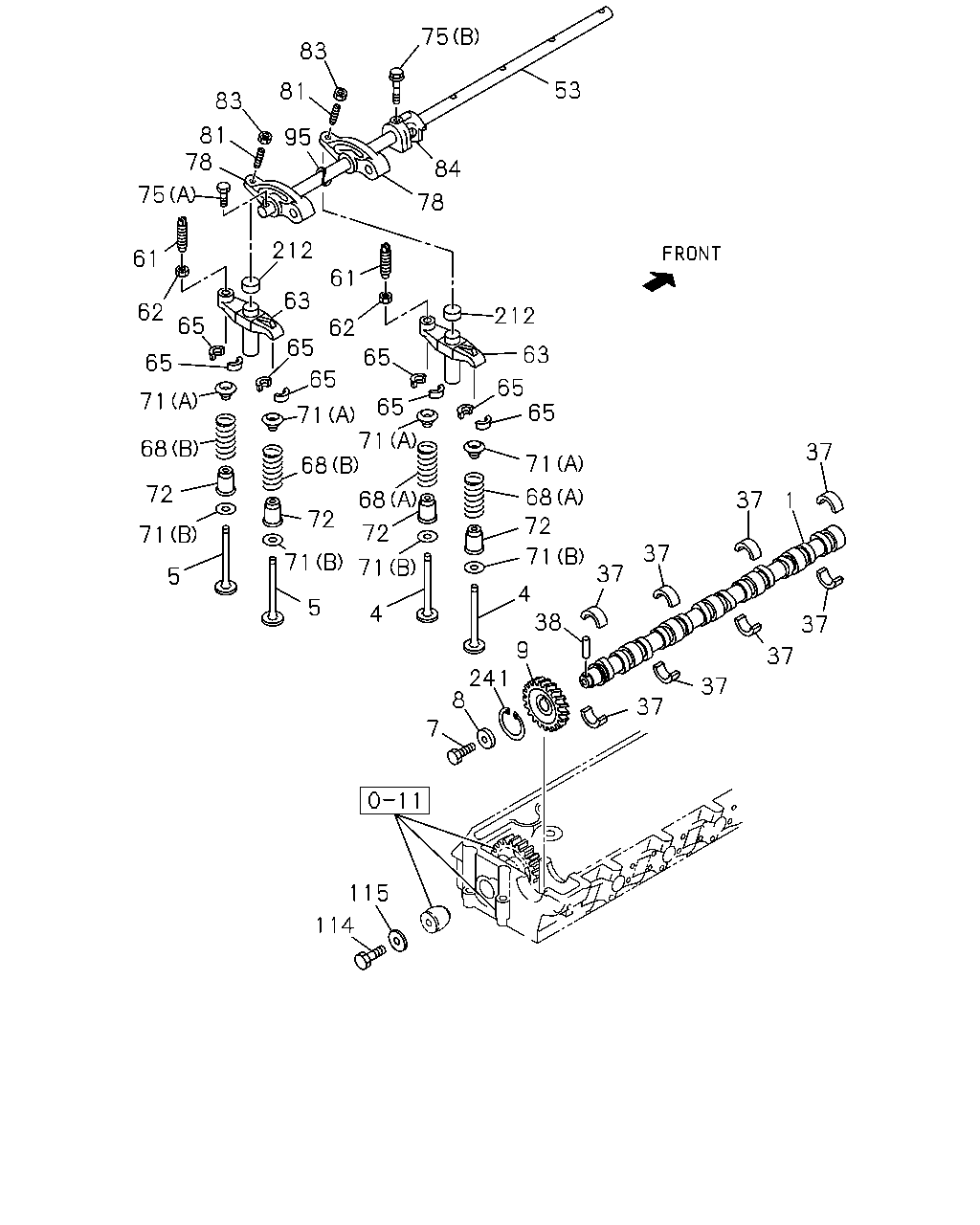

[014A] VALVE AND CAMSHAFT (37 parça)
▶
111
112
107
106
101
107
112
101
101
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28090-816-0
03
1
0403-0512
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
0601-
101
BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET
8-94394-779-2
01
1
0403-
101
BOLT; THRUST COLLAR
(C) M14X30
9-92361-430-0
01
1
0403-0512
101
BOLT; THRUST COLLAR
(C) M14X30
0-23951-430-0
01
1
0601-
106
WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23
1-09503-031-0
01
1
0403-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
0403-
107
SHAFT; IDLE GEAR
(B)
8-97602-588-0
01
1
0403-
111
COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70
8-94394-097-1
01
1
0403-
111
COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46
8-97209-728-2
01
1
0403-
112
GEAR; IDLE
(A) Z=61
8-94393-439-4
01
1
0403-
112
GEAR; IDLE
(B) Z=72-30
8-94394-092-3
01
1
0403-
75
83
53
81
83
81
78
95
84
75
78
212
61
61
63
62
212
65
62
65
63
65
65
65
65
65
71
65
71
71
68
68
37
71
72
68
68
37
1
72
72
72
71
71
37
71
71
37
5
4
38
9
5
4
37
37
241
8
37
37
7
115
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-94390-469-1
01
1
0403-1311
1
CAMSHAFT
8-98227-260-1
01
1
1312-
4
VALVE; INL
8-94395-881-3
12
1
0403-
5
VALVE; EXH
8-97209-876-4
12
1
0403-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
0403-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0403-
9
GEAR; CM/SHF
Z=35
8-94390-151-0
01
1
0403-
37
METAL; CM/SHF
UPPER B=16
8-97356-939-0
04
1
0403-0706
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
0707-
37
METAL; CM/SHF
LOWER B=26
8-97602-699-0
04
1
0403-
38
PIN; CAM BRG SET
OD=7 L=7.5
8-94399-487-0
01
1
0403-
53
SHAFT; ROCKER ARM
8-94392-996-1
01
1
0403-0610
53
SHAFT; ROCKER ARM
8-97389-918-0
01
1
0611-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
0403-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
12
1
0403-
63
BRIDGE
8-94392-002-3
12
1
0403-
65
COLLAR; SPLIT
5-12565-004-0
48
1
0403-
68
SPRING; VLV
(A) INLET MARK BLUE
8-94395-884-0
12
1
0403-
68
SPRING; VLV
(B) EXHAUST MARK WHITE
8-94395-885-1
12
1
0403-
71
SEAT; SPR
(B) OD=32.8 T=12.75
8-94390-783-2
24
1
0403-
71
SEAT; SPR
(A) ID=14.3 T=1.0
8-94391-468-0
24
1
0403-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97120-307-0
24
1
0403-0707
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
0708-
75
BOLT; BRKT
(A) M8X40 FLANGE
0-28080-840-0
02
1
0403-0512
75
BOLT; BRKT
(A) M8X40 FLANGE
0-28050-840-0
02
1
0601-
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
0403-
78
ARM; ROCKER
INLET
8-97306-421-3
06
1
0403-
78
ARM; ROCKER
EXHAUST
8-97306-424-3
06
1
0403-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
0403-
83
NUT; ADJ SCREW,LK
M10
9-09111-410-0
12
1
0403-0512
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
0601-
84
BRACKET; ROCKER SHAFT,INTER
8-94395-836-2
05
1
0403-
95
SPRING; ROCKER SHAFT
8-94392-999-0
06
1
0403-
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
0403-
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
0403-
212
CAP; ADJ SCREW
8-94396-015-2
12
1
0403-
241
RING; FRICTION
8-97603-297-0
01
1
0403-
