Sayfa 2-30 - Isuzu EPC

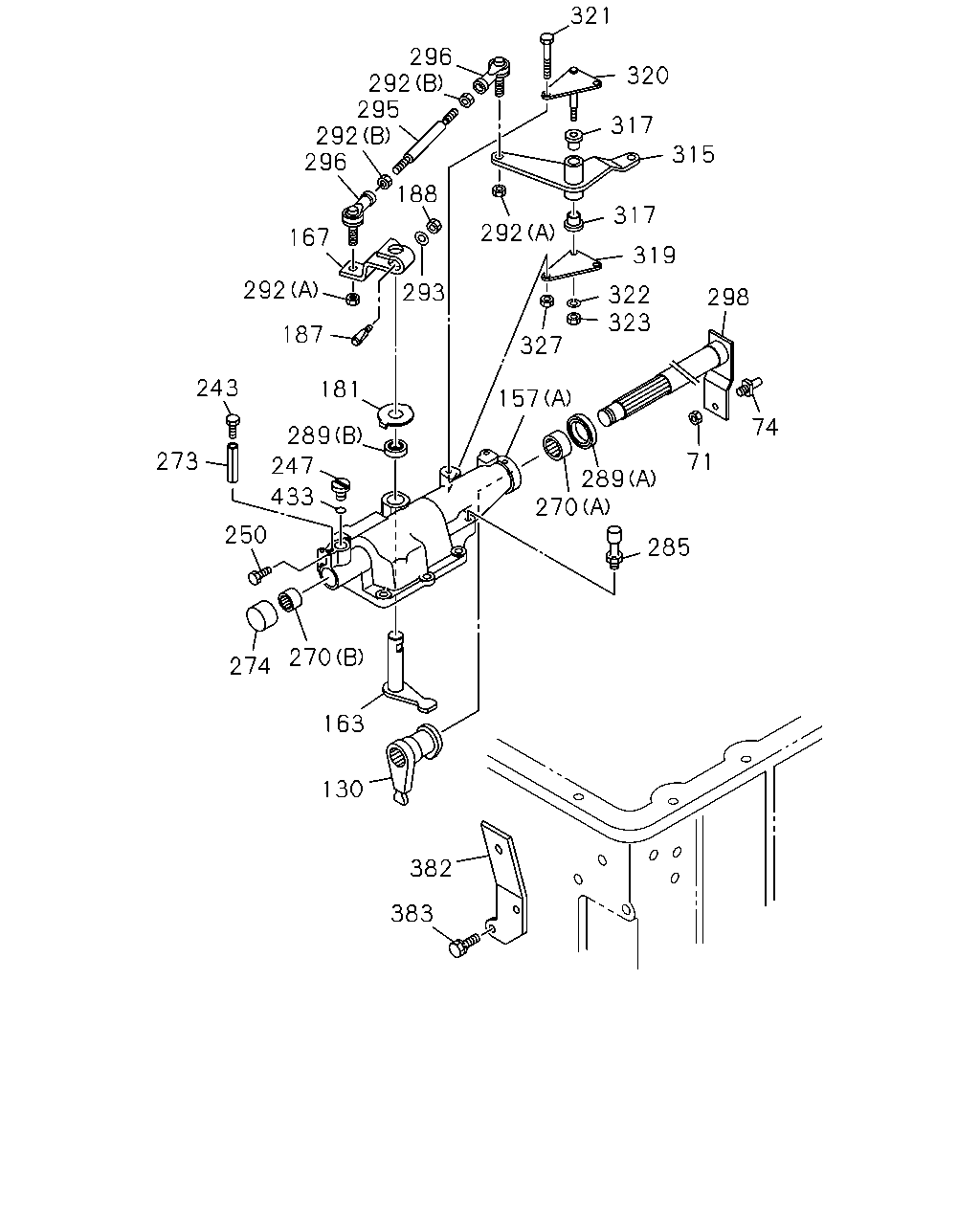

2-30 — GEAR SHIFTER AND QUADRANT BOX (#186) — 324 parça

321 296 292 295 292 296 320 317 315 188 317 292 167 319 292 293 322 323 298 187 327 243 181 157 74 289 273 71 247 289 270 433 250 285 270 274 163 130 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
71	NUT; SHIFT LEVER M10 FLANGE	0-91150-210-0	01	1	9212-	●
74	PIN; WIRE,SHIFT LEVER	1-33659-115-0	01	1	9212-	●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9212-		●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9212-	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9212-		●		●
157	BOX; QUAD,TRANS	1-33541-437-0	01	1	9212-			●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9212-	●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9212-	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9212-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9212-	●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9212-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9212-	●
181	WASHER; PL,SELECT LEVER (A)	1-09532-007-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER (B)	9-09160-708-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER	1-09532-008-0	01	1	9212-	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9212-	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9212-9304	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9212-	●
247	BUSHING ASM; DETENT	1-33529-019-0	01	1	9212-	●
250	SCREW; BUSHING	9-06130-618-0	01	1	9212-	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-006-0	01	1	9212-	●
270	BEARING; NEEDLE,QUAD BOX (B) NSK	1-09811-057-0	01	1	9212-	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-260-0	01	1	9212-	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9212-	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9212-	●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9212-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9212-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9212-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9212-	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9212-9301	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9212-	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9212-	●
295	ROD; LINK,RELAY LEVER L=130	1-33652-392-0	01	1	9212-9402	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●
296	ROD END L=48	1-09760-038-1	02	1	9212-	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9212-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9212-	●
315	LEVER; SELECT	1-33651-496-0	01	1	9212-	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9212-	●
319	BRACKET; SELECT LEVER	1-33657-240-0	01	1	9212-	●
320	SHAFT; LEVER	1-33657-241-0	01	1	9212-	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9212-	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9212-	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9212-	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9212-	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9212-	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9212-		●		●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-136-3	01	1	9212-			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-0	01	1	9212-	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	9212-			●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9212-	●
433	GASKET; BUSHING	1-09623-130-0	01	1	9212-	●

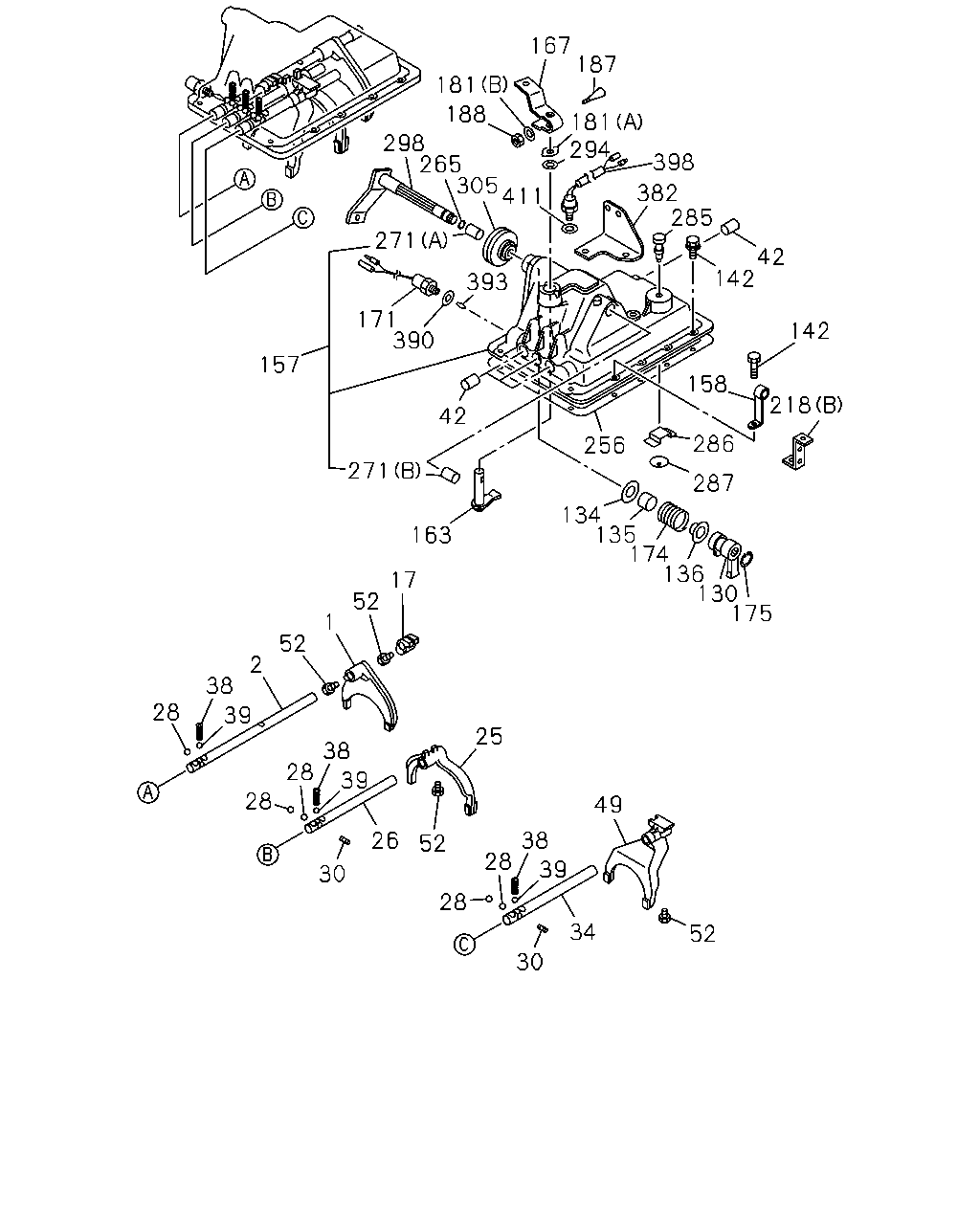

167 187 181 188 181 294 298 265 305 411 398 382 285 271 42 142 393 171 390 142 157 158 218 42 286 256 271 287 134 135 174 136 130 175 163 17 52 1 52 2 38 28 39 25 38 28 39 28 49 38 28 26 52 39 30 28 34 52 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9212-		●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9212-		●	●	●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9212-		●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9212-		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9212-		●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9212-		●		●
28	BALL; INTER LK	9-00097-010-0	07	1	9212-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9212-	●
30	PIN; INTER LK	1-33534-002-0	02	1	9212-		●		●
30	PIN; INTER LK	1-33534-002-0	03	1	9212-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9212-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9212-		●	●	●
38	SPRING; DETENT	1-09580-374-0	03	1	9212-		●		●
38	SPRING; DETENT	1-09580-374-0	04	1	9212-			●
38	SPRING; DETENT	1-09580-419-0	04	1	9212-	●
39	BALL; DETENT	9-00097-013-0	03	1	9212-		●		●
39	BALL; DETENT	9-00097-013-0	04	1	9212-			●
39	BALL; DETENT	1-09843-012-0	04	1	9212-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9212-		●		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9212-		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9212-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9212-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9212-		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-445-0	01	1	9212-			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9212-		●		●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9212-			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9212-		●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9212-	●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9212-		●	●	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9212-		●	●	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9212-		●		●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9212-		●		●
142	BOLT; QUAD BOX M10X34	1-09040-091-0	01	1	9212-		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9212-	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9212-			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9212-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9212-	●
142	BOLT; QUAD BOX M10X60	1-09049-020-0	02	1	9212-	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9212-		●		●
157	BOX; QUAD,TRANS	1-33541-437-0	01	1	9212-			●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9212-	●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9212-	●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9212-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9212-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9212-	●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9212-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9212-	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9212-		●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9212-	●
174	SPRING; REV	1-09580-443-0	01	1	9212-		●	●	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER (A)	1-09532-007-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER (B)	9-09160-708-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER	1-09532-008-0	01	1	9212-	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9212-	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9212-9304	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9212-	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9212-	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9212-		●		●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-037-1	01	1	9212-			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9212-		●	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9212-		●	●	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9212-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9212-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9212-	●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9212-		●	●	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9212-		●	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9212-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9212-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9212-	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9212-		●	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9212-		●		●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-136-3	01	1	9212-			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-0	01	1	9212-	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9212-		●	●	●
393	PIN; SW	1-33534-003-0	01	1	9212-		●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9212-	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9212-		●	●	●

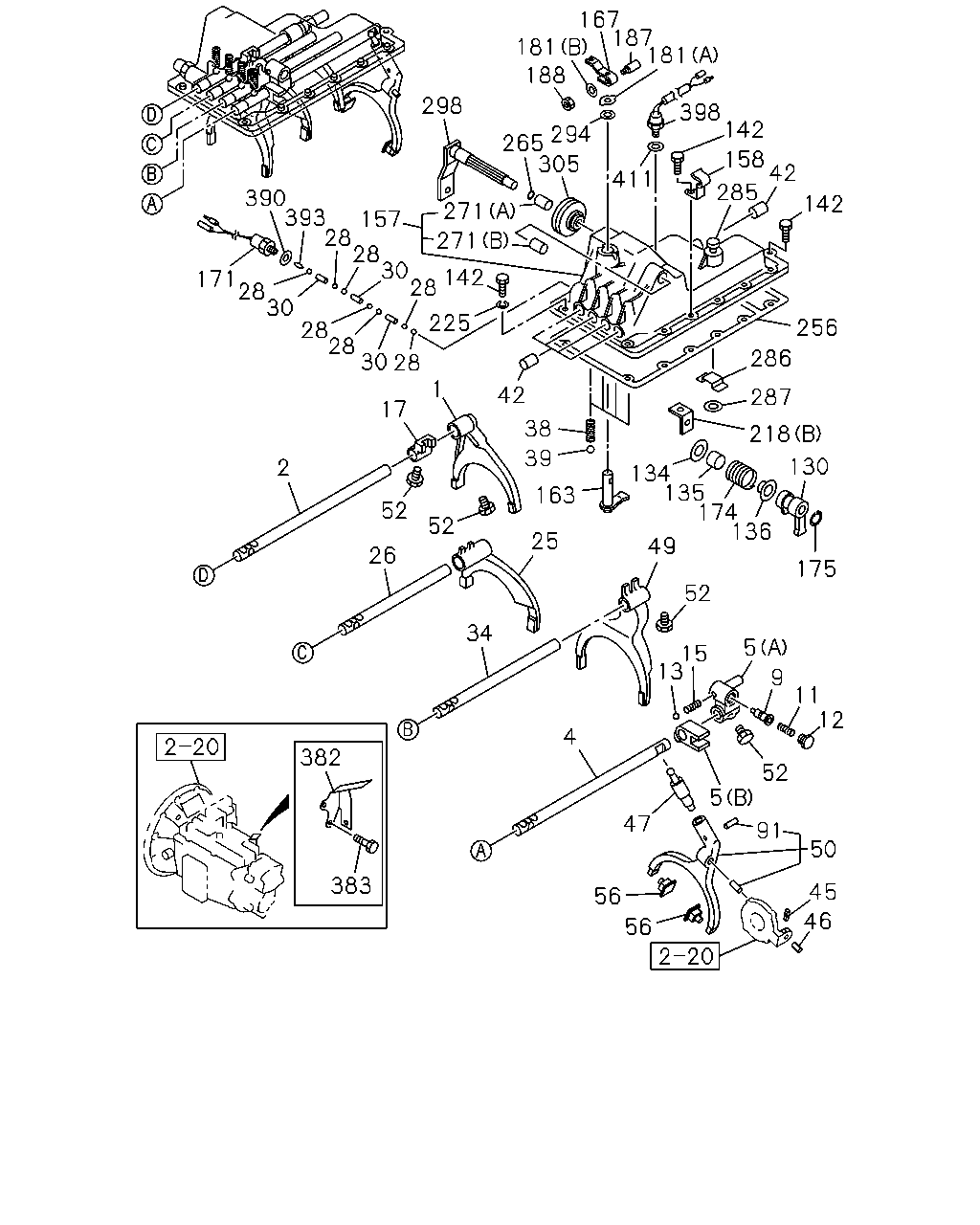

167 187 181 181 188 298 398 142 294 265 305 158 42 411 285 271 30 393 28 28 30 142 28 142 157 271 171 28 30 28 28 225 256 286 1 42 287 17 38 218 39 130 2 134 135 174 136 163 52 52 25 49 26 175 52 34 5 15 13 9 11 12 4 382 52 5 47 91 50 383 45 56 46 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9212-		●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9212-		●	●	●
4	ROD; SHIFT,6TH	1-33531-344-1	01	1	9212-			●
5	BLOCK; SHIFT,6TH (A)	1-33511-320-2	01	1	9212-			●
5	BLOCK; SHIFT,6TH (B)	1-33511-326-1	01	1	9212-			●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9212-			●
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9212-9304			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9212-9304	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9305-	●		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9212-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9212-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9212-			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9212-	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9212-9304			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-526-0	01	1	9305-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9212-	●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9212-		●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9212-		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9212-		●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9212-		●		●
28	BALL; INTER LK	9-00097-010-0	07	1	9212-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9212-	●
30	PIN; INTER LK	1-33534-002-0	02	1	9212-		●		●
30	PIN; INTER LK	1-33534-002-0	03	1	9212-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9212-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9212-		●	●	●
38	SPRING; DETENT	1-09580-374-0	03	1	9212-		●		●
38	SPRING; DETENT	1-09580-374-0	04	1	9212-			●
38	SPRING; DETENT	1-09580-419-0	04	1	9212-	●
39	BALL; DETENT	9-00097-013-0	03	1	9212-		●		●
39	BALL; DETENT	9-00097-013-0	04	1	9212-			●
39	BALL; DETENT	1-09843-012-0	04	1	9212-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9212-		●		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9212-		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9212-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9212-	●
45	PIN; SPRING,SHIFT LEVER	1-09748-016-0	01	1	9212-			●
46	PIN; 6TH SHIFT ARM	1-33522-093-0	01	1	9212-			●
47	LEVER; SHIFT,6TH ARM	1-33521-101-1	01	1	9212-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9212-		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-445-0	01	1	9212-			●
50	ARM; SHIFT,6TH	1-33511-457-1	01	1	9212-			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9212-		●		●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9212-			●
56	PIECE; SHIFT,6TH ARM	1-33518-002-0	02	1	9212-			●
91	PIN; SPR,SHIFT ARM	1-09748-015-0	01	1	9212-			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9212-		●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-093-1	01	1	9212-	●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9212-		●	●	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9212-		●	●	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9212-		●		●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9212-		●		●
142	BOLT; QUAD BOX M10X34	1-09040-091-0	01	1	9212-		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9212-	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9212-			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9212-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9212-	●
142	BOLT; QUAD BOX M10X60	1-09049-020-0	02	1	9212-	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9212-		●		●
157	BOX; QUAD,TRANS	1-33541-437-0	01	1	9212-			●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9212-	●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9212-	●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9212-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9212-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9212-	●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9212-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9212-	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9212-		●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9212-	●
174	SPRING; REV	1-09580-443-0	01	1	9212-		●	●	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER (A)	1-09532-007-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER (B)	9-09160-708-0	01	1	9212-		●	●	●
181	WASHER; PL,SELECT LEVER	1-09532-008-0	01	1	9212-	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9212-	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9212-9304	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9212-	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9212-	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9212-	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9212-		●		●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-037-1	01	1	9212-			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9212-		●	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9212-		●	●	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9212-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9212-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9212-	●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9212-		●	●	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9212-		●	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9212-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9212-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-091-1	01	1	9212-	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9212-		●	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9212-		●		●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-136-3	01	1	9212-			●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-0	01	1	9212-	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	9212-			●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	9212-	●
393	PIN; SW	1-33534-003-0	01	1	9212-		●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9212-	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9212-		●	●	●

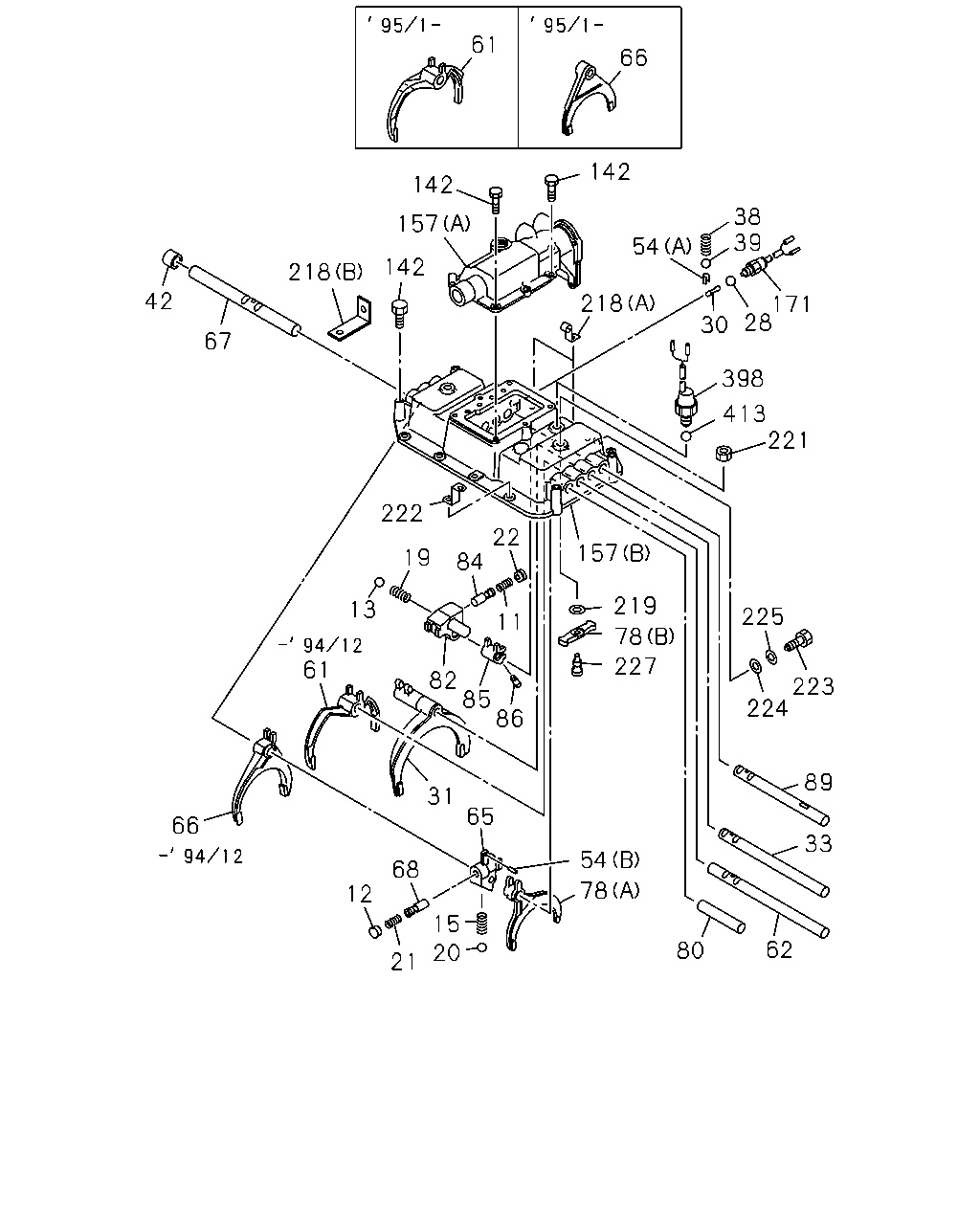

61 66 142 142 38 39 157 54 142 218 218 42 171 28 30 67 398 413 221 222 22 84 157 19 219 13 225 11 78 61 227 82 85 86 223 224 89 31 65 66 33 54 68 15 20 78 12 62 80 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9212-9304			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9212-9304	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9305-	●		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9212-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9212-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9212-			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9212-	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9212-9304			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-526-0	01	1	9305-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9212-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9212-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9212-	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9212-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9212-	●
28	BALL; INTER LK	9-00097-010-0	05	1	9212-		●		●
28	BALL; INTER LK	9-00097-010-0	07	1	9212-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9212-	●
30	PIN; INTER LK	1-33534-002-0	02	1	9212-		●		●
30	PIN; INTER LK	1-33534-002-0	03	1	9212-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9212-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9212-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9212-	●
38	SPRING; DETENT	1-09580-374-0	03	1	9212-		●		●
38	SPRING; DETENT	1-09580-374-0	04	1	9212-			●
38	SPRING; DETENT	1-09580-419-0	04	1	9212-	●
39	BALL; DETENT	9-00097-013-0	03	1	9212-		●		●
39	BALL; DETENT	9-00097-013-0	04	1	9212-			●
39	BALL; DETENT	1-09843-012-0	04	1	9212-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9212-		●		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9212-		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9212-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9212-	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9212-	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9212-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9212-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9212-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9212-9412	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-	●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9212-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9212-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9212-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9212-	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9212-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9212-	●
84	SLEEVE; REV	1-33516-025-0	01	1	9212-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9212-	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9212-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9212-	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9212-		●		●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9212-		●		●
142	BOLT; QUAD BOX M10X34	1-09040-091-0	01	1	9212-		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9212-		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9212-	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9212-			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9212-	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9212-	●
142	BOLT; QUAD BOX M10X60	1-09049-020-0	02	1	9212-	●
157	BOX; QUAD,TRANS	1-33541-353-1	01	1	9212-		●		●
157	BOX; QUAD,TRANS	1-33541-437-0	01	1	9212-			●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9212-	●
157	BOX; QUAD,TRANS (A)	1-33541-392-1	01	1	9212-	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9212-		●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9212-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47476-812-1	01	1	9212-	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-09700-415-0	01	1	9212-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9212-	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9212-	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9212-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9212-	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9212-	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9212-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9212-	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9212-	●	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9212-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
