8-60 — HEATER UNIT; FRONT (#18593) — 68 parça

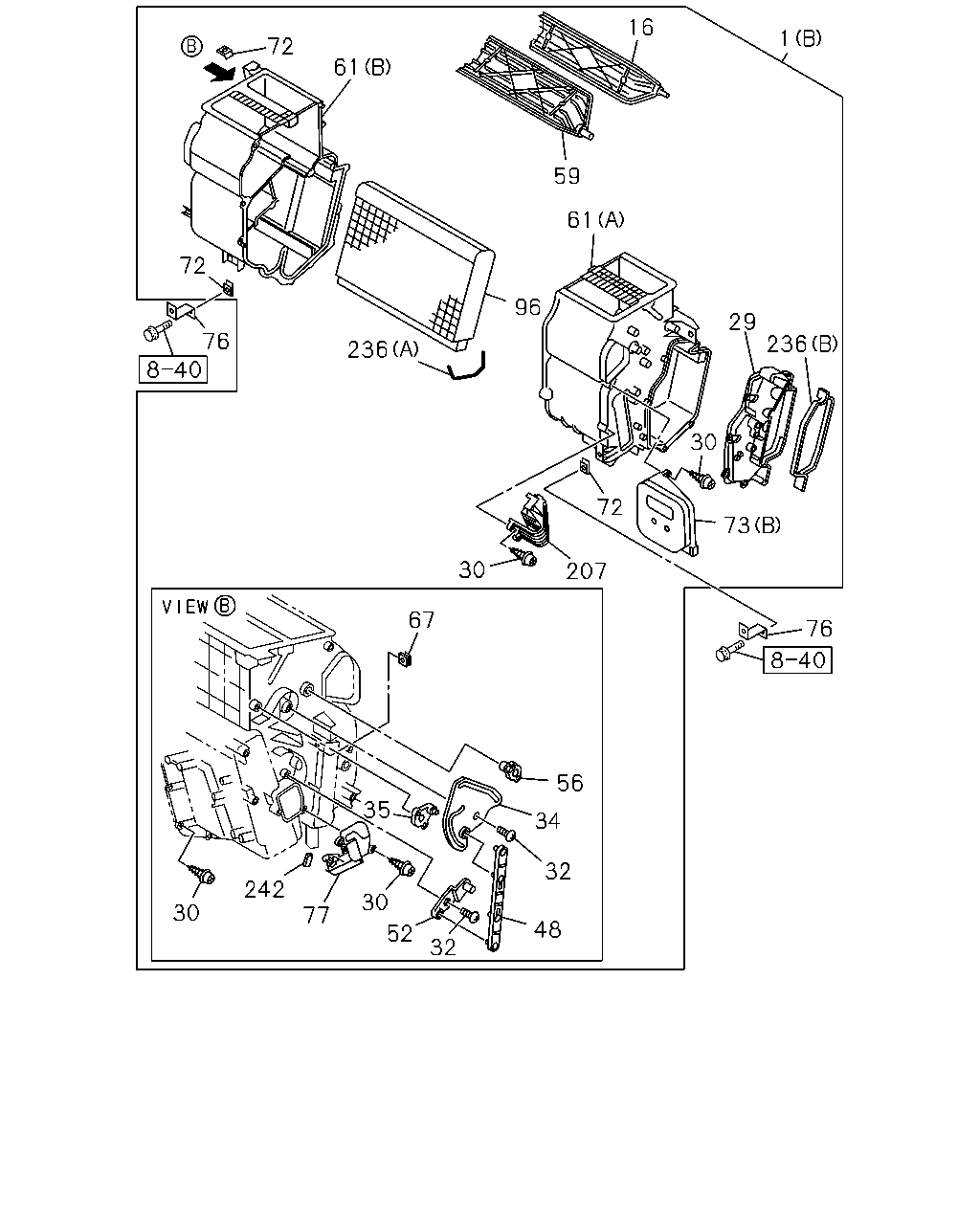

çizim 96864
76 73 72 30 29 236 61 59 16 1 96 236 76 72 61 72 207 30 67 56 34 32 48 32 52 30 77 242 30 35
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 1110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 1110-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98214-400-1 01 1 1302-
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 1110-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302-
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98074-119-0 01 1 1110-1301
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-119-0 01 1 1302-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1110-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 1110-1301
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 20 1 1302-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 1110-
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 1110-
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 1110-
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 1110-
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 1110-
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 1110-
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 1110-
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 1110-
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 1110-
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 1110-
72 NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 1110-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 1110-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 1110-1301
76 BRACKET; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 1110-
77 COVER; HTR CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 1110-
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-815-0 01 1 1110-1301
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-379-0 01 1 1110-1301
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-379-0 01 1 1302-
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 1110-
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 1110-
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 1110-1411

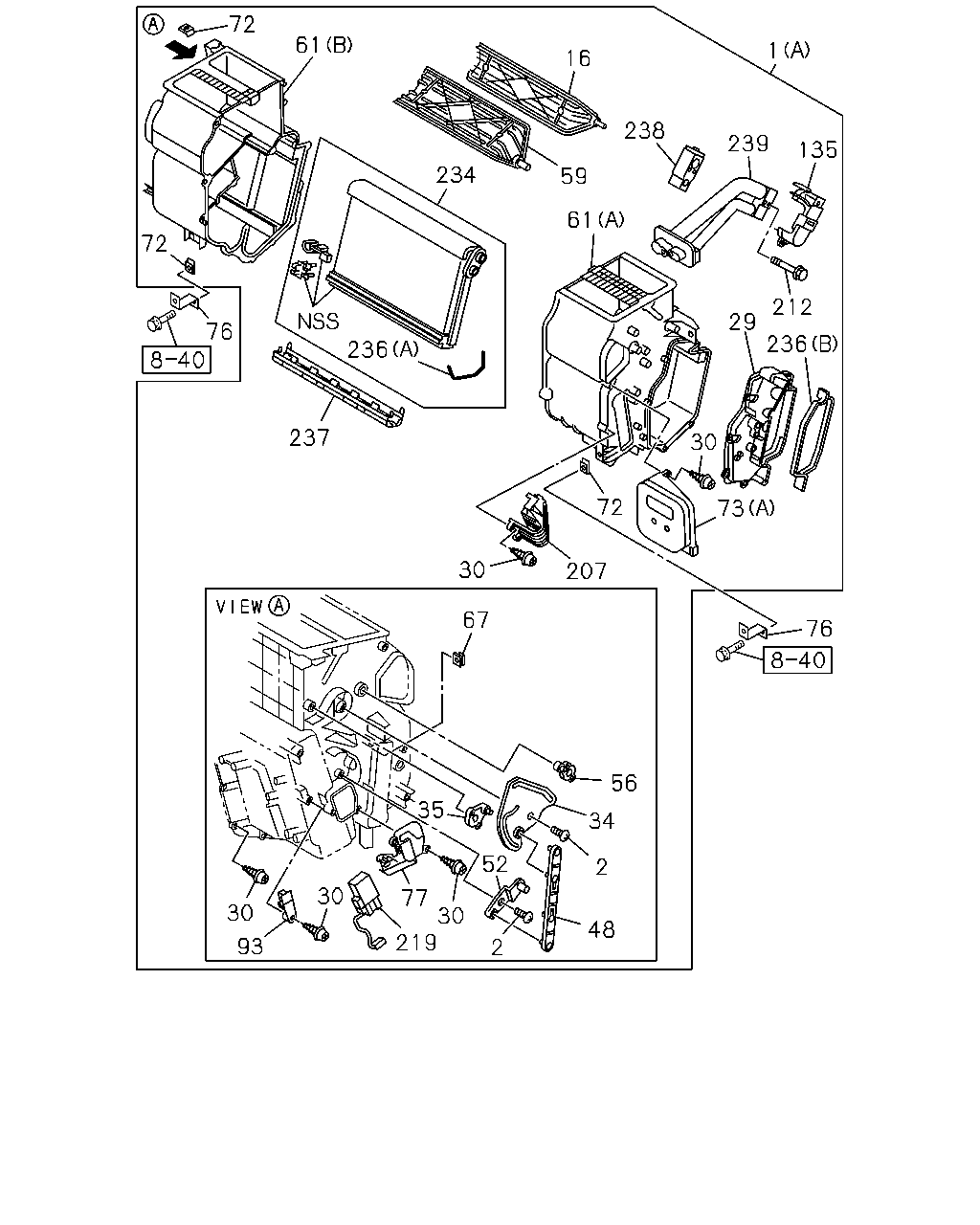

çizim 96947
76 207 30 67 72 73 30 236 29 212 135 239 238 59 61 234 16 61 72 72 76 237 236 1 56 34 2 48 2 52 30 219 77 30 30 93 35
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 1110-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 1110-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98214-400-1 01 1 1302-
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 1110-
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 1110-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302-
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98074-119-0 01 1 1110-1301
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-119-0 01 1 1302-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1110-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 1110-1301
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 20 1 1302-
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 1110-
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 1110-
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 1110-
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 1110-
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 1110-
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 1110-
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 1110-
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 1110-
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 1110-
72 NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 1110-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 1110-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 1110-1301
76 BRACKET; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 1110-
77 COVER; HTR CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 1110-
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-427-0 01 1 1110-
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-384-0 01 1 1110-
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-379-0 01 1 1110-1301
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-379-0 01 1 1302-
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 1110-
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98064-733-0 01 1 1110-
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-116-1 01 1 1110-
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 1110-
236 GASKET; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 1110-
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-382-0 01 1 1110-
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-383-0 01 1 1110-
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-115-0 01 1 1110-
