8-52 — PIPING; AIR CONDITIONING (#18592) — 29 parça

116 174 158 27 27 33 27 158 116 171 156 202 33 116 158 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98052-610-0	01	1	1110-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1110-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1110-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1110-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1110-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1110-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA	8-97095-906-0	02	1	1110-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA	8-97095-907-0	01	1	1110-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98151-702-0	01	1	1110-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28050-625-0	03	1	1110-
171	CAP; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA	8-97095-911-0	01	1	1110-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98041-330-0	01	1	1110-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	1-83564-391-0	01	1	1110-

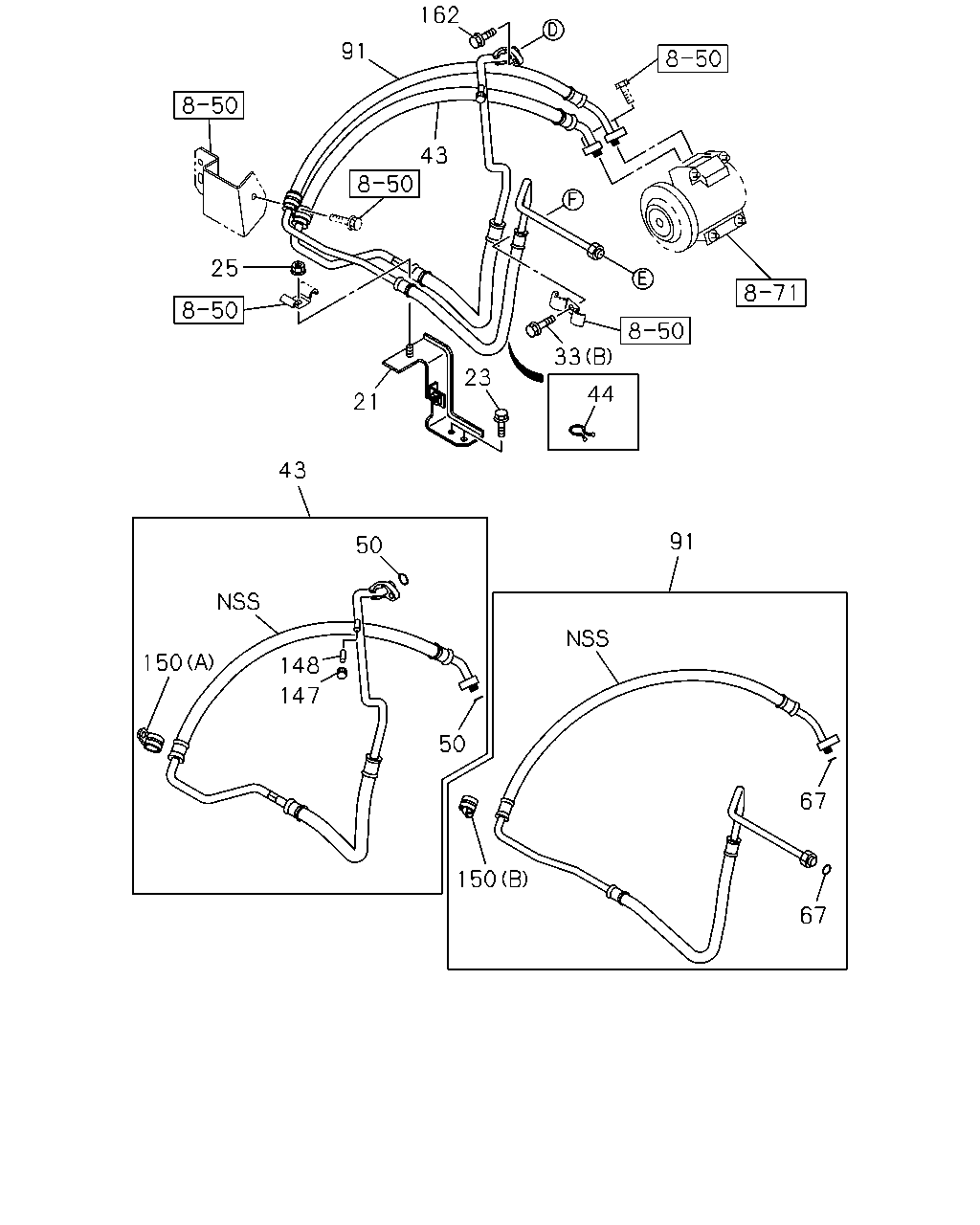

67 67 91 43 50 148 147 150 50 150 44 33 23 21 25 43 91 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98114-846-0	01	1	1211-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98114-846-0	01	1	1110-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA	0-28650-820-0	02	1	1110-
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA	0-91180-108-0	01	1	1110-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1110-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1110-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98052-619-1	01	1	1110-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=30 THA	8-94315-423-0	01	1	1110-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA	8-97095-908-0	02	1	1110-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA	8-97095-907-0	02	1	1110-
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-98052-620-1	01	1	1110-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA	1-83539-331-0	01	1	1110-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97095-909-0	01	1	1110-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	1-83574-249-0	01	1	1110-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	1-83574-264-0	01	1	1110-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28650-625-0	01	1	1110-
