8-50 — AIR CONDITIONING SYSTEM; FRONT (#18591) — 24 parça

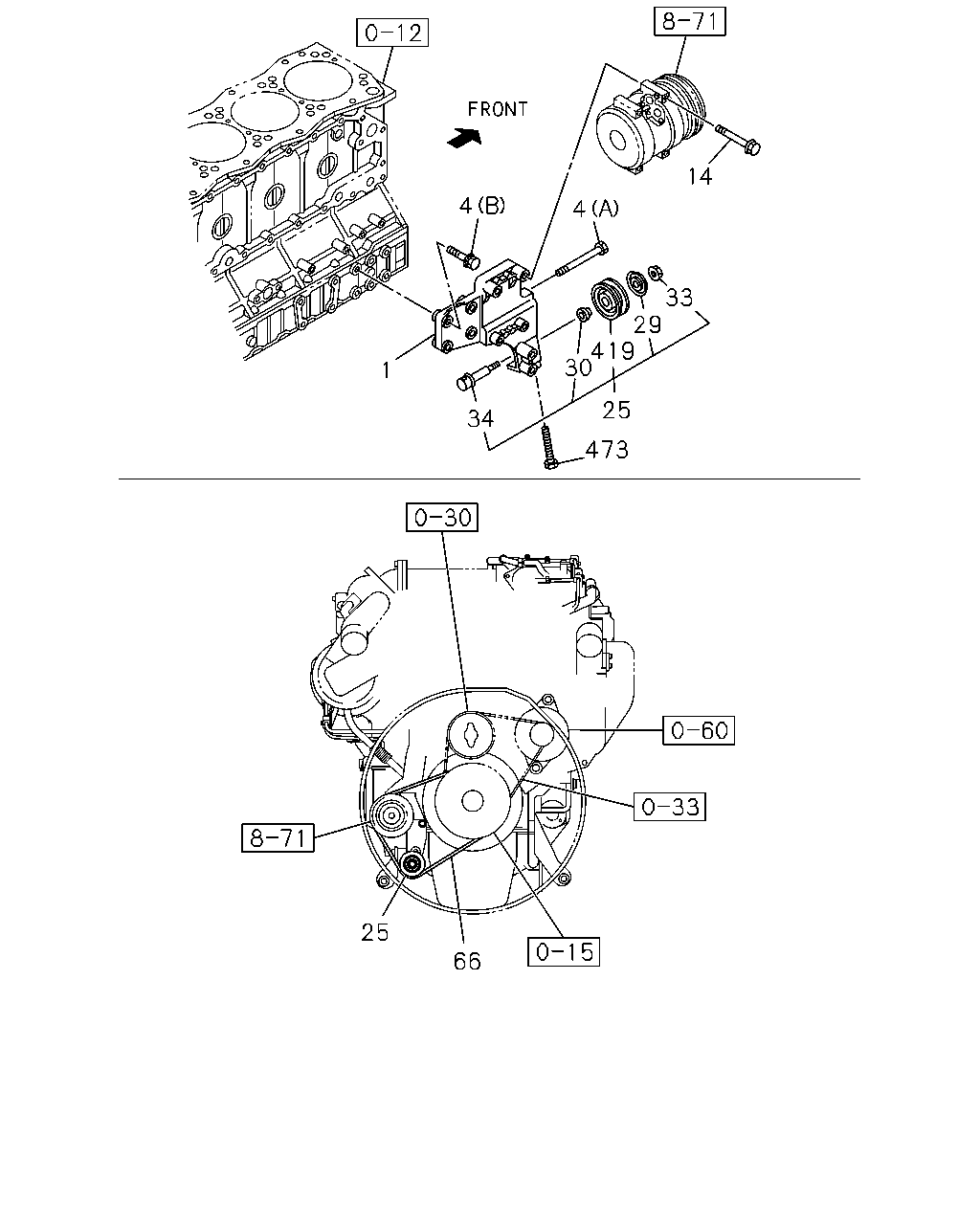

çizim 96697
66 25 473 25 33 29 419 30 34 1 4 4 14
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-97606-311-1 01 1 1110-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M10X45 FLANGE THA 		0-28151-045-0 04 1 1110-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M10X150 FLANGE 		0-28156-015-0 01 1 1110-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X80 FLANGE THA 		0-28050-880-0 04 1 1110-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-97603-949-0 01 1 1110-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-83578-100-0 01 1 1110-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-87540-319-0 01 1 1110-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-83579-985-0 01 1 1110-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-83579-982-0 01 1 1110-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS 		1-87610-102-0 01 1 1110-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1219 		8-97604-086-0 01 1 1110-
419 PULLEY; IDLE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-87540-322-0 01 1 1110-
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X80 FLANGE 		1-09044-091-0 01 1 1110-

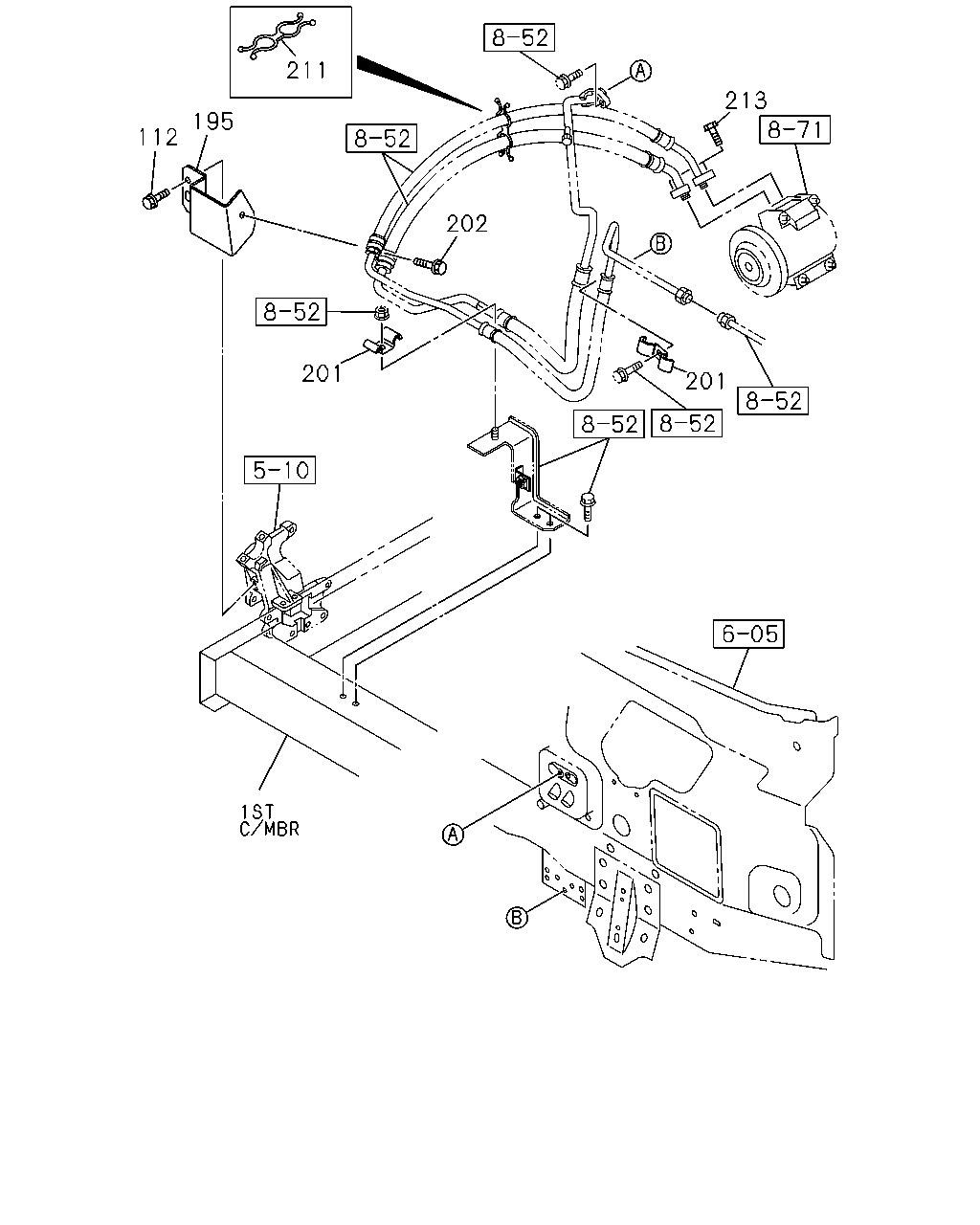

çizim 96791
202 213 201 201 211 195 112
BalonParca AdiParca NoAdetTipApplied Date
112 BOLT; STAY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 02 1 1110-
195 STAY; CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98055-465-0 01 1 1110-
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98043-673-0 02 1 1110-
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 01 1 1110-
211 CLIP; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-94423-042-0 02 1 1110-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA 		0-28650-625-0 02 1 1110-
çizim 96809
378 378 71
BalonParca AdiParca NoAdetTipApplied Date
71 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98017-234-1 01 1 1110-1301
71 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98017-234-1 01 1 1302-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98053-746-1 01 1 1110-1110
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98204-844-0 01 1 1111-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98041-428-0 01 1 1110-
