Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#18588) — 22 parça
◀

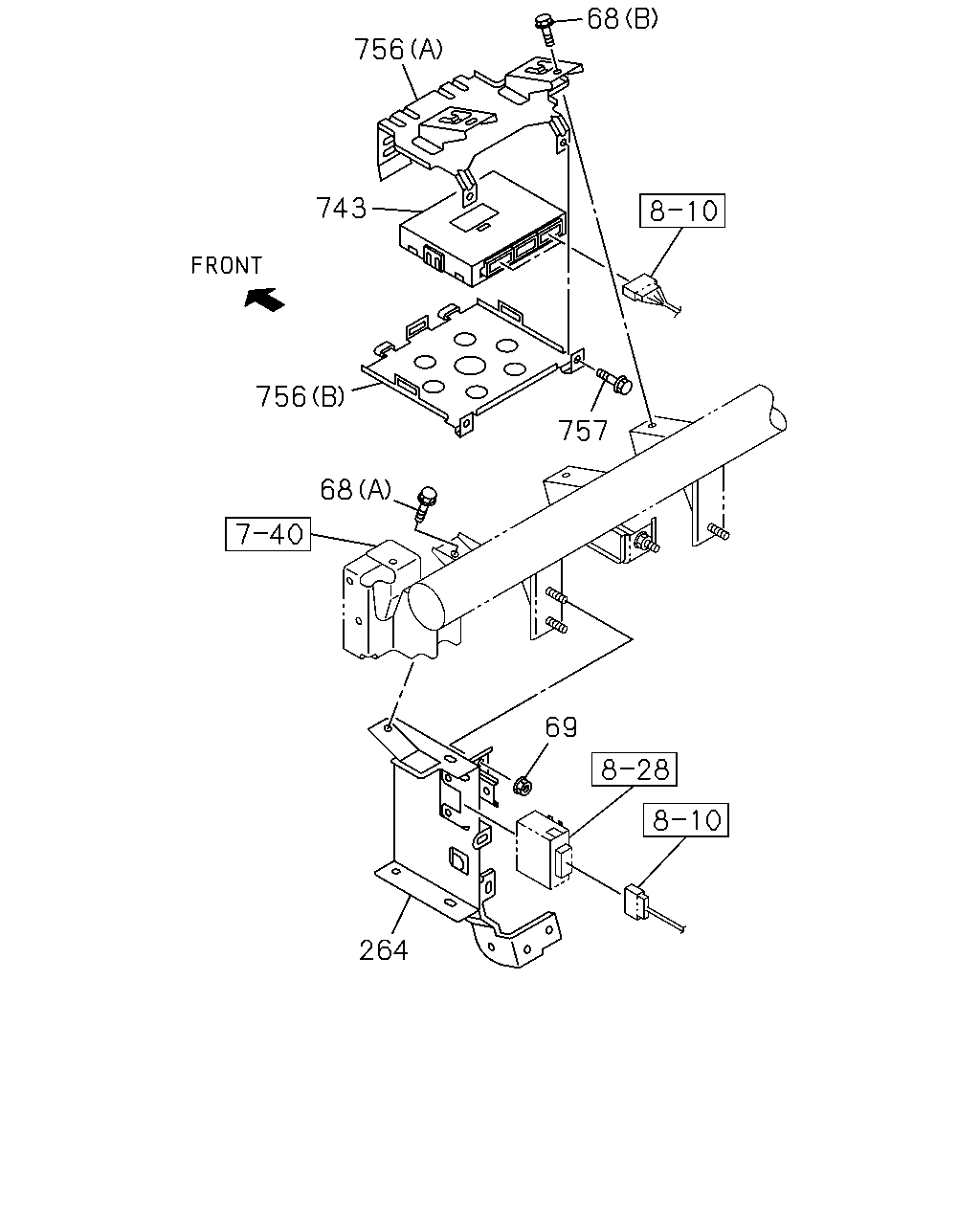

[826A] INST PANEL SIDE NO.2 (8 parça)

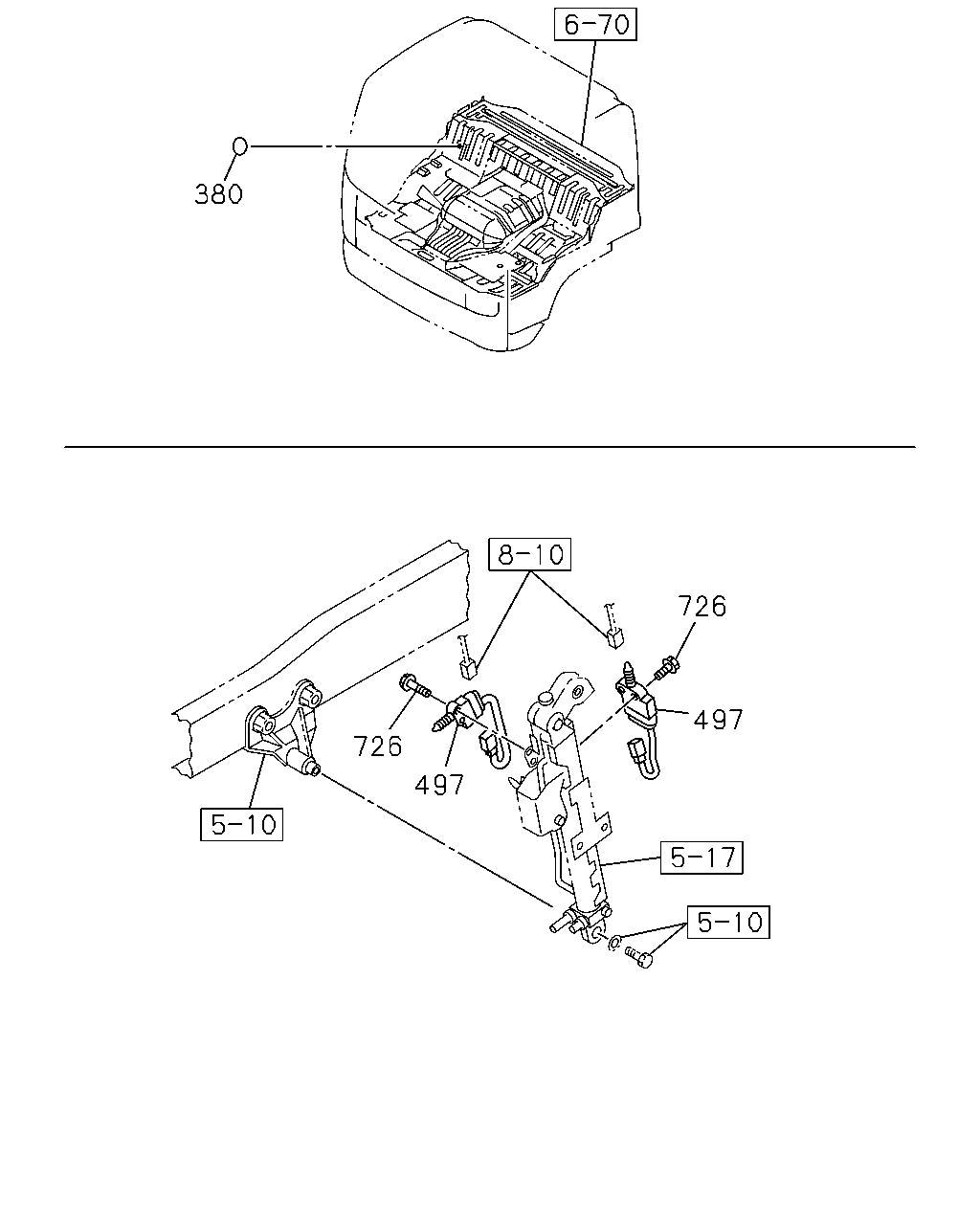

[826A] CAB TILT SWITCH AND SEAL (3 parça)

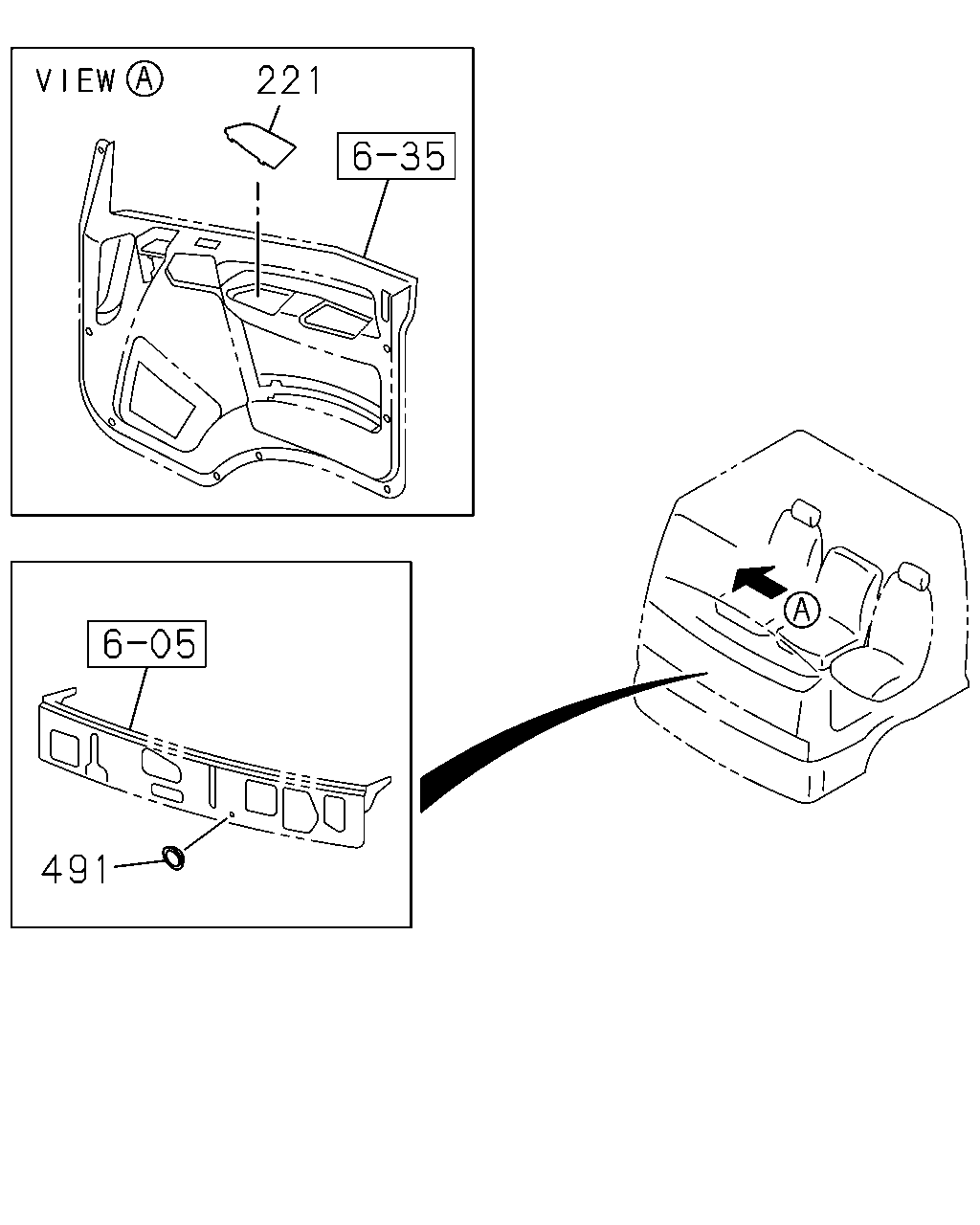

[826A] CAB SIDE (3 parça)

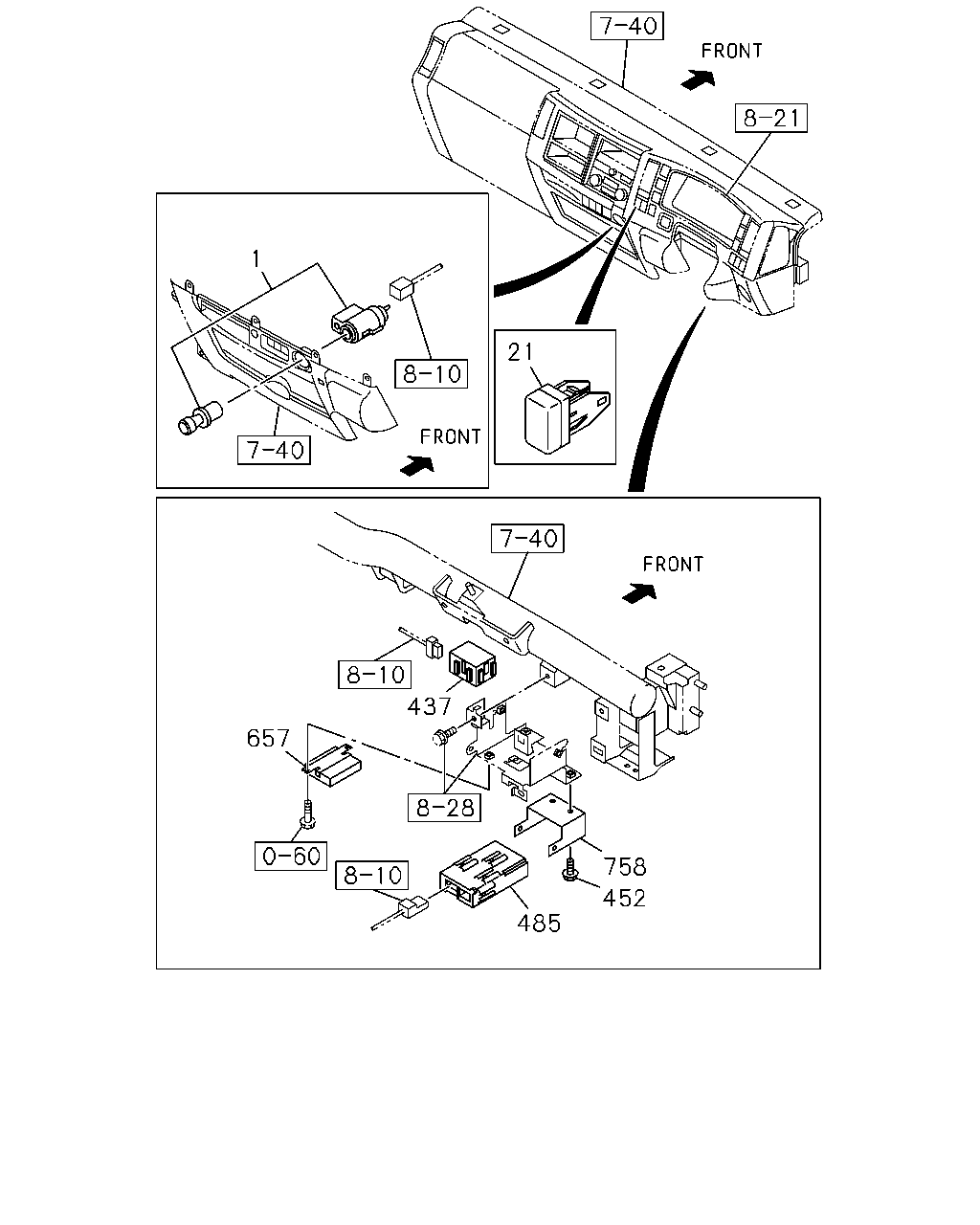

[826A] INST PANEL SIDE NO.1 (8 parça)
▶
68
756
743
756
757
68
69
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1110-
68
BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1110-
69
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1110-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1110-
743
CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98182-026-3
01
1
1110-
756
BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A)
8-98056-411-3
01
1
1110-
756
BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B)
8-98111-836-1
01
1
1110-
757
BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA
0-28650-616-0
02
1
1110-
380
726
497
497
726
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
380
SEAL
OD=25 BLACK THA
1-76798-019-0
01
1
1110-
497
SWITCH; CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> STAMP NO
1-82380-172-1
02
1
1110-
726
BOLT; SW,CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M6X25 FLANGE THA
0-28050-625-0
04
1
1110-
221
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
8-98029-915-2
01
1
1110-
221
COVER; HOLE,DOOR LOCK SW
8-98029-916-2
01
1
1110-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1110-
21
1
657
437
452
485
758
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1110-
21
COVER; HOLE
8-98025-954-1
01
1
1110-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1110-
452
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
02
1
1110-
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1110-
657
CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98013-144-8
01
1
1110-1401
657
CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98260-912-0
01
1
1402-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1110-
