Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

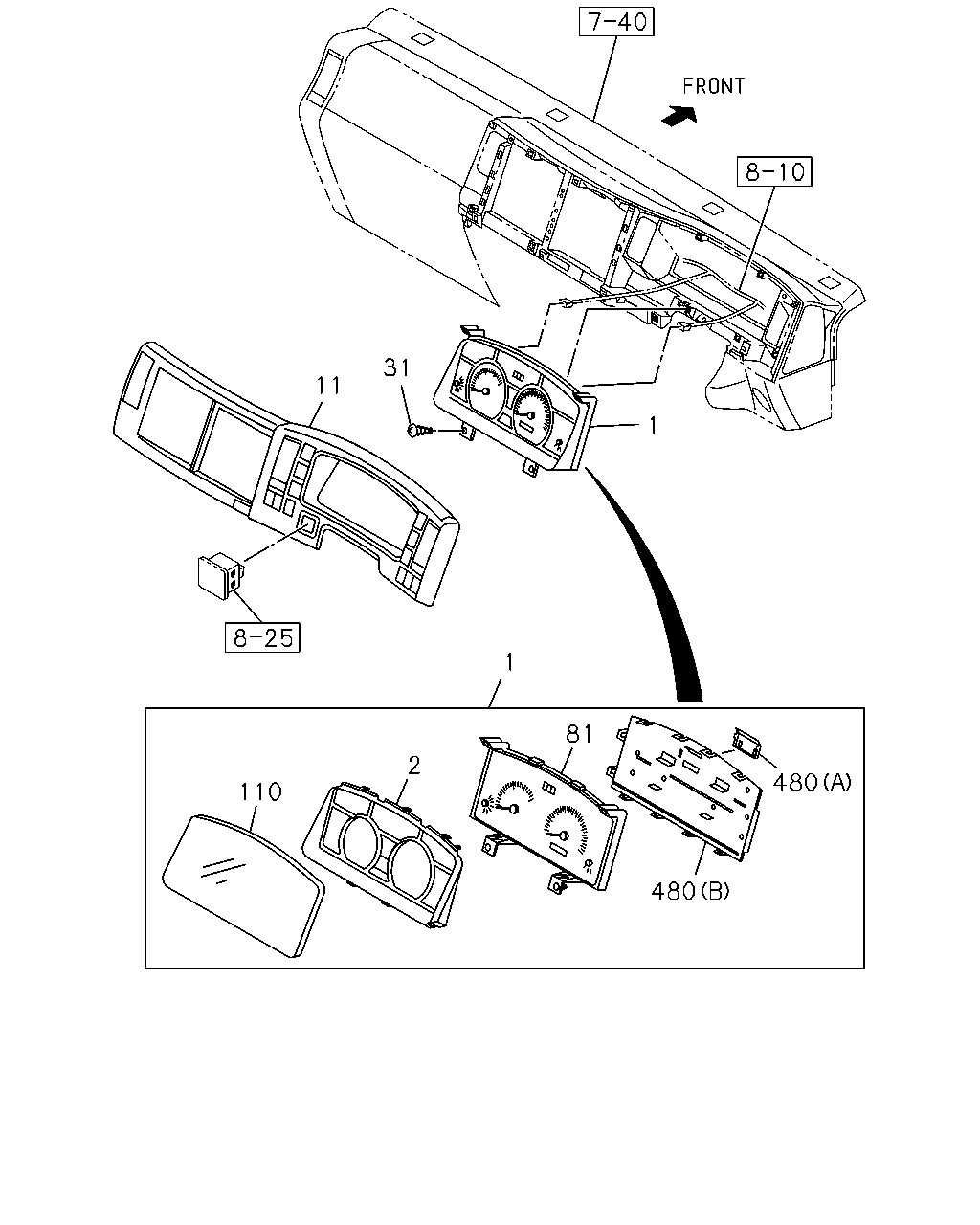

8-21 — METER ASM
(#18586) — 11 parça
11
31
1
1
110
2
81
480
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY>
8-98179-479-2
01
1
1110-
1
METER COMPL; CLUSTER
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98179-478-2
01
1
1110-
2
PANEL; CLUSTER
8-98054-432-0
01
1
1110-
11
CLUSTER ASM; METER
DARK GRAY
8-97405-350-6
01
1
1110-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1110-
81
METER SUB ASM
MULTI INFORMATION DISPLAY<7NY>
8-98179-487-0
01
1
1110-
81
METER SUB ASM
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98179-486-0
01
1
1110-
110
GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY>
8-98054-642-0
01
1
1110-
110
GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98054-431-0
01
1
1110-
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
1110-
480
COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
1110-
