Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

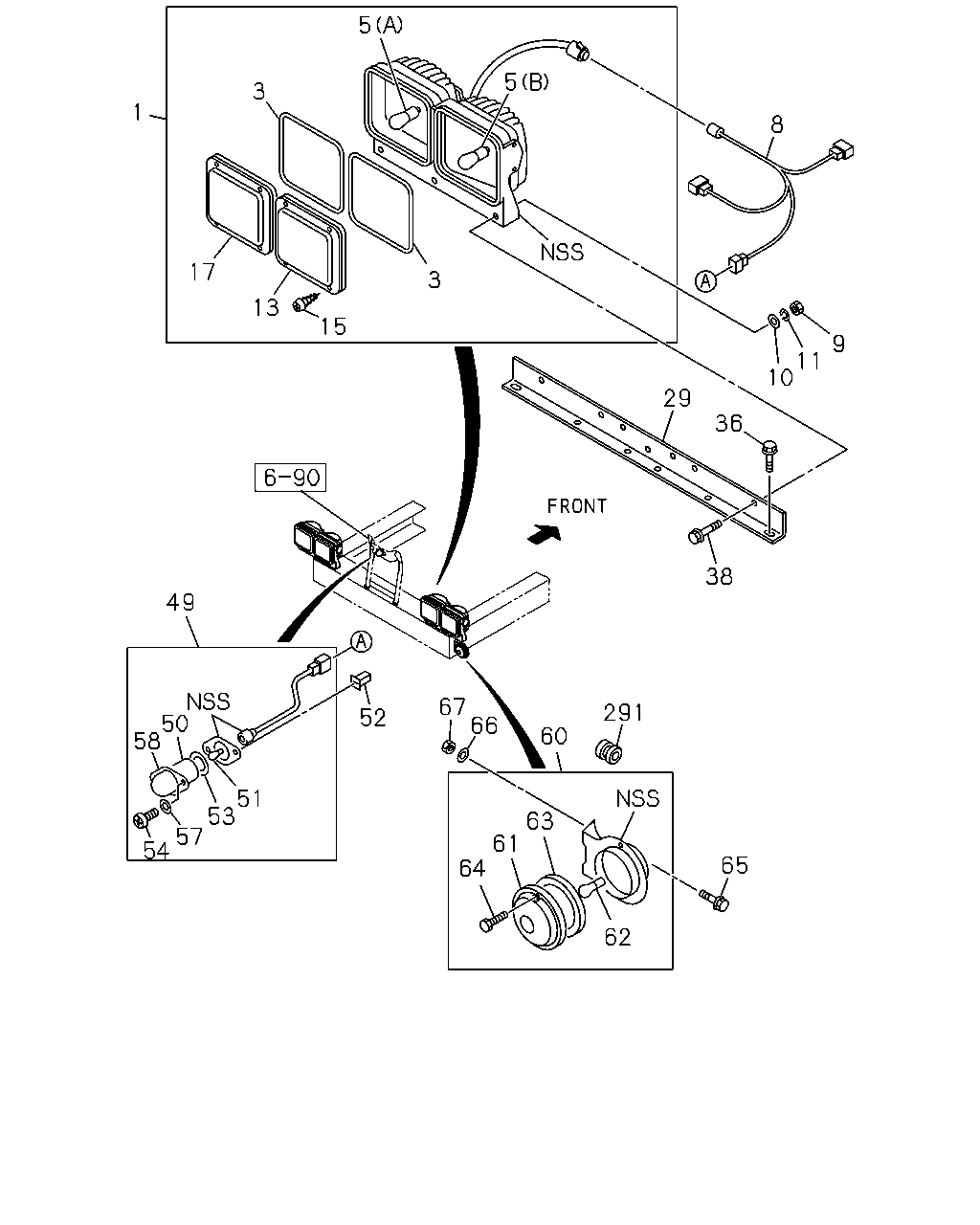

8-03 — LAMP; REAR AND REAR SIDE
(#18582) — 32 parça
1
3
5
5
17
13
15
3
8
9
11
10
29
36
38
49
52
67
66
60
291
65
62
63
61
64
50
58
51
53
57
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
THA
8-97917-339-1
01
1
1110-
1
LAMP ASM; RR COMB
THA
8-97917-340-1
01
1
1110-
3
GASKET; RR COMB LAMP
THA
8-97921-655-0
04
1
1110-
5
BULB; RR COMB LAMP
(A) 24V 25W THA
8-97921-653-0
02
1
1110-
5
BULB; RR COMB LAMP
(B) 24V 25/10W THA
8-97921-654-0
02
1
1110-
8
HARNESS; RR COMB LAMP
8-98154-556-0
01
1
1110-
9
NUT; LAMP,RR COMB
THA
8-97917-353-0
02
1
1110-
10
WASHER; LK,RR COMB LAMP
ID=8.2 THA
9-09150-508-0
02
1
1110-
11
WASHER; PL,LAMP,RR COMB
ID=8.4 OD=18 THA
9-09160-608-0
02
1
1110-
13
LENS; TURN SIGNAL
THA
8-97921-657-0
02
1
1110-
15
SCREW; RR COMB LAMP
THA
8-97921-652-0
16
1
1110-
17
LENS; STOP,RR COMB LAMP
THA
8-97921-656-0
02
1
1110-
29
BRACKET; LAMP,RR COMB
1-53178-016-1
01
1
1110-
36
BOLT; BRKT,RR COMB
M10X40 FLANGE THA
0-28651-040-0
02
1
1110-
38
BOLT; LAMP,RR COMB
M8X40 FLANGE THA
0-28050-840-0
02
1
1110-
49
LAMP; LICENSE PLATE
THA
8-97915-946-0
01
1
1110-
50
LENS; LICENSE PLATE LAMP
THA
1-82235-006-0
01
1
1110-
51
BULB; LICENSE PLATE LAMP
24V 10W THA
1-82194-037-0
01
1
1110-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
1110-
53
GASKET; LICENSE LAMP
THA
1-82126-005-0
01
1
1110-
54
SCREW; LICENSE PLATE LAMP
M5X20 THA
1-82129-007-0
02
1
1110-
57
WASHER; PL,LICENSE PLATE LAMP
THA
1-82129-008-0
02
1
1110-
58
COVER; LICENSE PLATE LAMP
THA
1-82129-005-0
01
1
1110-
60
LAMP; BACKUP
THA
8-97916-602-0
01
1
1110-
61
LENS; BACKUP LAMP
THA
8-97921-661-0
01
1
1110-
62
BULB; BACKUP LAMP
24V 25W THA
8-97921-659-0
01
1
1110-
63
GASKET; BACKUP LAMP
THA
8-97921-660-0
01
1
1110-
64
SCREW; BACKUP LAMP
M4X15 THA
8-97921-658-0
02
1
1110-
65
BOLT; LAMP,BACKUP
THA
8-97916-894-1
02
1
1110-
66
WASHER; LK,BACKUP LAMP
ID=10.2 THA
9-09150-510-0
02
1
1110-
67
NUT; FLANGE
THA
8-97916-605-0
02
1
1110-
291
GROMMET; BACK UP LAMP
THA
8-97916-014-0
01
1
1110-
