Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#18576) — 75 parça
◀

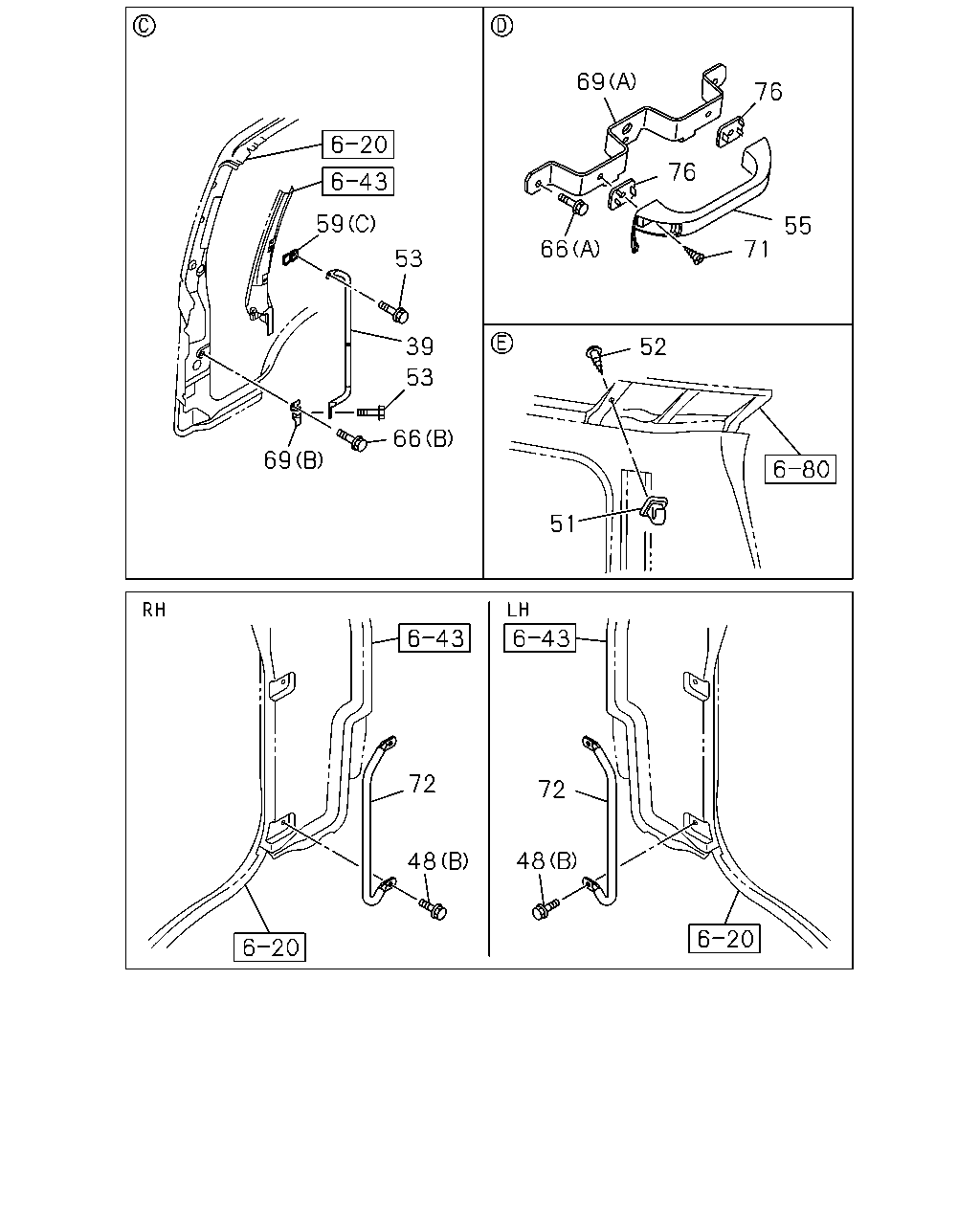

[743A] ASSIST GRIP NO.2 (7 parça)

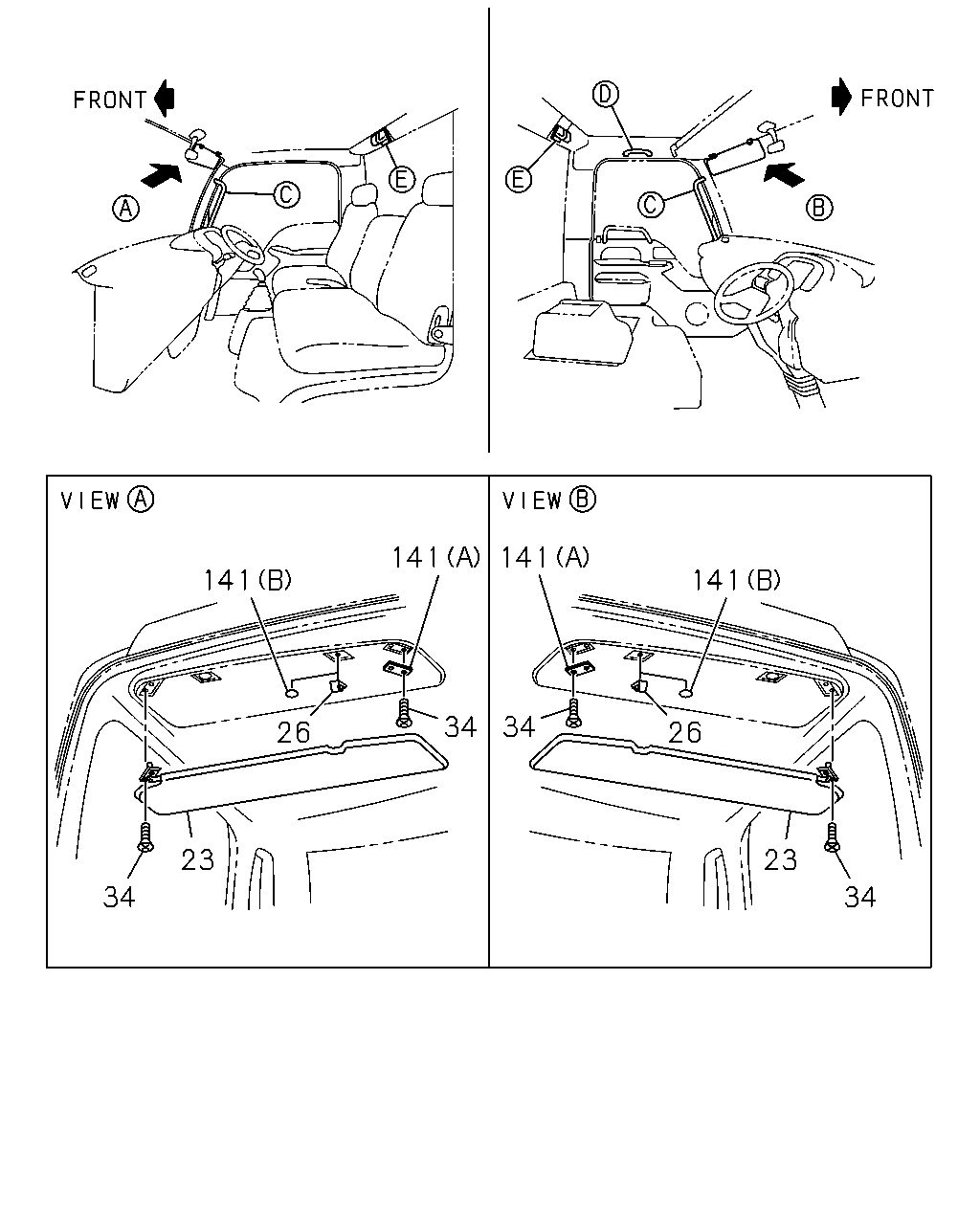

[743A] SUN VISOR (18 parça)
[743A] ASSIST GRIP NO.1 (20 parça)
[743A] TRAY HEADER ROOF (30 parça)
▶
48
59
103
59
59
48
48
48
103
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1110-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1110-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1110-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1110-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1110-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1110-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1110-
141
141
26
34
23
34
141
34
26
23
34
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
DARK GRAY
8-97407-373-2
01
1
1110-
23
SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY THA
8-97405-170-3
01
1
1110-
26
HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-171-0
02
1
1110-
26
HOLDER; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-171-0
01
1
1110-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1110-
34
SCREW; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
1110-
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26
8-98033-674-0
02
1
1110-
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
1110-
34
SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
04
1
1110-
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1402-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1110-
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1110-
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1110-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1110-1401
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1110-1401
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1110-1401
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
59
39
66
53
69
72
48
72
48
51
52
71
55
66
69
76
76
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-943-2
01
1
1110-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-942-2
01
1
1110-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1110-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1110-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1110-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
1110-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE THA
0-28650-820-0
04
1
1110-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1110-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1110-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1110-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1110-
66
BOLT; ASSIST GRIP BRKT
(B) M8X20 FLANGE THA
0-28650-820-0
04
1
1110-1110
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
04
1
1111-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE THA
8-97108-669-0
06
1
1110-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1110-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1110-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1110-
71
SCREW
M6X28
8-98004-344-0
02
1
1110-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1110-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1110-
356
344
344
356
344
344
356
356
344
356
344
356
356
344
356
354
359
364
340
330
355
336
341
364
359
340
330
341
336
355
344
344
354
356
344
344
344
344
344
356
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1110-
330
LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-834-1
01
1
1110-
336
STAY; LID
1-72448-379-3
02
1
1110-
336
STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-379-3
02
1
1110-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1110-
340
LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-376-0
01
1
1110-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1110-
341
HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98025-428-2
02
1
1110-
344
BOLT; BRKT,FRT
M6X12 FLANGE THA
8-97108-669-0
12
1
1110-
344
BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE THA
8-97108-669-0
08
1
1110-
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1110-1401
354
TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-386-5
01
1
1110-1401
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1402-
354
TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97428-821-0
01
1
1402-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1110-
355
SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1110-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1110-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-97386-874-1
01
1
1110-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1110-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98010-059-0
01
1
1110-
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
1110-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1110-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1110-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1110-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)
8-98016-871-3
01
1
1110-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98042-009-2
01
1
1110-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1110-
359
HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98041-754-0
04
1
1110-
364
STOPPER; LID
8-98010-867-1
03
1
1110-
364
STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98010-867-1
03
1
1110-
