Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#18573) — 17 parça
◀

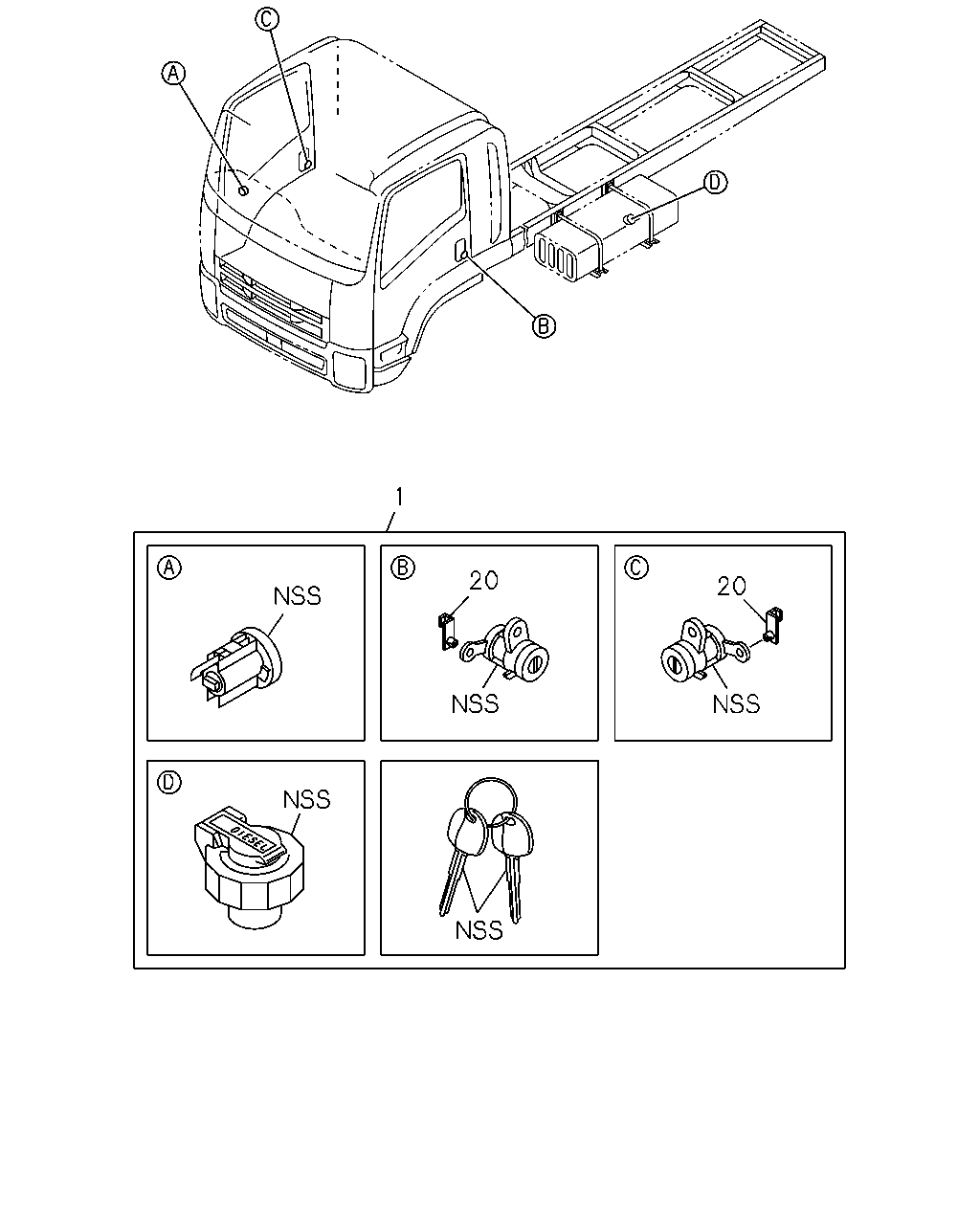

[730A] NO.1 (7 parça)

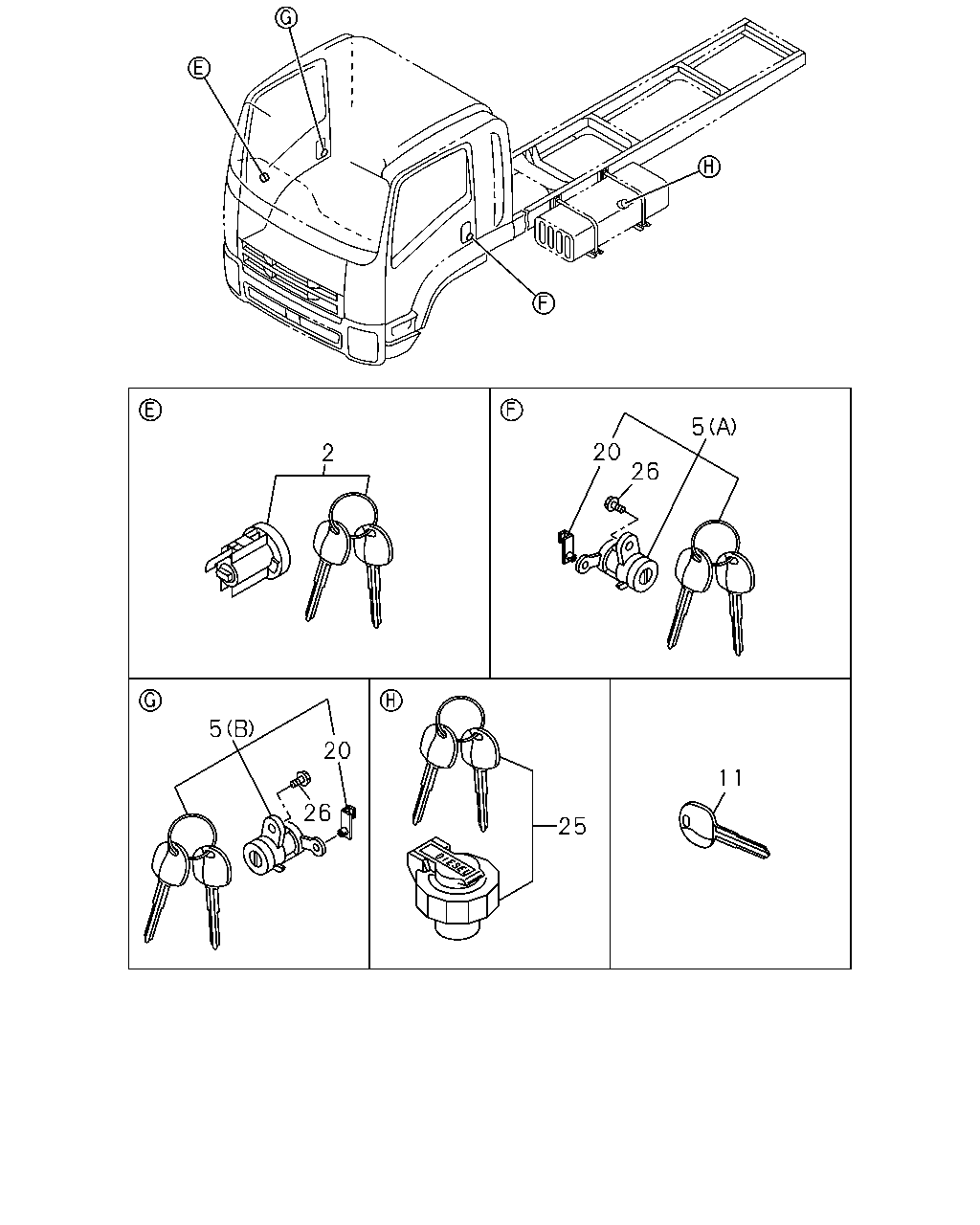

[730A] NO.2 (10 parça)
▶
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> THA
8-98097-288-1
01
1
1202-1204
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> THA
8-98201-198-0
01
1
1205-
1
CYLINDER SET; CAR LOCK
THA
8-98146-008-1
01
1
1110-1201
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> THA
8-98146-008-1
01
1
1202-1204
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> THA
8-97925-261-0
01
1
1205-
20
SNAP; DOOR LOCK CYL
THA
8-98055-181-0
01
1
1110-
20
SNAP; DOOR LOCK CYL
THA
8-98055-182-0
01
1
1110-
2
5
20
26
5
20
26
25
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
8-98055-148-0
01
1
1110-1204
2
BARREL ASM; W/KEY,STRG LOCK
THA
8-98201-342-0
01
1
1205-
5
CYLINDER ASM; DOOR LOCK
(B) THA
8-98055-149-0
01
1
1110-
5
CYLINDER ASM; DOOR LOCK
(A) THA
8-98055-150-0
01
1
1110-
11
KEY; BLANK
THA
8-98055-170-0
AR
1
1110-
11
KEY; BLANK
THA
8-98055-170-0
AR
1
1201-
20
SNAP; DOOR LOCK CYL
THA
8-98055-181-0
01
1
1110-
20
SNAP; DOOR LOCK CYL
THA
8-98055-182-0
01
1
1110-
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> THA
8-98146-010-0
01
1
1110-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
