◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11354 - FYH(THAILAND)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#18564) — 16 parça
çizim 96865
370 370 370
BalonParca AdiParca NoAdetTipApplied Date
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 1110-1211
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212-

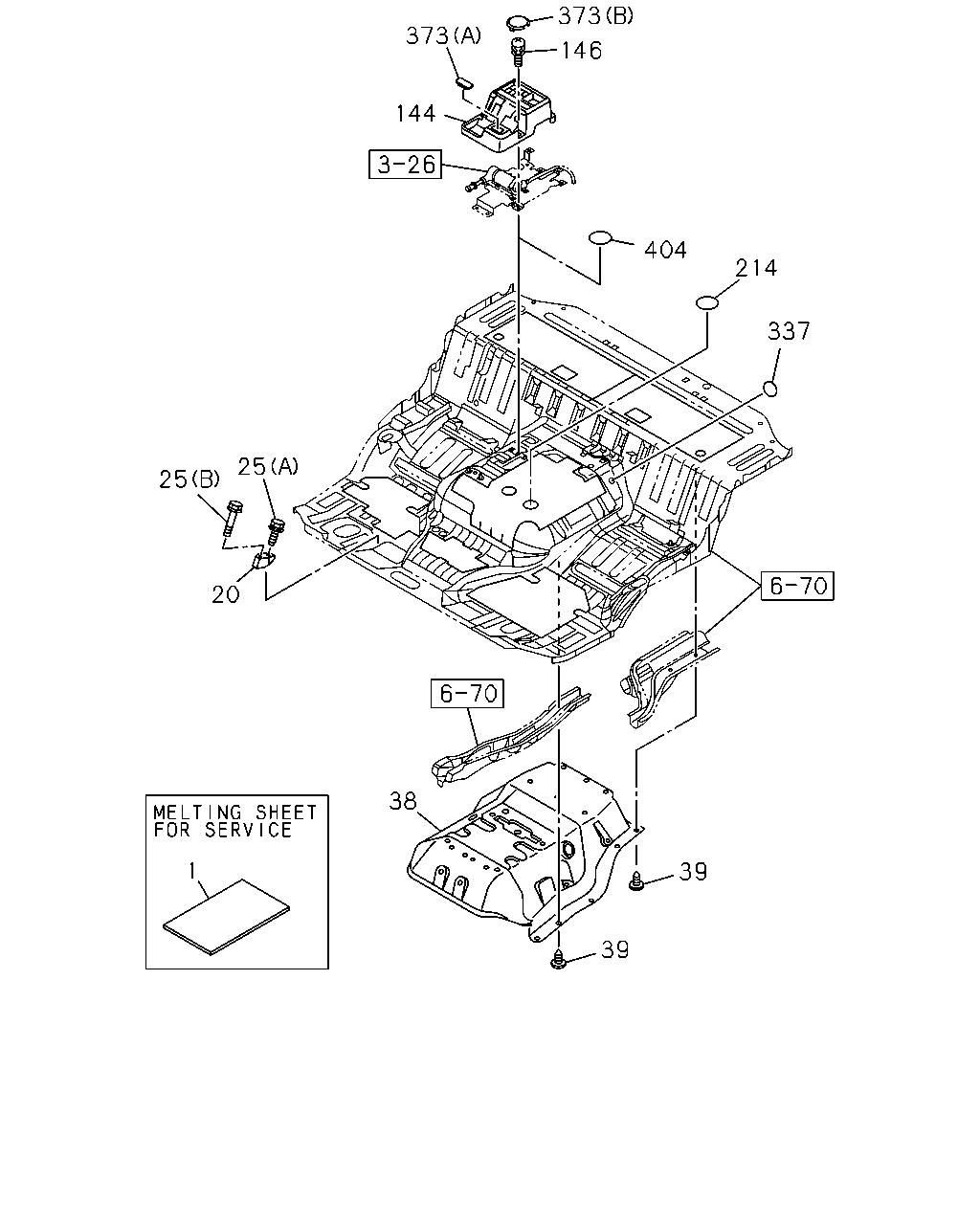

çizim 96867
39 39 38 1 20 25 25 337 214 404 144 146 373 373
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY THA 		8-94262-093-0 AR 1 1110-
20 REST; FOOT 8-98058-150-0 01 1 1110-
25 SCREW; FOOT REST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1110-
25 SCREW; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 1110-
38 INSULATOR; ENG COVER
THA 		8-97924-381-1 01 1 1110-1405
38 INSULATOR; ENG COVER
THA 		8-98285-270-0 01 1 1406-
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 THA 		8-97808-623-0 26 1 1110-
144 COVER; HAND BRK VLV
GRAY 		8-97407-974-0 01 1 1110-
146 BOLT; COVER BRKT
M6X16 		0-38050-616-0 04 1 1110-
214 SEAL; HOLE COVER
OD=25 BLACK THA 		1-76798-019-0 02 1 1110-
337 SEAL; CLIP HOLE
OD=25 BLACK THA 		1-76798-019-0 06 1 1110-
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1110-
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1110-
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK THA 		1-76798-019-0 02 1 1110-
