Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

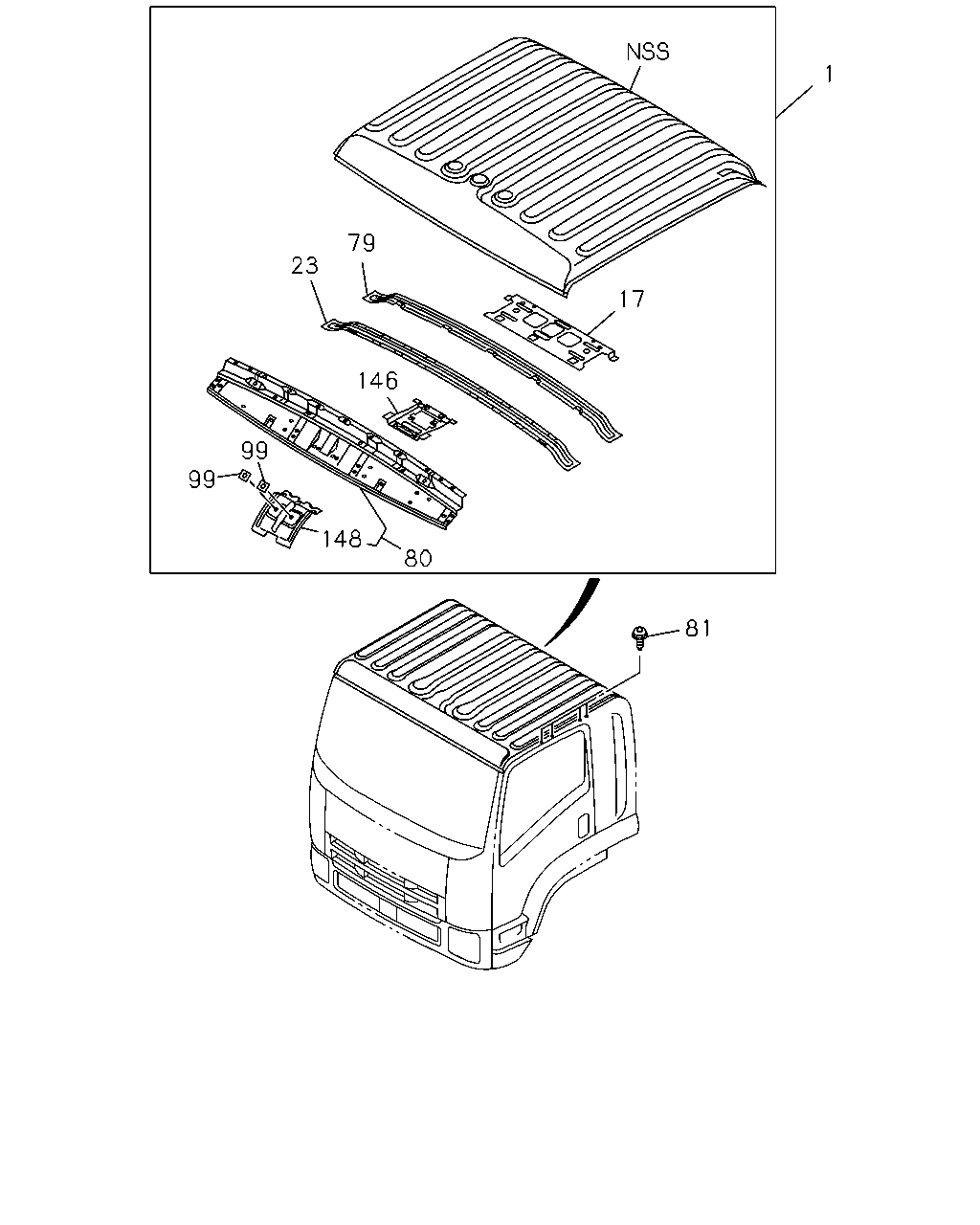

6-60 — ROOF PANEL
(#18560) — 13 parça
17
81
80
148
99
99
146
79
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA
8-97925-345-0
01
1
1110-
17
REINFORCEMENT; ROOF PNL CENTER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
8-97584-203-5
01
1
1110-
23
REINFORCEMENT; ROOF PANEL,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA
8-98019-316-0
01
1
1110-
79
REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA
8-97948-276-0
01
1
1306-
79
REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
8-97584-200-1
01
1
1110-1305
80
PANEL; HEADER,ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA
8-97925-343-0
01
1
1210-
80
PANEL; HEADER,ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
8-97584-192-3
01
1
1110-1308
80
PANEL; HEADER,ROOF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
8-98196-921-0
01
1
1309-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1110-
99
SEAL; BODY,METAL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7
1-61281-380-2
02
1
1210-
146
REINFORCEMENT; ROOM LAMP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA
8-98075-827-0
01
1
1110-
148
REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA
8-97948-275-0
01
1
1306-
148
REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
8-97411-015-1
01
1
1110-1305
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
