6-20 — SIDE PANEL AND STEP (#18553) — 95 parça

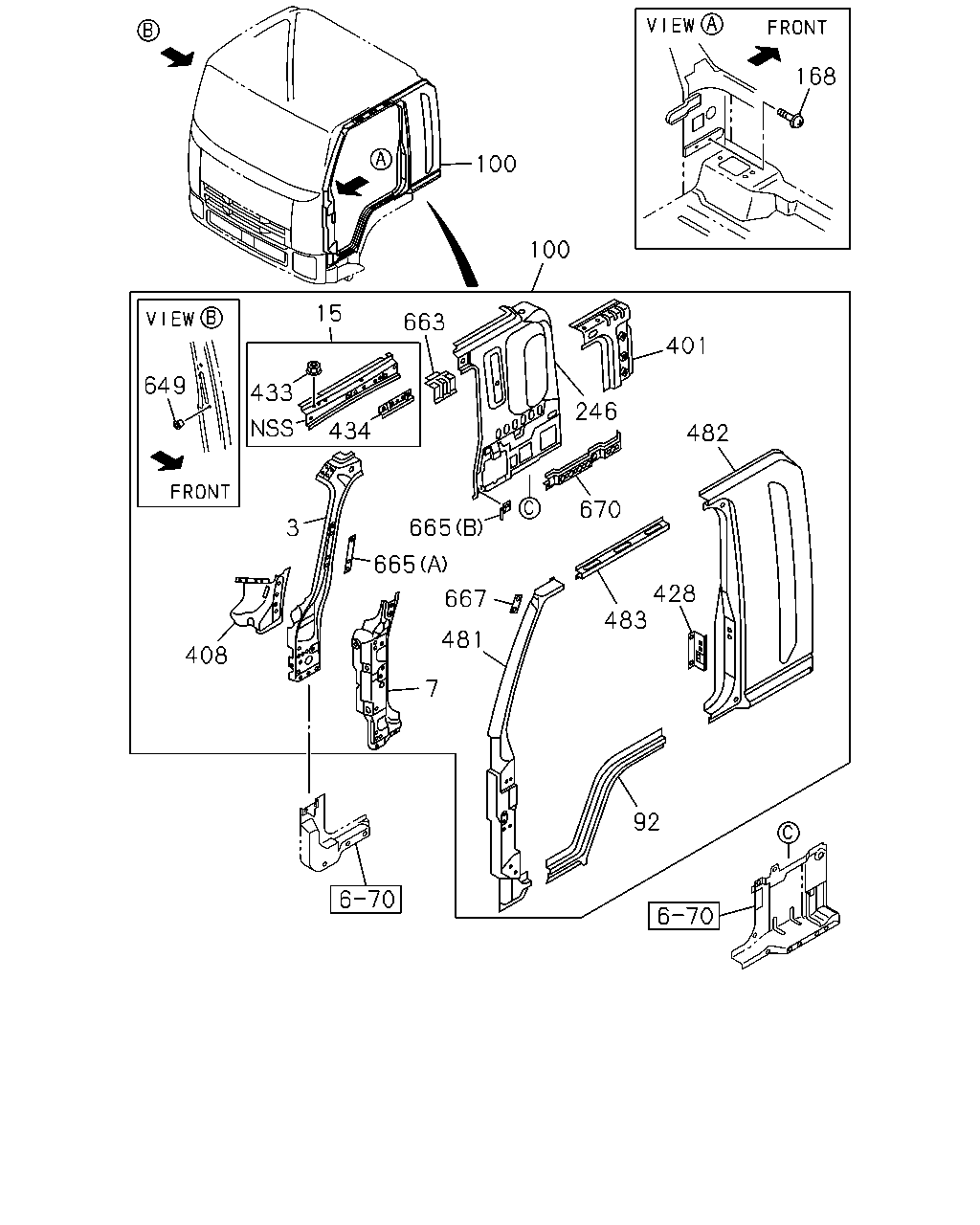

çizim 96842
100 100 401 663 15 649 433 434 3 408 665 665 667 481 7 92 483 428 670 482 168 246
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98058-237-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1110-1309
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98058-237-1 01 1 1110-1309
7 REINFORCEMENT; HINGE 8-97585-240-2 01 1 1110-1309
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1310-
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-244-3 01 1 1110-1309
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97927-059-0 01 1 1310-
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-293-2 01 1 1310-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1310-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1110-1309
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-293-2 01 1 1110-1309
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1110-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1110-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-073-9 01 1 1110-1309
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-575-2 01 1 1310-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98166-303-0 01 1 1110-1309
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-570-2 01 1 1310-
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98122-095-1 01 1 1110-1309
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-568-2 01 1 1310-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1110-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1110-
246 PANEL; RR PILLAR,INNER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-158-5 01 1 1110-
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98316-104-0 01 1 1509-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98315-132-0 01 1 1509-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1110-1508
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-161-2 01 1 1110-1508
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-194-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1310-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1110-1309
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-194-2 01 1 1110-1309
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-261-4 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1110-1309
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-261-4 01 1 1110-1309
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1110-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1110-
434 PATCH; ASSIST GRIP
THA 		8-98039-019-0 01 1 1110-
434 PATCH; ASSIST GRIP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98039-020-0 01 1 1110-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-453-0 01 1 1110-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1110-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1110-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1110-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1110-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1110-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1110-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1310-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1110-1309
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-278-0 01 1 1310-
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1310-
663 BRACKET; AIR 8-97585-207-2 01 1 1110-1309
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-208-2 01 1 1110-1309
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-97585-314-0 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98012-287-1 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1310-
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-97585-314-0 01 1 1110-1309
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1110-1309
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98012-287-1 01 1 1110-1309
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1110-1309
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1310-
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1310-
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1110-1309
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1110-1309
670 STIFFENER; PANEL,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98015-044-1 02 1 1110-

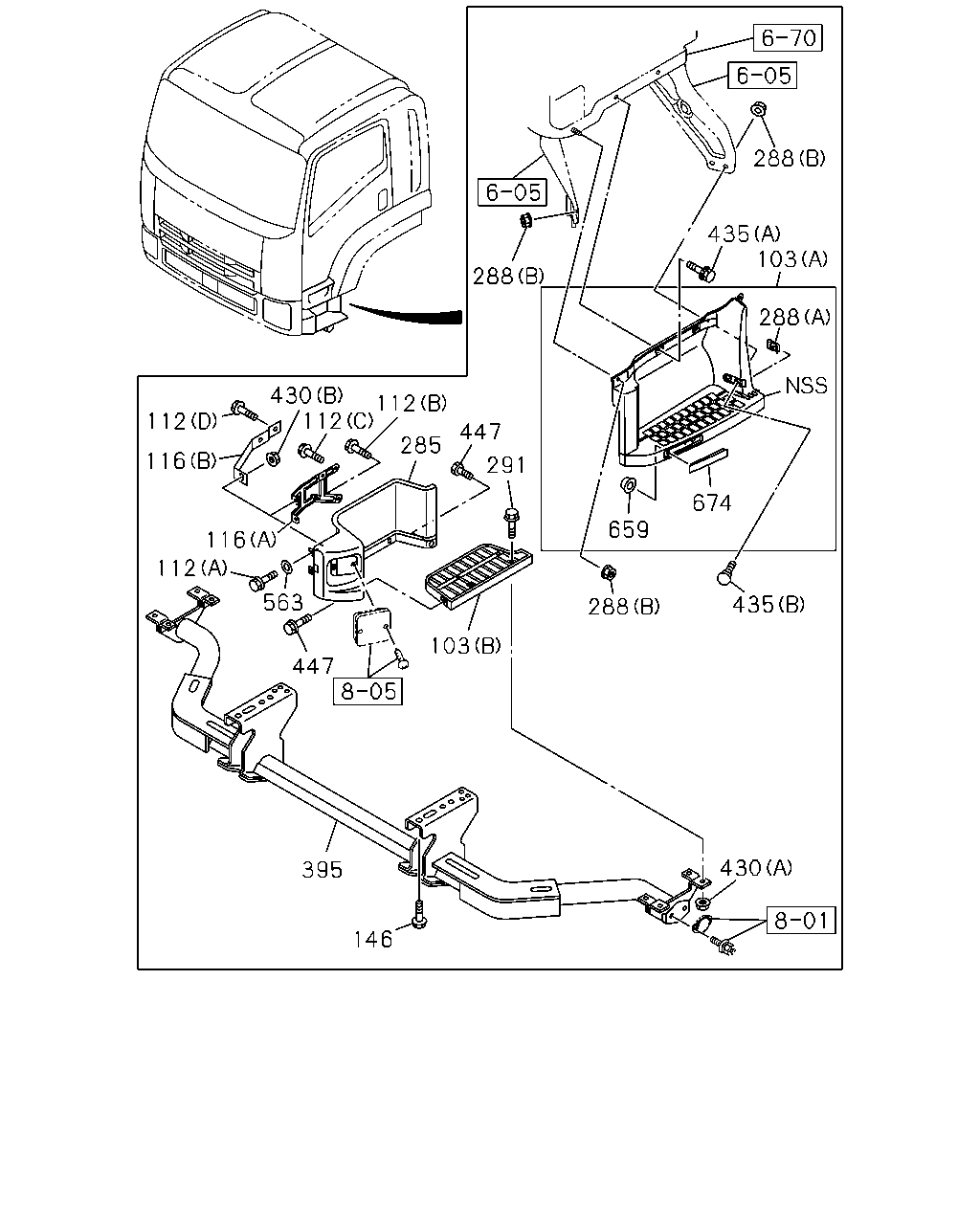

çizim 96974
288 288 435 103 288 674 659 288 435 03 563 116 116 112 430 112 112 285 447 291 447 112 395 430 146
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
(B) THA 		8-97924-110-0 01 1 1110-
103 PLATE; STEP
(A) 		8-98069-977-2 01 1 1110-
103 PLATE; STEP
(B) THA 		8-97924-109-0 01 1 1110-
103 PLATE; STEP
(A) 		8-98069-976-2 01 1 1110-
112 BOLT; 1ST STEP
(D) M8X12 FLANGE THA 		0-28050-812-0 04 1 1110-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 04 1 1110-1112
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1201-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE THA 		0-28050-625-0 02 1 1110-1112
112 BOLT; 1ST STEP
(C) M8X16 FLANGE THA 		0-28050-816-0 04 1 1110-1112
112 BOLT; 1ST STEP
(C) M6X20 FLANGE THA 		0-28050-620-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(B) THA 		8-98196-756-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 1110-1112
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 1110-1112
146 BOLT; STEP BRKT
M16X40 		0-20851-640-0 02 1 1110-
146 BOLT; STEP BRKT
M16X50 		0-20851-650-0 06 1 1110-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1110-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1110-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1110-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1110-
291 BOLT; STEP PLATE
M8X40 FLANGE THA 		0-28650-840-0 08 1 1110-
395 BRACKET; SIDE STEP
THA 		8-98182-923-2 01 1 1110-
430 NUT; PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1201-
430 NUT; PANEL
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1110-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1110-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1110-
447 BOLT; PANEL
M6X12 FLANGE THA 		0-28050-612-0 06 1 1110-
563 WASHER; PL
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 1110-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1110-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1110-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1110-
