2 |

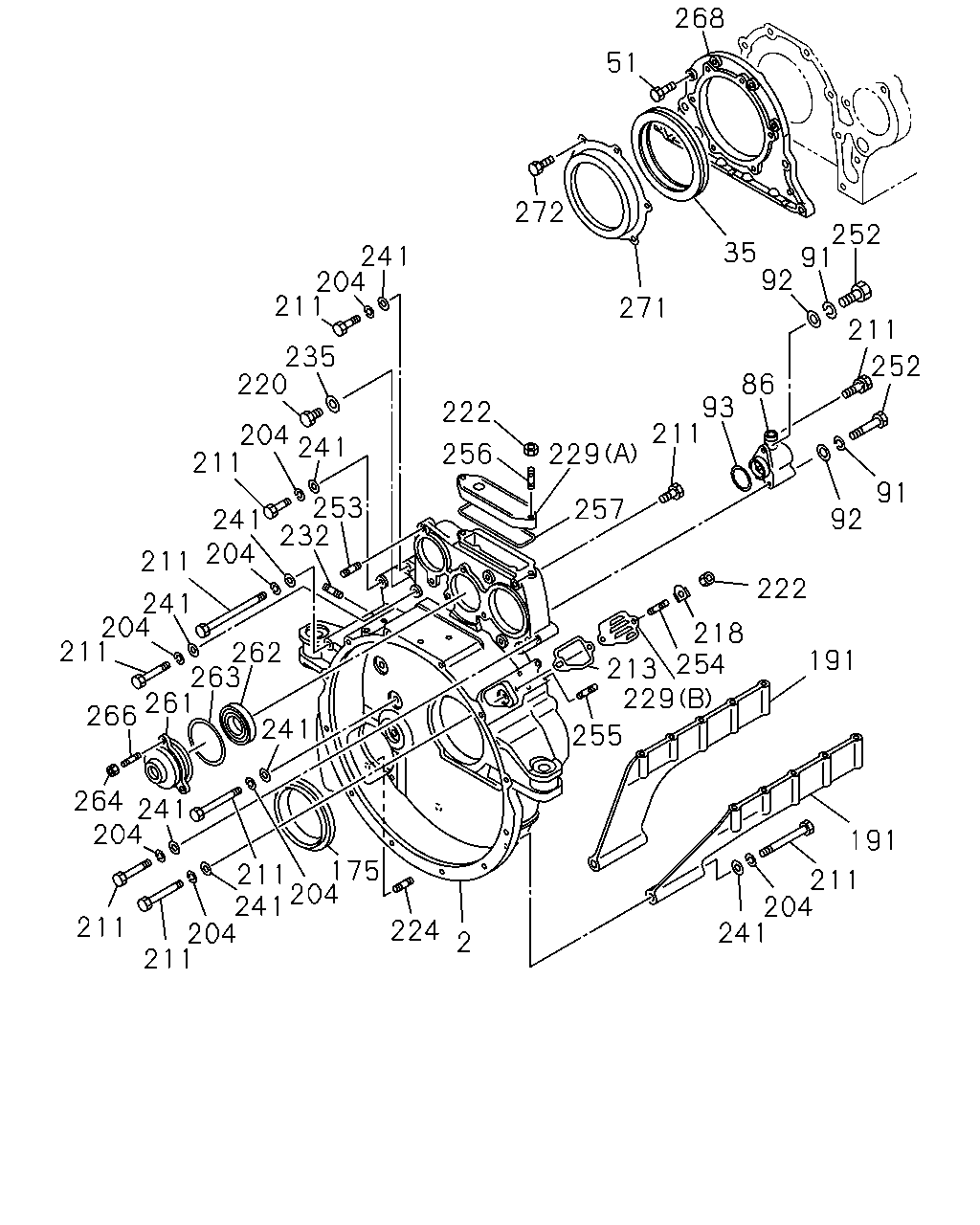

HOUSING; FLYWHEEL
|
1-11341-223-6 |
01 |
1 |
9002- |
| |
35 |
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-506-0 |
01 |
1 |
9002-9302 |
| |
35 |
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-524-3 |
01 |
1 |
9303- |
| |
51 |
BOLT; GEAR CASE COVER
M8X28
|
0-28020-828-0 |
08 |
1 |
9002-9005 |
| |
51 |
BOLT; GEAR CASE COVER
M8X28 FLANGE
|
0-28080-828-0 |
08 |
1 |
9006- |
| |
86 |
ELBOW; TACHOMETER DRIVE
|
1-85860-039-1 |
01 |
1 |
9002-9309 |
| |
86 |
ELBOW; TACHOMETER DRIVE
|
1-85860-033-2 |
01 |
1 |
9310- |
| |
91 |
WASHER; LK,ELBOW
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9002- |
| |
92 |
WASHER; PL,ELBOW
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9002- |
| |
93 |
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=35.7
|
1-09623-416-0 |
01 |
1 |
9002- |
| |
175 |
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-507-1 |
01 |
1 |
9002-9302 |
| |
175 |
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-525-2 |
01 |
1 |
9303- |
| |
191 |
STAY; FLYWHEEL HSG
LH BANK
|
1-11349-124-2 |
01 |
1 |
9002-9106 |
| |
191 |
STAY; FLYWHEEL HSG
LH BANK
|
1-11349-167-0 |
01 |
1 |
9107- |
| |
191 |
STAY; FLYWHEEL HSG
RH BANK
|
1-11349-078-2 |
01 |
1 |
9002-9106 |
| |
191 |
STAY; FLYWHEEL HSG
RH BANK
|
1-11349-168-0 |
01 |
1 |
9107- |
| |
204 |
WASHER; LK,HSG
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9002- |
| |
204 |
WASHER; LK,HSG
ID=14.2
|
9-09150-514-0 |
15 |
1 |
9002- |
| |
211 |
BOLT; HSG
M10X25
|
0-28121-025-0 |
02 |
1 |
9002-9002 |
| |
211 |
BOLT; HSG
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9003- |
| |
211 |
BOLT; HSG
M10X28
|
0-28121-028-0 |
01 |
1 |
9002-9002 |
| |
211 |
BOLT; HSG
M10X28 FLANGE
|
0-28181-028-0 |
01 |
1 |
9003- |
| |
211 |
BOLT; HSG
M14X230
|
1-09020-003-1 |
01 |
1 |
9002- |
| |
211 |
BOLT; HSG
M14X155
|
1-09020-008-1 |
02 |
1 |
9002- |
| |
211 |
BOLT; HSG
M10X115
|
9-09804-203-1 |
01 |
1 |
9002- |
| |
211 |
BOLT; HSG
M14X125
|
9-09804-234-0 |
09 |
1 |
9002- |
| |
211 |
BOLT; HSG
M14X55
|
9-91656-455-0 |
01 |
1 |
9002-9005 |
| |
211 |
BOLT; HSG
M14X55
|
0-16806-455-0 |
01 |
1 |
9006- |
| |
211 |
BOLT; HSG
M14X75
|
9-91656-475-0 |
01 |
1 |
9002-9005 |
| |
211 |
BOLT; HSG
M14X75
|
0-16806-475-0 |
01 |
1 |
9006- |
| |
211 |
BOLT; HSG
M14X95
|
9-91656-495-0 |
01 |
1 |
9002-9005 |
| |
211 |
BOLT; HSG
M14X95
|
0-16806-495-0 |
01 |
1 |
9006- |
| |
213 |
POINTER; FLYWHEEL HSG
|
1-11342-010-0 |
01 |
1 |
9002- |
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9002-9306 |
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9307- |
| |
220 |
PLUG; GEAR CHECK HOLE
|
1-09604-066-1 |
01 |
1 |
9002- |
| |
222 |
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9002- |
| |
224 |
STUD; STARTER
M14X35 L=56
|
9-04411-435-0 |
03 |
1 |
9002- |
| |
229 |
COVER; TIMING CHECK HOLE
(A)
|
1-11349-118-2 |
01 |
1 |
9002- |
| |
229 |
COVER; TIMING CHECK HOLE
(B)
|
1-11349-126-0 |
01 |
1 |
9307- |
| |
232 |
STUD; OIL FILTER
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9002- |
| |
235 |
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=12.2
|
1-09630-084-0 |
01 |
1 |
9002- |
| |
241 |
WASHER; PL,HSG
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9002- |
| |
241 |
WASHER; PL,HSG
ID=15
|
9-09160-514-0 |
14 |
1 |
9002- |
| |
252 |
BOLT; GEAR BOX
M8X18
|
0-28010-818-0 |
01 |
1 |
9002-9106 |
| |
252 |
BOLT; GEAR BOX
M8X22 W/LK&PL WASHER L=102
|
1-09009-129-1 |
01 |
1 |
9107- |
| |
252 |
BOLT; GEAR BOX
M8X70
|
9-01055-870-0 |
01 |
1 |
9002-9005 |
| |
252 |
BOLT; GEAR BOX
M8X70
|
0-10805-870-0 |
01 |
1 |
9006- |
| |
253 |
STUD; POWER STRG PUMP
M10X25 L=45
|
9-04311-025-0 |
02 |
1 |
9002- |
| |
254 |
STUD; POINTER & COVER
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9002- |
| |
255 |
STUD; RELAY LEVER BRKT
M8X16 L=28
|
9-04110-816-0 |
04 |
1 |
9002- |
| |
256 |
STUD; COVER
M8X35 L=47
|
9-04110-835-0 |
02 |
1 |
9002- |
| |
257 |
GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11349-142-0 |
01 |
1 |
9002- |
| |
261 |
COVER; INJ PUMP COUPLING
|
1-11349-117-0 |
01 |
1 |
9002- |
| |
262 |
BEARING
|
1-09810-126-0 |
01 |
1 |
9002- |
| |
263 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-422-0 |
01 |
1 |
9002- |
| |
264 |
NUT; COVER
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9002- |
| |
266 |
STUD; COVER & TACHO BOX
|
1-09305-005-0 |
03 |
1 |
9002- |
| |
268 |
COVER; FRT
|
1-11320-056-1 |
01 |
1 |
9002- |
| |
271 |
COVER; DUST
|
1-11329-004-0 |
01 |
1 |
9002- |
| |
272 |
BOLT; DUST COVER
M8X10 FLANGE
|
0-28020-810-0 |
06 |
1 |
9002-9005 |
| |
272 |
BOLT; DUST COVER
M8X10 FLANGE
|
0-28080-810-0 |
06 |
1 |
9006- |
