Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#18544) — 590 parça

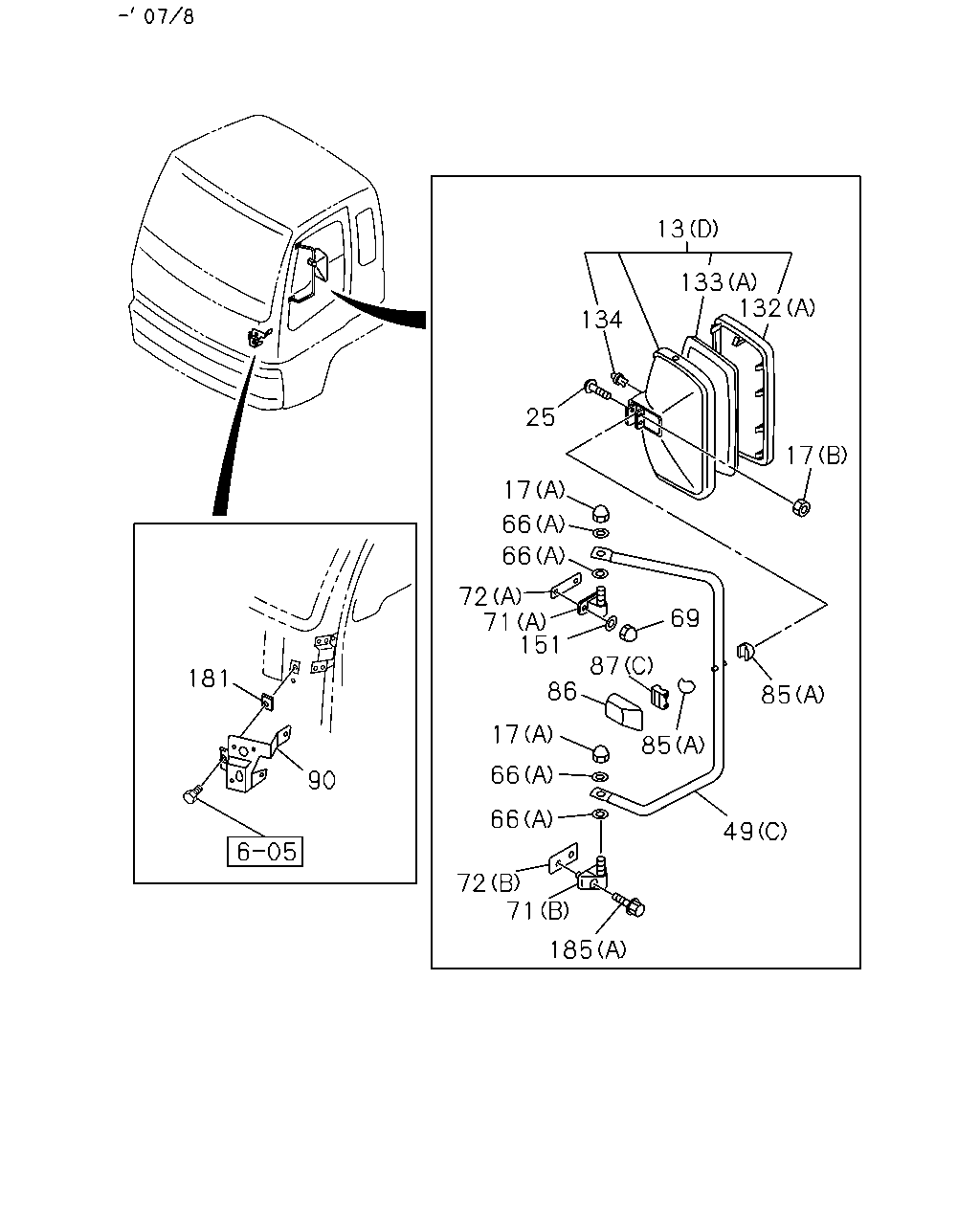

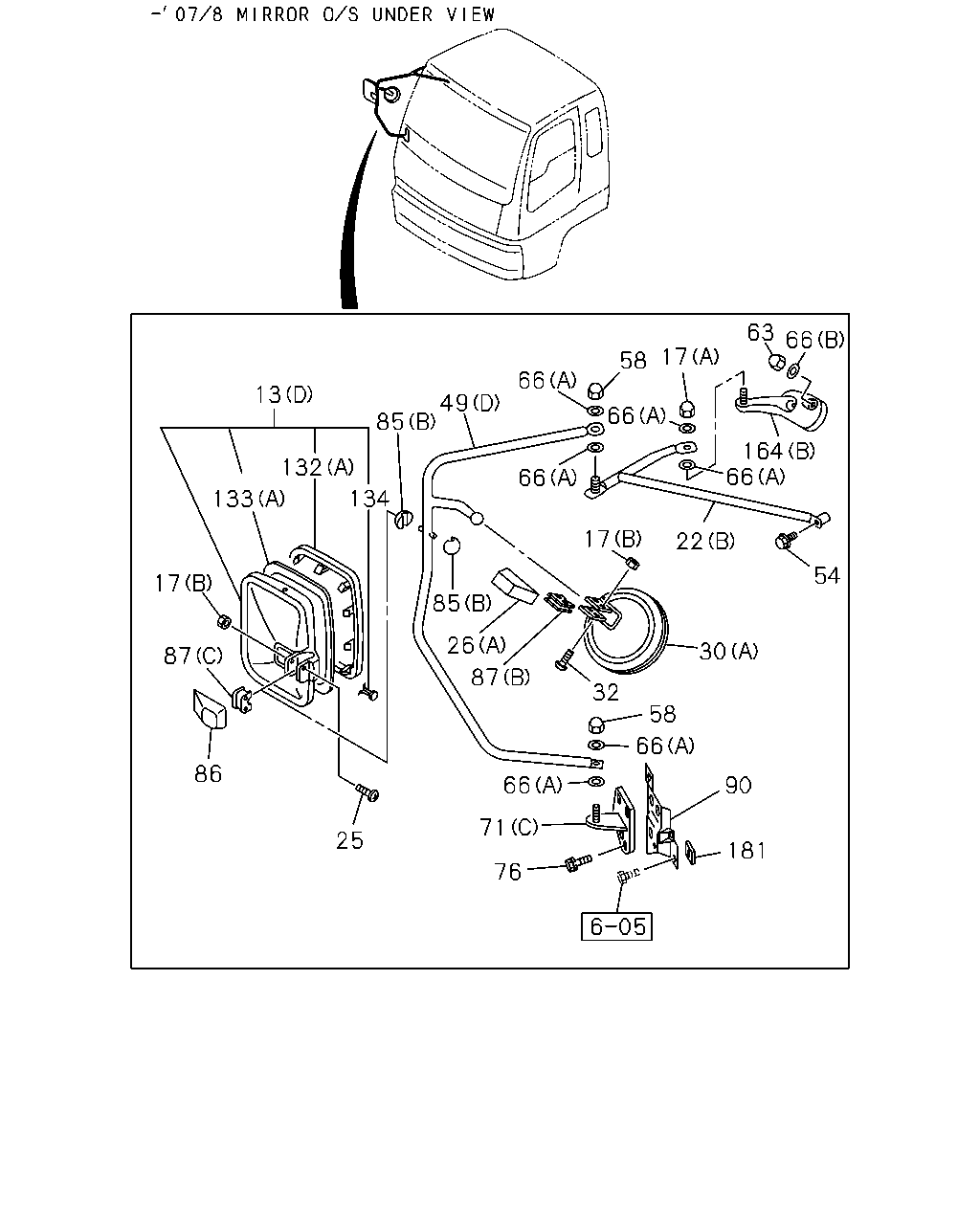

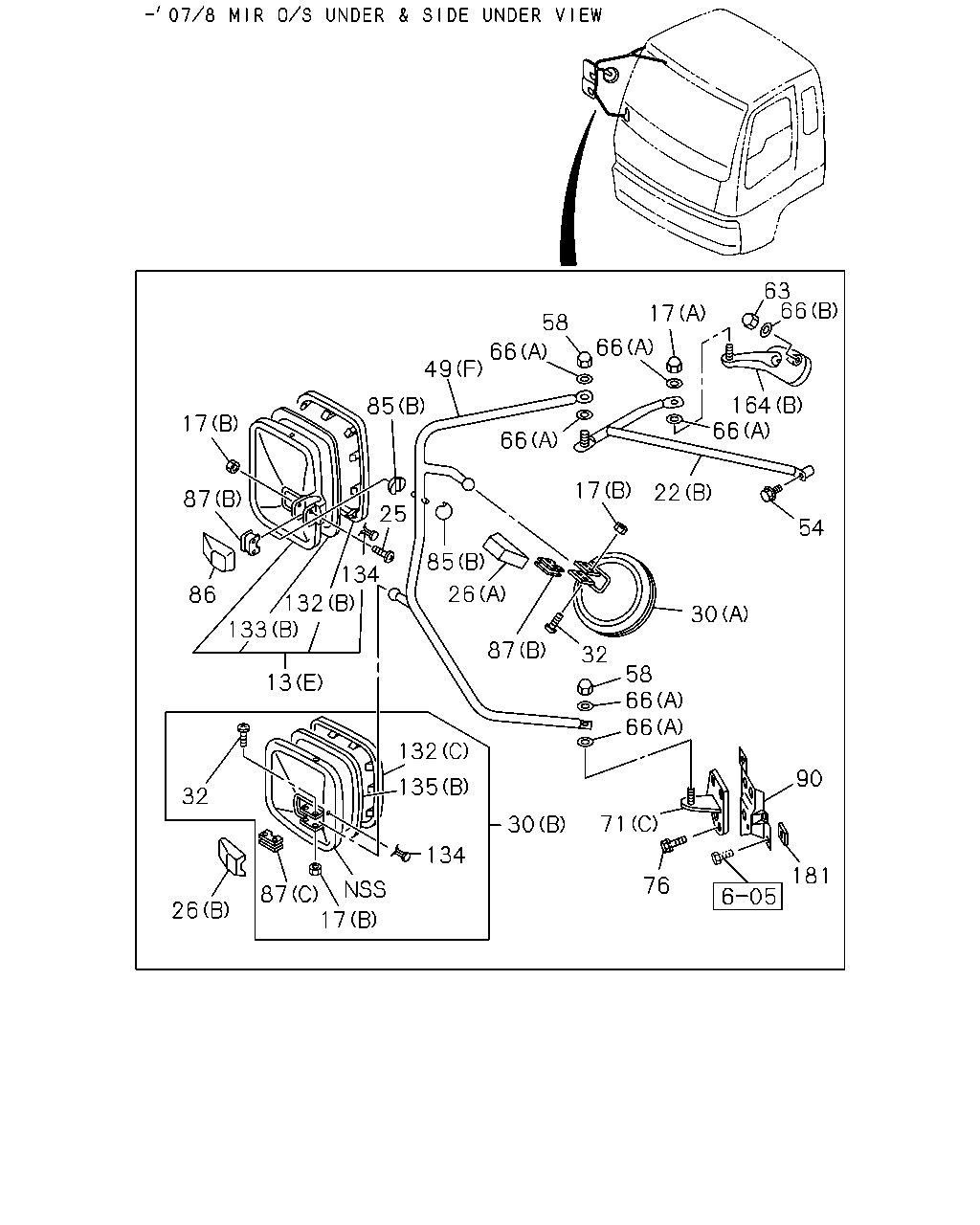

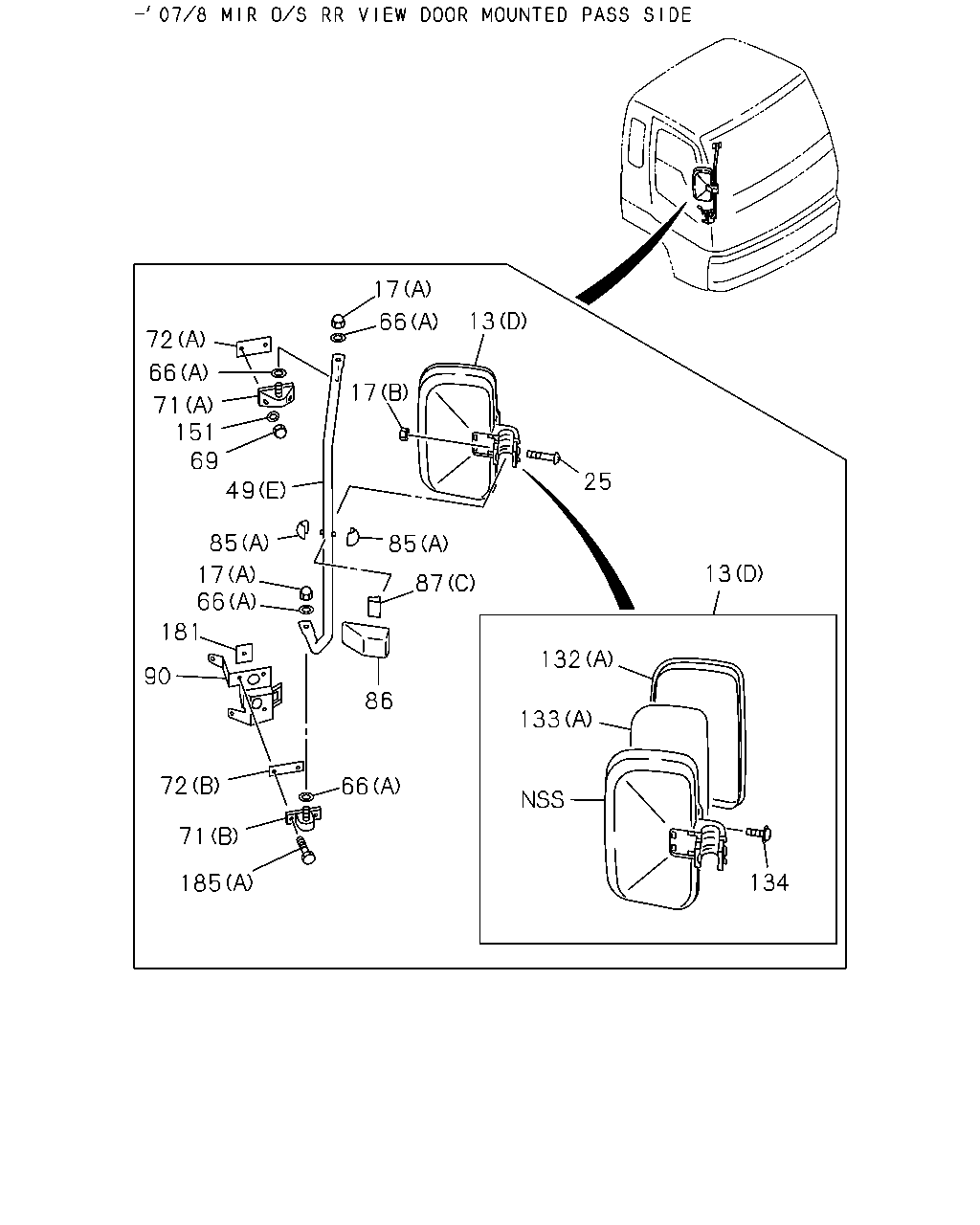

13 133 132 134 25 17 17 66 66 72 71 151 69 87 181 86 85 17 85 66 90 66 49 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-917-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-862-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71707-270-0	01	1	0709-	●	●
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0706-0708	●	●
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (A)	1-71798-868-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E)	1-71798-490-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (B)	1-71707-167-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-897-2	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-855-2	01	1	0706-0708	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0706-0708	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0709-0809	●	●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
69	NUT; CAP MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	01	1	0709-0803	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0706-0708	●	●
72	SHEET (B)	1-71798-488-1	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-487-3	01	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-488-1	01	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0709-	●	●
87	SPACER (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER (A)	1-71707-261-0	01	1	0709-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0706-0708	●	●
87	SPACER (B)	1-71737-646-2	01	1	0709-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0706-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0706-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0706-0708	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0706-0708	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0706-0708	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0709-	●	●
151	WASHER; PL,MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0706-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M8X35 FLANGE	8-98046-876-0	04	1	0706-0708	●	●
185	BOLT; BRKT (A) M8X35 FLANGE	8-98046-876-0	04	1	0709-	●	●
185	BOLT; BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8X35 FLANGE	8-98046-876-0	02	1	0706-0708	●	●
185	BOLT; BRKT (B) M5X16	1-71707-259-0	02	1	0709-	●	●

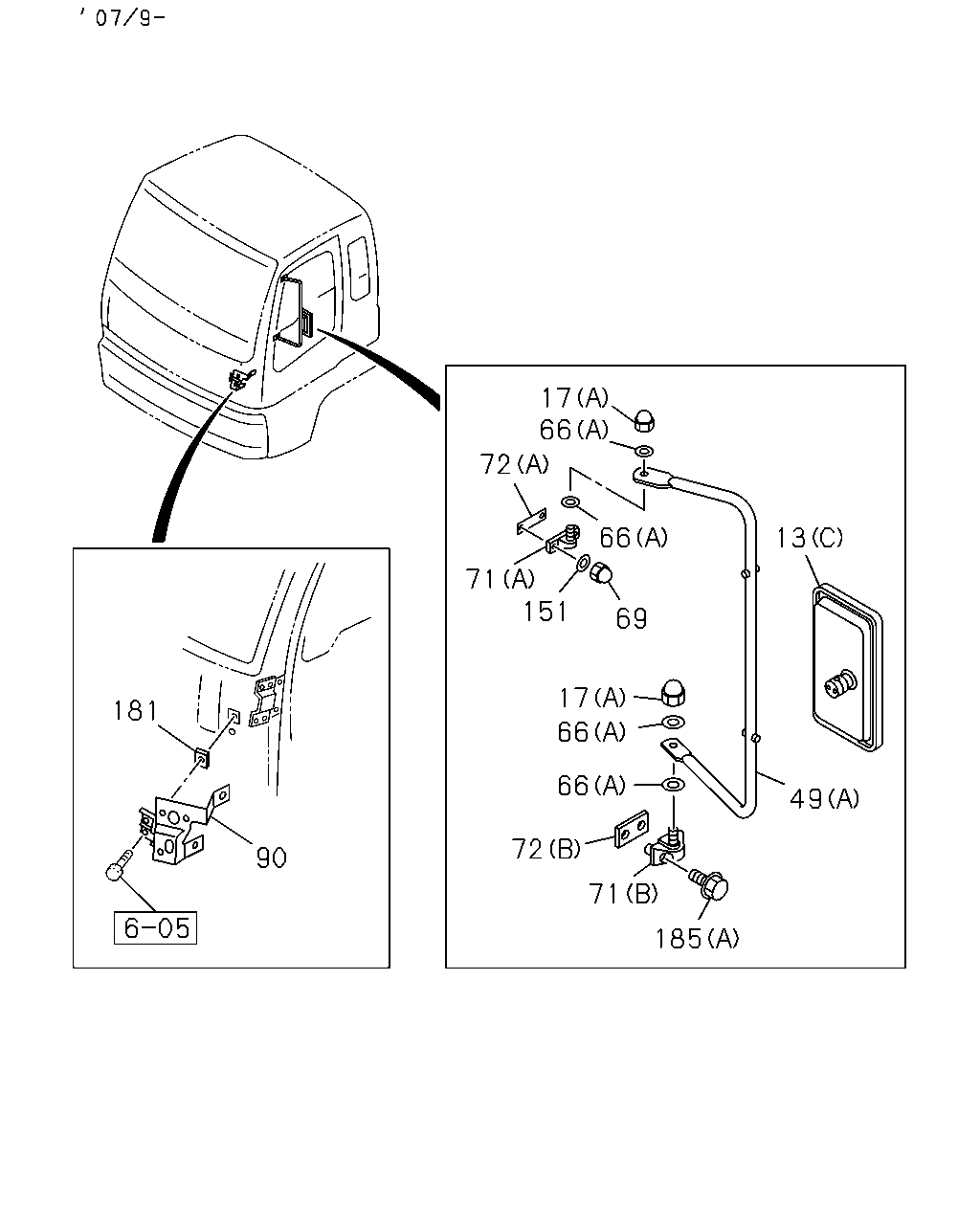

13 17 66 66 13 72 71 151 69 87 17 66 181 49 90 72 66 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-917-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-862-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71707-270-0	01	1	0709-	●	●
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (A)	1-71798-868-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E)	1-71798-490-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (B)	1-71707-167-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-897-2	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-855-2	01	1	0706-0708	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0706-0708	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0709-0809	●	●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
69	NUT; CAP MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	01	1	0709-0803	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0706-0708	●	●
72	SHEET (B)	1-71798-488-1	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-487-3	01	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-488-1	01	1	0706-0708	●	●
87	SPACER (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER (A)	1-71707-261-0	01	1	0709-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0706-0708	●	●
87	SPACER (B)	1-71737-646-2	01	1	0709-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0706-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0706-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0706-0708	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0709-	●	●
151	WASHER; PL,MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0706-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M8X35 FLANGE	8-98046-876-0	04	1	0706-0708	●	●
185	BOLT; BRKT (A) M8X35 FLANGE	8-98046-876-0	04	1	0709-	●	●
185	BOLT; BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8X35 FLANGE	8-98046-876-0	02	1	0706-0708	●	●
185	BOLT; BRKT (B) M5X16	1-71707-259-0	02	1	0709-	●	●

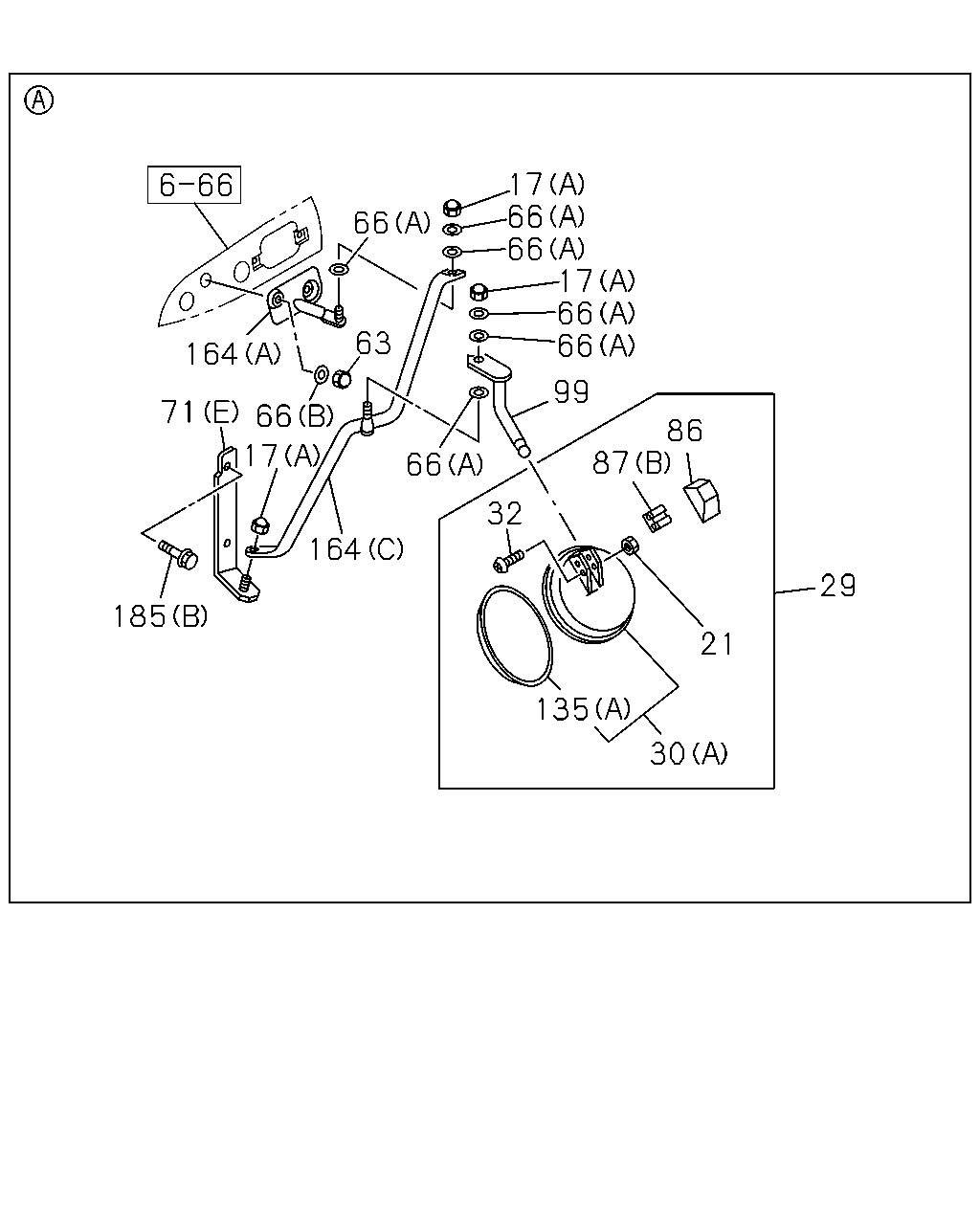

17 66 66 17 66 66 66 63 164 99 71 66 86 87 17 66 32 164 29 185 21 135 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
21	NUT; MIRROR M5	1-09984-124-0	02	1	0709-	●	●
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	0709-	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0706-0708	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0706-0708	●	●
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0709-	●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0706-0708	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0706-0708	●	●
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	0709-	●	●
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0706-0708	●	●
63	NUT; STAY M8	1-09984-187-0	02	1	0709-	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0709-	●	●
87	SPACER (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER (A)	1-71707-261-0	01	1	0709-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0706-0708	●	●
87	SPACER (B)	1-71737-646-2	01	1	0709-	●	●
99	STAY; MAIN UNDER MIRROR	1-71707-241-1	01	1	0709-0711	●	●
99	STAY; MAIN UNDER MIRROR	1-71707-265-1	01	1	0712-	●	●
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	0706-0708	●	●
135	LENS; MIRROR,SIDE UNDER (A)	1-71798-838-0	01	1	0709-	●	●
164	STAY; ROOF (A)	1-71707-264-0	01	1	0709-	●	●
164	STAY; ROOF MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-300-5	01	1	0706-0708	●	●
164	STAY; ROOF (C)	1-71707-242-1	01	1	0709-0711	●	●
164	STAY; ROOF (C)	1-71707-267-0	01	1	0712-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M8X35 FLANGE	8-98046-876-0	04	1	0706-0708	●	●
185	BOLT; BRKT (A) M8X35 FLANGE	8-98046-876-0	04	1	0709-	●	●
185	BOLT; BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8X35 FLANGE	8-98046-876-0	02	1	0706-0708	●	●
185	BOLT; BRKT (B) M5X16	1-71707-259-0	02	1	0709-	●	●

63 66 17 58 66 13 49 85 66 164 66 132 66 134 133 17 22 54 17 85 26 30 87 87 32 58 66 86 66 90 71 25 181 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-917-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-862-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71707-270-0	01	1	0709-	●	●
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-876-1	01	1	0706-0708	●	●
22	STAY; OUTSIDE MIRROR (A)	1-71798-663-1	01	1	0709-	●	●
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0706-0708	●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0706-0708	●	●
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0706-0708	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0706-0708	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0706-0708	●	●
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0709-	●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0706-0708	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0706-0708	●	●
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	0709-	●	●
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (A)	1-71798-868-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E)	1-71798-490-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (B)	1-71707-167-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-897-2	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-855-2	01	1	0706-0708	●	●
54	BOLT; STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0706-0708	●	●
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0706-0708	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0709-	●	●
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0706-0708	●	●
63	NUT; STAY M8	1-09984-187-0	02	1	0709-	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
76	BOLT; STAY BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X30 W/LK WASHER	8-94279-183-1	03	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0709-	●	●
87	SPACER (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER (A)	1-71707-261-0	01	1	0709-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0706-0708	●	●
87	SPACER (B)	1-71737-646-2	01	1	0709-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0706-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0706-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0706-0708	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0706-0708	●	●
164	STAY; ROOF (A)	1-71707-264-0	01	1	0709-	●	●
164	STAY; ROOF MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-300-5	01	1	0706-0708	●	●
164	STAY; ROOF (C)	1-71707-242-1	01	1	0709-0711	●	●
164	STAY; ROOF (C)	1-71707-267-0	01	1	0712-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0706-	●	●

17 66 72 66 13 71 151 69 17 181 66 66 49 72 90 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-917-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-862-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71707-270-0	01	1	0709-	●	●
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (A)	1-71798-868-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E)	1-71798-490-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (B)	1-71707-167-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-897-2	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-855-2	01	1	0706-0708	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0706-0708	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0709-0809	●	●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
69	NUT; CAP MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	01	1	0709-0803	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0706-0708	●	●
72	SHEET (B)	1-71798-488-1	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-487-3	01	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-488-1	01	1	0706-0708	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0706-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0706-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0706-0708	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0709-	●	●
151	WASHER; PL,MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0706-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M8X35 FLANGE	8-98046-876-0	04	1	0706-0708	●	●
185	BOLT; BRKT (A) M8X35 FLANGE	8-98046-876-0	04	1	0709-	●	●
185	BOLT; BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8X35 FLANGE	8-98046-876-0	02	1	0706-0708	●	●
185	BOLT; BRKT (B) M5X16	1-71707-259-0	02	1	0709-	●	●

58 22 116 14 116 71 72 188 163 77 71 71 71 77 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE	1-71798-862-1	01	1	0709-	●	●
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-876-1	01	1	0706-0708	●	●
22	STAY; OUTSIDE MIRROR (A)	1-71798-663-1	01	1	0709-	●	●
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0706-0708	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	01	1	0709-0803	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0706-0708	●	●
72	SHEET (B)	1-71798-488-1	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-487-3	01	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-488-1	01	1	0706-0708	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0709-	●	●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	0709-0910	●	●
163	NUT; MIRROR BRKT M8 CAP NUT	8-98059-914-0	02	1	0911-	●	●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	0709-0803	●	●

63 66 17 58 66 66 49 164 66 85 17 66 17 22 87 25 54 134 85 26 86 132 133 30 87 32 58 66 66 13 132 90 135 32 71 30 134 181 76 87 17 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-917-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-862-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71707-270-0	01	1	0709-	●	●
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71797-876-1	01	1	0706-0708	●	●
22	STAY; OUTSIDE MIRROR (A)	1-71798-663-1	01	1	0709-	●	●
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0706-0708	●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0706-0708	●	●
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0706-0708	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0706-0708	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0706-0708	●	●
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0709-	●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0706-0708	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0706-0708	●	●
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	0709-	●	●
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (A)	1-71798-868-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E)	1-71798-490-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (B)	1-71707-167-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-897-2	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-855-2	01	1	0706-0708	●	●
54	BOLT; STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X40 LK&PL WASHER	8-94279-215-0	02	1	0706-0708	●	●
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M10	1-09985-342-0	02	1	0706-0708	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	0709-	●	●
63	NUT; STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	02	1	0706-0708	●	●
63	NUT; STAY M8	1-09984-187-0	02	1	0709-	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
76	BOLT; STAY BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X30 W/LK WASHER	8-94279-183-1	03	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0709-	●	●
87	SPACER (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER (A)	1-71707-261-0	01	1	0709-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0706-0708	●	●
87	SPACER (B)	1-71737-646-2	01	1	0709-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0706-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0706-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0706-0708	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0706-0708	●	●
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	0706-0708	●	●
135	LENS; MIRROR,SIDE UNDER (A)	1-71798-838-0	01	1	0709-	●	●
164	STAY; ROOF (A)	1-71707-264-0	01	1	0709-	●	●
164	STAY; ROOF MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-300-5	01	1	0706-0708	●	●
164	STAY; ROOF (C)	1-71707-242-1	01	1	0709-0711	●	●
164	STAY; ROOF (C)	1-71707-267-0	01	1	0712-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0706-	●	●

1 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	MIRROR; ROOM	1-73117-033-1	01	1	0706-	●	●
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0706-	●	●

17 13 66 72 66 17 71 151 69 25 49 85 85 13 17 66 87 181 132 90 86 133 72 66 71 134 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-917-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-862-1	01	1	0709-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (D)	1-71737-918-3	01	1	0706-0708	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71707-270-0	01	1	0709-	●	●
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) M5	1-09984-124-0	02	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M10 CAP NUT	1-09984-134-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	07	1	0709-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0706-0708	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT	1-09984-134-0	03	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09981-541-0	02	1	0706-0708	●	●
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0706-0708	●	●
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (A)	1-71798-868-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E)	1-71798-490-3	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE (B)	1-71707-167-1	01	1	0709-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-897-2	01	1	0706-0708	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (D)	1-71797-855-2	01	1	0706-0708	●	●
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0706-0708	●	●
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	0709-	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0706-0708	●	●
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0709-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	0706-0708	●	●
69	NUT; CAP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8	1-09984-187-0	04	1	0706-0708	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	0709-0809	●	●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
69	NUT; CAP MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8	1-09984-187-0	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (F)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	02	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-484-1	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-486-2	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (E)	1-71707-263-0	01	1	0709-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71798-580-3	01	1	0706-0708	●	●
71	BRACKET; OUTSIDE MIRROR (D)	1-71798-664-2	01	1	0709-0803	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (G)	8-98167-111-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	02	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	01	1	0709-0803	●	●
72	SHEET MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	02	1	0706-0708	●	●
72	SHEET (B)	1-71798-488-1	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-487-3	01	1	0706-0708	●	●
72	SHEET (A)	1-71798-487-3	02	1	0709-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-488-1	01	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=19.1	1-71737-633-2	02	1	0706-0708	●	●
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0706-0708	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-649-1	01	1	0709-	●	●
87	SPACER (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-704-0	01	1	0706-0708	●	●
87	SPACER (A)	1-71707-261-0	01	1	0709-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0706-0708	●	●
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0706-0708	●	●
87	SPACER (B)	1-71737-646-2	01	1	0709-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0706-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0706-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-935-0	01	1	0706-0708	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR (A)	1-71737-934-0	01	1	0706-0708	●	●
132	RING; MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-934-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0706-0708	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71737-927-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0706-0708	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71737-936-0	01	1	0706-0708	●	●
151	WASHER; PL,MIRROR MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0706-0708	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0709-	●	●
151	WASHER; PL,MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0706-0708	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0706-	●	●
185	BOLT; BRKT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) M8X35 FLANGE	8-98046-876-0	04	1	0706-0708	●	●
185	BOLT; BRKT (A) M8X35 FLANGE	8-98046-876-0	04	1	0709-	●	●
185	BOLT; BRKT MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M8X35 FLANGE	8-98046-876-0	02	1	0706-0708	●	●
185	BOLT; BRKT (B) M5X16	1-71707-259-0	02	1	0709-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
