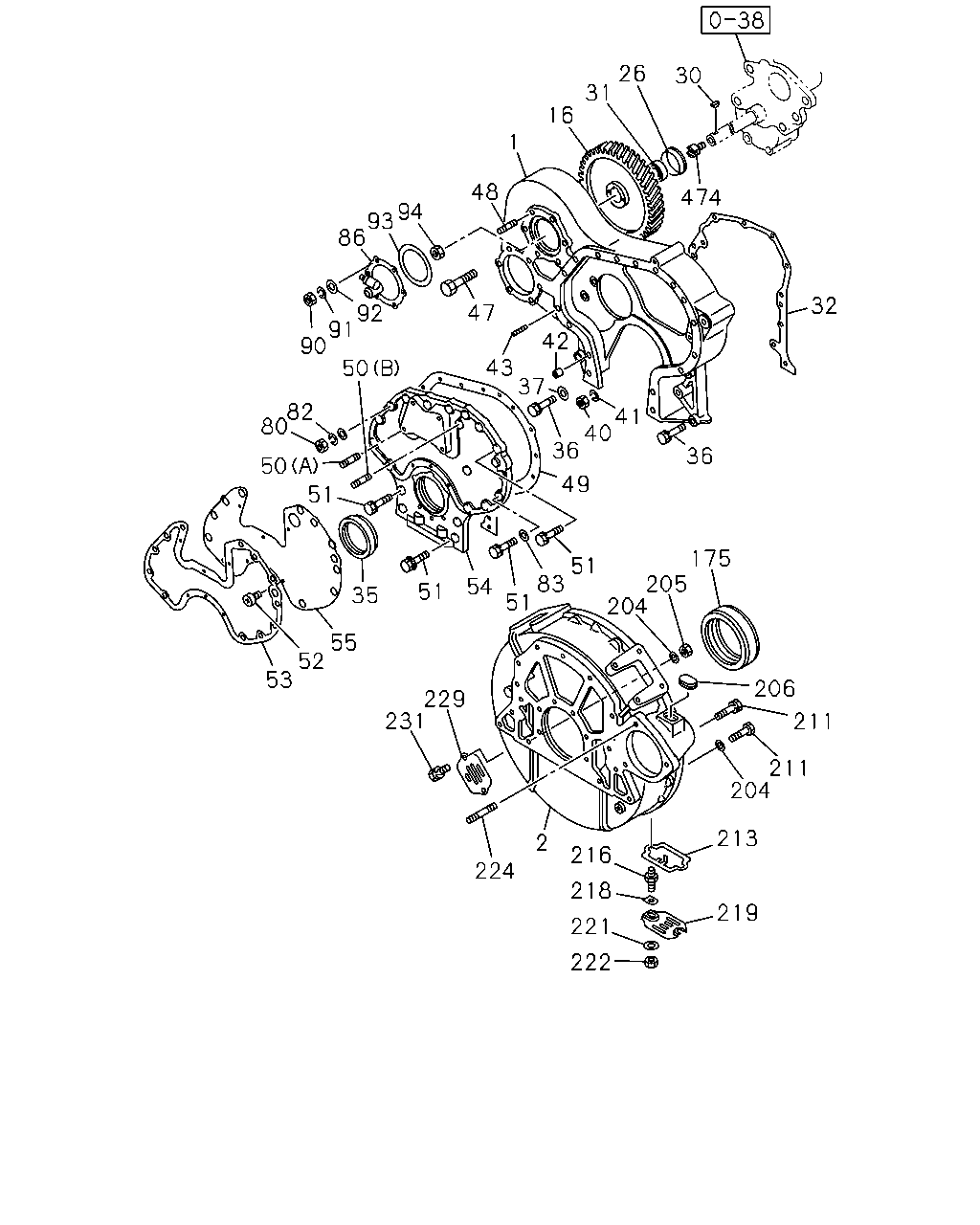

0-20A — TIMING GEAR CASE AND FLYWHEEL HOUSING (#1854) — 84 parça

26 30 31 16 1 48 474 94 93 86 92 91 90 32 47 42 43 37 50 82 80 41 40 36 36 50 49 51 175 205 204 51 83 51 54 51 35 55 52 53 206 229 231 211 211 204 213 2 216 224 218 219 221 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	1-11311-034-0	01	1	9002-	●	●	●
2	HOUSING; FLYWHEEL	1-11341-270-1	01	1	9002-	●	●	●
16	GEAR; INJ PUMP DRIVE Z=64	1-12524-013-1	01	1	9002-	●	●	●
26	ADAPTER	1-11329-008-0	01	1	9002-	●	●	●
30	KEY; DRIVE GEAR	9-08055-519-0	01	1	9002-	●	●	●
31	BEARING; DRIVE SHAFT	9-00090-230-0	01	1	9002-	●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-015-0	01	1	9002-9502	●	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11312-016-0	01	1	9503-	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-442-0	01	1	9002-	●	●	●
36	BOLT; GEAR CASE M8X35	9-01055-835-0	01	1	9002-9005	●	●
36	BOLT; GEAR CASE M8X35	0-10805-835-0	01	1	9006-9006	●	●
36	BOLT; GEAR CASE M8X35	0-10810-835-0	01	1	9007-	●	●	●
36	BOLT; GEAR CASE M12X30 W/LK WASHER	9-01931-230-0	06	1	9002-9005	●	●
36	BOLT; GEAR CASE M12X30 W/LK WASHER	0-50051-230-0	06	1	9006-	●	●	●
36	BOLT; GEAR CASE M10X28	9-02361-028-0	01	1	9002-	●	●	●
37	WASHER; PL,GEAR CASE D=19 T=4	1-09503-183-1	01	1	9002-	●	●	●
37	WASHER; PL,GEAR CASE ID=10.5	9-09851-950-0	01	1	9002-	●	●	●
40	NUT; GEAR CASE M12	9-99110-412-0	06	1	9002-	●	●	●
41	WASHER; LK,GEAR CASE ID=12.2	9-09150-512-0	06	1	9002-	●	●	●
42	DOWEL; GEAR CASE COVER OD=14 L=10	9-11319-065-2	02	1	9002-	●	●	●
43	STUD; BRG COVER	1-09302-048-1	04	1	9002-	●	●	●
47	BOLT; BRG COVER M12X77 L=95	9-09831-161-0	06	1	9002-9306	●	●	●
48	STUD; COVER,ELBOW,P/S M8X25 L=36	1-09300-050-0	12	1	9002-	●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-029-0	01	1	9002-	●	●	●
50	STUD (B) M10X25 L=45	9-04311-025-0	03	1	9002-	●	●	●
50	STUD (A) M10X30 L=45	9-04411-030-0	04	1	9002-	●	●	●
51	BOLT; GEAR CASE COVER M10X30	9-01991-030-0	03	1	9002-9002	●	●
51	BOLT; GEAR CASE COVER M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9003-	●	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK WASHER	9-01991-035-0	09	1	9002-9002	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	09	1	9003-9308	●	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	07	1	9309-9410	●	●	●
51	BOLT; GEAR CASE COVER M10X35 W/LK&PL WASHER	0-50151-035-0	07	1	9411-	●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X35 W/LK&PL WASHER	0-50151-035-0	07	1	9411-			●
51	BOLT; GEAR CASE COVER M10X40	9-01991-040-0	01	1	9002-9002	●	●
51	BOLT; GEAR CASE COVER M10X40 W/LK&PL WASHER	0-50151-040-0	01	1	9003-9410	●	●	●
51	BOLT; GEAR CASE COVER M10X40 W/LK&PL WASHER	0-50151-040-0	01	1	9411-	●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X40 W/LK&PL WASHER	0-50151-040-0	01	1	9411-			●
51	BOLT; GEAR CASE COVER M10X45	9-01991-045-0	01	1	9002-9002	●	●
51	BOLT; GEAR CASE COVER M10X45 W/LK&PL WASHER	0-50151-045-0	01	1	9003-9410	●	●	●
51	BOLT; GEAR CASE COVER M10X45 W/LK&PL WASHER	0-50151-045-0	01	1	9411-	●
51	BOLT; GEAR CASE COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X45 W/LK&PL WASHER	0-50151-045-0	01	1	9411-			●
51	BOLT; GEAR CASE COVER M10X35	0-23801-035-0	02	1	9309-	●	●	●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X35 W/LK WASHER	0-50051-035-0	05	1	9411-			●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X45 W/LK WASHER	0-50051-045-0	01	1	9411-			●
51	BOLT; GEAR CASE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9411-			●
52	SCREW; NOISE SHIELD COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M4X12 TAPPING	9-07077-412-0	06	1	9411-			●
53	FLANGE; NOISE SHIELD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-089-0	01	1	9411-			●
54	COVER; GEAR CASE	1-11321-086-1	01	1	9002-	●	●	●
55	COVER; NOISE SHIELD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-249-0	01	1	9411-			●
80	NUT; COVER M10	9-09110-410-0	04	1	9002-	●	●	●
82	WASHER; LK,COVER ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	04	1	9002-9308	●	●	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	06	1	9309-9410	●	●	●
83	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	06	1	9411-	●
83	WASHER; PL,COVER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.5 OD=18	9-09160-510-0	06	1	9411-			●
86	ELBOW; TACHOMETER DRIVE	1-85860-040-0	01	1	9002-	●	●	●
90	NUT; ELBOW M8	9-09110-408-0	06	1	9002-	●	●	●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	06	1	9002-	●	●	●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	06	1	9002-	●	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	9002-	●	●	●
94	NUT; GEAR M24 FLANGE	1-09440-027-0	01	1	9002-	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09625-441-0	01	1	9002-	●	●	●
204	WASHER; LK,HSG ID=14.2	9-09150-514-0	01	1	9002-9306	●	●	●
204	WASHER; LK,HSG ID=14.2	9-09150-514-0	02	1	9307-	●	●	●
205	NUT; HSG M14	9-99110-414-0	01	1	9002-	●	●	●
206	COVER; STARTER CHECK HOLE	9-11349-049-0	01	1	9002-	●	●	●
211	BOLT; HSG M8X40	9-01970-840-0	06	1	9002-9005	●	●
211	BOLT; HSG M8X40 W/LK&PL WASHER	0-50140-840-0	06	1	9006-	●	●	●
211	BOLT; HSG M14X50 W/LK WASHER	1-09033-002-0	10	1	9002-	●	●	●
211	BOLT; HSG M14X55 W/LK WASHER	1-09033-003-0	02	1	9002-	●	●	●
213	POINTER; FLYWHEEL HSG	1-11327-025-2	01	1	9002-	●	●	●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9002-	●	●	●
218	WASHER; PL,COVER	1-11349-127-0	01	1	9002-9306	●	●	●
218	WASHER; PL,COVER	1-11349-127-0	01	1	9307-	●		●
219	COVER; POINTER	1-11349-131-0	01	1	9002-	●	●	●
221	WASHER; PL,POINTER ID=8.4 OD=18	9-09160-608-0	01	1	9002-9306	●	●	●
221	WASHER; PL,POINTER ID=8.4 OD=18	9-09160-608-0	02	1	9307-	●	●	●
222	NUT; COVER,TIMING CHECK HOLE M8	9-09110-408-0	02	1	9002-	●	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9002-	●	●	●
229	COVER; TIMING CHECK HOLE	1-11349-073-0	01	1	9002-9303	●	●	●
229	COVER; TIMING CHECK HOLE	1-11349-122-0	01	1	9304-	●	●	●
231	BOLT; COVER M8X12 W/LK WASHER	9-01900-812-0	02	1	9002-9204	●	●	●
231	BOLT; COVER M8X12 W/LK WASHER	0-50040-812-0	02	1	9205-	●	●	●
474	ADAPTER; ELBOW DRIVE	1-12539-012-1	01	1	9002-	●	●	●
