Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11330 - CYZ MIDDLE EAST WITH 2STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

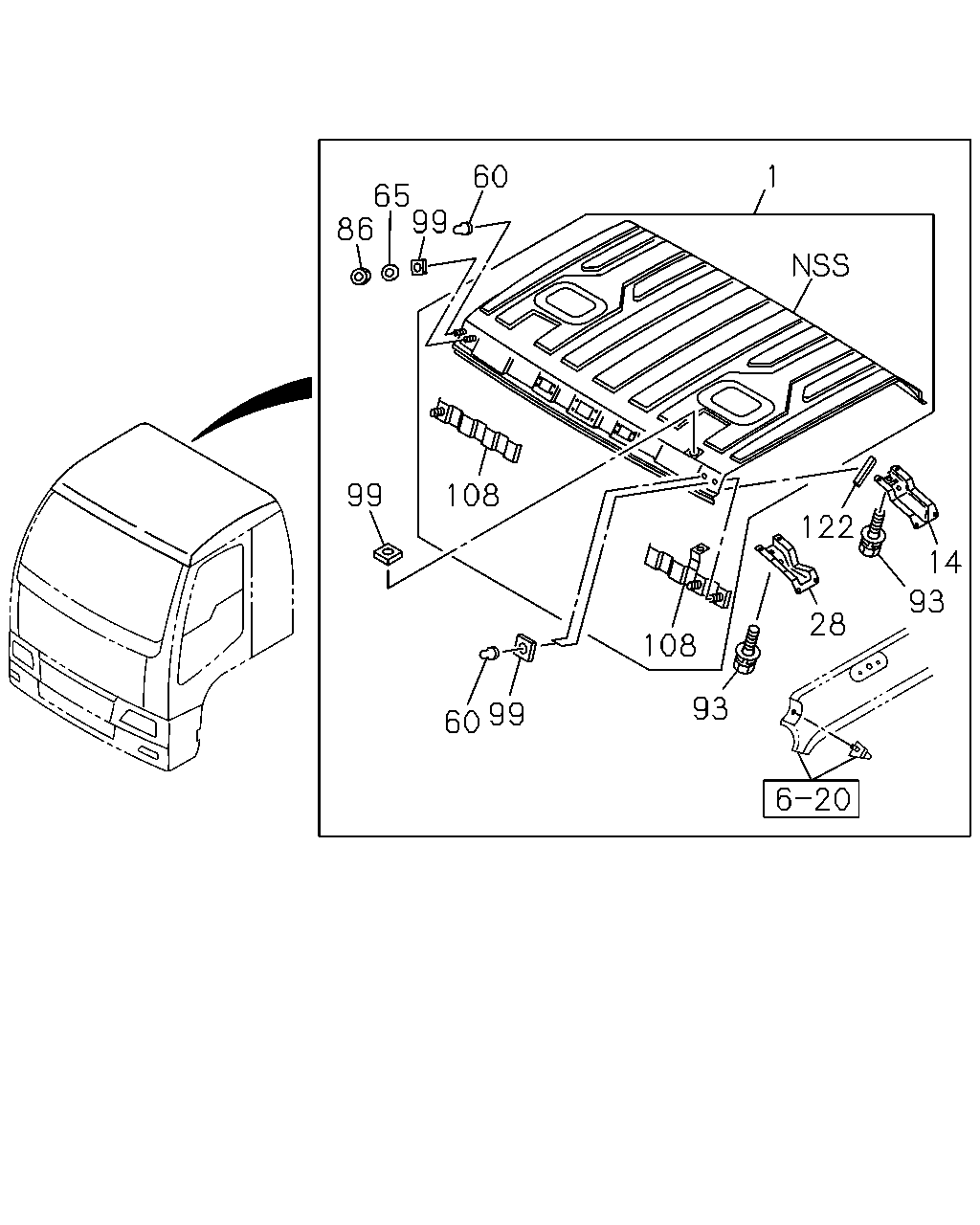

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#18531) — 30 parça
Tümü
A - CYZ6MC
B - CYZ6MF
1
60
65
99
86
99
108
122
14
93
28
108
93
99
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
1-61170-861-0
01
1
0706-
●
●
14
SUPPORT; ROOF
1-73318-595-3
02
1
0706-
●
●
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
0706-
●
●
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
0706-
●
●
60
COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-79998-922-3
05
1
0706-0708
●
●
60
COVER; ROOF
1-79998-922-3
04
1
0709-
●
●
60
COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-79998-922-3
03
1
0706-0708
●
●
65
WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8 T=2.3
8-98073-399-0
02
1
0706-0708
●
●
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
02
1
0709-
●
●
65
WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8 T=2.3
8-98073-399-0
01
1
0706-0708
●
●
86
NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 LOCK NUT
0-91370-008-0
02
1
0706-0708
●
●
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
02
1
0709-
●
●
86
NUT; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 LOCK NUT
0-91370-008-0
01
1
0706-0708
●
●
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
0706-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
04
1
0706-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
04
1
0706-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
10
1
0706-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
0706-0708
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
02
1
0706-0708
●
●
99
SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 14X14 ID=10 T=0.7
1-61281-427-0
02
1
0706-0708
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
04
1
0709-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
04
1
0709-
●
●
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
01
1
0706-
●
●
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
01
1
0706-
●
●
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-1
02
1
0706-
●
●
99
SEAL; BODY,METAL
75X50 ID=36
1-61281-458-1
02
1
0706-
●
●
108
PATCH; MIRROR
1-61170-772-3
01
1
0706-
●
●
108
PATCH; MIRROR
1-61170-862-1
01
1
0706-
●
●
122
SEAL; FRT UPR
1-61270-919-0
02
1
0706-0809
●
●
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
●
●
