◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#18530) — 134 parça
çizim 134427
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0706-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0706-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0706- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 0706- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0706- ● ●
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0706- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-049-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-050-3 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-048-2 01 1 0706- ● ●
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0706-1207 ● ●
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208- ● ●
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0706- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0706- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0706- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0706- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0706- ● ●
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0706- ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0706- ● ●

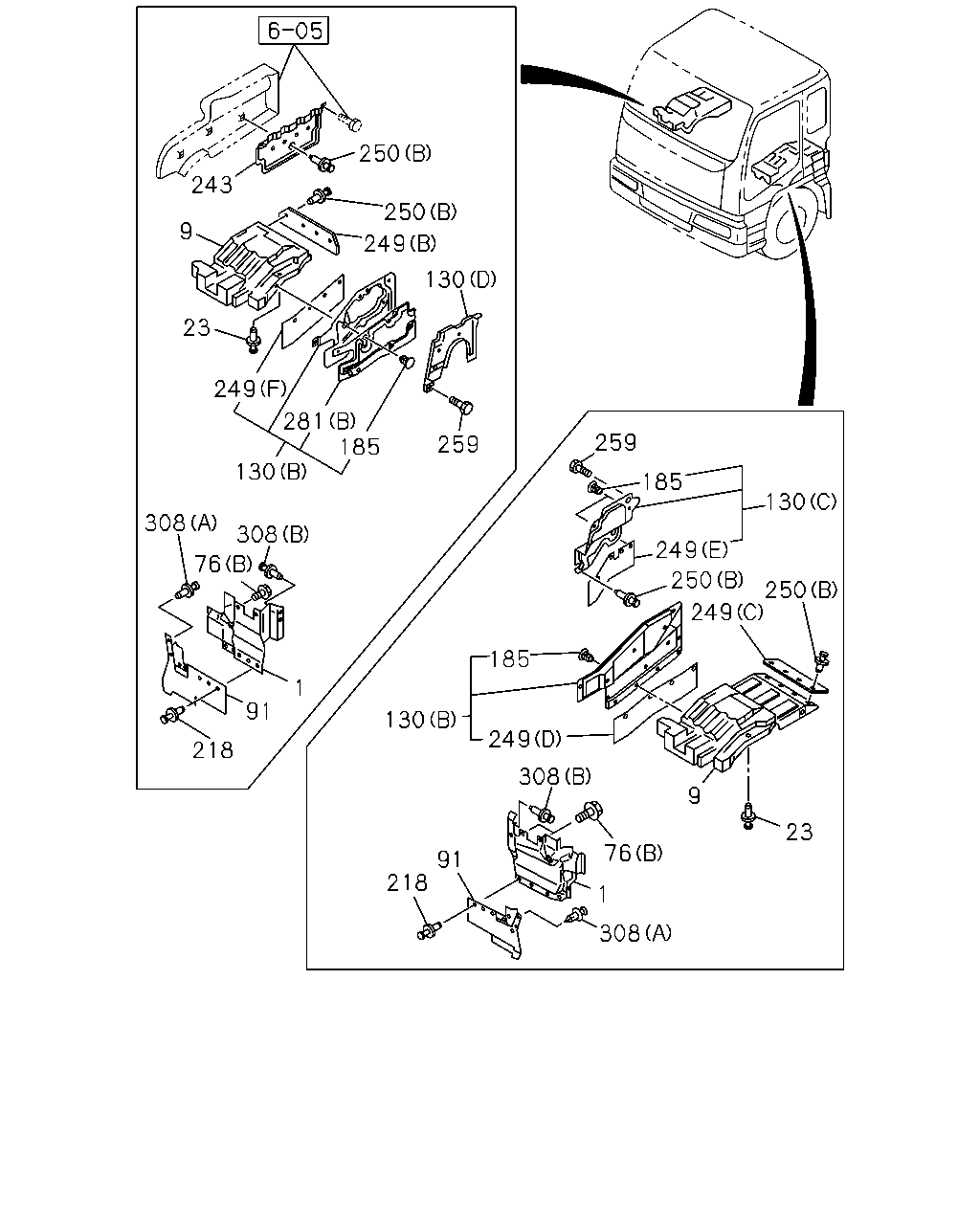

çizim 134432
243 250 250 9 249 130 23 249 281 185 259 259 130 185 130 308 308 249 76 250 250 249 185 1 91 130 249 218 308 9 23 76 91 218 1 308
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0706- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0706- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0706- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0706- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0706- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0706-0805 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0706- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0706- ● ●
91 COVER; MUD,FRT 1-79931-204-1 01 1 0706- ● ●
91 COVER; MUD,FRT 1-79931-203-1 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-049-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-050-3 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-048-2 01 1 0706- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0706- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 16 1 0706- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0706- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0706- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0706- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(D) 		1-79947-052-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(F) 		1-79947-051-1 01 1 0706- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0706-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0706-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0911- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 0706- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0706-0904 ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0706- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 0706- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0706- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0706- ● ●

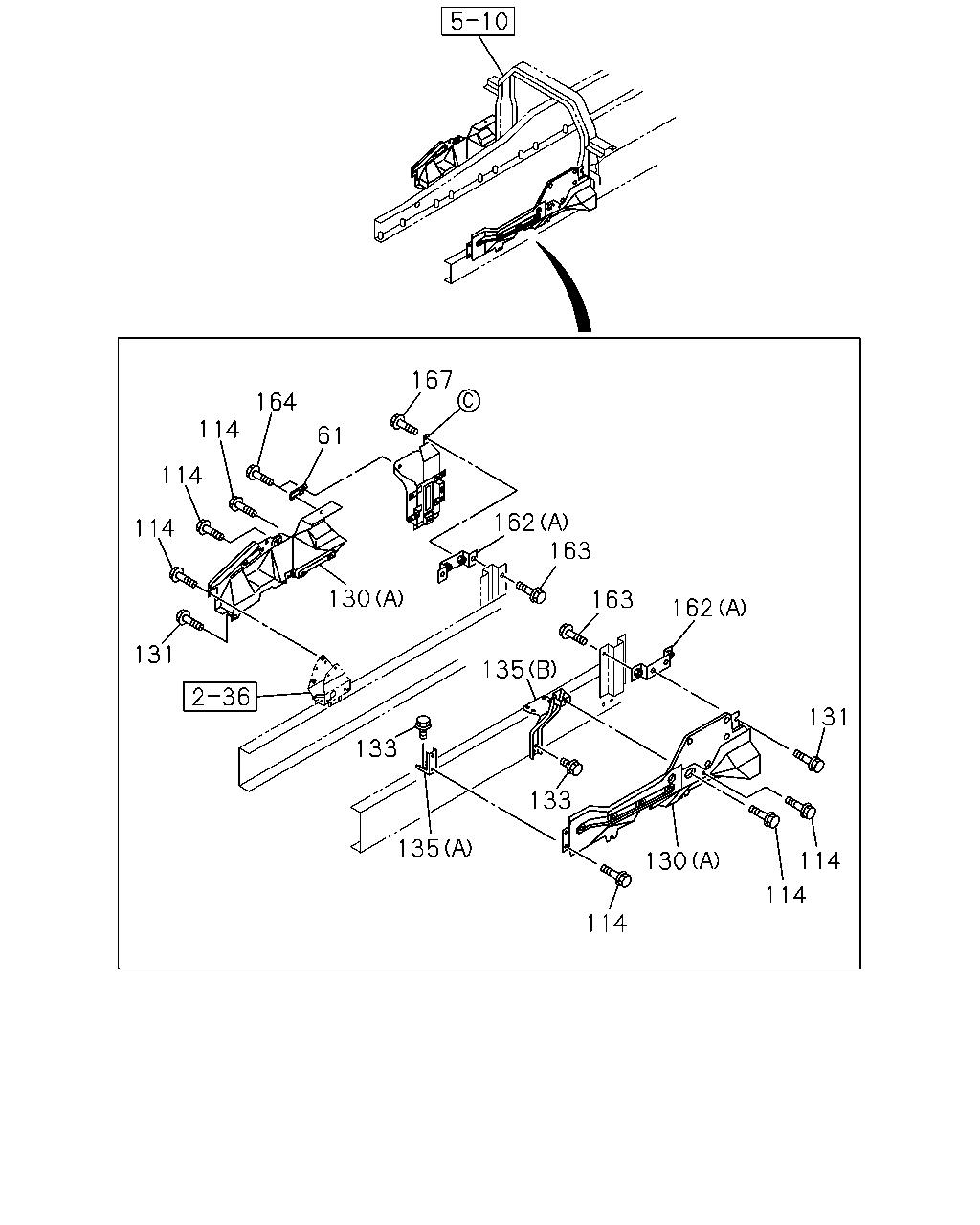

çizim 134436
167 164 114 61 114 162 163 114 130 163 162 131 135 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER 1-53441-536-1 01 1 0706-0803 ● ●
61 BRACKET; COVER 8-98039-501-1 01 1 0804- ● ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0706- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-049-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(C) 		1-79947-050-3 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 0706- ● ●
130 PANEL; SHUTTER NOISE
(B) 		1-79947-048-2 01 1 0706- ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0706-0805 ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0706- ● ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0706- ● ●
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0706- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 0706- ● ●
162 BRACKET
(B) 		1-53441-521-2 01 1 0706- ● ●
162 BRACKET
(C) 		1-53441-522-0 01 1 0706- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0706- ● ●
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0706- ● ●

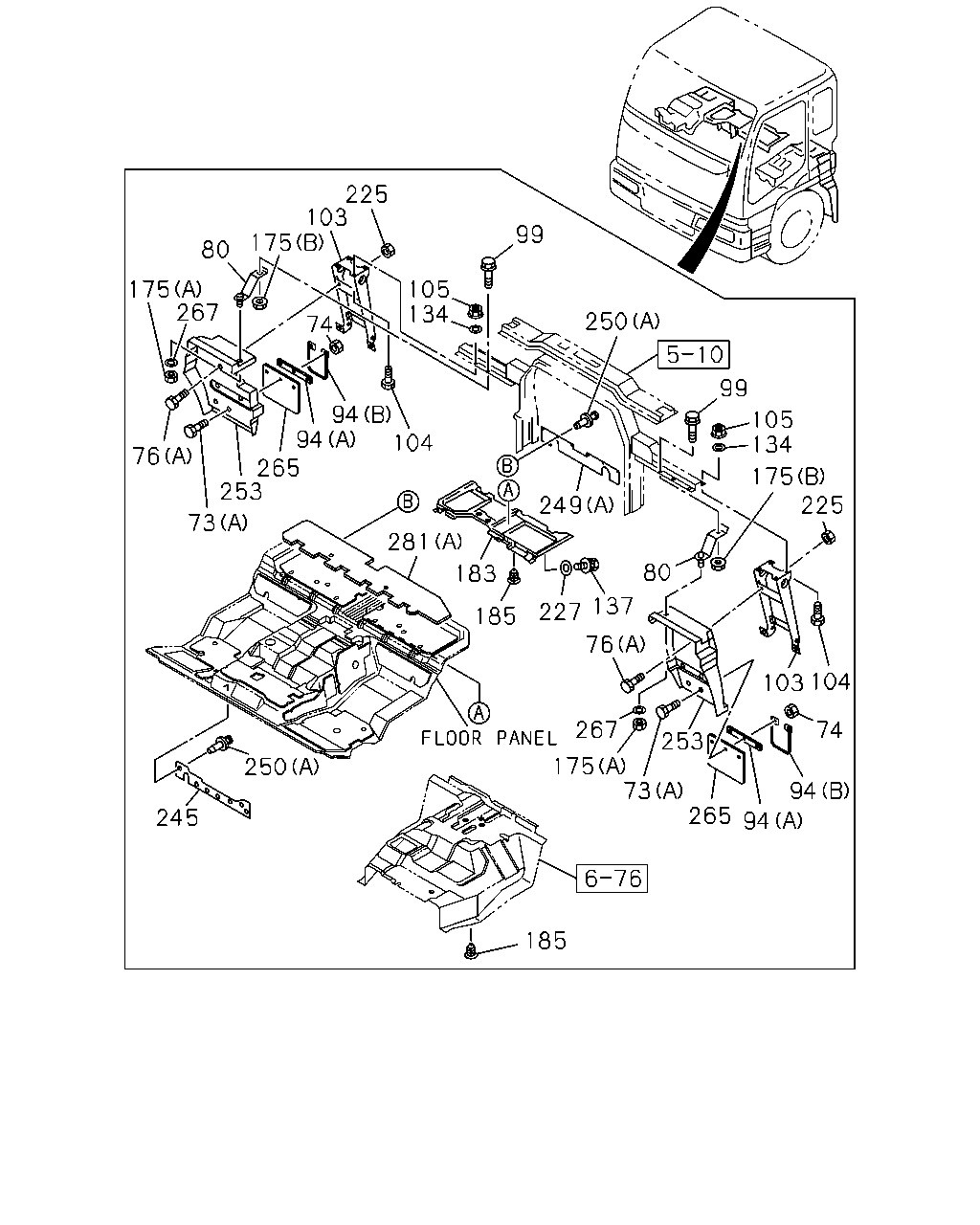

çizim 134452
225 103 175 99 80 175 267 105 134 74 250 99 94 94 104 265 253 105 134 76 175 225 249 73 281 183 80 137 227 185 76 267 74 253 175 73 250 94 265 245 94 185 103 104
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0706-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0706-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0706- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 0706- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0706- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0706-0805 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0706- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0706- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0706- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0706- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0706- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0706- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0706- ● ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0706- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 0706-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-887-0 02 1 1503- ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0706- ● ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0706- ● ●
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0706- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0706-0904 ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0706- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0706- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0706- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 16 1 0706- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0706- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0706- ● ●
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0706-0910 ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0706- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(D) 		1-79947-052-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0706- ● ●
249 RUBBER; SHUTTER
(F) 		1-79947-051-1 01 1 0706- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0706-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0706-0910 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0911- ● ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 0706- ● ●
253 GUARD; MUD 1-79931-066-7 01 1 0706-0901 ● ●
253 GUARD; MUD 8-98134-766-1 01 1 0902- ● ●
253 GUARD; MUD 1-79931-064-7 01 1 0706-0901 ● ●
253 GUARD; MUD 8-98134-759-0 01 1 0902- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0706- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0706- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0706- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0706- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 0706- ● ●
