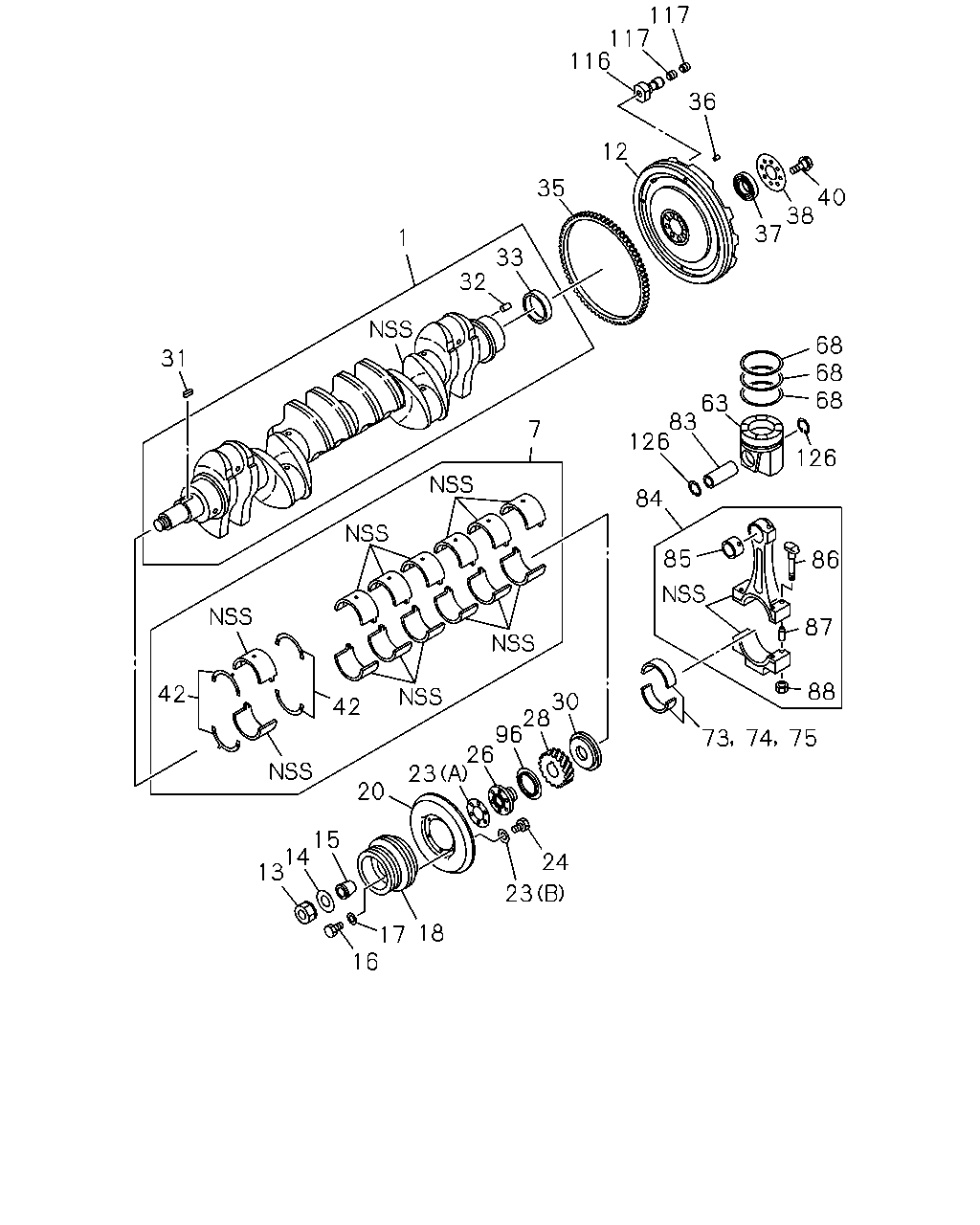

0-15A — CRANKSHAFT,PISTON AND FLYWHEEL (#1852) — 78 parça

117 117 116 36 12 35 40 38 37 1 33 32 68 68 68 31 63 83 126 7 126 84 85 86 87 88 42 30 28 96 26 42 73 74 75 23 20 15 14 13 24 23 18 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	1-12310-365-5	01	1	9302-9306	●
1	CRANKSHAFT	1-12310-503-2	01	1	9002-		●
1	CRANKSHAFT	1-12310-497-2	01	1	9012-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-060-1	01	1	9002-	●	●	●
12	FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-128-1	01	1	9002-	●	●	●
12	FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07)	1-12331-127-3	01	1	9002-		●	●
13	NUT; STARTING HANDLE	9-12378-039-0	01	1	9002-	●	●	●
14	WASHER; PULLEY DAMPER	9-09851-431-0	01	1	9002-	●	●	●
15	BUSHING; TAPER,CR/SHF PULLEY	9-12379-061-0	01	1	9002-	●	●	●
16	BOLT; PULLEY TO CENTER M12X30	9-92061-230-0	06	1	9002-	●	●	●
17	WASHER; PULLEY CENTER	1-09503-111-0	06	1	9002-	●	●	●
18	PULLEY; CR/SHF 6-GROOVE	1-12371-266-0	01	1	9002-9306	●
18	PULLEY; CR/SHF 5-GROOVE	1-12371-182-1	01	1	9002-		●
18	PULLEY; CR/SHF 6-GROOVE	1-12371-299-0	01	1	9012-			●
20	DAMPER; CR/SHF	1-12375-099-0	01	1	9002-9306	●
20	DAMPER; CR/SHF	1-12375-075-3	01	1	9002-		●
20	DAMPER; CR/SHF	1-12375-144-0	01	1	9012-			●
23	WASHER; DAMPER (B)	1-09503-033-1	06	1	9002-	●	●	●
23	WASHER; DAMPER (A) ID=142	1-12379-034-0	01	1	9012-			●
24	BOLT; DAMPER M10X22	9-02361-022-0	06	1	9002-	●	●
24	BOLT; DAMPER M10X28	9-02361-028-0	06	1	9012-			●
26	PULLEY; CENTER	1-12371-313-0	01	1	9002-9306	●	●	●
26	PULLEY; CENTER	1-12371-292-0	01	1	9307-		●	●
28	GEAR; CR/SHF	9-12521-045-2	01	1	9002-	●	●	●
30	COLLAR; THRUST	9-12361-024-2	01	1	9002-	●	●	●
31	KEY; FEATHER,CR/SHF	9-08031-225-0	01	1	9002-	●	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08151-220-0	01	1	9002-	●	●	●
33	RING; WEAR,CR/SHF D=22	1-12319-010-0	01	1	9002-	●	●	●
35	GEAR; RING Z=139	1-12333-013-0	01	1	9002-	●	●	●
36	PIN; FLYWHEEL	9-08151-020-0	02	1	9002-9010		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9011-9306		●	●
36	PIN; FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) OD=10 L=22	9-08151-022-0	02	1	9307-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-195-0	01	1	9002-9412	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	9501-		●	●
38	WASHER; FLYWHEEL	9-12336-025-1	01	1	9002-	●	●	●
40	BOLT; FLYWHEEL 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09044-030-1	08	1	9002-	●	●	●
40	BOLT; FLYWHEEL EXC. 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09070-017-1	08	1	9002-		●	●
42	WASHER; THRUST,CR/SHF	1-11515-040-0	02	1	9002-	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-482-0	06	1	9002-9306	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-437-0	06	1	9002-9306		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-873-0	06	1	9307-		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-506-1	06	1	9012-9012			●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-632-0	06	1	9101-9306			●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-821-0	06	1	9307-9401			●
63	PISTON ALSO INCLUDED IN LINER SET. EXH HEAT WARNING<W50> NON GRADE	1-12111-821-0	06	1	9402-			●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EXH HEAT WARNING<W50> NON GRADE	1-12111-822-0	06	1	9402-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-078-2	06	1	9002-9306	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-068-1	06	1	9002-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-102-1	06	1	9012-9401			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXH HEAT WARNING<W50>	1-12121-102-1	06	1	9402-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EXH HEAT WARNING<W50>	1-12121-122-0	36	1	9402-			●
73	METAL SET; CONN ROD,STANDARD	1-12271-073-0	06	1	9304-9304	●
73	METAL SET; CONN ROD,STANDARD	1-12271-055-0	06	1	9305-9306	●
73	METAL SET; CONN ROD,STANDARD	1-12271-048-0	06	1	9002-		●	●
74	METAL SET; CONN ROD,U/S=0.25	1-12273-055-0	06	1	9305-9306	●
74	METAL SET; CONN ROD,U/S=0.25	1-12273-048-0	06	1	9002-		●	●
75	METAL SET; CONN ROD,U/S=0.50	1-12274-055-0	06	1	9305-9306	●
75	METAL SET; CONN ROD,U/S=0.50	1-12274-048-0	06	1	9002-		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-020-0	06	1	9002-9306	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-078-0	06	1	9002-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-018-1	06	1	9012-			●
84	ROD ASM; CONN	1-12230-120-0	06	1	9002-9306	●
84	ROD ASM; CONN	1-12230-109-1	06	1	9002-		●
84	ROD ASM; CONN	1-12230-108-1	06	1	9012-9509			●
84	ROD ASM; CONN	1-12230-187-0	06	1	9601-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-012-0	06	1	9002-9306	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	9-12251-088-0	06	1	9002-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-025-0	06	1	9012-9509			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-044-0	06	1	9510-			●
86	BOLT; CONNROD	1-12235-030-0	24	1	9002-9306	●
86	BOLT; CONNROD	1-12235-026-1	24	1	9002-		●	●
87	PIN; CONNROD BIG END	9-09878-610-1	12	1	9002-	●	●	●
88	NUT; CONNROD	9-09840-316-0	24	1	9002-	●	●	●
96	THROWER; DUST,CR/SHF	1-12379-020-0	01	1	9002-	●	●	●
116	PIN; DRIVE 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09749-026-0	08	1	9002-	●	●	●
117	SCREW; DRIVE PIN 14INCH TWO PLATE SPICER CLUTCH(M07)	1-09187-005-0	16	1	9002-	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-051-0	12	1	9002-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-075-0	12	1	9012-			●
