5-30 — SPARE TIRE CARRIER AND COVER (#18518) — 48 parça

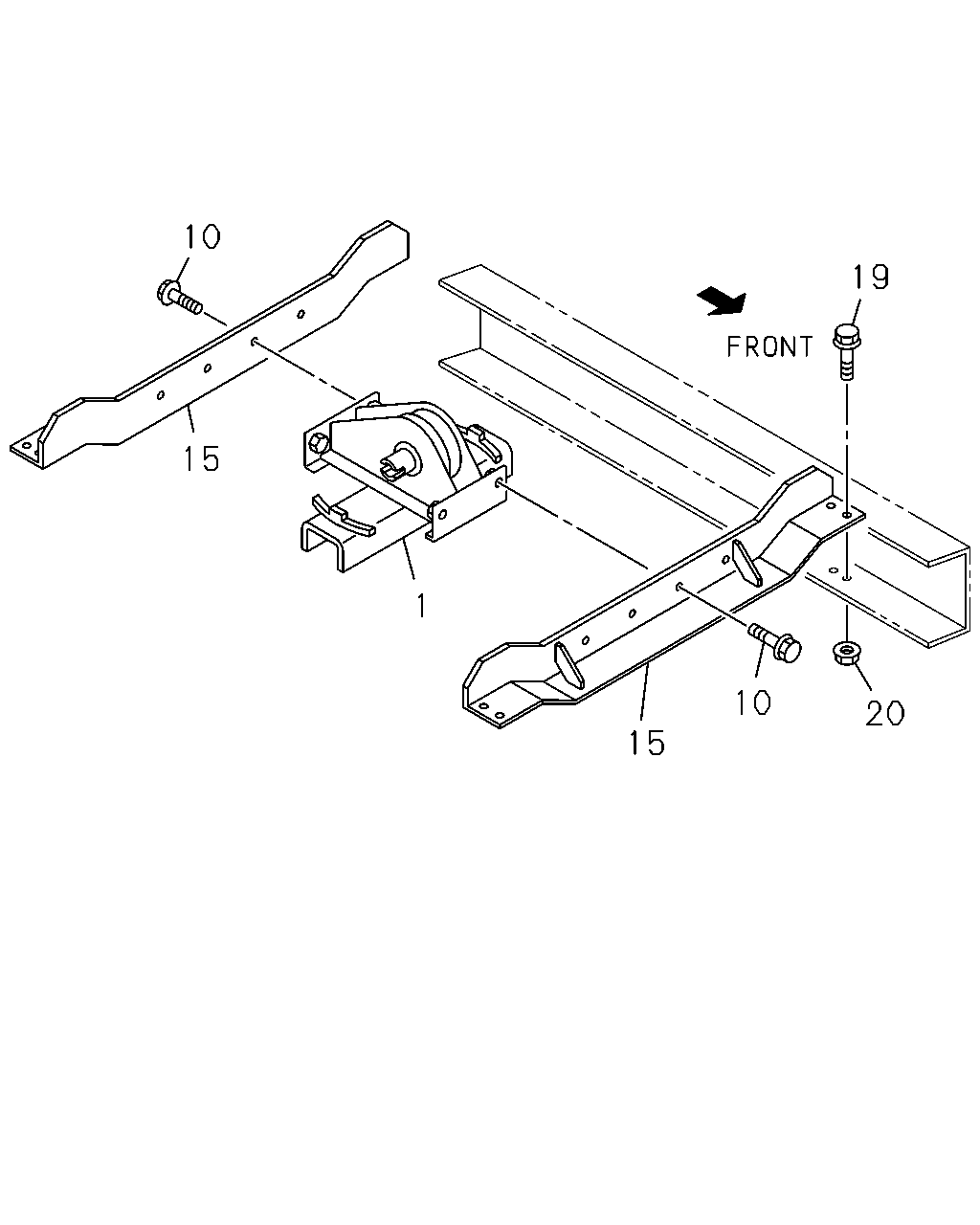

10 19 15 1 10 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-4	01	1	0706-0708	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0706-0708		●
1	HANGER ASM; TIRE FT	1-53630-210-4	01	1	0709-0810	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0709-0810		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-4	01	1	0811-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0811-		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28651-230-0	04	1	0706-0708	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0706-0708		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28651-230-0	04	1	0709-0810	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0709-0810		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28651-230-0	04	1	0811-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0811-		●
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	8-97608-196-1	02	1	0706-		●
19	BOLT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10X50 FLANGE	0-28051-050-0	08	1	0706-		●
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0706-		●

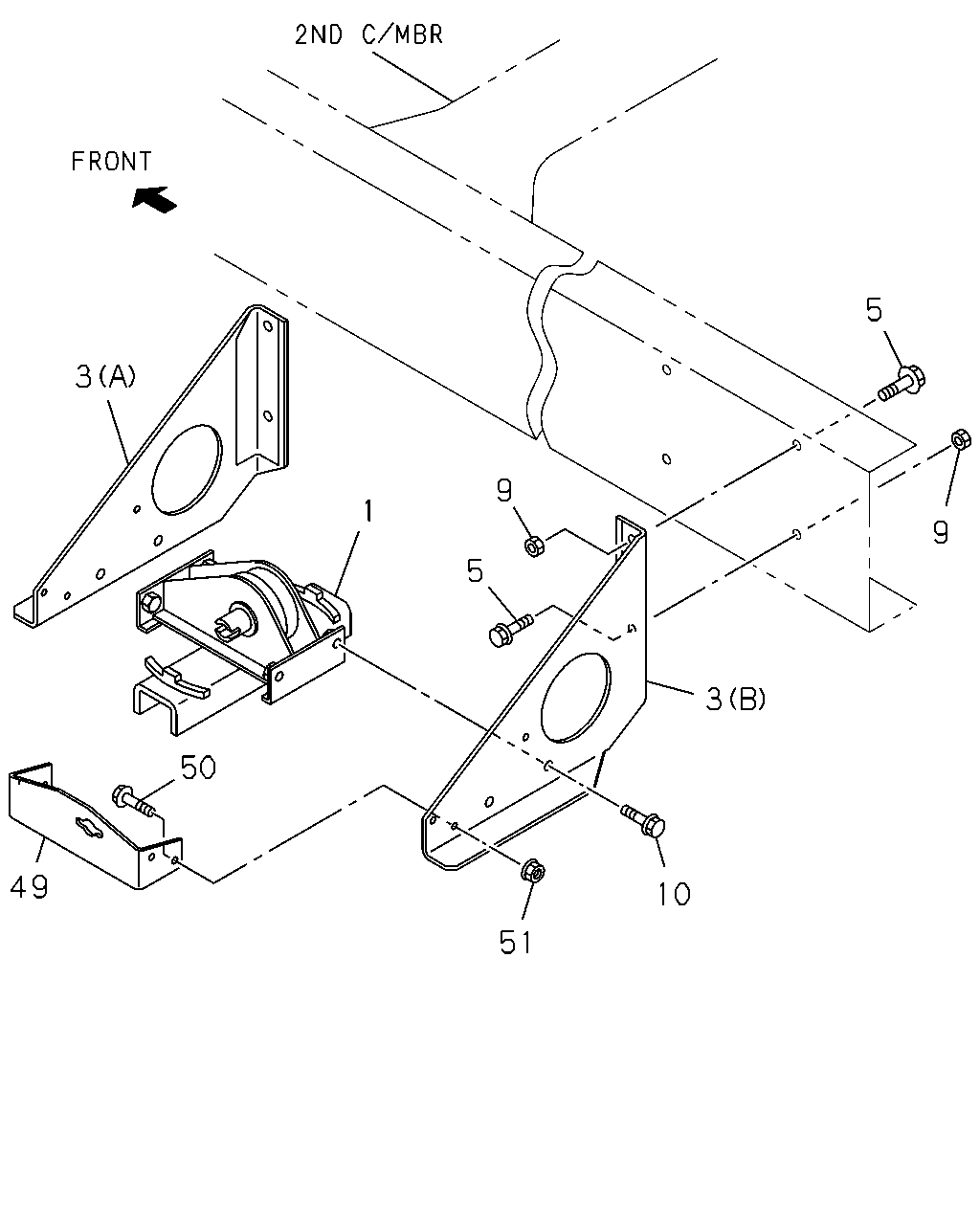

5 3 9 1 9 5 3 50 49 10 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-4	01	1	0706-0708	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0706-0708		●
1	HANGER ASM; TIRE FT	1-53630-210-4	01	1	0709-0810	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0709-0810		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53630-210-4	01	1	0811-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0811-		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-97383-718-1	01	1	0706-0708	●
3	BRACKET; TIRE CARRIER,FRT (B)	8-97383-718-1	01	1	0709-0810	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-97383-718-1	01	1	0811-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-97383-719-1	01	1	0706-0708	●
3	BRACKET; TIRE CARRIER,FRT (A)	8-97383-719-1	01	1	0709-0810	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-97383-719-1	01	1	0811-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28651-240-0	04	1	0706-0708	●
5	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	04	1	0709-0810	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28651-240-0	04	1	0811-	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	04	1	0706-0708	●
9	NUT; BRKT TO FRAME M12	0-91110-512-0	04	1	0709-0810	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	04	1	0811-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28651-230-0	04	1	0706-0708	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0706-0708		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28651-230-0	04	1	0709-0810	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0709-0810		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28651-230-0	04	1	0811-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0811-		●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	8-97383-722-0	01	1	0706-0708	●
49	STAY; TIRE CARRIER	8-97383-722-0	01	1	0709-0810	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	8-97383-722-0	01	1	0811-	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE	0-28650-825-0	04	1	0706-0708	●
50	BOLT; BRKT TO STAY M8X25 FLANGE	0-28650-825-0	04	1	0709-0810	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE	0-28650-825-0	04	1	0811-	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	0706-0708	●
51	NUT; BRKT TO STAY M8 FLANGE	0-91180-108-0	04	1	0709-0810	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	0811-	●
