Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#18512) — 277 parça

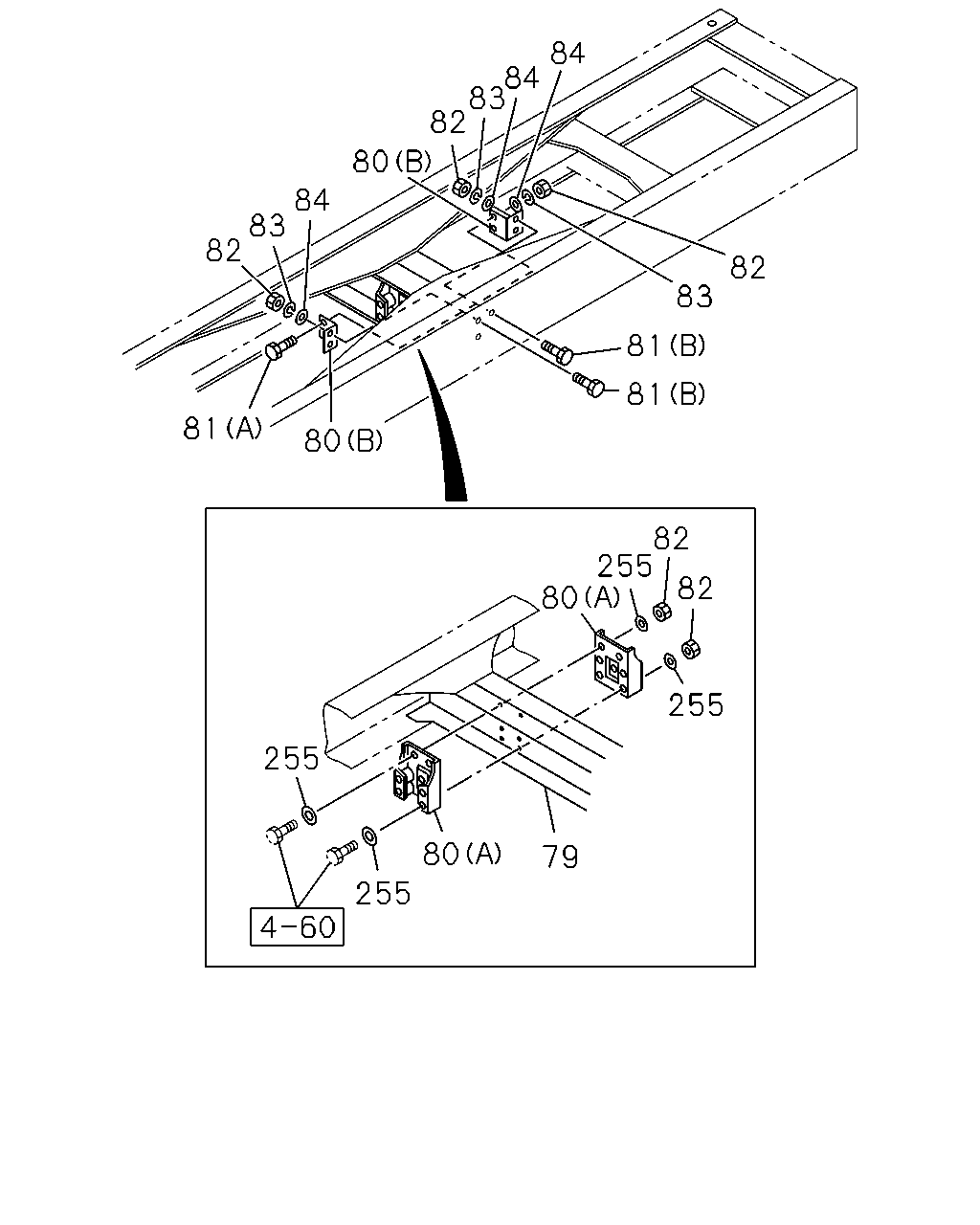

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 255 80 82 255 255 80 79 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0706-0708	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0709-1209	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1210-1210	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1211-	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0902-				●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0706-0708	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0709-0901	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0902-1209	●	●		●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1210-1210	●			●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1211-	●	●		●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	0706-	●	●	●	●
81	BOLT; BRKT (A) M14X55	9-91066-455-0	04	1	0706-	●	●	●	●
81	BOLT; BRKT (B) M14X45	9-92061-445-0	08	1	0706-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0706-0708	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0709-0901	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0902-1209	●	●		●
82	NUT; BRKT M14	0-91110-514-0	04	1	1210-1210	●			●
82	NUT; BRKT M14	0-91110-514-0	04	1	1211-	●	●		●
82	NUT; BRKT M14	0-91110-514-0	12	1	0706-	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0706-	●	●	●	●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	0706-1104	●	●	●	●
84	WASHER; PL,BRKT ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0706-0708	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0709-0901	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0902-1201	●	●		●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-1209	●	●		●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1210-1210	●			●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1211-	●	●		●

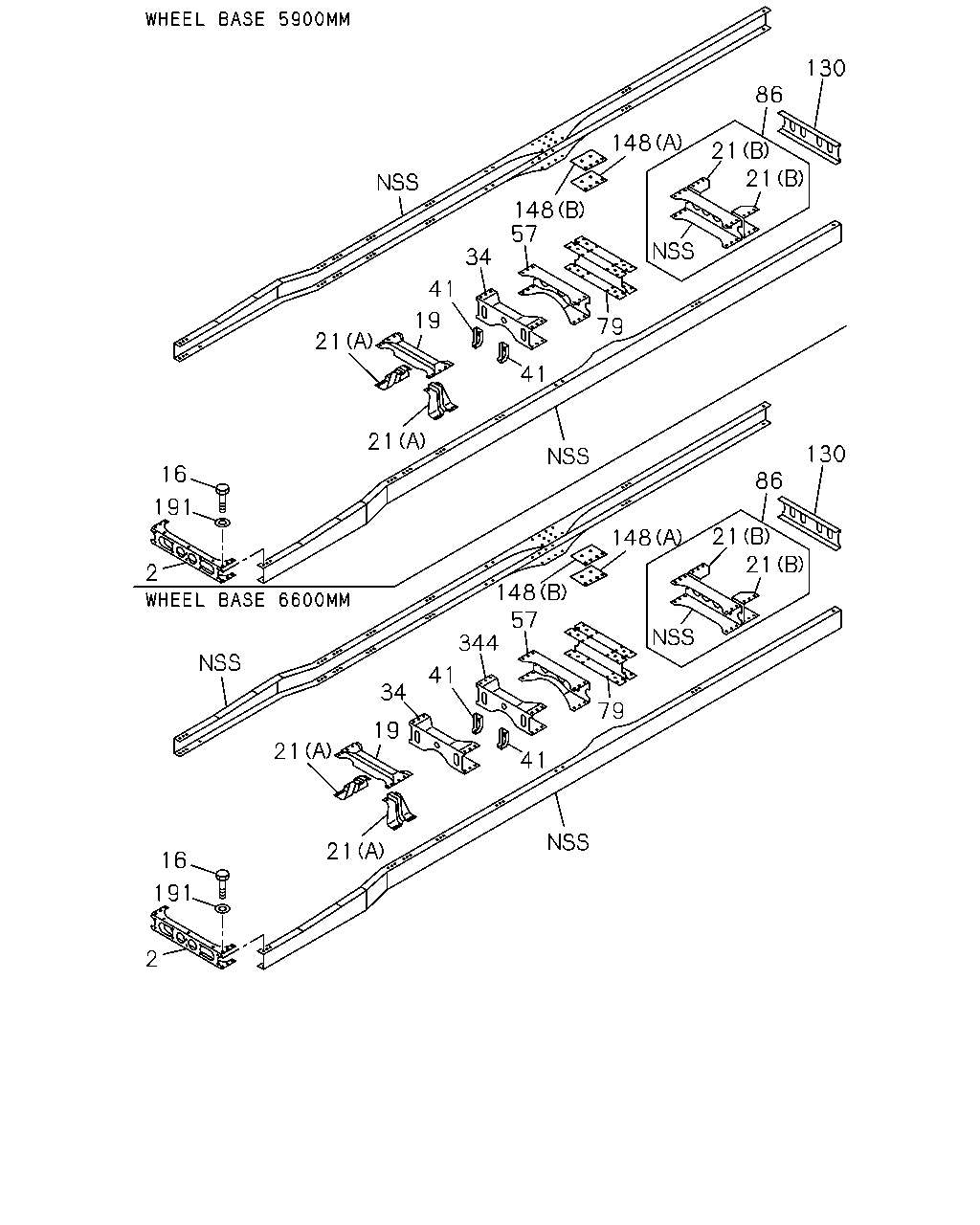

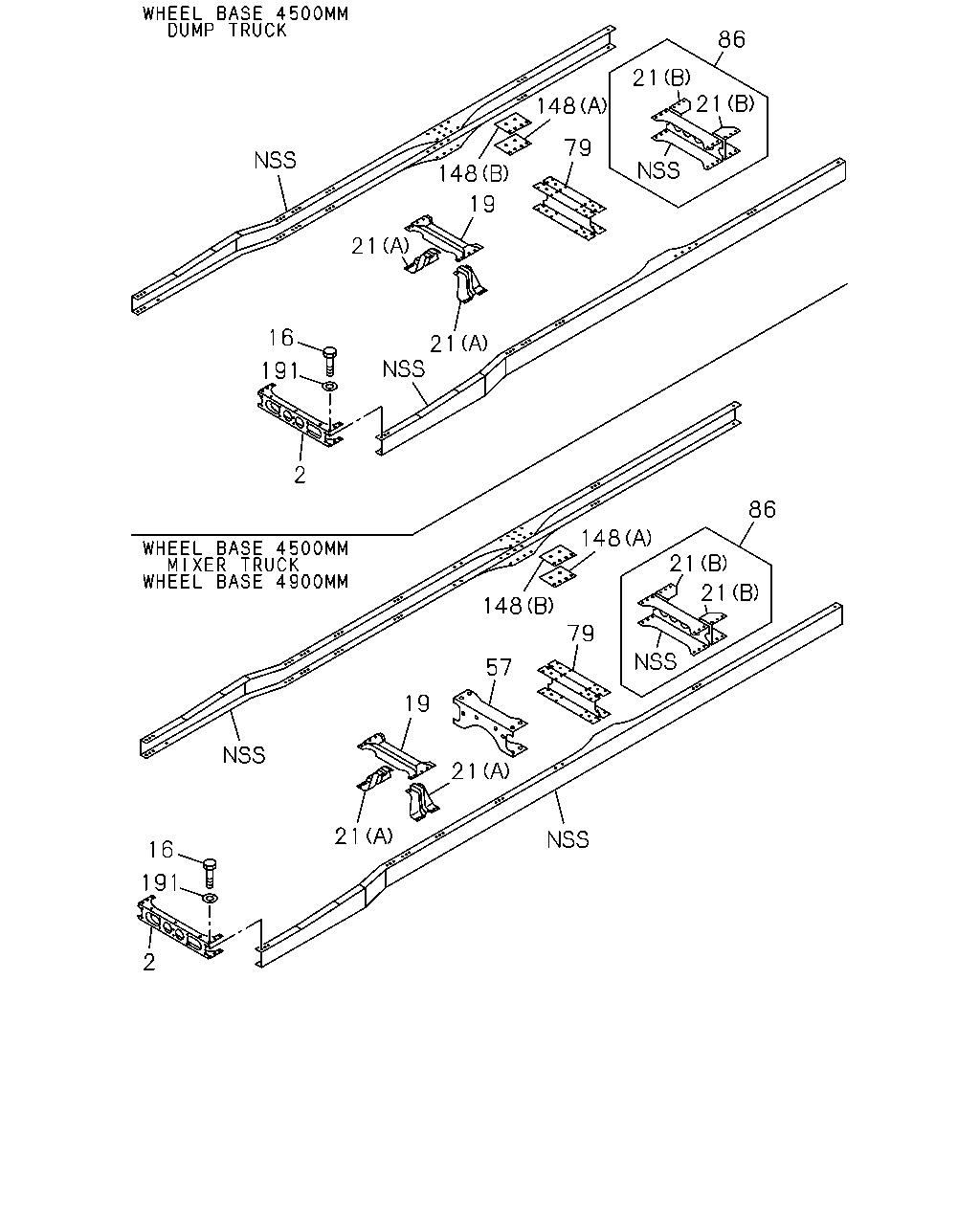

86 21 21 148 148 79 19 21 16 21 191 2 86 148 148 21 21 79 57 19 21 21 16 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0706-0708	●	●	●
2	MEMBER; CROSS,1ST	1-53181-975-5	01	1	0709-0901	●	●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0902-1209	●	●		●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	1210-1210	●			●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	1211-	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0706-0708	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0709-0901	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0902-1209	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1210-1210	●			●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1211-	●	●		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0706-0708	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0709-0901	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0902-1209	●	●		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1210-1210	●			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1211-	●	●		●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0706-0708	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0709-0901	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0902-1209	●	●		●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	1210-1210	●			●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	1211-	●	●		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0706-0708	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0709-0901	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0902-1209	●	●		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	1210-1210	●			●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	1211-	●	●		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0706-0708	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0706-0708		●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0709-0810		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0811-0901	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0811-0901		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0902-1209	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0902-1209		●		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	1210-1210	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1210-1210				●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	1211-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1211-		●		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0706-0708	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0709-1209	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1210-1210	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1211-	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0902-				●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0706-0708	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0709-0901	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0902-1209	●	●		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1210-1210	●			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1211-	●	●		●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0706-0708	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0709-0901	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0902-1209	●	●		●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1210-1210	●			●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1211-	●	●		●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0706-0708	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0709-0901	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0902-1209	●	●		●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1210-1210	●			●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1211-	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0706-0708	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0709-0901	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0902-1201	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-1209	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1210-1210	●			●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1211-	●	●		●

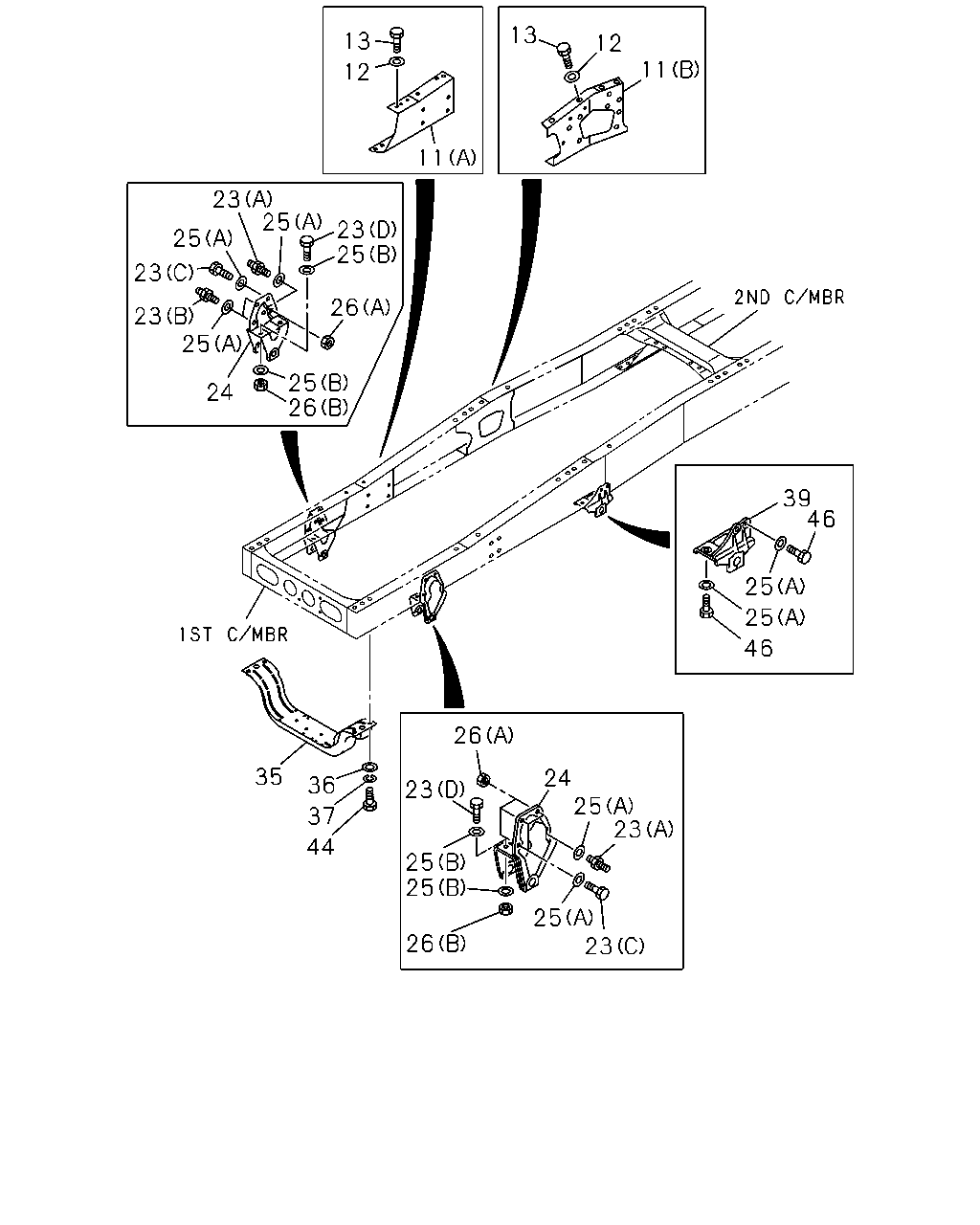

13 13 12 11 12 11 23 25 23 25 25 23 26 23 25 25 26 24 39 46 25 25 46 26 35 24 25 23 36 23 37 44 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-0	01	1	0706-0708	●
11	BRACKET; ENG MTG (B)	1-53239-141-0	01	1	0706-0708		●	●
11	BRACKET; ENG MTG (B)	1-53239-141-0	01	1	0709-0810	●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-1	01	1	0811-1209	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	0811-1209		●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-1	01	1	1210-1210	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-1	01	1	1211-	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	1211-		●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-0	01	1	0706-0708	●
11	BRACKET; ENG MTG (B)	1-53239-142-0	01	1	0706-0708		●	●
11	BRACKET; ENG MTG (B)	1-53239-142-0	01	1	0709-0810	●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-1	01	1	0811-1209	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	0811-1209		●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-1	01	1	1210-1210	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-1	01	1	1211-	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	1211-		●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-0	01	1	0706-0708	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-0	01	1	0706-0708	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-0	01	1	0811-0901	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-1	01	1	0902-	●
11	BRACKET; ENG MTG (B)	1-53239-139-1	01	1	0902-				●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-0	01	1	0811-0901	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-1	01	1	0902-	●
11	BRACKET; ENG MTG (B)	1-53239-140-1	01	1	0902-				●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0706-0708	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0709-0901	●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0902-1209	●	●		●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1210-1210	●			●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	1211-	●	●		●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0706-0708	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0709-0901	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0902-1209	●	●		●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1210-1210	●			●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	1211-	●	●		●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0706-0708	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0709-0901	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0902-1201	●	●		●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1202-1209	●	●		●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1210-1210	●			●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1211-	●	●		●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0706-0708	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0709-0901	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0902-1209	●	●		●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1210-1210	●			●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	1211-	●	●		●
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	0706-0708	●	●	●
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	0709-1209	●	●
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	1210-1210	●
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	1211-	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	0706-0708	●	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	0709-0901	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	0902-1209	●	●		●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	1210-1210	●			●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	1211-	●	●		●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0706-0708	●	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0709-0901	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0902-1209	●	●		●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	1210-1210	●			●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	1211-	●	●		●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0706-0708	●	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0709-0901	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0902-1209	●	●		●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	1210-1210	●			●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	1211-	●	●		●
23	BOLT; BRKT,SPR (C) M14X40	0-20951-440-0	04	1	0902-				●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0706-0708	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0709-0901	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0902-1209	●	●		●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1210-1210	●			●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	1211-	●	●		●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0706-0708	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0709-0901	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0902-1209	●	●		●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1210-1210	●			●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	1211-	●	●		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1211-		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0706-0708	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0709-0901	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0902-1209	●	●		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	1210-	●			●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0706-0708	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0709-0901	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0902-1201	●	●		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1202-1209	●	●		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1210-1210	●			●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1211-	●	●		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0706-0708	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0709-1209	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	1210-1210	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	1211-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0706-0708	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0709-0901	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0902-1209	●	●		●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1210-1210	●			●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1211-	●	●		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	0902-				●
35	MEMBER; UNDER	1-53174-263-2	01	1	0706-	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0706-	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0706-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0706-0708	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0709-0901	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0902-1209	●	●		●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1210-1210	●			●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	1211-	●	●		●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0706-0708	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0709-0901	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0902-1209	●	●		●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1210-1210	●			●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	1211-	●	●		●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0706-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0706-0708	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0709-0901	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0902-1209	●	●		●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1210-1210	●			●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1211-	●	●		●

130 86 148 148 57 21 21 34 41 19 79 21 41 21 130 16 86 191 21 21 148 2 148 57 344 41 34 79 19 21 41 21 16 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0706-0708	●	●	●
2	MEMBER; CROSS,1ST	1-53181-975-5	01	1	0709-0901	●	●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0902-1209	●	●		●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	1210-1210	●			●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	1211-	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0706-0708	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0709-0901	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0902-1209	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1210-1210	●			●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	1211-	●	●		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0706-0708	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0709-0901	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0902-1209	●	●		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1210-1210	●			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1211-	●	●		●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0706-0708	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0709-0901	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0902-1209	●	●		●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	1210-1210	●			●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	1211-	●	●		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0706-0708	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0709-0901	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0902-1209	●	●		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	1210-1210	●			●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	1211-	●	●		●
34	MEMBER; CROSS,3RD	1-53182-072-1	01	1	1211-		●
34	MEMBER; CROSS,3RD	1-53182-072-0	01	1	0706-0708		●	●
34	MEMBER; CROSS,3RD	1-53182-072-0	01	1	0709-1209		●
41	BRACKET; CENTER BRG,FRAME SIDE L=320	1-53271-385-0	02	1	1211-		●
41	BRACKET; CENTER BRG,FRAME SIDE L=320	1-53271-385-0	02	1	0706-1209		●
41	BRACKET; CENTER BRG,FRAME SIDE L=340	1-53271-307-1	02	1	0706-0708			●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0706-0708	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0706-0708		●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0709-0810		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0811-0901	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0811-0901		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0902-1209	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0902-1209		●		●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	1210-1210	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1210-1210				●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	1211-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	1211-		●		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-4	01	1	0706-0708	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0709-1209	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1210-1210	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	1211-	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0902-				●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0706-0708	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0709-0901	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0902-1209	●	●		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1210-1210	●			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	1211-	●	●		●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	1211-		●
130	MEMBER; CROSS,END	1-53171-876-3	01	1	0706-0708		●	●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	0709-1209		●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0706-0708	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0709-0901	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0902-1209	●	●		●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1210-1210	●			●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	1211-	●	●		●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0706-0708	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0709-0901	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0902-1209	●	●		●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1210-1210	●			●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	1211-	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0706-0708	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0709-0901	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0902-1201	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-1209	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1210-1210	●			●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1211-	●	●		●
344	MEMBER; CROSS,4TH	1-53182-072-0	01	1	0706-0708			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
