Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#18511) — 46 parça

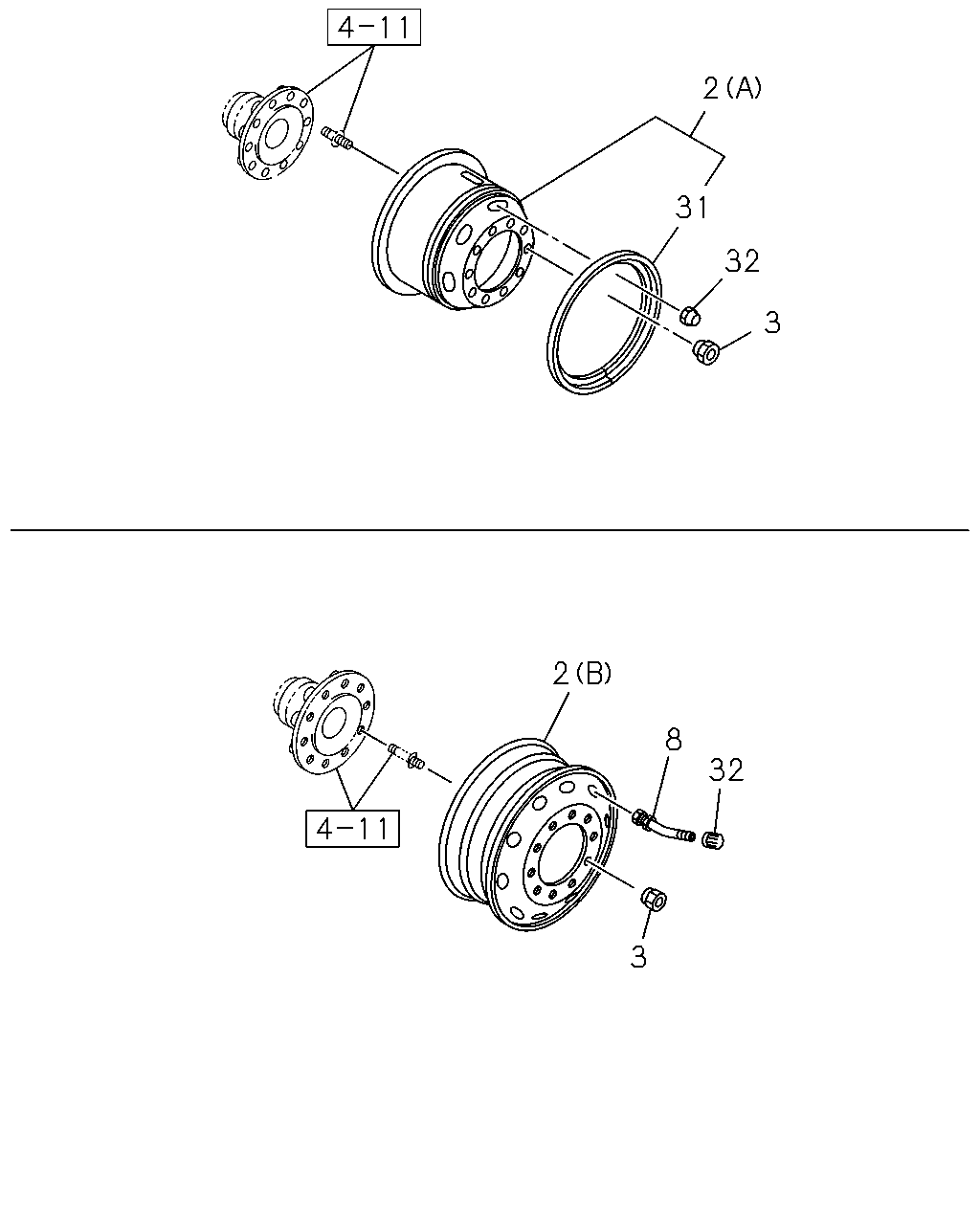

2 31 32 3 2 8 32 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR	1-42350-448-0	10	1	0706-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-448-0	01	1	0706-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) FRONT,REAR	1-42350-730-0	10	1	0706-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) FRONT,REAR	8-98217-247-0	10	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) FRONT,REAR	8-98281-497-0	10	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-730-0	01	1	0706-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98217-247-0	01	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98281-497-0	01	1	1408-	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-050-1	20	1	0706-0907	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	0908-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR	1-42370-020-3	10	1	0706-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR	1-42370-048-0	10	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR	1-42370-019-3	10	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0706-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	10	1	0706-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT>	1-42374-001-0	10	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0706-	●	●

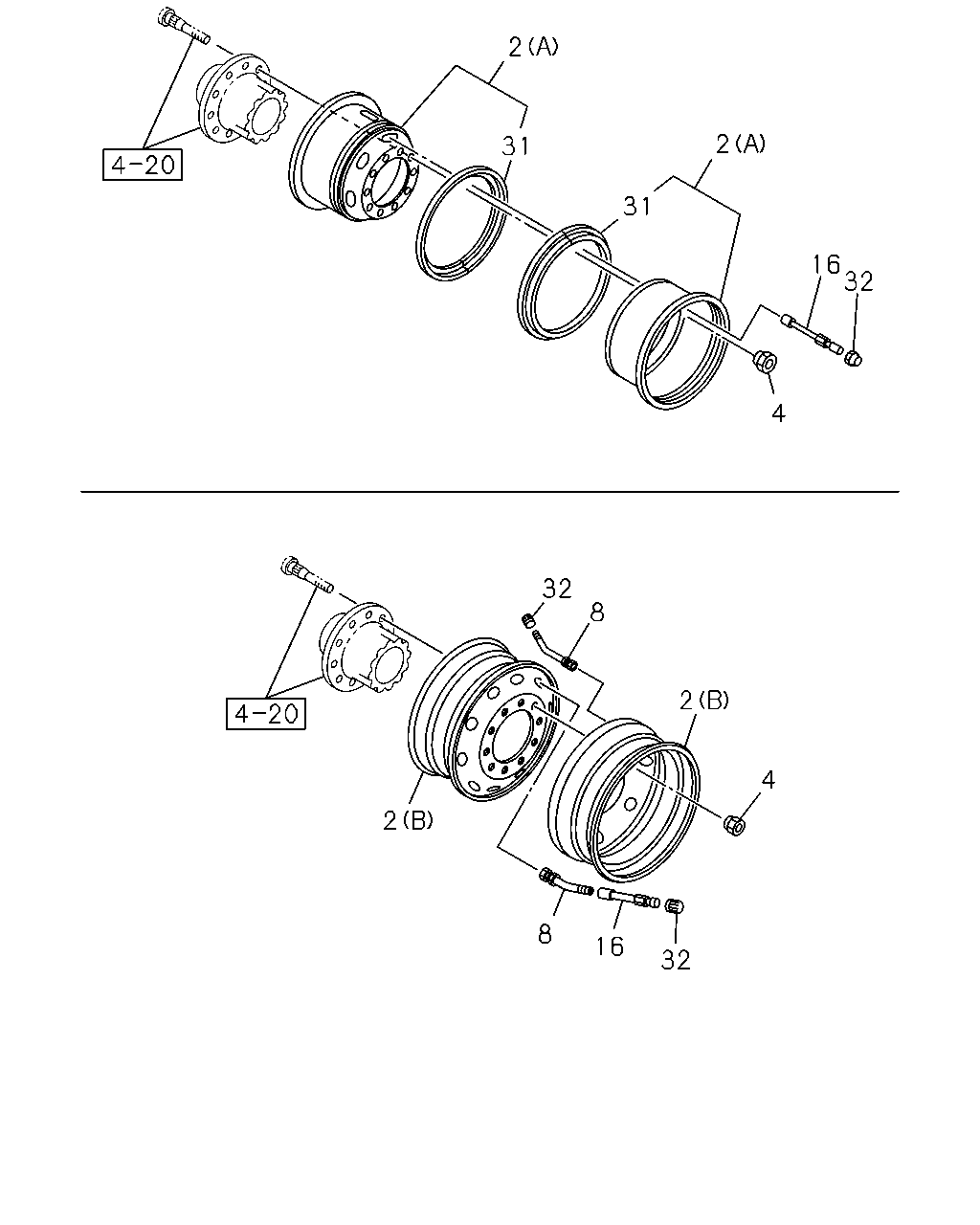

2 2 31 31 16 32 4 32 8 2 4 2 8 16 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR	1-42350-448-0	10	1	0706-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-448-0	01	1	0706-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) FRONT,REAR	1-42350-730-0	10	1	0706-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) FRONT,REAR	8-98217-247-0	10	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) FRONT,REAR	8-98281-497-0	10	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-730-0	01	1	0706-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98217-247-0	01	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98281-497-0	01	1	1408-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-050-1	40	1	0706-0907	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	0908-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR	1-42370-020-3	10	1	0706-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR	1-42370-048-0	10	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR	1-42370-019-3	10	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0706-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50VX20 165-12(Q64) L=170	1-42370-024-0	04	1	0706-1003	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50VX20 165-12(Q64) L=170	8-98167-052-0	04	1	1004-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR	1-42355-014-0	10	1	0706-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT>	1-42374-001-0	10	1	0706-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0706-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
