4-20 — REAR AXLE CASE AND SHAFT (#18498) — 59 parça

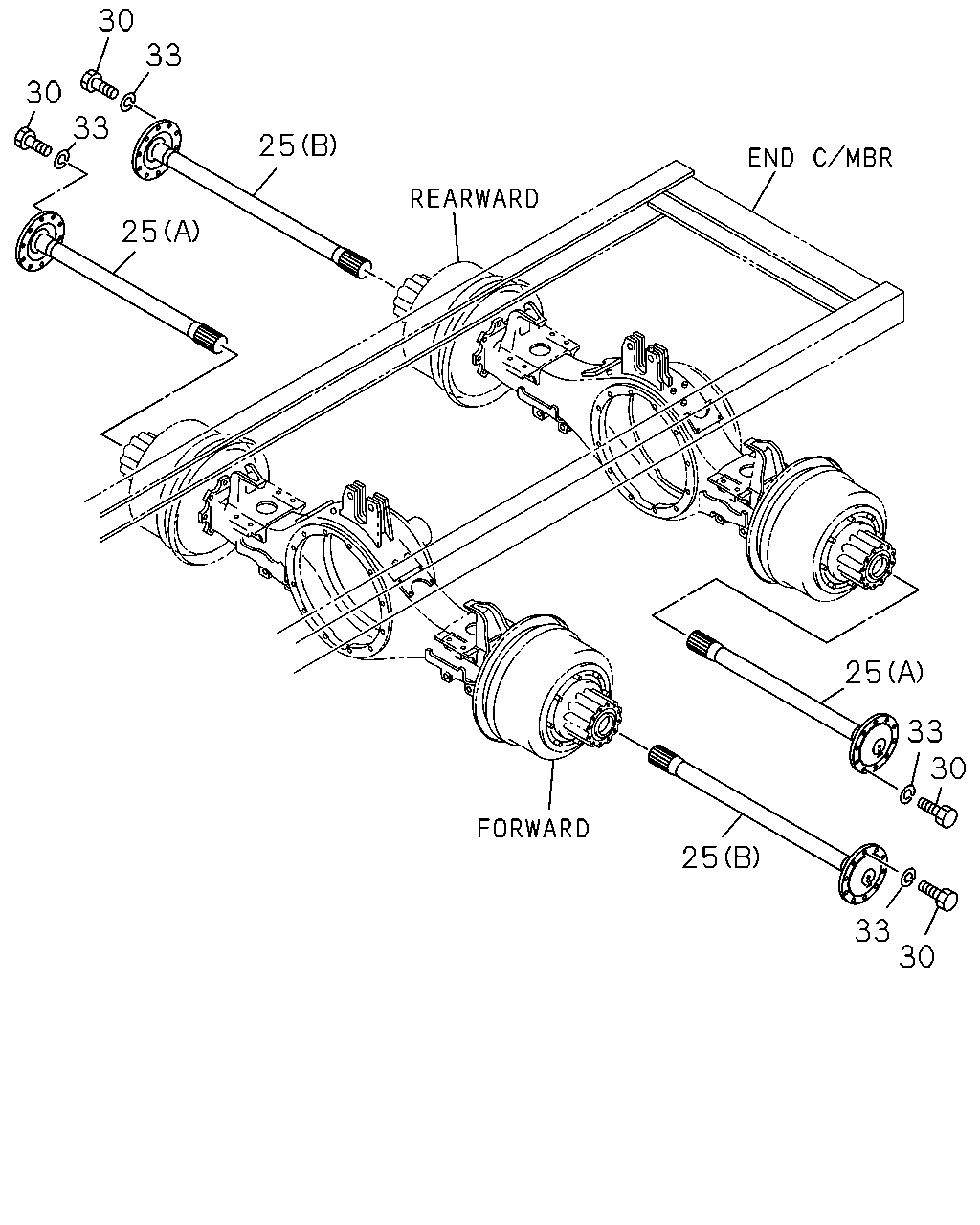

çizim 134384
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 02 1 0706-0910 ● ●
25 SHAFT; AXLE,RR
(A) L=990 		8-98146-166-0 02 1 0911- ● ●
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 02 1 0706-0910 ● ●
25 SHAFT; AXLE,RR
(B) L=1110 		8-98146-167-0 02 1 0911- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 40 1 0706- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 40 1 0706- ● ●

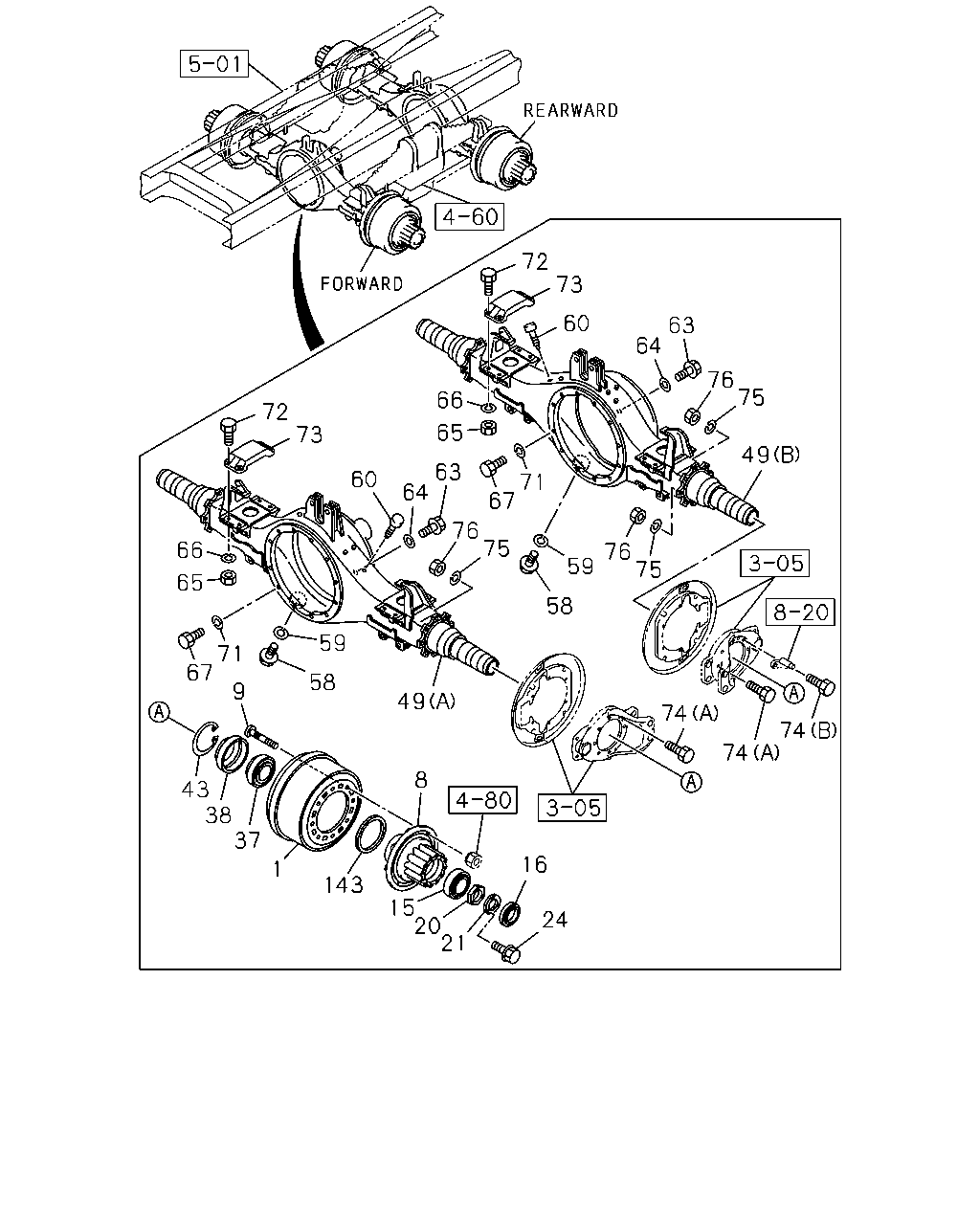

çizim 134390
72 73 60 63 64 76 75 66 72 73 65 49 63 64 60 71 67 76 75 66 76 75 59 65 58 59 71 67 58 9 49 74 74 74 8 43 38 37 16 1 143 15 20 21 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR 1-42315-377-2 04 1 0706- ● ●
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0706- ● ●
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0706- ● ●
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 40 1 0706- ● ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 04 1 1209- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 04 1 0706- ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 04 1 1209- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 04 1 0706- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 04 1 0706- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 04 1 0706- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 12 1 0706- ● ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 04 1 1209- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 04 1 0706- ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 04 1 0706- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 04 1 0706- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 04 1 0706- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 04 1 0706- ● ●
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (A) 		1-42190-489-2 01 1 0706-0708 ●
49 CASE; RR AXLE
(A) 		1-42190-489-2 01 1 0706-0708 ●
49 CASE; RR AXLE
(A) 		1-42190-489-2 01 1 0709-0810 ●
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (A) 		1-42190-489-2 01 1 0811- ●
49 CASE; RR AXLE
(A) 		1-42190-489-2 01 1 0811- ●
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42190-538-2 01 1 0706-0708 ●
49 CASE; RR AXLE
(B) 		1-42190-538-2 01 1 0706-0708 ●
49 CASE; RR AXLE
(B) 		1-42190-538-2 01 1 0709-0810 ●
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42190-538-2 01 1 0811- ●
49 CASE; RR AXLE
(B) 		1-42190-538-2 01 1 0811- ●
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (A) 		1-42190-488-0 01 1 0706-0708 ●
49 CASE; RR AXLE
(A) 		1-42190-488-0 01 1 0709-0810 ●
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (A) 		1-42190-488-2 01 1 0811- ●
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (B) 		1-42190-539-0 01 1 0706-0708 ●
49 CASE; RR AXLE
(B) 		1-42190-539-0 01 1 0709-0810 ●
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (B) 		1-42190-539-2 01 1 0811- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 02 1 0706- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 02 1 0706- ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0706-1412 ● ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 02 1 0706- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 02 1 0706- ● ●
65 NUT
M14 		0-91110-514-0 16 1 0706- ● ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 16 1 0706- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 08 1 0706- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 15 1 0706- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 24 1 0706- ● ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 16 1 0706-0805 ● ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 0806- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 04 1 0706- ● ●
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 28 1 0706- ● ●
74 BOLT; RR BRK ASM SETTING
(B) M14X80 		9-92621-480-0 04 1 0706-1504 ● ●
74 BOLT; RR BRK ASM SETTING
(B) M14X60 		1-09040-084-0 04 1 1505- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 32 1 0706- ● ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 32 1 0706- ● ●
143 RING; EXCITER 1-42319-173-0 02 1 0706- ● ●
