4-01 — PROPELLER SHAFT (#18495) — 232 parça

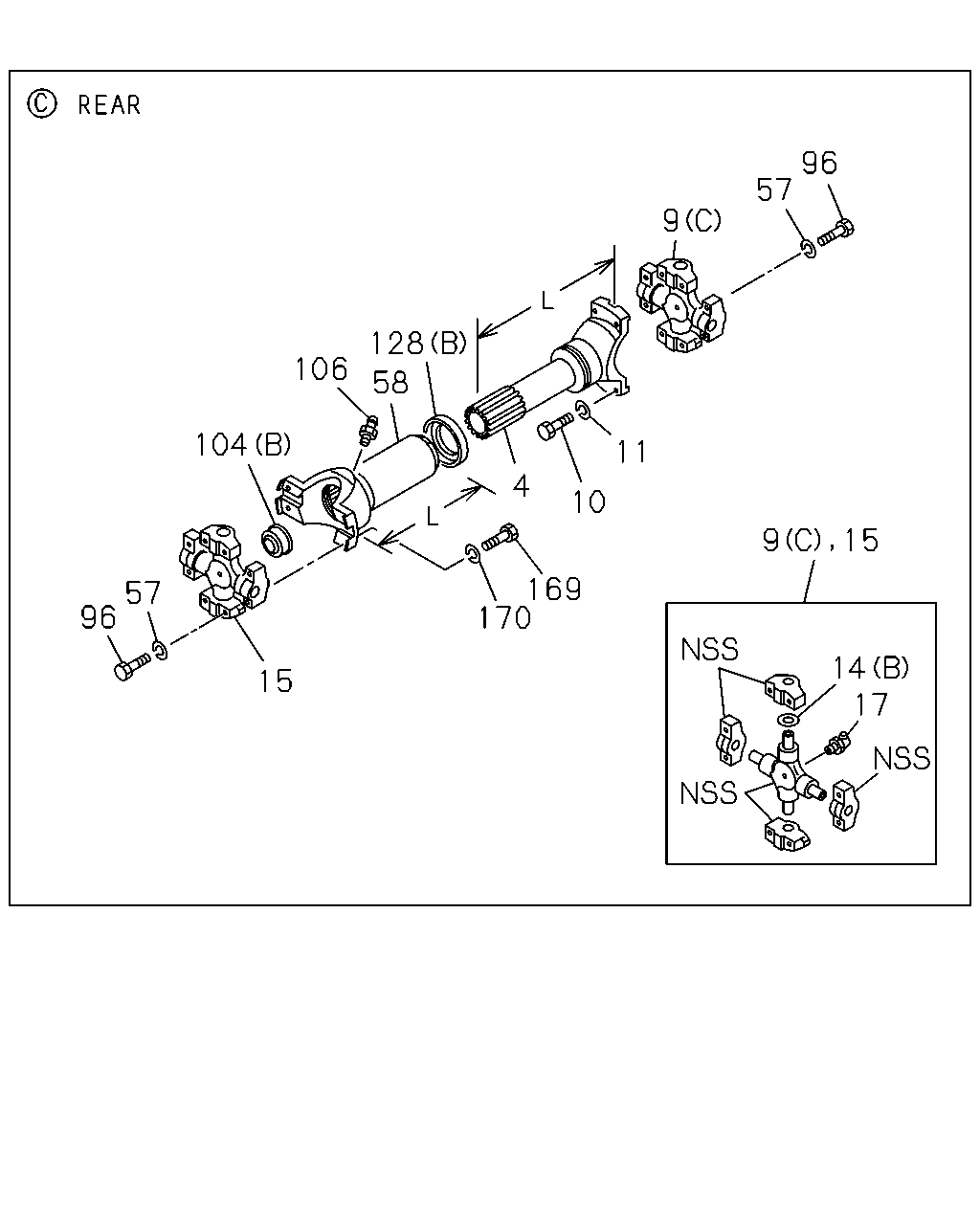

çizim 134349
96 57 9 128 106 58 104 11 4 10 9 15 169 170 57 96 14 17 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0706- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0706-0708 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0709-0901 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 02 1 0902- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0902- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0706- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (D) 		1-37300-112-0 02 1 0902- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-111-0 01 1 0706-0708 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-111-0 01 1 0709-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0706-0805 ● ● ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0706- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0706-0708 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0709-0901 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0902- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0902- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0706- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 08 1 0902- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0706-0708 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0709- ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0706- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0706-0708 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0706-0708 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0709-0901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0709-0901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0902- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0902- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0706-0708 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0709- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0706- ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0706- ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0706-0805 ● ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806- ● ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0706-0708 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0709-0901 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 0902- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0902- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0706-0901 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0902- ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 0902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0706-0708 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0706-0708 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0709-0901 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0709-0901 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0902- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0902- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0706-0708 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0709-0901 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0902- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0902- ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0706- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (C) 		1-37247-020-0 01 1 0902- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0706-0805 ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0706- ● ● ● ●

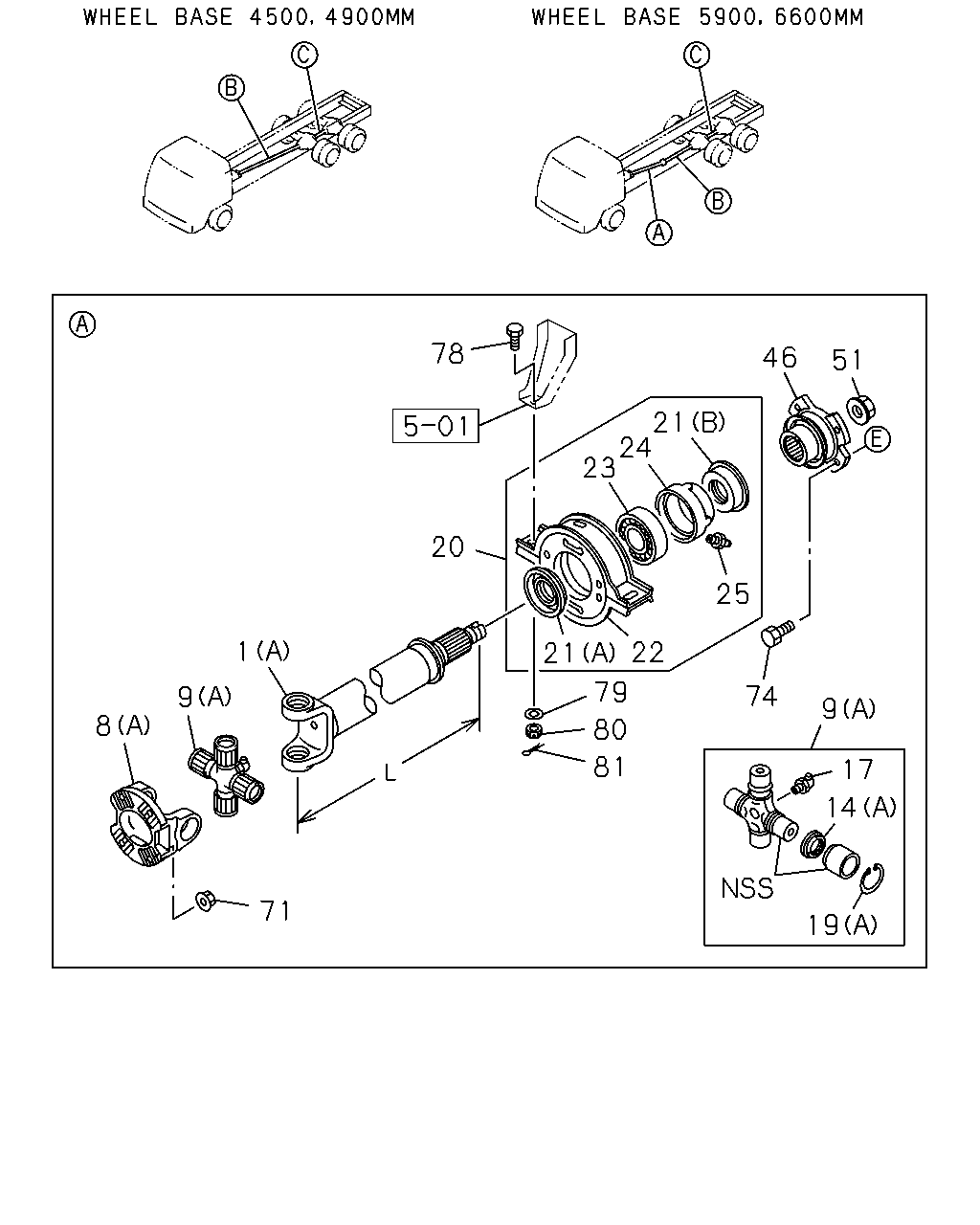

çizim 134364
78 46 51 21 24 23 20 25 1 22 21 79 74 9 9 8 80 81 17 14 71 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MIXER TRUCK<RA2> (B) L=754 		1-37124-621-0 01 1 0706-0708 ●
1 SHAFT; PROP
MIXER TRUCK<RA2> (B) L=754 		1-37124-621-1 01 1 0811-0901 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) MIXER TRUCK<RA2> (B) L=754 		1-37124-621-1 01 1 0902- ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (B) L=829 		1-37125-183-1 01 1 0706-0708 ●
1 SHAFT; PROP
(B) L=829 		1-37125-183-1 01 1 0709-0810 ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (B) L=829 		1-37125-183-1 01 1 0811-0901 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. MIXER TRUCK<RA2> (B) L=829 		1-37125-183-1 01 1 0902- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=655 		1-37125-294-0 01 1 0902- ●
1 SHAFT; PROP
(B) L=1134 		1-37124-581-1 01 1 0706- ●
1 SHAFT; PROP
(A) L=985 		1-37153-441-1 01 1 0706- ●
1 SHAFT; PROP
(B) L=1039 		1-37124-615-0 01 1 0706-0708 ●
1 SHAFT; PROP
(A) L=1828 		1-37153-471-0 01 1 0706-0708 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1010 		1-37125-339-0 01 1 0902- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1164 		1-37125-413-1 01 1 0902- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0706-0708 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0709-0901 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 02 1 0902- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0902- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (B) 		1-37211-084-0 02 1 0902- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0706-0708 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0709- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0706-0708 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0709-0901 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 02 1 0902- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0902- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0706- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (D) 		1-37300-112-0 02 1 0902- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-111-0 01 1 0706-0708 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-111-0 01 1 0709-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0706-0708 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0709-0901 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0902- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0902- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0706- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 08 1 0902- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0706-0708 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0709- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0706-0708 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0706-0708 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0709-0901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0709-0901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0902- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0902- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0706-0708 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0709- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 08 1 0706-0708 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 08 1 0709-0901 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 0902- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 08 1 0902- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (B) T=2.2 		1-09587-103-1 08 1 0902- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (B) T=2.17 		1-09587-107-0 08 1 0902- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0706-0708 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0709- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 0706-0708 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 0709- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0706-0708 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0709- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0706-0708 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0709- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0706-0708 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0709- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0706-0708 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0709- ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 0706-0708 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 0709- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0706-0708 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0709- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 0706-0708 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 0709- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0706-0708 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0709- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0706-0805 ● ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0706-0708 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0709- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0706-0708 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0709- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0706-0708 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0709- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0706-0708 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0709-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0706-0708 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0709- ●
çizim 134367
95 56 9 1 8 128 225 9 104 9 17 8 14 106 19 95 56 9 1 8 128 225 9 104 9 17 8 14 106 19 71 56 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MIXER TRUCK<RA2> (B) L=754 		1-37124-621-0 01 1 0706-0708 ●
1 SHAFT; PROP
MIXER TRUCK<RA2> (B) L=754 		1-37124-621-1 01 1 0811-0901 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) MIXER TRUCK<RA2> (B) L=754 		1-37124-621-1 01 1 0902- ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (B) L=829 		1-37125-183-1 01 1 0706-0708 ●
1 SHAFT; PROP
(B) L=829 		1-37125-183-1 01 1 0709-0810 ●
1 SHAFT; PROP
EXC. MIXER TRUCK<RA2> (B) L=829 		1-37125-183-1 01 1 0811-0901 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. MIXER TRUCK<RA2> (B) L=829 		1-37125-183-1 01 1 0902- ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=655 		1-37125-294-0 01 1 0902- ●
1 SHAFT; PROP
(B) L=1134 		1-37124-581-1 01 1 0706- ●
1 SHAFT; PROP
(A) L=985 		1-37153-441-1 01 1 0706- ●
1 SHAFT; PROP
(B) L=1039 		1-37124-615-0 01 1 0706-0708 ●
1 SHAFT; PROP
(A) L=1828 		1-37153-471-0 01 1 0706-0708 ●
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1010 		1-37125-339-0 01 1 0902- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1164 		1-37125-413-1 01 1 0902- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0706-0708 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0709-0901 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37211-079-1 02 1 0902- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 02 1 0902- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (B) 		1-37211-084-0 02 1 0902- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0706-0708 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-079-1 01 1 0709- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0706-0708 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0709-0901 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-110-0 02 1 0902- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 02 1 0902- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0706- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (D) 		1-37300-112-0 02 1 0902- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-111-0 01 1 0706-0708 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-111-0 01 1 0709-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0706-0708 ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0709-0901 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0902- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0902- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0706- ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 08 1 0902- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0706-0708 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0709- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0706-0708 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0706-0708 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0709-0901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0709-0901 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0902- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0902- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0706-0708 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0709- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 08 1 0706-0708 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 08 1 0709-0901 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 0902- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 08 1 0902- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (B) T=2.2 		1-09587-103-1 08 1 0902- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) (B) T=2.17 		1-09587-107-0 08 1 0902- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0706-0708 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) T=2.2 		1-09587-102-1 04 1 0709- ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0706-0708 ● ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0706-0708 ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0709-0805 ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0709-0805 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0706-0805 ● ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0706- ● ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0706-0708 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0709-0901 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 0902- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0902- ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0706-0901 ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0902- ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) (B) 		1-09600-049-0 01 1 0902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0706-0708 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0706-0708 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0709-0901 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0709-0901 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0902- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0902- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0706-0708 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0709-0901 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0902- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0902- ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0706- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (C) 		1-37247-020-0 01 1 0902- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0706-0708 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0709-0901 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 0902- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 0902- ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) (B) L=339 		1-37241-140-0 01 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
