◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#18491) — 75 parça

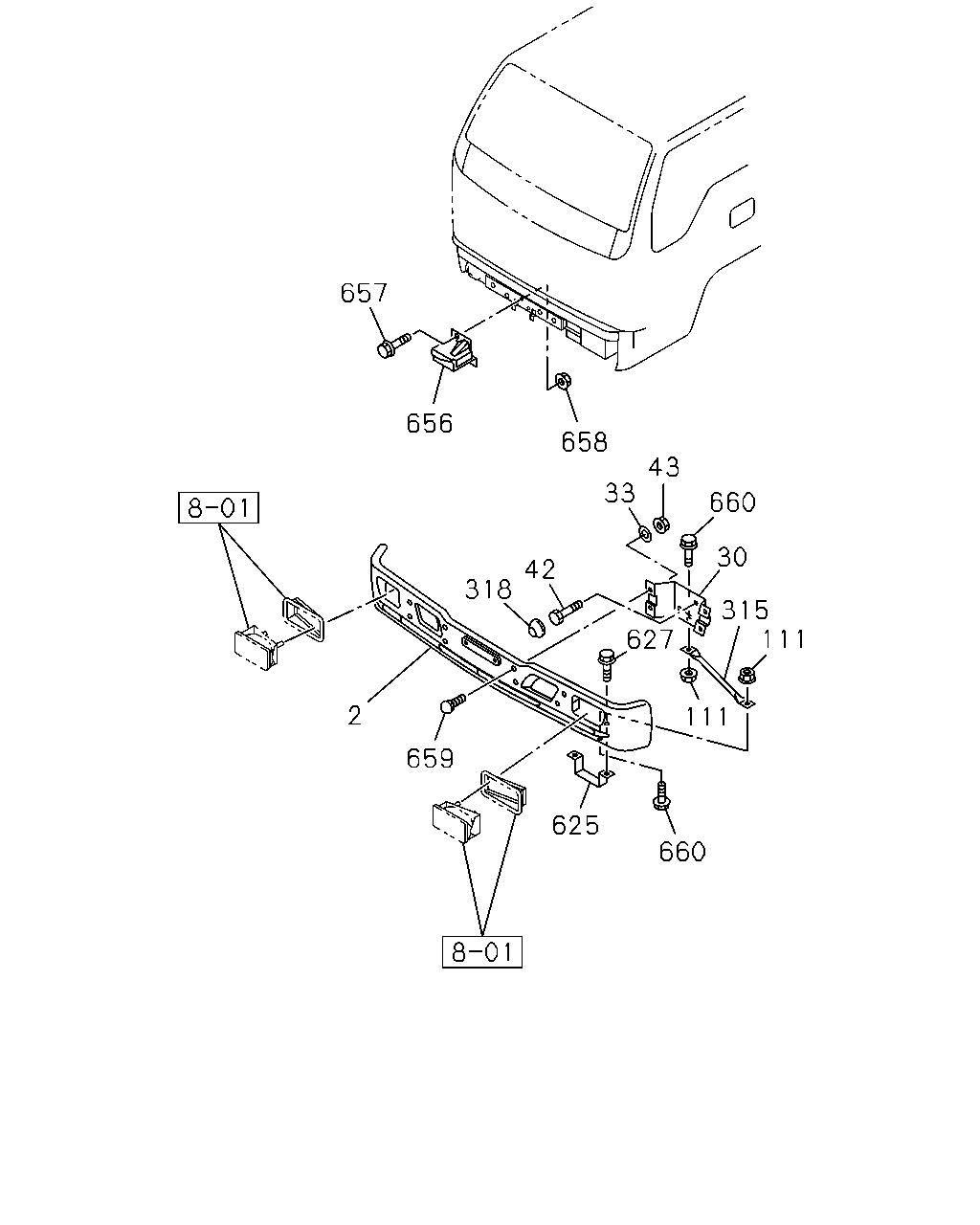

çizim 52210
657 656 658 43 33 660 30 42 318 315 111 627 2 111 659 625 660
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-946-2 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-946-2 01 1 0507- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) WHITE 		8-97580-945-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) WHITE 		8-97580-945-2 01 1 0507- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-947-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-947-2 01 1 0507- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-729-0 01 1 0302-0506 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-729-0 01 1 0507- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-728-0 01 1 0302-0506 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-728-0 01 1 0507- ● ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
04.085 ID=10.5 OD=22 		9-09164-610-0 08 1 0302-0506 ● ● ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
04.085 ID=10.5 OD=22 		9-09164-610-0 08 1 0507-0605 ● ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
00.002 ID=10.5 OD=22 		0-91614-610-0 08 1 0606- ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0507- ● ● ● ● ● ●
43 07.874 NUT; BRKT TO BUMPER
M10 FLANGE 		5-09440-006-0 08 1 0302-0506 ● ● ● ● ● ● ●
43 07.874 NUT; BRKT TO BUMPER
M10 FLANGE 		5-09440-006-0 08 1 0507- ● ● ● ● ● ●
111 07.874 NUT; STAY
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ● ● ● ● ● ●
111 07.874 NUT; STAY
VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ●
111 07.874 NUT; STAY
VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ●
111 07.874 NUT; STAY
07.633 M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ●
111 07.874 NUT; STAY
EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0302-0506 ●
111 07.874 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 04 1 0507-0602 ●
111 07.874 NUT; STAY
EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0507-0602 ●
111 07.874 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ● ●
315 07.831 STAY; BUMPER 8-97998-624-0 02 1 0302-0506 ● ● ● ● ● ● ●
315 07.831 STAY; BUMPER 8-97998-624-0 02 1 0507- ● ● ● ● ● ●
318 07.832 CAP; BUMPER SIDE 8-97582-950-0 02 1 0309-0506 ● ● ● ● ● ● ●
318 07.832 CAP; BUMPER SIDE 8-97582-950-0 02 1 0507- ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-583-0 02 1 0302-0506 ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-583-0 02 1 0507- ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR ARC WHITE(729) WHITE 		8-97580-564-0 02 1 0302-0506 ● ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR ARC WHITE(729) WHITE 		8-97580-564-0 02 1 0507- ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-584-0 02 1 0302-0506 ● ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-584-0 02 1 0507- ● ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0302-0506 ● ● ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0507-0512 ● ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0601- ● ● ● ● ● ●
656 07.068 STOPPER; BUMPER 8-97354-332-0 01 1 0302-0506 ● ● ● ● ● ● ●
656 07.068 STOPPER; BUMPER 8-97354-332-0 01 1 0507- ● ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97985-112-0 08 1 0302-0506 ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97985-112-0 08 1 0507- ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR ARC WHITE(729) WHITE 		8-97985-111-0 08 1 0302-0506 ● ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR ARC WHITE(729) WHITE 		8-97985-111-0 08 1 0507- ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR MARINE BLUE(890) BLUE 		8-97985-110-0 08 1 0302-0506 ● ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR MARINE BLUE(890) BLUE 		8-97985-110-0 08 1 0507- ● ● ● ● ● ●
660 07.833 BOLT; STAY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0302-0506 ● ● ● ● ● ● ●
660 07.833 BOLT; STAY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ● ● ● ● ● ●
660 07.833 BOLT; STAY
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ● ● ● ●
çizim 52903
94 93 99 84 94 93 99 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0302-0506 ● ● ● ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0302-0506 ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0507-0606 ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0507-0606 ● ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0607- ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0607- ● ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 0302-0506 ●
84 07.068 HOOK
(A) 		8-97189-109-0 01 1 0507-0606 ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 0507-0606 ●
84 07.068 HOOK
(A) 		8-97189-109-0 01 1 0607- ● ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 0607- ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0302-0506 ● ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0507-0603 ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0604- ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0302-0506 ● ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0507-0512 ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 02 1 0601- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0302-0506 ● ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0507-0512 ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
