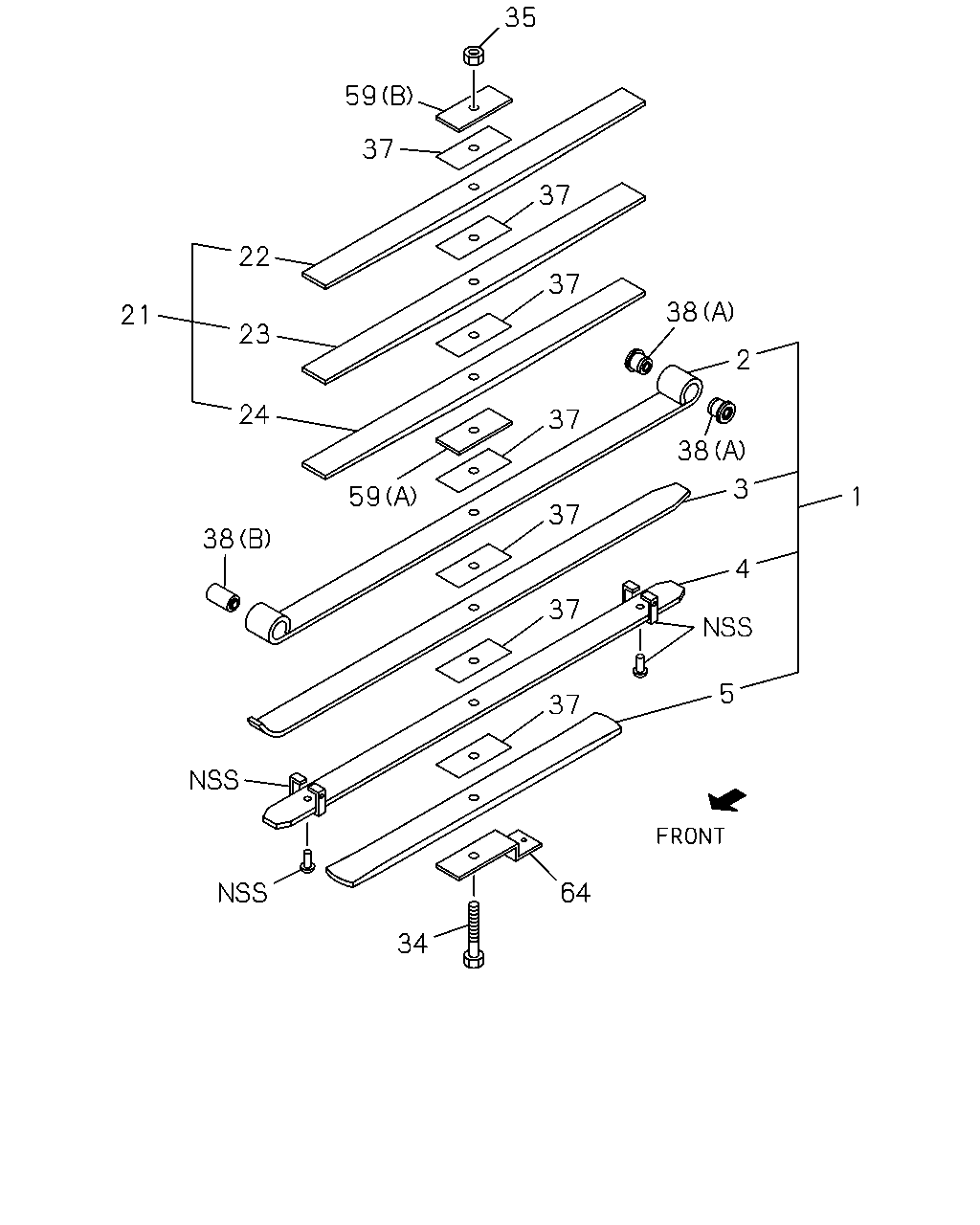

4-65D — REAR LEAF SPRING (#18481) — 17 parça

35 59 37 37 22 37 38 21 23 2 24 37 38 3 59 37 38 4 37 5 37 64 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98000-683-0, 98000683	8-98004-085-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98000-683-0, 98000683	8-98004-086-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98000-683-0, 98000683	8-98004-087-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98000-683-0, 98000683	8-98004-088-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98000-683-0, 98000683	8-98004-089-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98000-683-0, 98000683	8-98004-090-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98000-683-0, 98000683	8-98004-091-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98000-683-0, 98000683	8-98004-092-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98000-683-0, 98000683	8-98004-093-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=145 ASM PART: A = 8-98000-683-0, 98000683	8-94165-315-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98000-683-0, 98000683	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98000-683-0, 98000683	8-97084-102-0	07	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-98000-683-0, 98000683	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98000-683-0, 98000683	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, (A) ASM PART: A = 8-98000-683-0, 98000683	8-97084-846-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=6 ASM PART: A = 8-98000-683-0, 98000683	8-97084-892-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98000-683-0, 98000683	8-97225-579-1	01	1	-
