Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13A - OIL PAN AND LEVEL GAUGE
▶

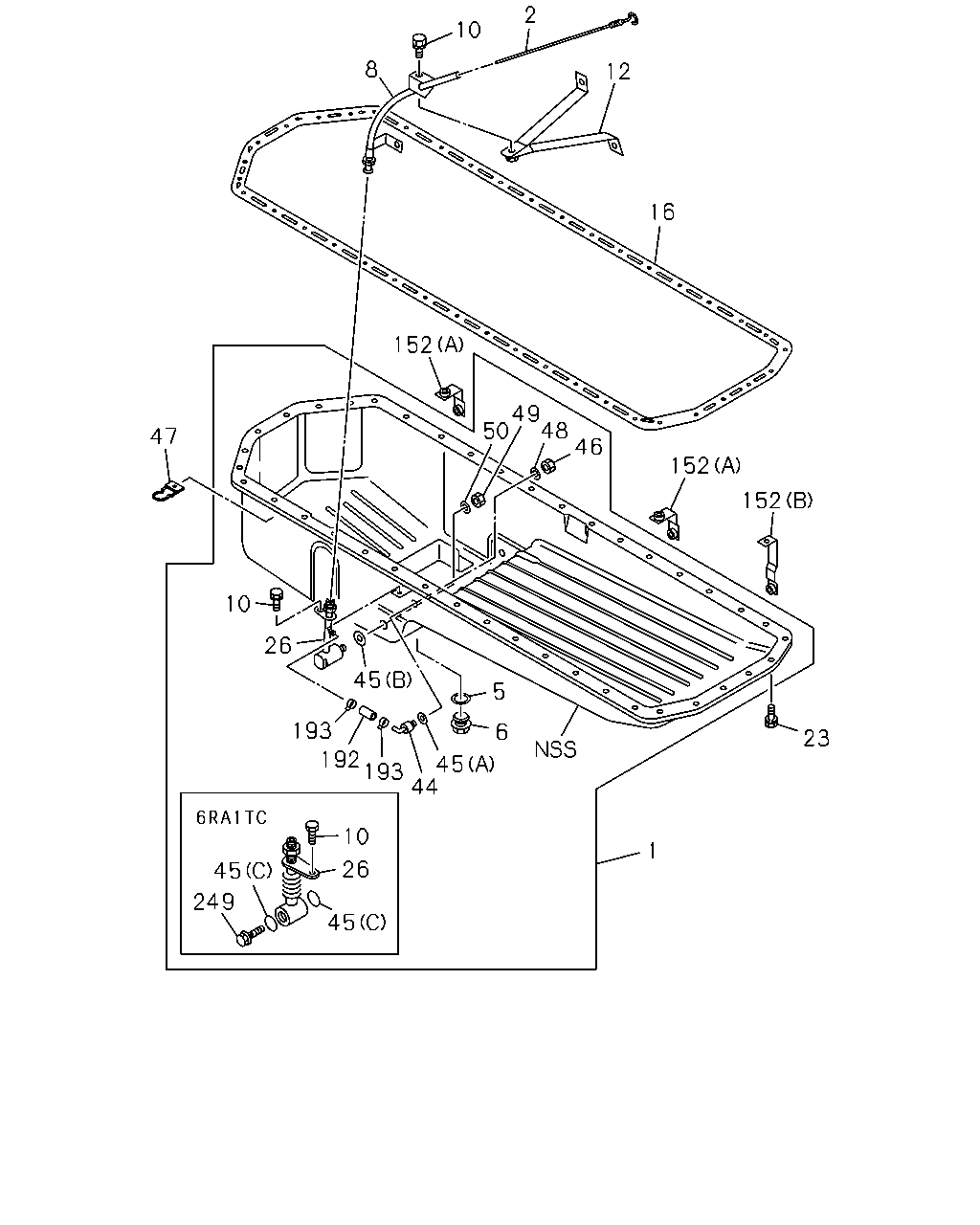

0-13A — OIL PAN AND LEVEL GAUGE
(#1848) — 34 parça
Tümü
A - 6RA1TC ENG
B - 6RB1 STD ENG
C - 6RB1TC-N ENG
2
10
8
12
16
152
49
46
47
152
152
10
26
45
5
193
6
23
192
45
193
44
10
1
26
45
249
45
50
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PAN ASM; OIL
1-11360-536-6
01
1
9002-9306
●
1
PAN ASM; OIL
1-11360-599-0
01
1
9002-
●
●
2
GAUGE; OIL LEVEL
1-11760-239-0
01
1
9002-
●
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-058-0
01
1
9002-
●
●
●
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
9002-
●
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
1-11766-250-0
01
1
9002-
●
●
●
10
BOLT; GUIDE TUBE
M8X20 W/LK WASHER
9-01910-820-0
01
1
9002-9005
●
●
10
BOLT; GUIDE TUBE
M8X20 W/LK WASHER
0-50040-820-0
01
1
9006-9302
●
●
●
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28080-820-0
01
1
9303-
●
●
●
10
BOLT; GUIDE TUBE
M10X45 W/LK WASHER
9-01931-045-0
01
1
9002-9002
●
●
10
BOLT; GUIDE TUBE
M10X45 W/LK WASHER
0-50051-045-0
01
1
9003-
●
●
●
10
BOLT; GUIDE TUBE
M8X18 W/LK&PL WASHER
9-01970-818-0
01
1
9002-9005
●
●
10
BOLT; GUIDE TUBE
M8X18 W/LK&PL WASHER
0-50140-818-0
01
1
9006-
●
●
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-130-0
01
1
9002-
●
●
●
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-064-0
01
1
9002-
●
●
●
23
BOLT; OIL PAN
M10X25 W/LK WASHER
9-01931-025-0
40
1
9002-9002
●
●
23
BOLT; OIL PAN
M10X25 W/LK WASHER
0-50051-025-0
40
1
9003-
●
●
●
26
TUBE; GUIDE,OIL LEVEL
1-11766-214-2
01
1
9002-9306
●
26
TUBE; GUIDE,OIL LEVEL
1-11766-262-0
01
1
9002-
●
●
44
PLUG
1-11369-132-0
01
1
9002-
●
●
45
GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
1-09623-179-0
02
1
9002-9306
●
45
GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
9-09565-220-0
01
1
9002-
●
●
45
GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
9-09565-228-0
01
1
9002-
●
●
46
NUT; PLUG,OIL PAN
M14
9-99111-414-0
01
1
9002-
●
●
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
9002-
●
●
47
CLIP; HOSE,AIR BREATHER
9-11369-315-0
01
1
9002-
●
48
WASHER; PL,PLUG,OIL PAN
ID=15 OD=30
9-09160-614-0
01
1
9002-
●
●
49
NUT; GUIDE TUBE
M16
9-99111-416-0
01
1
9002-
●
●
50
WASHER; PL,GUIDE TUBE
ID=17 OD=32
9-09160-616-0
01
1
9002-
●
●
152
BRACKET; CLIP POWER STRG PIPE
(A)
1-11369-117-1
02
1
9002-
●
●
●
152
BRACKET; CLIP POWER STRG PIPE
(B)
1-11369-121-0
01
1
9002-
●
●
●
192
HOSE; GUIDE TUBE
1-11369-130-0
01
1
9002-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=11.6
1-09707-087-0
02
1
9002-
●
●
249
BOLT; EYE GUIDE TUBE
1-09675-147-0
01
1
9002-9306
●
