◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#18477) — 56 parça

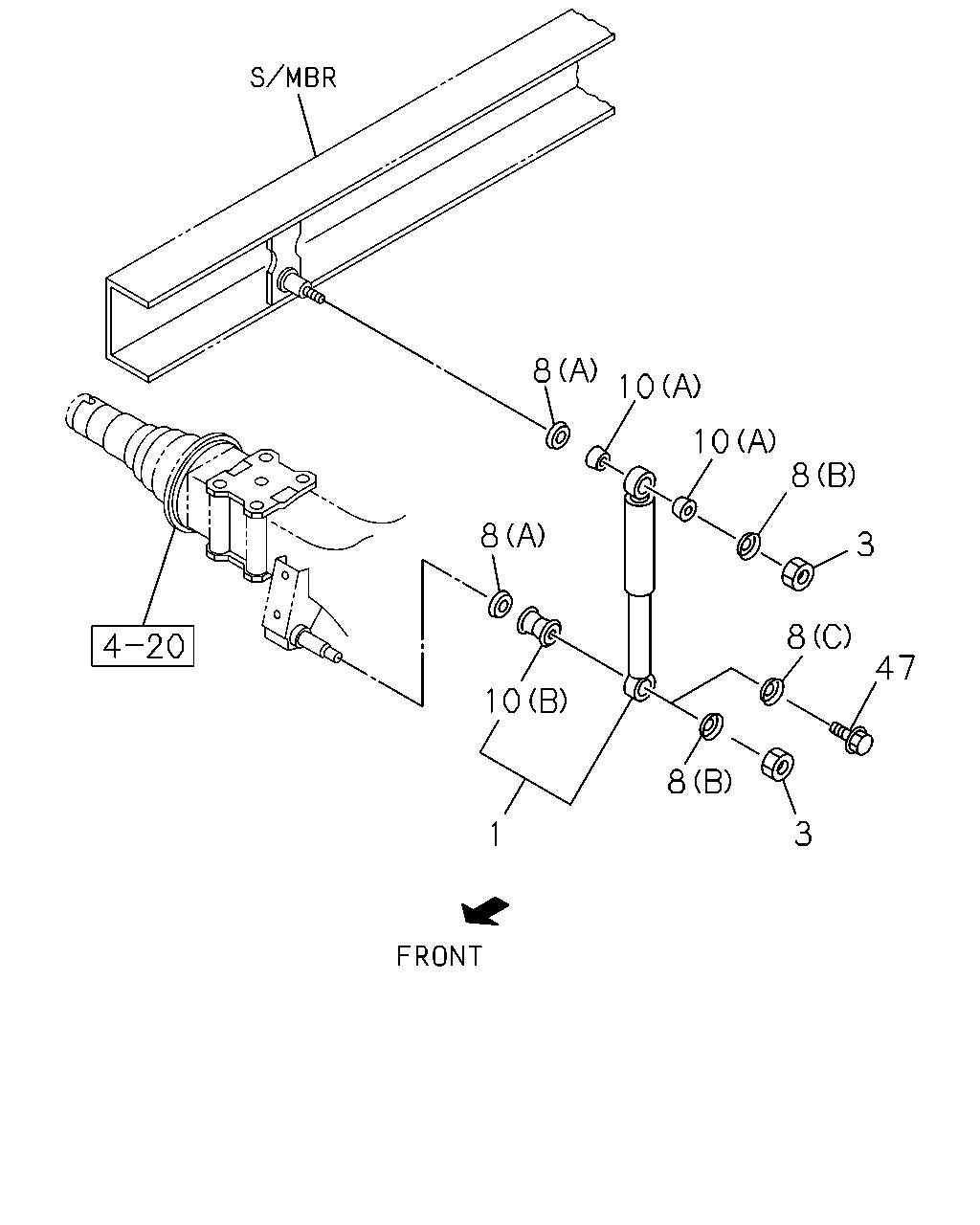

çizim 51629
8 10 10 8 8 3 47 10 8 3 1 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-0 02 1 0302-0506 ● ● ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0302-0506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0302-0506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0507-0606 ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0507-0606 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-0 02 1 0507-0606 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0607- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0607- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0607- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 0607- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-654-0 02 1 0302-0506 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-654-2 02 1 0507- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-654-2 02 1 0507- ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 0302-0506 ● ● ● ● ● ● ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0302-0506 ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 0507-0512 ● ● ● ● ● ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0507-0512 ●
3 07.347 NUT; S/ABS
06.515 M14 		0-91111-514-0 02 1 0601-0606 ● ● ● ● ● ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.515 M14 		0-91111-514-0 02 1 0601-0606 ●
3 07.347 NUT; S/ABS
06.515 M14 		0-91111-514-0 02 1 0607-0612 ● ● ● ● ● ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0701- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0302-0506 ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0302-0506 ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0507-0606 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0507-0606 ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0607-0611 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0302-0506 ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0507-0611 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0612- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0302-0506 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0302-0506 ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0302-0506 ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0507-0606 ● ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0507-0606 ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0507-0606 ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0607-0611 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0612- ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0302-0506 ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0507-0606 ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0607- ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 0607- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 0607- ●
10 07.388 BUSHING; RUBBER,S/ABS
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 0607- ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0302-0506 ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0507- ● ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0302-0506 ● ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0302-0506 ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0302-0506 ●
47 07.347 PIN; S/ABS SETTING
02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0507-0512 ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0507-0512 ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0507-0512 ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0601-0606 ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0601-0606 ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0601-0606 ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0607- ● ● ● ● ● ●
