◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#18472) — 42 parça

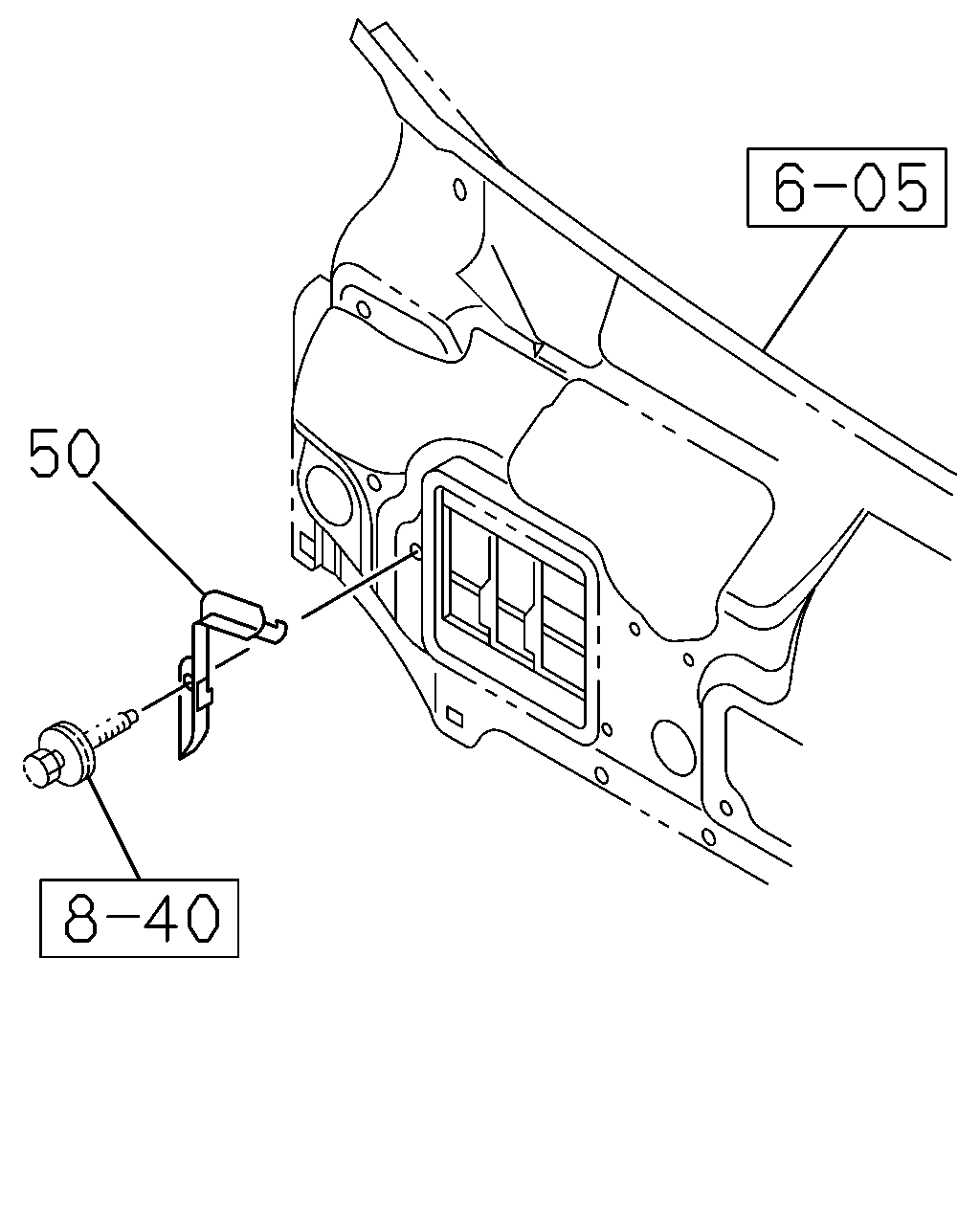

çizim 15272
50
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98071-470-5 01 1 0906-1204 ●
50 COVER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98071-470-5 01 1 1205- ● ●

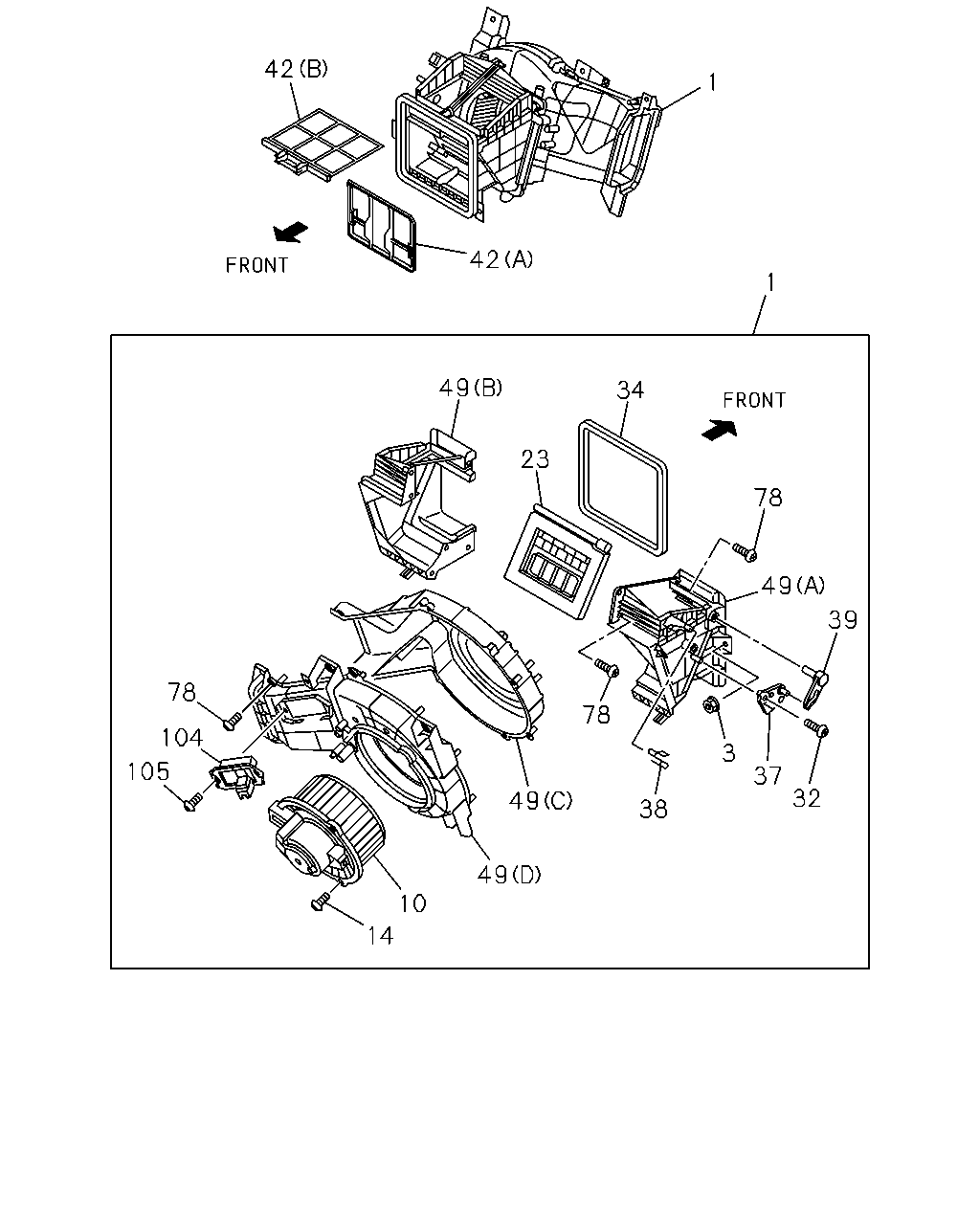

çizim 61769
42 1 42 1 49 34 23 78 49 39 78 78 104 3 105 37 32 49 38 49 10 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98062-750-1 01 1 0906-1012 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98183-598-0 01 1 1101-1204 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98183-598-0 01 1 1205- ● ●
3 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 02 1 0906-1204 ●
3 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 02 1 1205- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-451-0 01 1 0906-1012 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98183-926-0 01 1 1101-1204 ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98183-926-0 01 1 1205- ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-98047-448-0 03 1 0906-1204 ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-98047-448-0 03 1 1205- ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-761-0 01 1 0906-1204 ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-761-0 01 1 1205- ● ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 01 1 0906-1204 ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 01 1 1205- ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98096-453-0 01 1 0906-1204 ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98096-453-0 01 1 1205- ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-453-0 01 1 0906-1204 ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-453-0 01 1 1205- ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 01 1 0906-1204 ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 01 1 1205- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-454-0 01 1 0906-1204 ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-454-0 01 1 1205- ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98025-006-1 01 1 0906-1204 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98025-006-1 01 1 1205- ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-327-0 01 1 0906-1204 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-327-0 01 1 1205- ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98047-444-0 01 1 0906-1204 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98047-444-0 01 1 1205- ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98047-445-0 01 1 0906-1204 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98047-445-0 01 1 1205- ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98077-415-0 01 1 0906-1204 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98077-415-0 01 1 1205- ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98077-416-0 01 1 0906-1204 ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98077-416-0 01 1 1205- ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 16 1 0906-1204 ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 16 1 1205- ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98077-418-0 01 1 0906-1204 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98077-418-0 01 1 1205- ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 02 1 0906-1204 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 02 1 1205- ● ●
