0-12B — CYLINDER BLOCK (#1847) — 61 parça

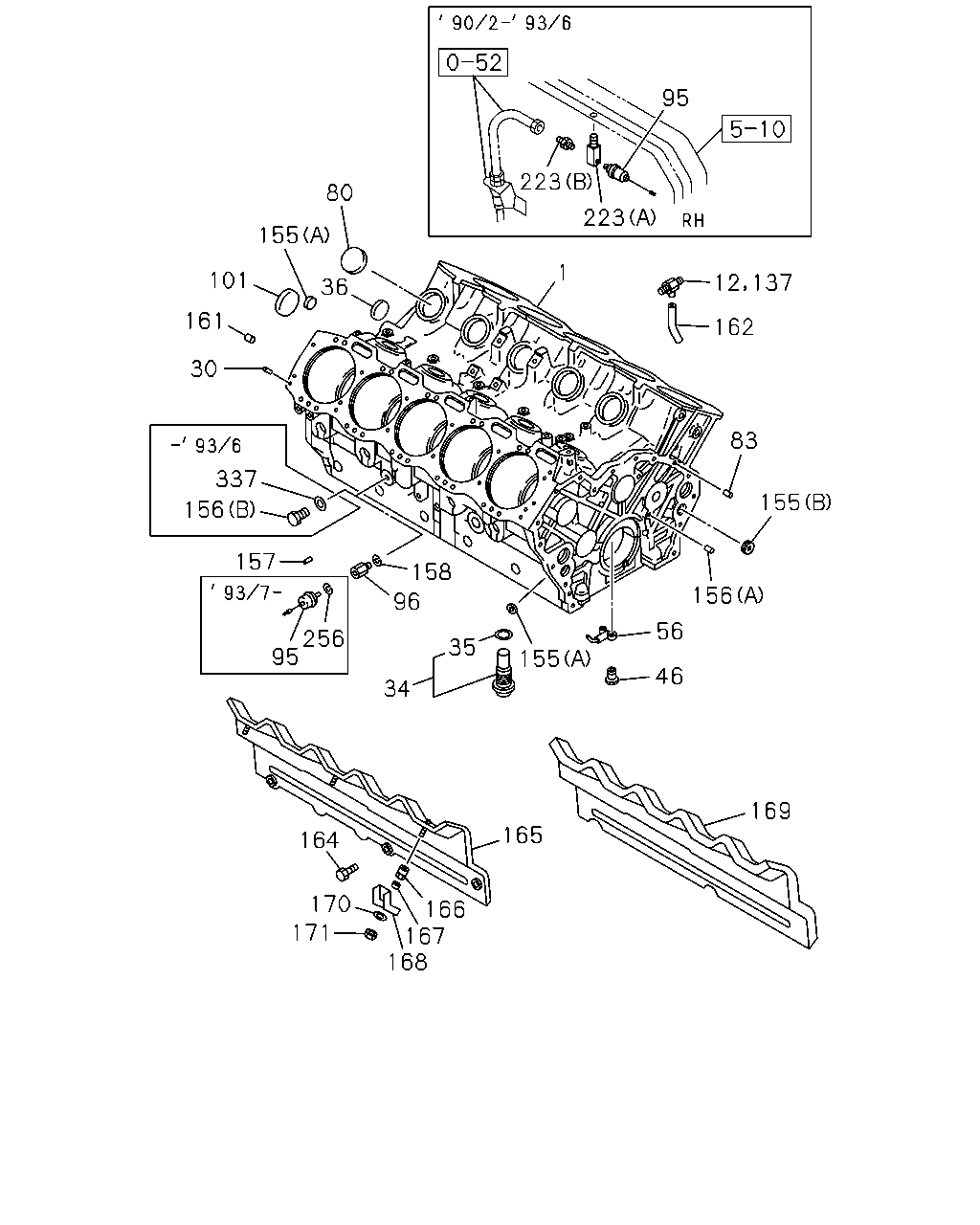

95 223 80 223 155 1 101 36 161 162 30 83 337 155 156 157 158 156 96 56 256 95 35 155 46 34 169 165 164 166 167 168 170 171 12 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	9002-9202
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-
95	PRESSURE UNIT; OIL	1-83150-171-0	01	1	9002-9306
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-
156	PLUG; IDLE GEAR (A)	1-09605-019-0	02	1	9002-
156	PLUG; IDLE GEAR (B)	9-99202-314-0	01	1	9002-9306
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9508
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X28 FLANGE	0-28181-028-0	03	1	9411-
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X16 W/LK WASHER	1-09033-012-0	03	1	9411-
165	COVER; C/BL SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-226-1	01	1	9411-
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-020-0	06	1	9411-
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-23332-003-0	06	1	9411-
168	BRACKET; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19386-012-3	03	1	9411-
169	INSULATOR; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-066-3	01	1	9411-
170	WASHER; COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.5 OD=26	9-09160-710-0	06	1	9411-
171	NUT; COVER & BRKT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10	9-09110-410-0	03	1	9411-
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306

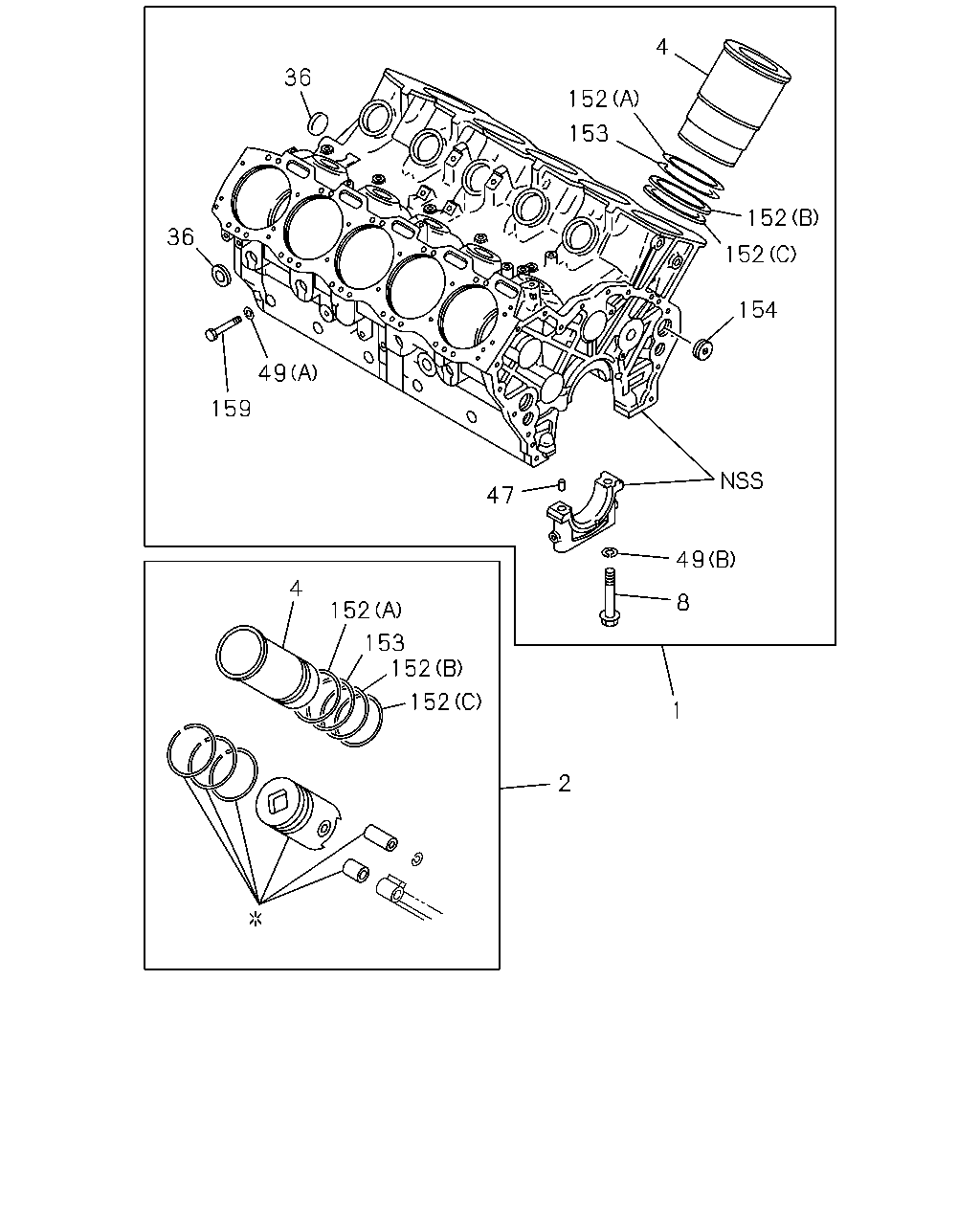

4 36 152 153 152 36 152 154 49 159 47 49 4 8 152 153 152 152 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-
2	LINER SET; ENG CYL	1-87810-835-0	10	1	9002-9306
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9307-9410
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-396-0	10	1	9411-
2	LINER SET; ENG CYL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-390-0	10	1	9411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-161-2	10	1	9002-9306
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9307-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9307-
8	BOLT; BRG CAP	1-09070-040-1	12	1	9002-
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9002-
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-
