8-60 — HEATER UNIT; FRONT (#18469) — 176 parça

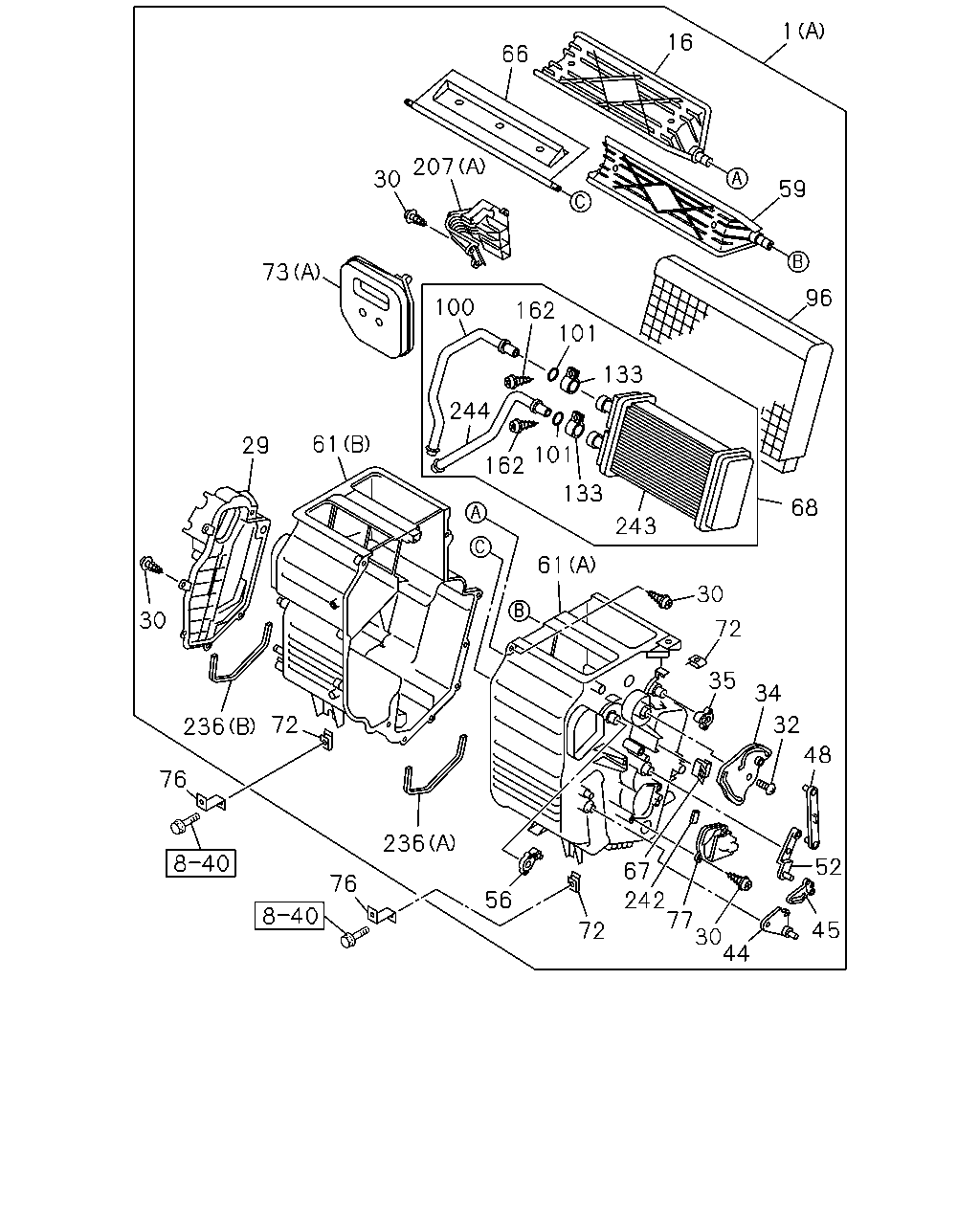

çizim 15341
1 16 66 207 30 59 73 96 100 162 101 133 244 61 29 101 162 133 68 243 61 30 30 72 35 34 72 32 236 48 76 236 52 67 76 56 242 77 30 44 45 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0906-1204 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1205- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0906-1204 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1205- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0906-1204 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1205- ● ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 0906-1204 ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 1205- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0906-1204 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1205- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0906-1204 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1205- ● ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0906-1204 ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 1205- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0906-1204 ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 1205- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0906-1204 ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 1205- ● ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0906-1204 ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 1205- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0906-1204 ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 1205- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 0906-1204 ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1205- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0906-1204 ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 1205- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0906-1204 ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 1205- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0906-1204 ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1205- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0906-1204 ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 1205- ● ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0906-1204 ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 1205- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0906-1204 ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 1205- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 0906-1204 ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 1205- ● ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 0906-1204 ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 1205- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0906-1204 ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1205- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0906-1204 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1205- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0906-1204 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1205- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 04 1 0906-1005 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 1006-1006 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 1006-1006 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-1 02 1 1007-1204 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-1 02 1 1205- ● ●
77 COVER; HTR CASE 8-98047-482-0 01 1 0906-1204 ●
77 COVER; HTR CASE 8-98047-482-0 01 1 1205- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0906-1204 ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1205- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0906-1204 ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 1205- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0906-1204 ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 1205- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 0906-1204 ●
133 CLIP; PIPE 8-98072-530-0 02 1 1205- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 0906-1204 ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 1205- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0906-1204 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1205- ● ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0906-1204 ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 1205- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0906-1204 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1205- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0906-1204 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1205- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 0906-1204 ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1205- ● ●
243 CORE 8-98048-508-0 01 1 0906-1204 ●
243 CORE 8-98048-508-0 01 1 1205- ● ●
244 PIPE; INLET 8-98048-511-0 01 1 0906-1204 ●
244 PIPE; INLET 8-98048-511-0 01 1 1205- ● ●

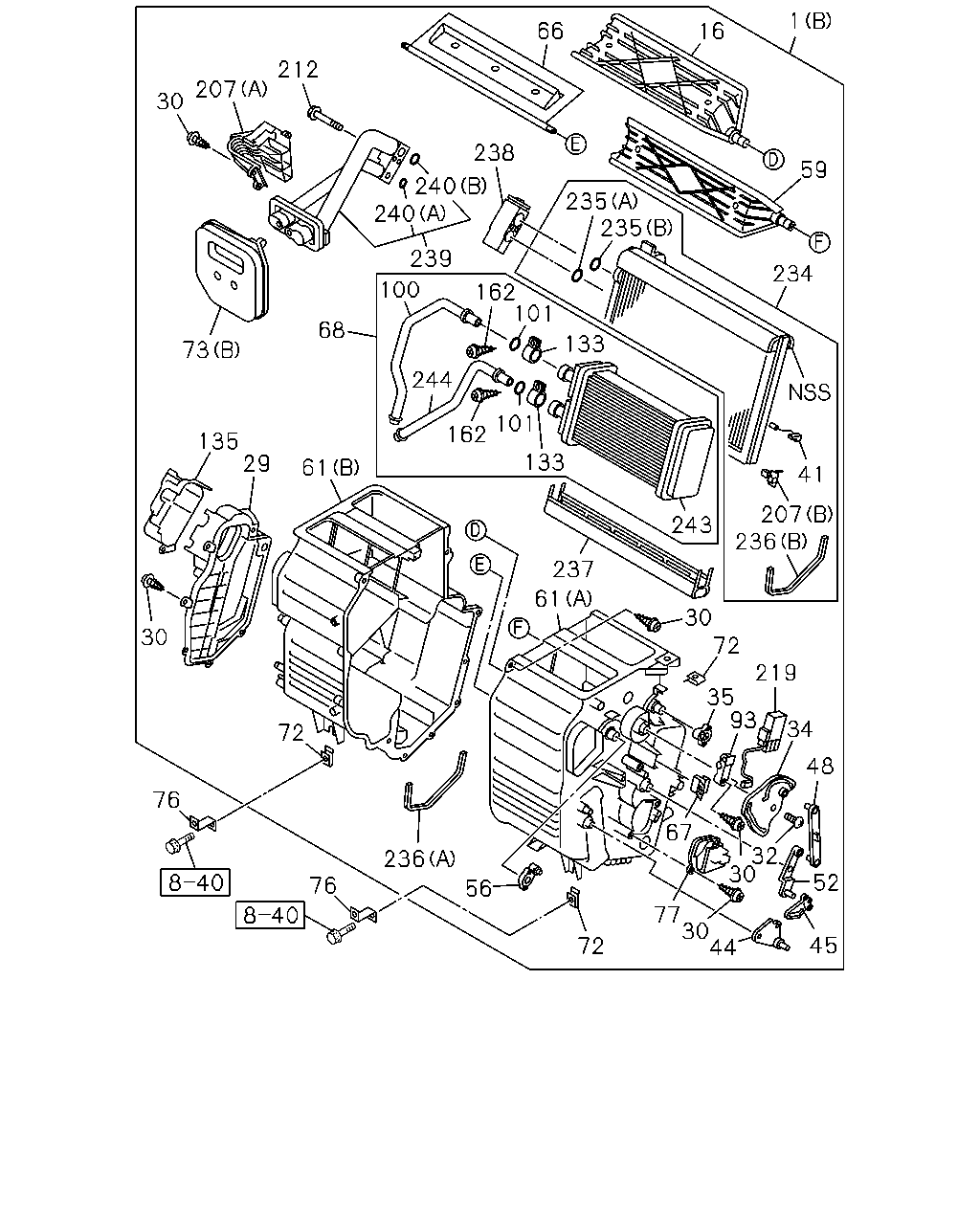

çizim 15342
1 66 16 212 207 30 238 59 240 240 235 235 239 234 100 162 101 68 133 73 244 101 162 135 29 133 61 41 207 236 243 237 61 30 72 30 219 35 93 34 72 48 76 67 32 30 236 52 76 56 77 30 44 45 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 0906-1204 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98034-145-3 01 1 1205- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 0906-1204 ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1205- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0906-1204 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1205- ● ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 0906-1204 ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 1205- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0906-1204 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1205- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 0906-1204 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1205- ● ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0906-1204 ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 1205- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0906-1204 ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 1205- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0906-1204 ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 1205- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-412-0 01 1 0906-1204 ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-412-0 01 1 1205- ● ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0906-1204 ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 1205- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0906-1204 ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 1205- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 0906-1204 ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1205- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0906-1204 ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 1205- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0906-1204 ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 1205- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0906-1204 ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1205- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0906-1204 ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 1205- ● ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0906-1204 ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 1205- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0906-1204 ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 1205- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 0906-1204 ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 1205- ● ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 0906-1204 ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 1205- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0906-1204 ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1205- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 0906-1204 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-491-0 01 1 1205- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 0906-1204 ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1205- ● ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 04 1 0906-1005 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 1006-1006 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-0 02 1 1006-1006 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-1 02 1 1007-1204 ●
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98009-742-1 02 1 1205- ● ●
77 COVER; HTR CASE 8-98047-482-0 01 1 0906-1204 ●
77 COVER; HTR CASE 8-98047-482-0 01 1 1205- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0906-1204 ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1205- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0906-1204 ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 1205- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0906-1204 ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 1205- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 0906-1204 ●
133 CLIP; PIPE 8-98072-530-0 02 1 1205- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-481-0 01 1 0906-1204 ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-481-0 01 1 1205- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 0906-1204 ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 1205- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 0906-1204 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-413-0 01 1 1205- ● ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0906-1204 ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 1205- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 0906-1204 ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X61 		8-98047-415-0 02 1 1205- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 0906-1204 ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1205- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-120-1 01 1 0906-1204 ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-120-1 01 1 1205- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 0906-1204 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 01 1 1205- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 0906-1204 ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1205- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0906-1204 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1205- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0906-1204 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1205- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 0906-1204 ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-382-0 01 1 1205- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 0906-1204 ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-383-0 01 1 1205- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-504-0 01 1 0906-1204 ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-504-0 01 1 1205- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 0906-1204 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 01 1 1205- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 0906-1204 ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 01 1 1205- ● ●
243 CORE 8-98048-508-0 01 1 0906-1204 ●
243 CORE 8-98048-508-0 01 1 1205- ● ●
244 PIPE; INLET 8-98048-511-0 01 1 0906-1204 ●
244 PIPE; INLET 8-98048-511-0 01 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
