8-50 — AIR CONDITIONING SYSTEM; FRONT (#18467) — 61 parça

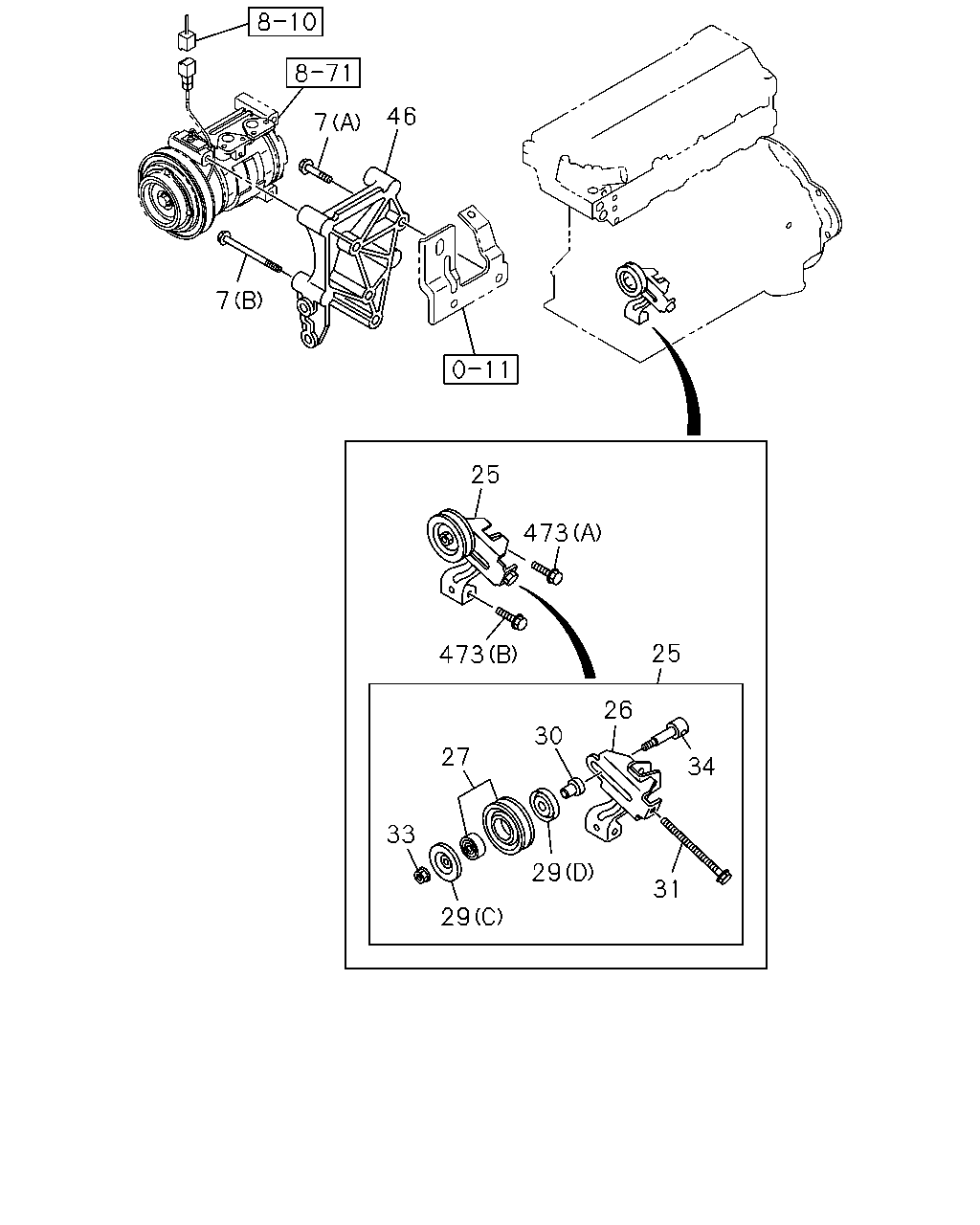

46 7 7 25 473 25 473 26 30 27 34 33 29 31 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BOLT; BRKT (A) M10X45 FLANGE	0-28151-045-0	02	1	1205-	●
7	BOLT; BRKT GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	01	1	1205-	●
7	BOLT; BRKT GENERATOR 24V90A(K44) (B) M10X130 FLANGE	0-28156-013-0	01	1	1205-	●
7	BOLT; BRKT EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	02	1	1205-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE	8-97161-198-1	01	1	1205-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-079-0	01	1	0906-		●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-031-1	01	1	1205-	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97386-869-0	01	1	1205-	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-323-0	01	1	0906-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-114-0	01	1	1205-	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97384-115-0	01	1	1205-	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	0906-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	0906-		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-117-0	01	1	1205-	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-328-0	01	1	0906-		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-113-0	01	1	1205-	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-325-0	01	1	0906-		●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-118-0	01	1	1205-	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-326-0	01	1	0906-		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-116-0	01	1	1205-	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-327-0	01	1	0906-		●
46	BRACKET; CMPR GENERATOR 24V90A(K44)	8-98101-365-0	01	1	1205-	●
46	BRACKET; CMPR EXC. GENERATOR 24V90A(K44)	8-98101-364-0	01	1	1205-	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE	0-28050-850-0	01	1	1205-	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE	8-94344-540-1	01	1	1205-	●

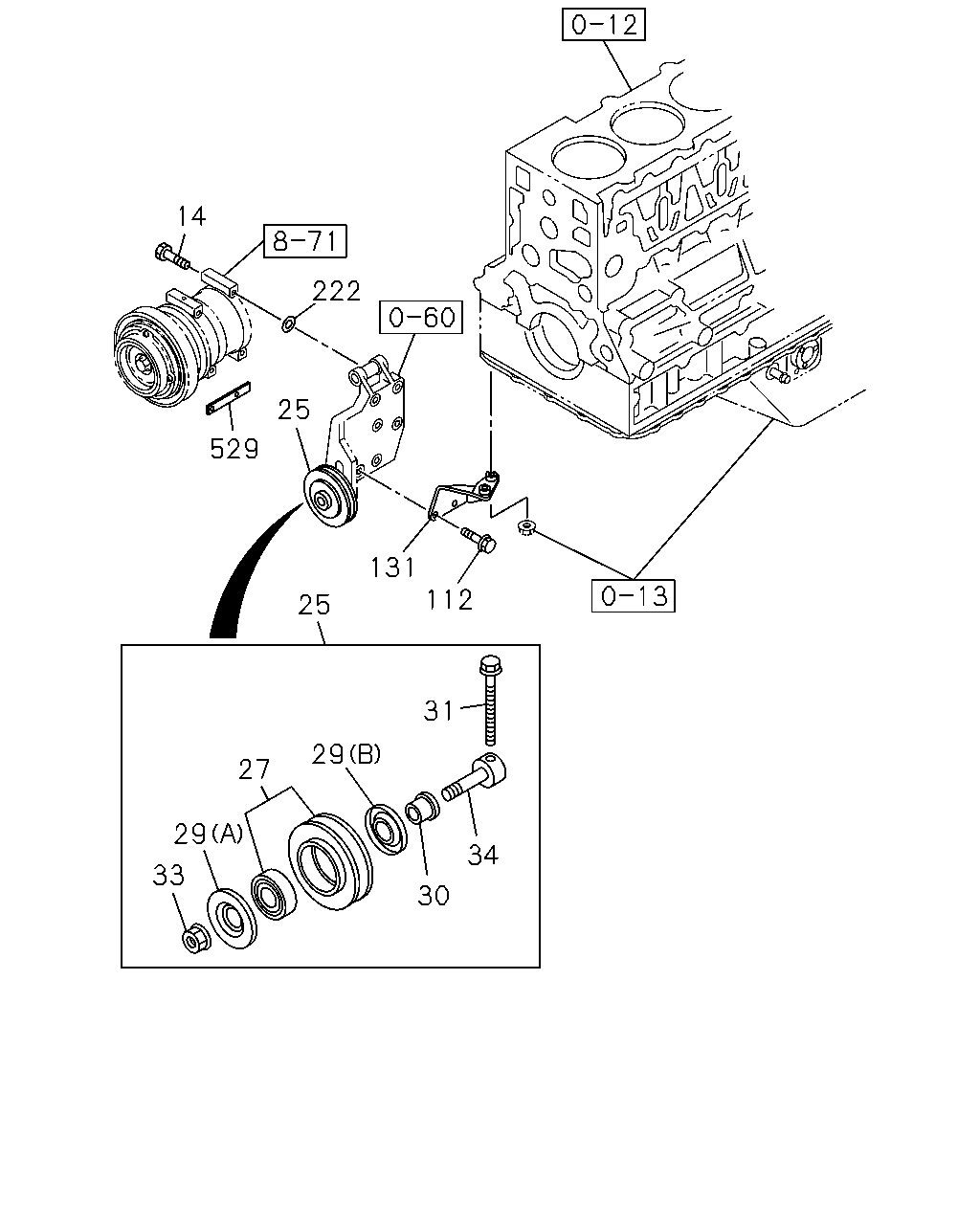

14 222 25 529 131 112 25 31 29 27 29 34 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER	5-09000-228-1	04	1	0906-		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE	8-97161-198-1	01	1	1205-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-079-0	01	1	0906-		●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97386-869-0	01	1	1205-	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-323-0	01	1	0906-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-114-0	01	1	1205-	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97384-115-0	01	1	1205-	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	0906-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	0906-		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-117-0	01	1	1205-	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-328-0	01	1	0906-		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-113-0	01	1	1205-	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-325-0	01	1	0906-		●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-118-0	01	1	1205-	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-326-0	01	1	0906-		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-116-0	01	1	1205-	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-327-0	01	1	0906-		●
112	BOLT; STAY M8X16 FLANGE	0-28050-816-0	02	1	0906-		●
131	STAY; CMPR BRKT	8-97601-869-1	01	1	0906-		●
222	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	8-94312-733-0	02	1	0906-		●
529	SPACER AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-271-0	01	1	0906-		●

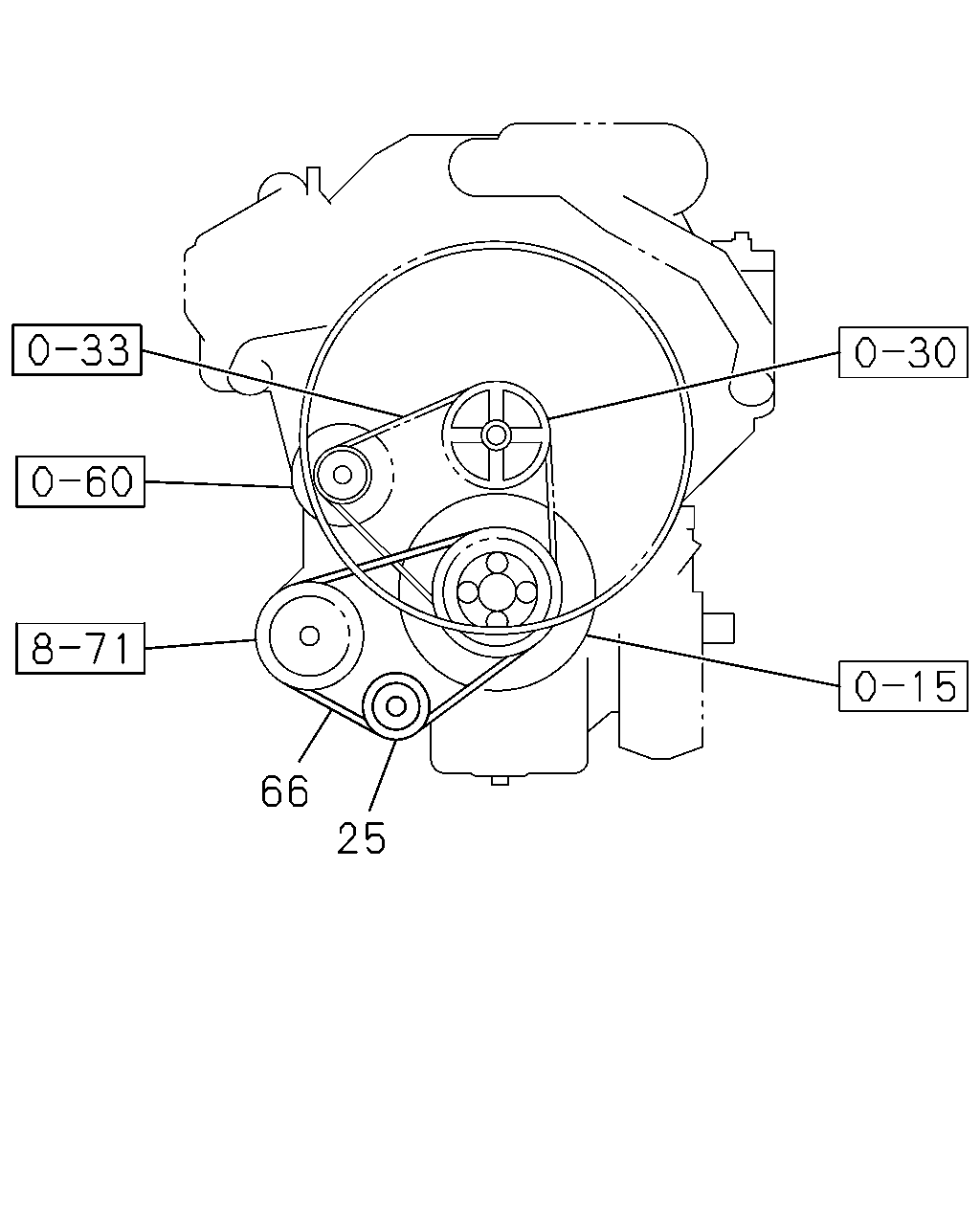

66 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE	8-97161-198-1	01	1	1205-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-079-0	01	1	0906-		●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-104-0	01	1	0906-		●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1114	8-97605-102-0	01	1	0906-		●

71 378 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-235-1	01	1	1006-1204		●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-235-1	01	1	1205-	●	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98041-759-0	01	1	0906-1111		●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-846-0	01	1	1112-1204		●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-846-0	01	1	1205-	●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98062-954-0	01	1	0906-1204		●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98062-954-0	01	1	1205-	●	●

32 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE	8-97161-198-1	01	1	1205-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97605-079-0	01	1	0906-		●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-100-0	01	1	1205-	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1594	8-97383-577-1	01	1	1205-	●
