Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#18464) — 217 parça

584 744 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0906-1204	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1205-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0906-1204	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1205-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0906-1204	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1205-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0906-1005	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-1204	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1205-	●	●

91 40 90 89 34 36 261 34 759

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1205-	●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1205-	●
40	BRACKET; MAG VLV DIFF LOCK<C3N>	8-98044-776-0	01	1	1205-	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	1205-1205	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	1205-	●
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	1205-	●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1205-1205	●
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-	●
759	HOSE; FLEX,DIFF LOCK DIFF LOCK<C3N>	1-09363-964-0	01	1	1205-	●

312 200 86 760 566

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
86	NUT; BUZZER M10 FLANGE	0-91180-210-0	01	1	0906-	●
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0906-	●
312	BOLT; BUZZER M10X30 FLANGE	0-28651-030-0	01	1	0906-	●
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0906-	●
760	SCREW; HARNESS CONN M3X10	9-93490-310-0	04	1	0906-	●

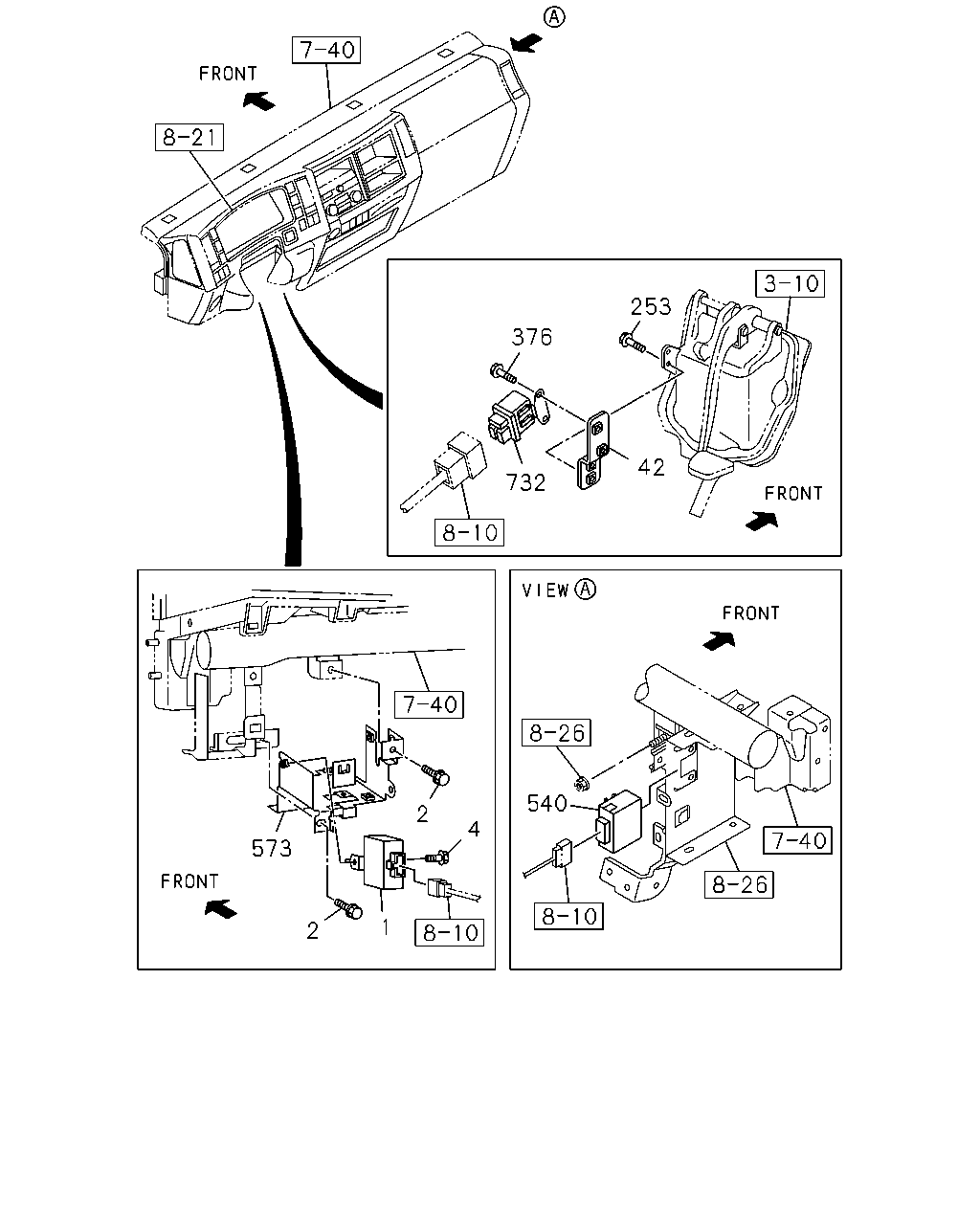

253 376 42 732 540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0906-1204	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1205-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0906-1204	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1205-	●	●
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	0906-1204	●
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1205-	●	●
42	BRACKET; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-051-2	01	1	1205-		●
253	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	1205-		●
376	BOLT; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1205-		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0906-1204	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1205-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	0906-1204	●
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1205-	●	●
732	RELAY; EDS TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82550-337-1	01	1	1205-		●

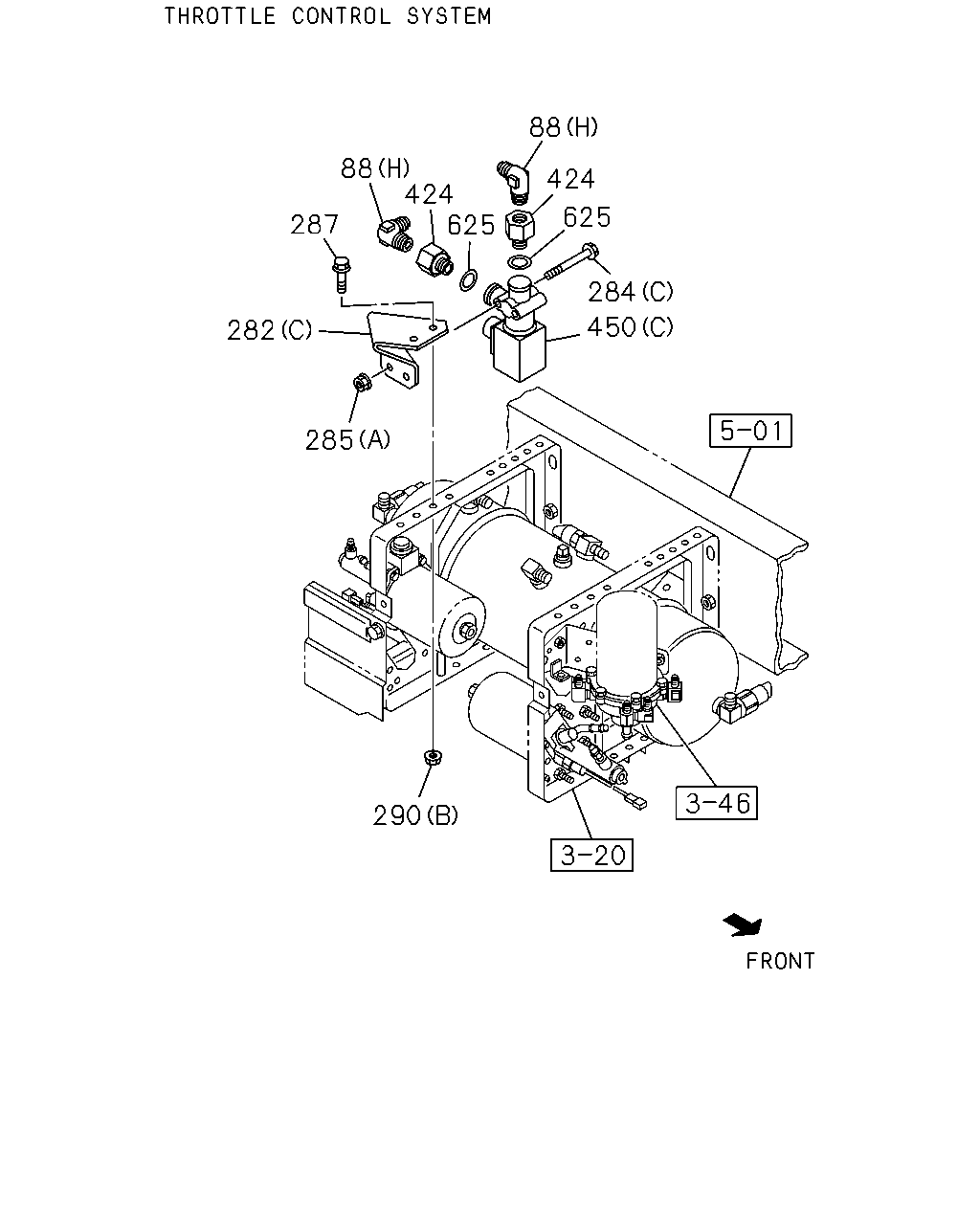

88 88 424 625 424 625 287 284 450 282 285 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1205-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (H) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1205-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1205-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1205-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1205-	●	●
88	CONNECTOR; MAG VLV (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-		●
88	CONNECTOR; MAG VLV (G) DIN8 & M22 STRAIGHT	1-09661-091-0	03	1	0906-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●
88	CONNECTOR; MAG VLV EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1205-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1205-	●	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C)	8-98049-845-1	01	1	1205-		●
282	BRACKET; MAG VLV (A)	1-47478-319-0	01	1	0906-	●
282	BRACKET; MAG VLV (B)	8-98034-702-0	01	1	0906-1204	●
282	BRACKET; MAG VLV (B)	8-98034-702-0	01	1	1205-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C) M8X60 FLANGE	0-28050-860-0	02	1	1205-		●
284	BOLT; MAG VLV (A) M8X70	0-10855-870-0	02	1	0906-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0906-1204	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1205-	●	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	1205-	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1205-		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0906-1204	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1205-	●	●
287	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	1205-		●
290	NUT THROTTLE CONTROL SYSTEM(6XH) (B) M8 FLANGE	0-91180-108-0	02	1	1205-		●
290	NUT (A) M10 FLANGE	0-91180-210-0	02	1	0906-	●
424	ADAPTER THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	1205-		●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	1205-		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1204	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1205-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-1204	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1205-	●	●
625	GASKET; CONNECTOR THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24	9-09571-416-0	02	1	1205-		●

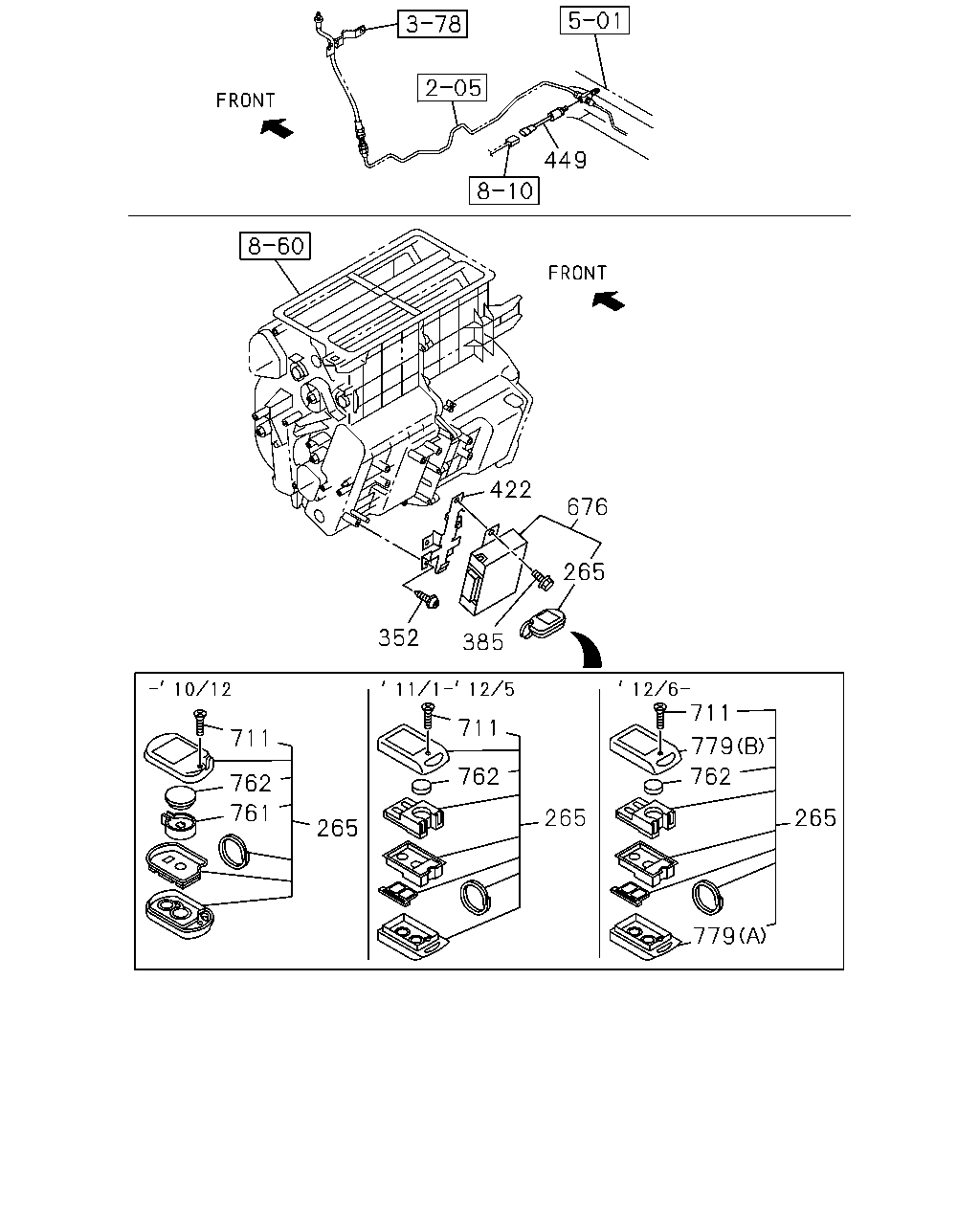

449 422 265 676 352 385 711 762 761 265 711 762 265 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0906-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1204	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1205-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0906-1204	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1205-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0906-1204	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1205-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0906-1204	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1205-	●	●
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	1205-		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0906-1012	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1204	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1205-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0906-1204	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1205-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0906-1012	●
762	BATTERY	8-98078-061-0	02	1	0906-1204	●
762	BATTERY	8-98078-061-0	02	1	1205-	●	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-	●	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-	●	●

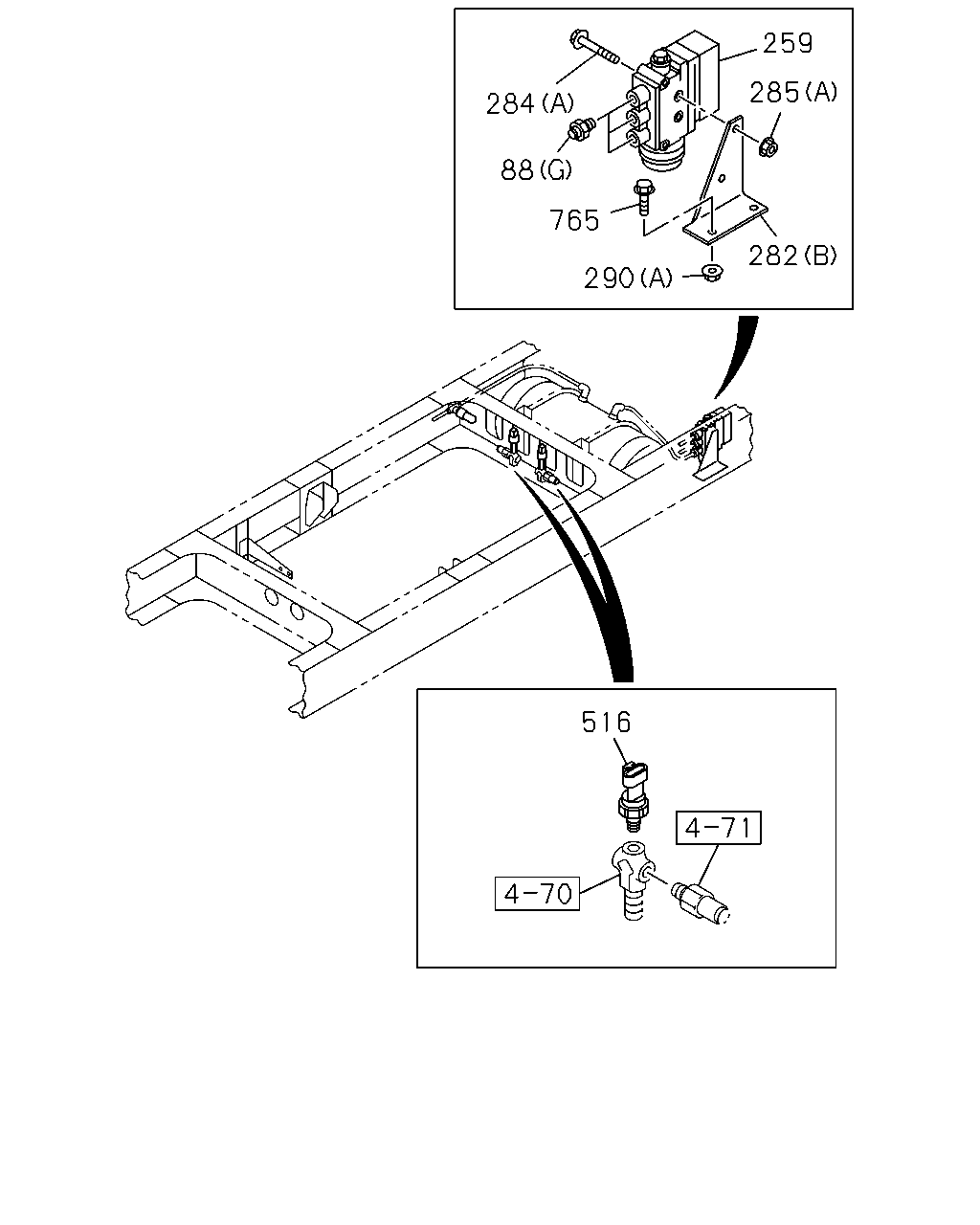

259 285 284 88 765 282 290 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1205-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (H) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1205-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1205-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1205-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1205-	●	●
88	CONNECTOR; MAG VLV (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-		●
88	CONNECTOR; MAG VLV (G) DIN8 & M22 STRAIGHT	1-09661-091-0	03	1	0906-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●
88	CONNECTOR; MAG VLV EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1205-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1205-	●	●
259	VALVE; MAG,AIR SUSP CONT	1-82563-713-0	01	1	0906-	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C)	8-98049-845-1	01	1	1205-		●
282	BRACKET; MAG VLV (A)	1-47478-319-0	01	1	0906-	●
282	BRACKET; MAG VLV (B)	8-98034-702-0	01	1	0906-1204	●
282	BRACKET; MAG VLV (B)	8-98034-702-0	01	1	1205-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C) M8X60 FLANGE	0-28050-860-0	02	1	1205-		●
284	BOLT; MAG VLV (A) M8X70	0-10855-870-0	02	1	0906-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0906-1204	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1205-	●	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	1205-	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1205-		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0906-1204	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1205-	●	●
290	NUT THROTTLE CONTROL SYSTEM(6XH) (B) M8 FLANGE	0-91180-108-0	02	1	1205-		●
290	NUT (A) M10 FLANGE	0-91180-210-0	02	1	0906-	●
516	SWITCH; PRESS THREAD R1/8	1-80220-025-0	02	1	0906-	●
765	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0906-	●

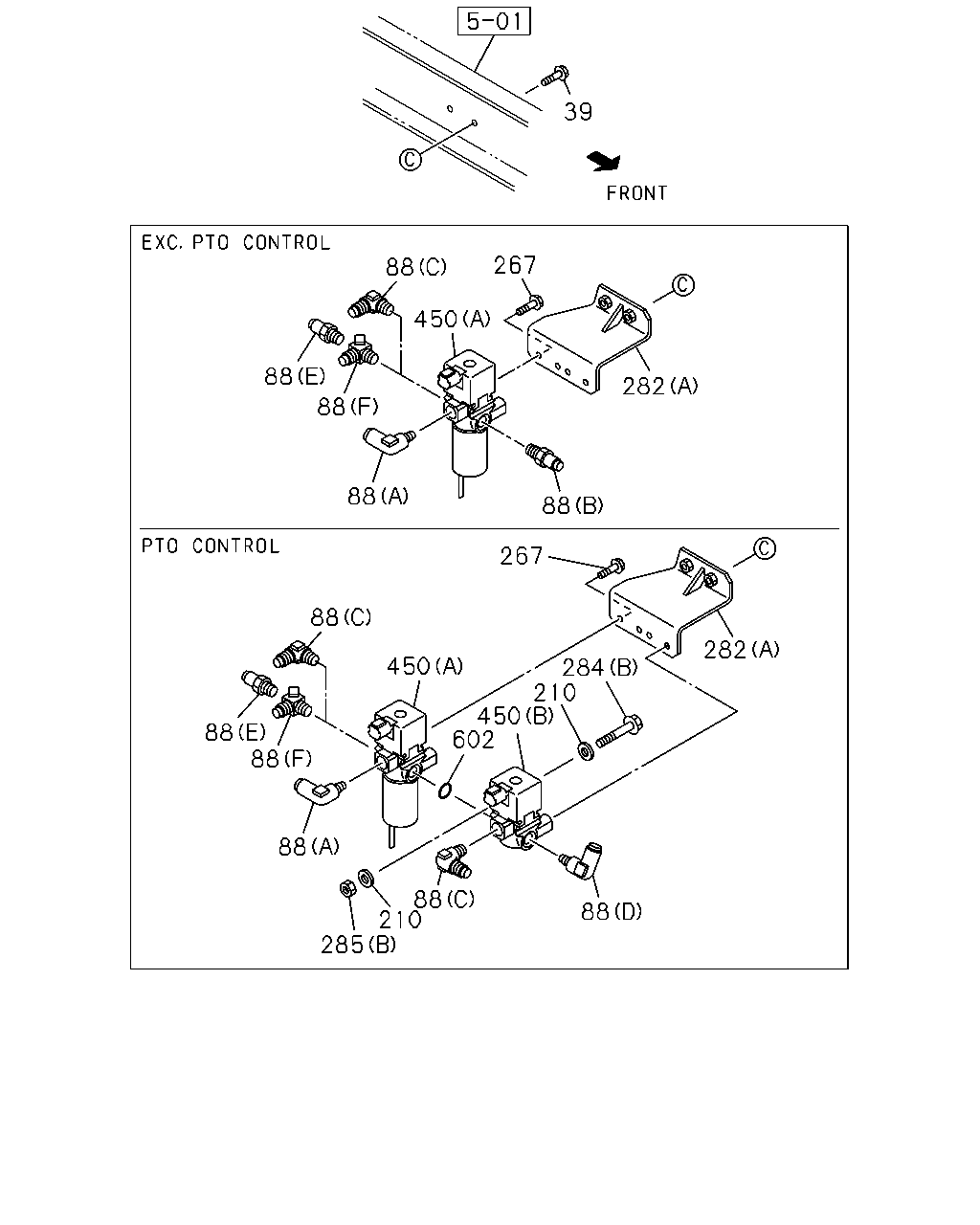

39 267 88 450 88 282 88 88 88 267 88 282 450 284 210 450 602 88 88 88 88 210 285 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0906-1005	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1006-1204	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1006-1204	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1205-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1205-		●
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (H) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1205-		●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1205-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1205-		●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1205-	●	●
88	CONNECTOR; MAG VLV (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1205-		●
88	CONNECTOR; MAG VLV (G) DIN8 & M22 STRAIGHT	1-09661-091-0	03	1	0906-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-	●
88	CONNECTOR; MAG VLV EXC. DIFF LOCK<C3N>,PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1205-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1205-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0906-1204	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1205-	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0906-1204	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1205-	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0906-1204	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1205-	●	●
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C)	8-98049-845-1	01	1	1205-		●
282	BRACKET; MAG VLV (A)	1-47478-319-0	01	1	0906-	●
282	BRACKET; MAG VLV (B)	8-98034-702-0	01	1	0906-1204	●
282	BRACKET; MAG VLV (B)	8-98034-702-0	01	1	1205-	●	●
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (C) M8X60 FLANGE	0-28050-860-0	02	1	1205-		●
284	BOLT; MAG VLV (A) M8X70	0-10855-870-0	02	1	0906-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0906-1204	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	1205-	●	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	0906-1204	●
285	NUT; MAG VLV (A) M8 FLANGE	0-91180-108-0	02	1	1205-	●
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	1205-		●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0906-1204	●
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	1205-	●	●
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	1205-		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1204	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1205-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-1204	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1205-	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0906-1204	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1205-	●	●

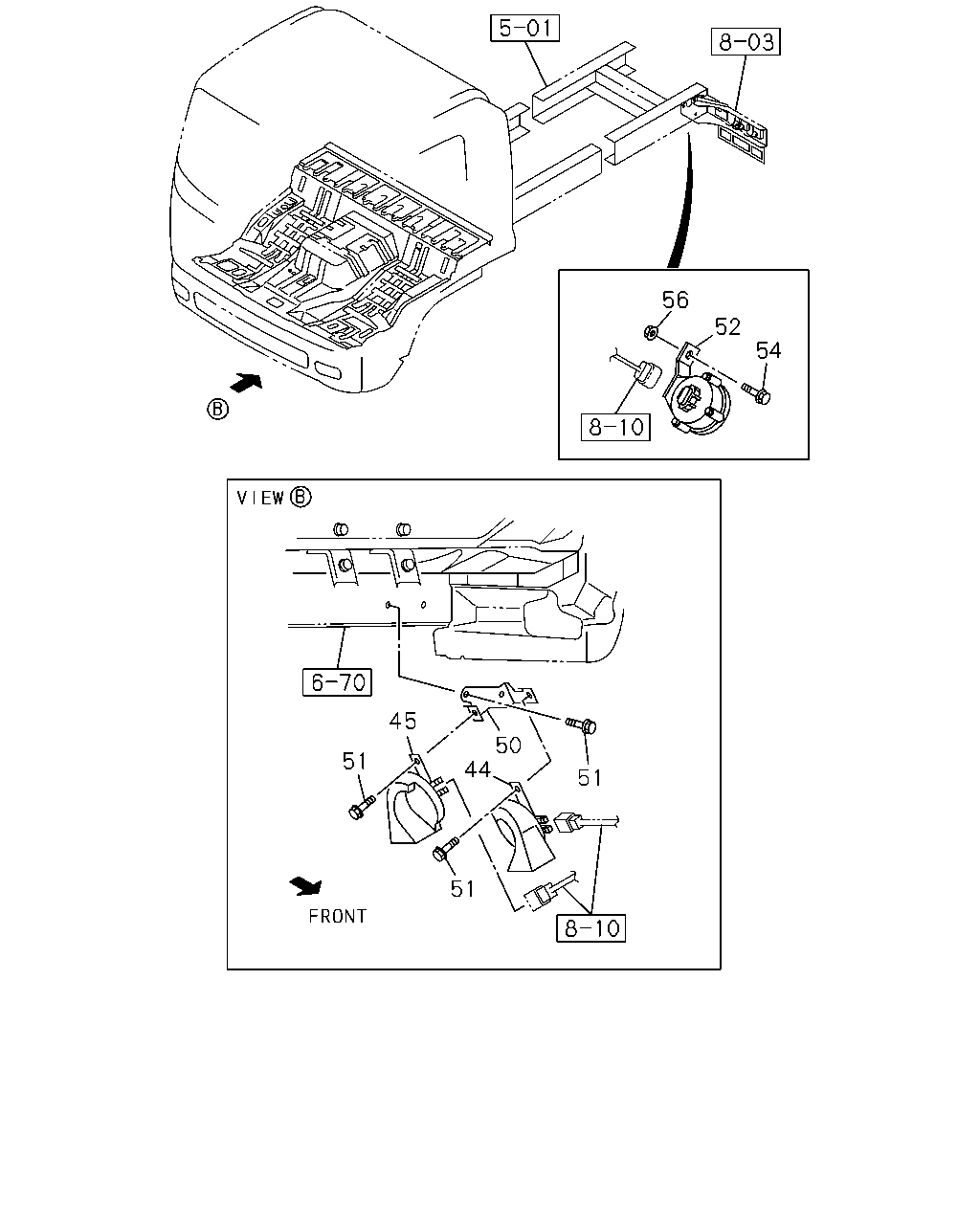

56 52 54 45 50 44 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	0906-1204	●
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1205-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	0906-1204	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1205-	●	●
50	BRACKET; HORN	8-97616-529-2	01	1	0906-1204	●
50	BRACKET; HORN	8-97616-529-2	01	1	1205-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0906-1107	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1108-1204	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1108-1204	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1205-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1205-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	0906-1204	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1205-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	0906-1204	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	1205-	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	0906-1204	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	1205-	●	●

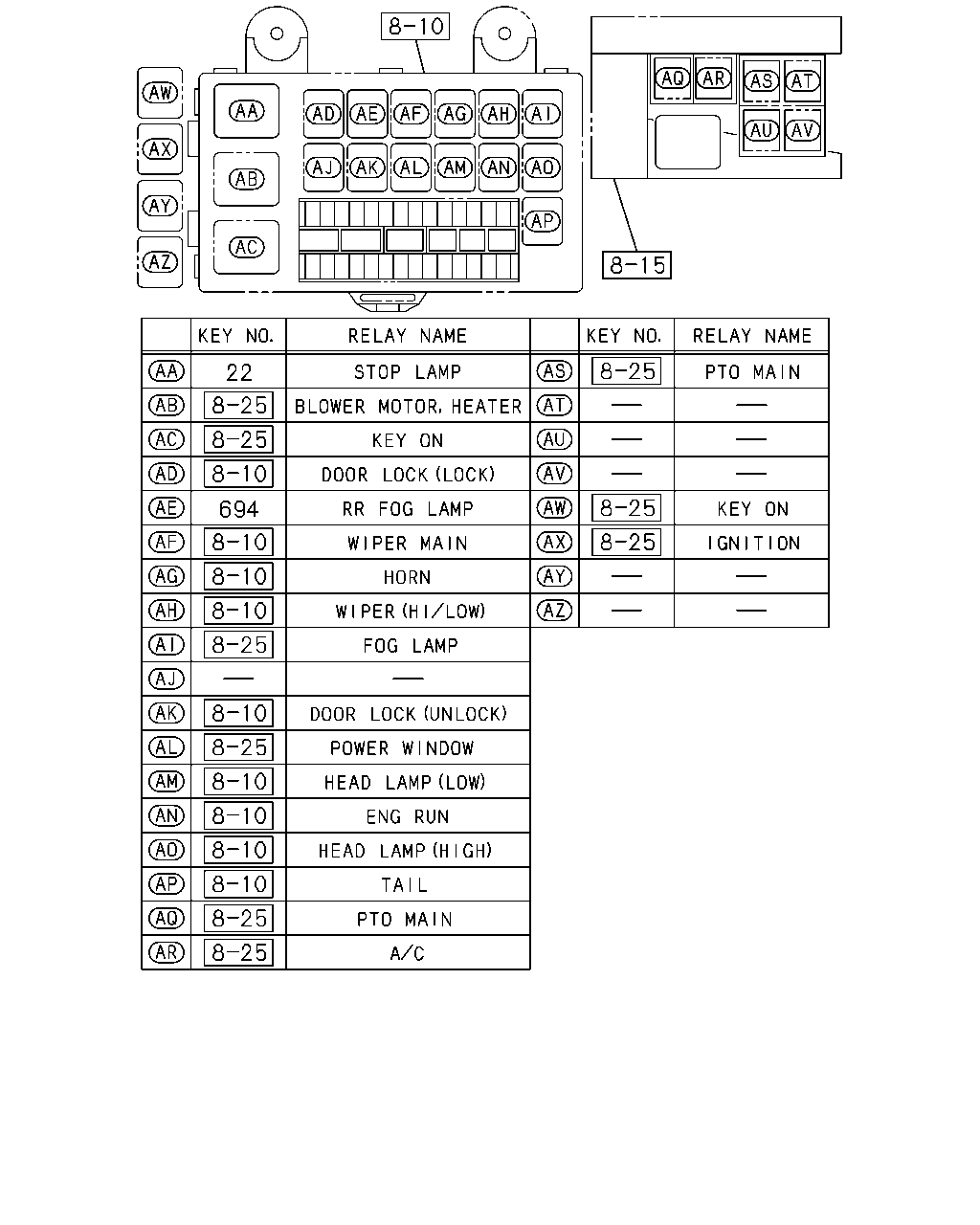

22 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0906-1204	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●
694	RELAY; RR FOG LAMP 24V 10A PANASONIC	8-97173-035-1	01	1	0906-1204	●
694	RELAY; RR FOG LAMP 24V 10A PANASONIC	8-97173-035-1	01	1	1205-	●	●

531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0906-1204	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1205-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
