◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#18461) — 140 parça

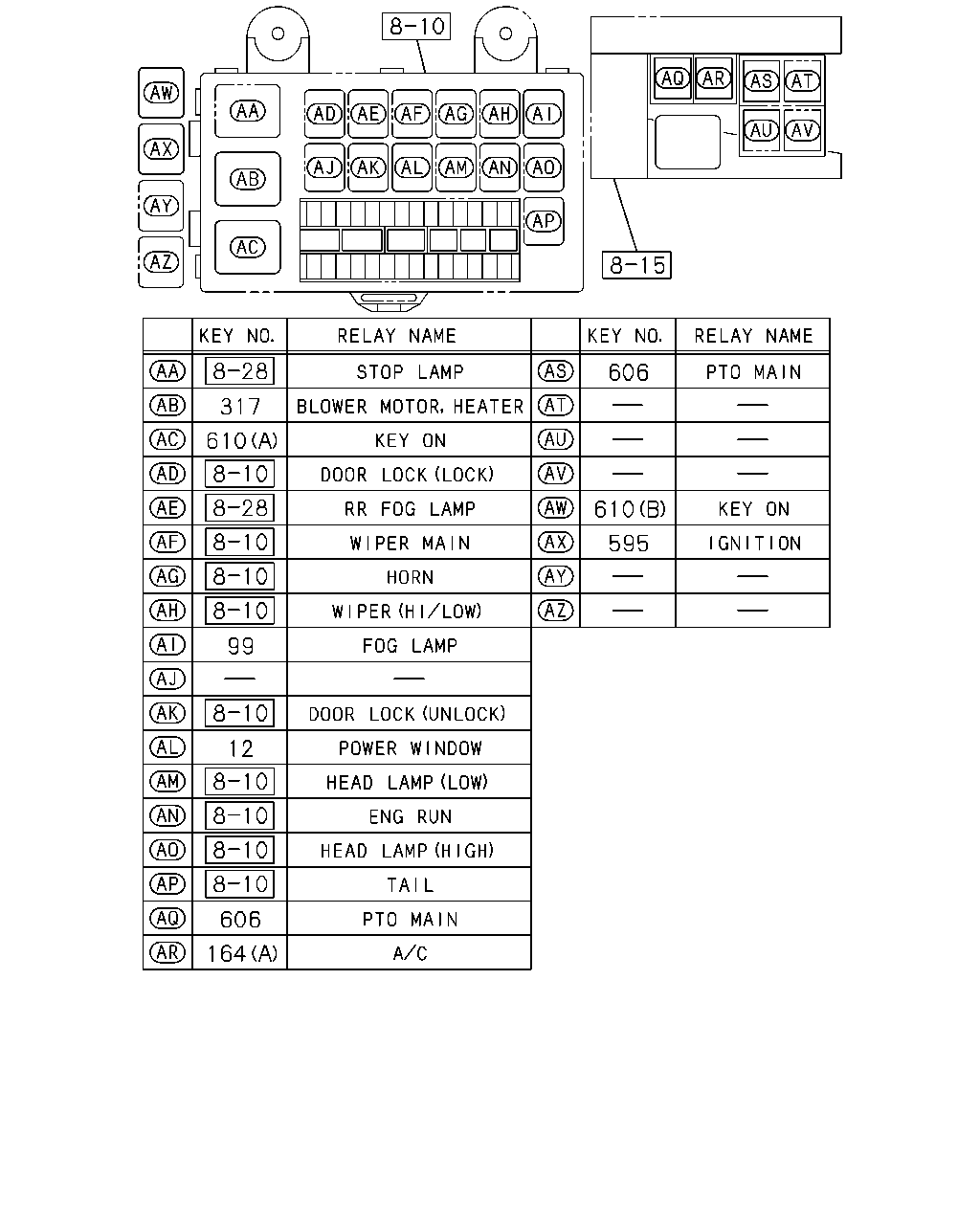

çizim 15322
317 610 99 12 606 164 606 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1204 ●
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1204 ●
99 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
99 RELAY; FOG LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1204 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-1204 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-1009 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1010-1204 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
595 RELAY; IGNITION
VIN MODEL YEAR 2012<VZC> 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1204 ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1204 ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
610 RELAY; KEY ON
VIN MODEL YEAR 2012<VZC> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-1204 ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●

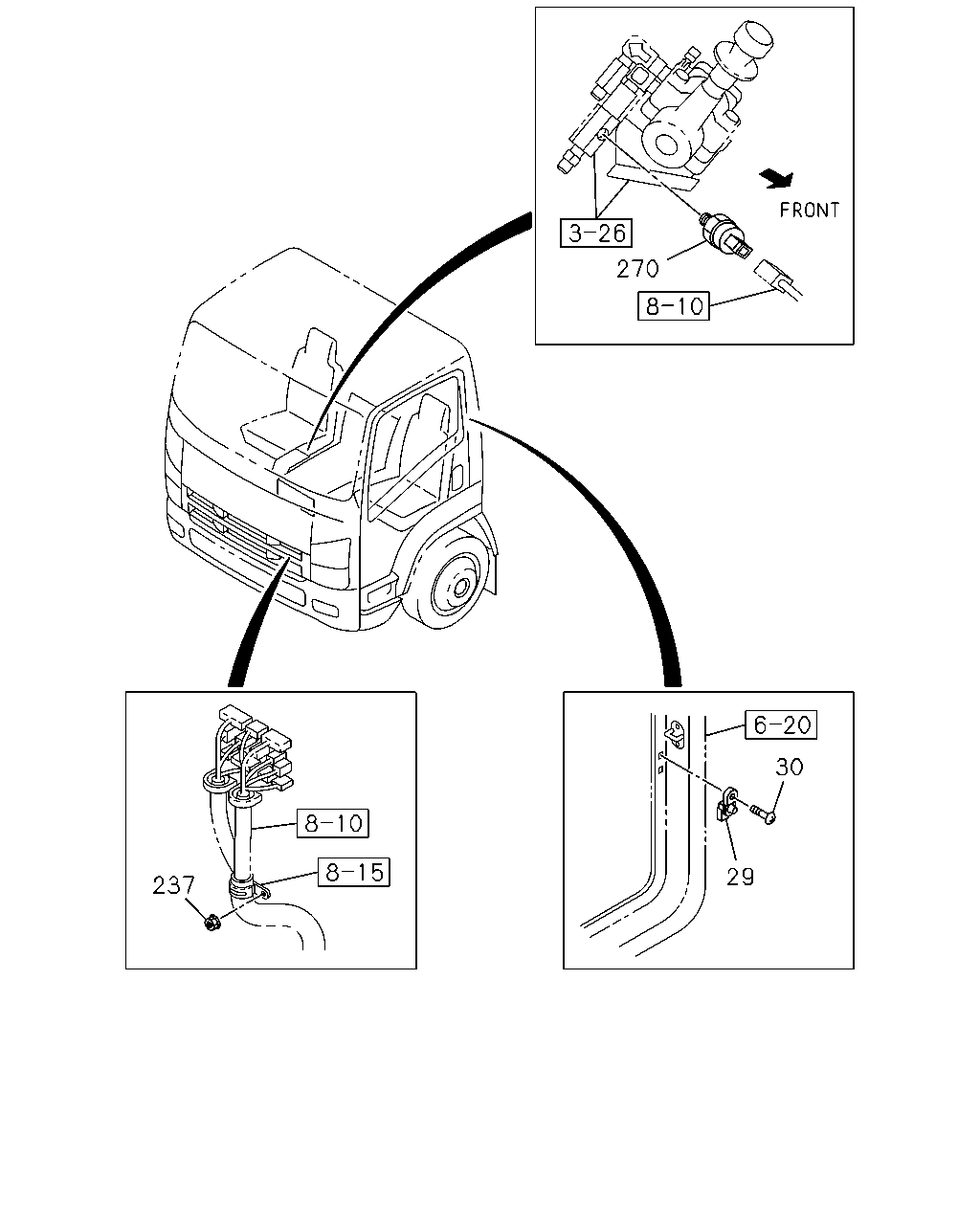

çizim 15323
270 30 29 237
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0906-1204 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0906-1204 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1205- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1205- ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0906-1204 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0906-1204 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1205- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1205- ●
237 NUT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1206- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 0906-1204 ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 1205- ● ●

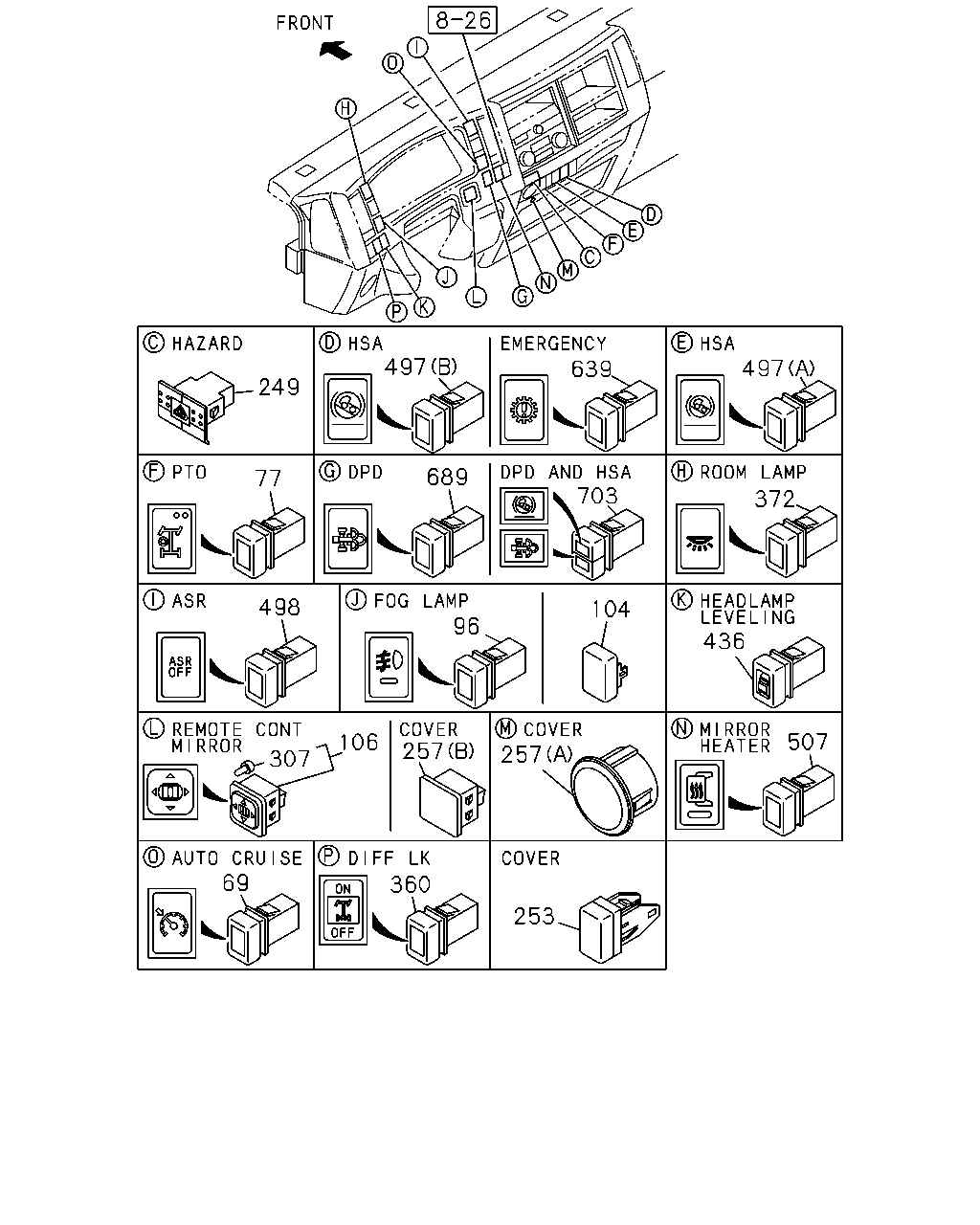

çizim 61744
639 497 497 249 703 372 689 77 96 436 498 104 257 257 507 106 307 69 360 253
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0906-1201 ●
69 SWITCH; AUTO CRUISE 8-98011-344-1 01 1 1202-1204 ●
69 SWITCH; AUTO CRUISE 8-98011-344-1 01 1 1205- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1205- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 0906-1204 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1205- ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0906-1204 ●
96 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1205- ●
96 SWITCH; FOG LAMP 8-97387-031-4 01 1 1205- ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0908-1204 ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98025-954-1 01 1 1205- ●
106 SWITCH; REMOTE CONT MIRROR 8-97173-294-1 01 1 0906-1204 ●
106 SWITCH; REMOTE CONT MIRROR 8-97173-294-1 01 1 1205- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0906-1204 ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1205- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0906-1110 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1111-1201 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1111-1201 ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1111-1201 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1111-1201 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1202-1204 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1202-1204 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1202-1204 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1205- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1205- ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1205- ●
253 COVER; SW HOLE
EXC. DIFF LOCK<C3N> 		8-98025-954-1 01 1 1205- ●
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 1205- ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0906-1110 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0906-1110 ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 03 1 0906-1204 ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 03 1 1205- ● ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 0906-1204 ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 0906-1204 ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 0906-1204 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (B) 		8-98025-954-1 01 1 0906-1204 ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 0906-1204 ●
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (B) 		8-98025-954-1 01 1 1205- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98025-954-1 01 1 1205- ● ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1205- ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1205- ●
257 COVER; HOLE,SW
(B) 		8-98025-954-1 01 1 1205- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (B) 		8-98025-954-1 01 1 1205- ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98025-954-1 01 1 1205- ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 0906-1204 ●
257 COVER; HOLE,SW
(A) 		8-98070-401-2 01 1 1205- ● ●
307 BULB ASM; SW
24V 		8-98226-896-0 01 1 0906-1204 ●
307 BULB ASM; SW
24V 		8-98226-896-0 01 1 1205- ● ●
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> 		8-97613-963-2 01 1 1205- ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0906-1204 ●
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 1205- ● ●
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1205- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1205- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET 		8-98119-946-0 01 1 1205- ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM(6XH) 		8-97386-920-2 01 1 1205- ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 0906-1204 ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1205- ● ●
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1205- ●
689 SWITCH; DPD 8-97386-921-2 01 1 0906-1204 ●
689 SWITCH; DPD 8-97386-921-2 01 1 1205- ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1205- ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1205- ●

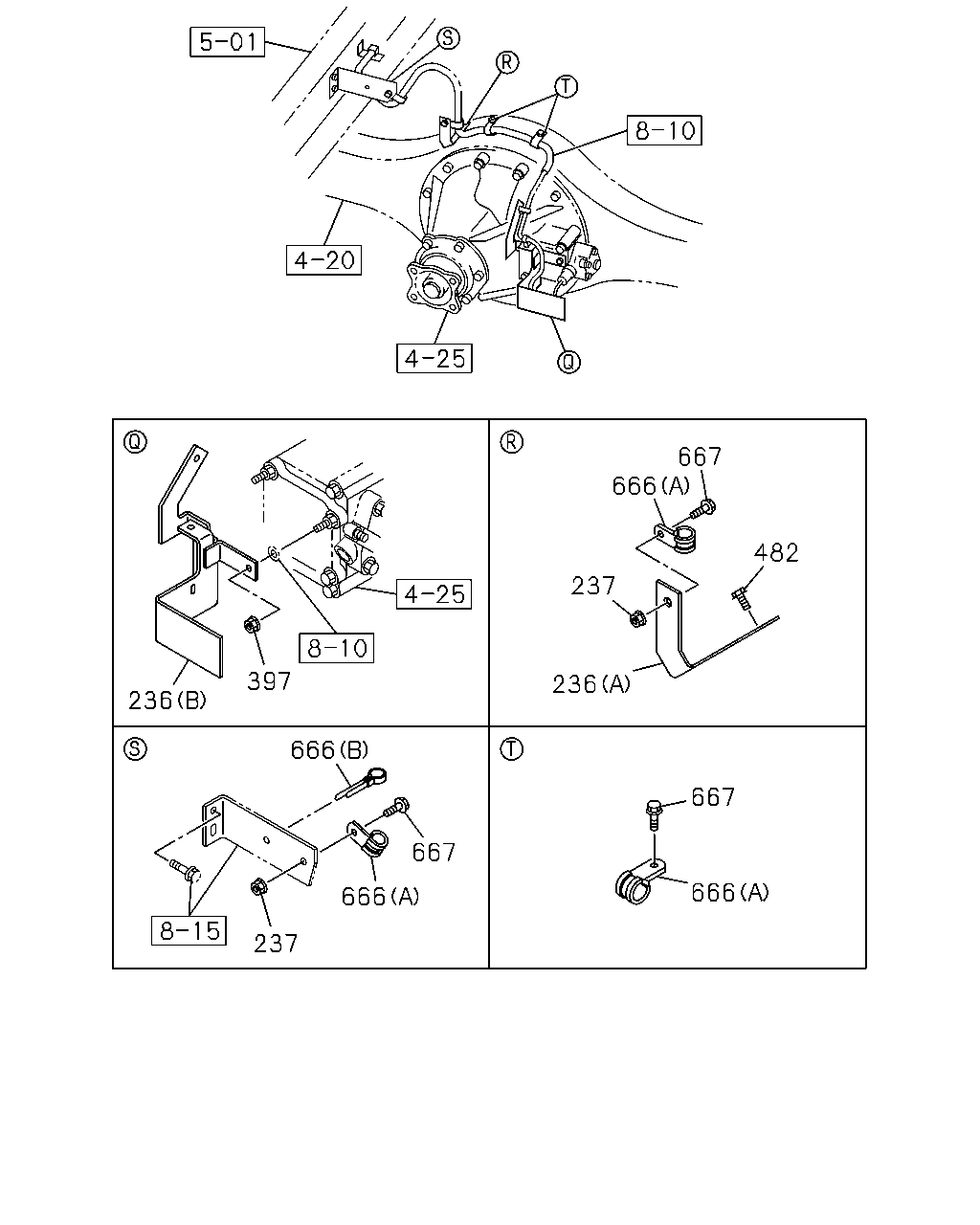

çizim 62591
667 666 482 237 236 667 666 667 666 666 397 236 237
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR
DIFF LOCK<C3N> (A) 		8-98216-632-0 01 1 1206- ●
236 BRACKET; AXLE HARNESS,RR
DIFF LOCK<C3N> (B) 		8-98216-633-0 01 1 1206- ●
237 NUT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1206- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
397 NUT; BRKT FIX
DIFF LOCK<C3N> M6 FLANGE 		0-91180-106-0 03 1 1206- ●
482 BOLT; BRKT
DIFF LOCK<C3N> M8X10 W/LK WASHER 		8-98029-928-0 02 1 1206- ●
666 CLIP; AXLE HARNESS
DIFF LOCK<C3N> (A) ID=14.5 L=20 		1-09701-012-0 02 1 1206- ●
666 CLIP; AXLE HARNESS
DIFF LOCK<C3N> (A) ID=21 L=24 		8-98019-191-0 02 1 1206- ●
666 CLIP; AXLE HARNESS
DIFF LOCK<C3N> (B) ID=14 L=44 		9-09917-427-0 01 1 1206- ●
667 BOLT; CLIP
DIFF LOCK<C3N> M8X16 FLANGE 		0-28050-816-0 02 1 1206- ●
667 BOLT; CLIP
DIFF LOCK<C3N> M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●

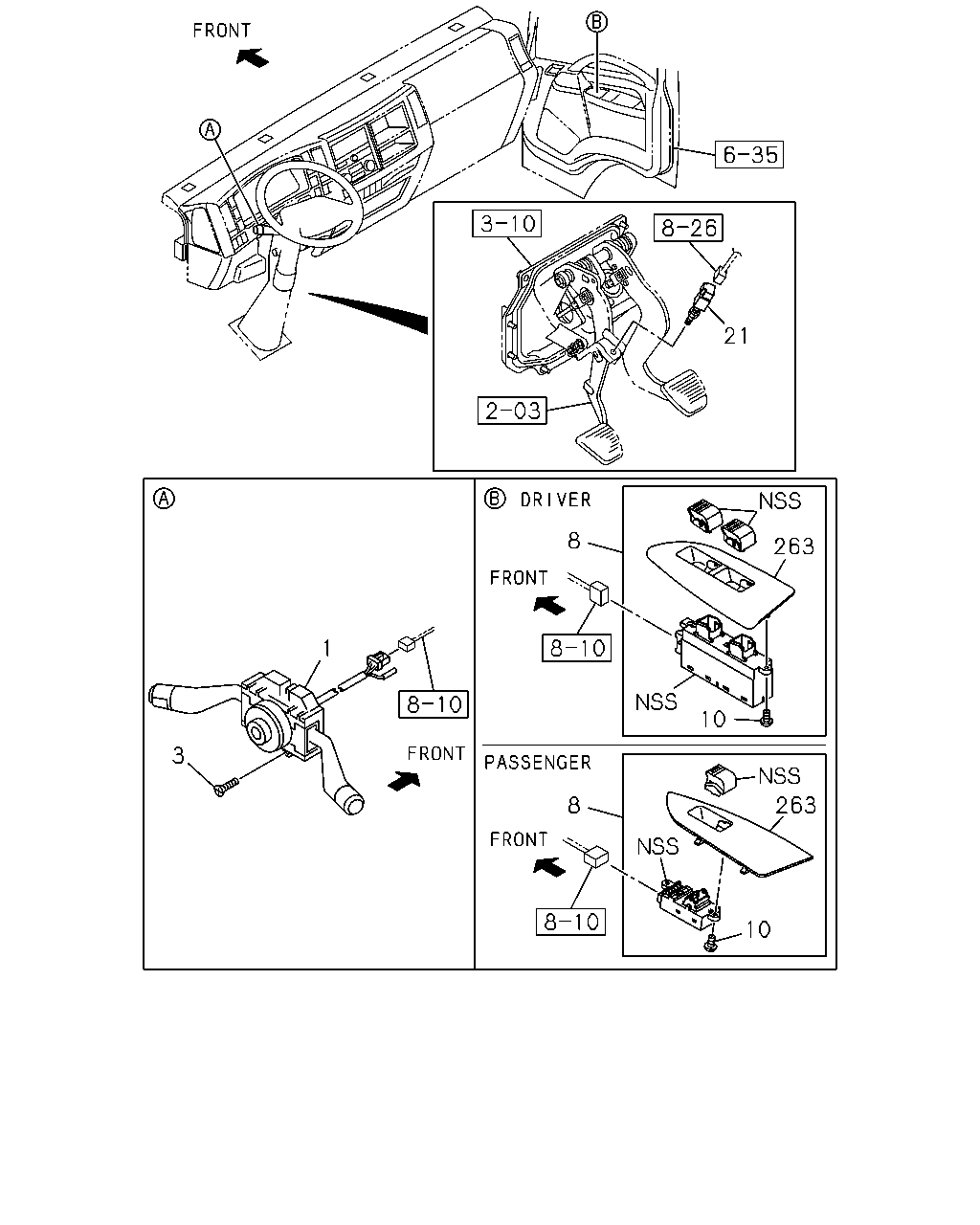

çizim 62855
21 8 263 1 10 3 263 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98064-766-1 01 1 0908-1003 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98146-625-0 01 1 0906-1201 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98146-625-0 01 1 1202-1204 ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98146-625-0 01 1 1205-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98217-829-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98243-711-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98146-623-0 01 1 0906-1201 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0906-1204 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1205- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 0906-1204 ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98001-737-2 01 1 1205-1509 ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-418-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-845-0 01 1 0906-1001 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-544-0 01 1 1002-1204 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-544-0 01 1 1205-1509 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-751-0 01 1 1510- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0906-1204 ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1205- ● ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 0906-1204 ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1205- ● ●
21 SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 0906-1204 ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1205- ● ●
263 COVER; SW
DRIVER 		8-98153-838-0 01 1 0906-1204 ●
263 COVER; SW
DRIVER 		8-98153-838-0 01 1 1205- ● ●
263 COVER; SW
PASSENGER 		8-98153-843-0 01 1 0906-1204 ●
263 COVER; SW
PASSENGER 		8-98153-843-0 01 1 1205- ● ●
çizim 289421
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-1204 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-1204 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
