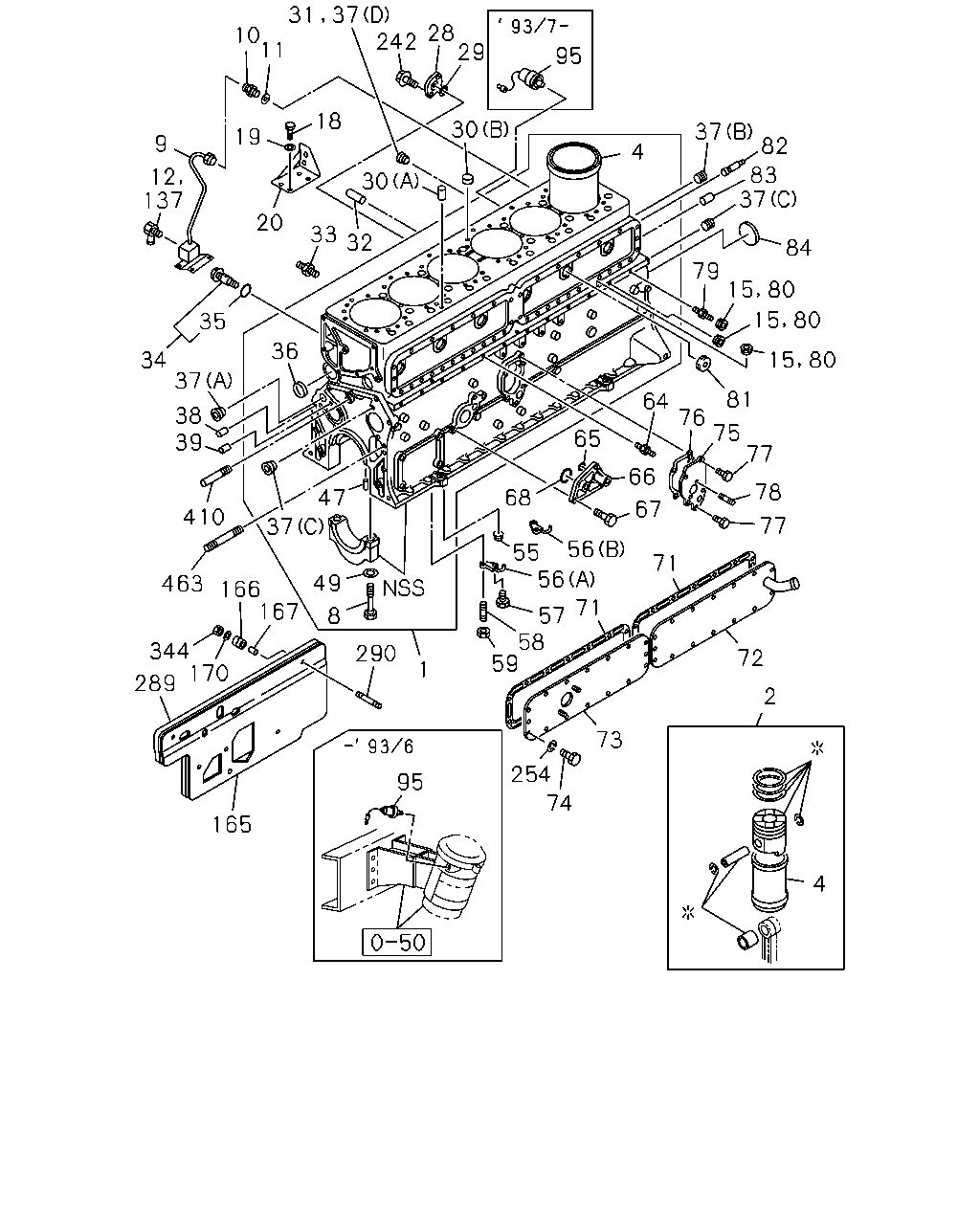

0-12A — CYLINDER BLOCK (#1846) — 114 parça

31 37 242 28 29 10 11 95 18 30 37 82 19 9 4 30 83 37 12 137 20 33 32 84 79 35 36 34 37 81 64 76 75 77 38 39 65 66 78 47 37 68 67 410 77 56 55 56 71 49 463 166 167 71 57 58 59 8 344 170 290 72 1 289 2 73 254 95 74 165 4 15 80 15 80 15 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-321-1	01	1	9002-9201	●
1	BLOCK ASM; CYL	1-11210-598-0	01	1	9202-9306	●
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9002-9201		●	●
1	BLOCK ASM; CYL	1-11210-588-0	01	1	9202-9311		●	●
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9312-		●	●
2	LINER SET; ENG CYL	1-87810-497-1	06	1	9002-9306	●
2	LINER SET; ENG CYL	1-87810-425-0	06	1	9002-9306		●
2	LINER SET; ENG CYL GRADE=1	1-87811-465-0	06	1	9307-		●
2	LINER SET; ENG CYL GRADE=2	1-87811-466-0	06	1	9307-		●
2	LINER SET; ENG CYL	1-87810-910-0	06	1	9012-9306			●
2	LINER SET; ENG CYL GRADE=1	1-87811-449-0	06	1	9307-9401			●
2	LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) GRADE=1	1-87811-449-0	06	1	9402-			●
2	LINER SET; ENG CYL GRADE=2	1-87811-450-0	06	1	9307-9401			●
2	LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1) GRADE=2	1-87811-450-0	06	1	9402-			●
2	LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) GRADE=1	1-87811-451-0	06	1	9402-			●
2	LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1) GRADE=2	1-87811-452-0	06	1	9402-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-105-1	06	1	9002-9306	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9307-	●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9307-	●	●	●
8	BOLT; BRG CAP CAP NO.1,7 M20X150	9-09804-217-0	04	1	9002-	●	●	●
8	BOLT; BRG CAP CAP NO.2,3,4,5,6 M20X178	9-09804-218-0	10	1	9002-9201	●	●	●
8	BOLT; BRG CAP CAP NO.2,4,5,6 M20X178	9-09804-218-0	08	1	9202-9311	●	●	●
8	BOLT; BRG CAP CAP NO.2,3,4,5,6 M20X178	9-09804-218-0	10	1	9312-		●	●
8	BOLT; BRG CAP M20X178 CAP NO.3	1-09029-064-0	02	1	9202-9311	●	●	●
9	PIPE ASM; WATER DRAIN COCK	1-13711-036-3	01	1	9002-	●	●	●
10	CONNECTOR; WATER DRAIN	1-09660-011-1	01	1	9002-	●	●	●
11	GASKET; CONN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09571-418-0	01	1	9002-	●	●	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-026-0	01	1	9002-9306	●	●	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	15	1	9307-		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	13	1	9307-			●
18	BOLT; BRKT TO C/BL M10X22	9-02361-022-0	02	1	9002-	●	●	●
19	WASHER; BRKT ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9002-	●	●	●
20	BRACKET; AIR CMPR	1-19187-014-1	01	1	9002-	●	●	●
28	COVER; OIL PORT	9-11219-214-0	01	1	9002-	●	●	●
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	01	1	9002-9003	●	●
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9004-	●	●	●
30	PIN; CYL HD GASKET SETTING (A) OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
30	PIN; CYL HD GASKET SETTING (B) OD=20 L=15	9-11229-011-2	04	1	9002-	●	●	●
31	PLUG; OIL GALLERY PT1/4	1-09605-019-0	03	1	9307-		●	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9002-	●	●	●
33	CONNECTOR; OIL GALLERY	1-09660-034-1	01	1	9002-	●	●	●
34	VALVE; OIL RELIEF	9-13160-060-2	01	1	9002-	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-059-0	01	1	9002-	●	●	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	04	1	9002-	●	●	●
37	PLUG; OIL GALLERY (D) PT1/4	1-09605-019-0	04	1	9002-9306	●	●	●
37	PLUG; OIL GALLERY (B) PT3/4	1-09605-025-0	01	1	9002-	●	●	●
37	PLUG; OIL GALLERY (C) PT3/8	1-09605-056-0	02	1	9002-	●	●	●
37	PLUG; OIL GALLERY (A) PT3/4,M8	1-09609-014-1	01	1	9002-	●	●	●
38	PIN; TIMING GEAR CASE	9-08151-222-0	02	1	9002-	●	●	●
39	DOWEL; IDLE GEAR SPINDLE	1-11229-013-0	01	1	9002-	●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	14	1	9002-	●	●	●
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9002-	●	●	●
55	PLUG; OIL GALLERY PT3/4	1-09605-025-0	01	1	9002-	●	●	●
56	JET; OIL,PISTON COOLING (A) NO.1,2,4	1-13342-084-0	03	1	9002-9306	●
56	JET; OIL,PISTON COOLING (B) NO.3,5,6	1-13342-085-0	03	1	9002-9306	●
56	JET; OIL,PISTON COOLING (A) NO.1,2,4	1-13342-082-0	03	1	9002-		●
56	JET; OIL,PISTON COOLING (B) NO.3,5,6	1-13342-083-0	03	1	9002-		●
56	JET; OIL,PISTON COOLING (A) NO.1,2,4	1-13342-111-1	03	1	9012-			●
56	JET; OIL,PISTON COOLING (B) NO.3,5,6	1-13342-112-1	03	1	9012-			●
57	BOLT; OIL JET M8X20	9-02050-820-0	06	1	9002-9005	●	●
57	BOLT; OIL JET M8X20	0-20800-820-0	06	1	9006-	●	●	●
58	STUD; OILING JET M8X20 L=32	9-04110-820-0	06	1	9002-	●	●	●
59	NUT; OILING JET M8	9-09110-408-0	06	1	9002-	●	●	●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-104-1	01	1	9002-	●		●
65	GASKET; SUCTION ID=27.7	1-09623-170-0	01	1	9002-9003	●	●
65	GASKET; SUCTION ID=27.7	1-09623-450-0	01	1	9004-	●	●	●
66	CONNECTOR; PARTIAL FILTER	1-13341-077-2	01	1	9002-	●	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	9-01991-025-0	03	1	9002-9002	●	●
67	BOLT; CONNECTOR M10X25 W/LK&PL WASHER	0-50151-025-0	03	1	9003-	●	●	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-171-0	01	1	9002-9003	●	●
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	9004-	●	●	●
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-028-0	02	1	9002-	●	●	●
72	COVER; TAPPET CHAMBER	1-11291-048-3	01	1	9002-	●	●	●
73	COVER ASM; TAPPET CHAMBER	1-11291-035-1	01	1	9002-	●	●
73	COVER ASM; TAPPET CHAMBER	1-11291-086-0	01	1	9012-			●
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	29	1	9002-9005	●	●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	29	1	9006-9410	●	●	●
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	29	1	9411-		●
74	BOLT; COVER TO C/BL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X22 W/LK WASHER	0-50040-822-0	29	1	9411-			●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	03	1	9002-9005	●	●
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	03	1	9006-	●	●	●
74	BOLT; COVER TO C/BL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X22 W/LK WASHER	0-50040-822-0	27	1	9411-			●
74	BOLT; COVER TO C/BL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X24,M10X35 L=64.5	1-09300-044-4	02	1	9411-			●
75	COVER; C/BL,OIL PUMP	1-11219-120-0	01	1	9002-	●		●
75	COVER; C/BL,OIL PUMP	1-11219-122-0	01	1	9002-		●
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-008-0	01	1	9002-	●	●	●
77	BOLT; COVER TO C/BL M10X35 W/LK WASHER	9-01931-035-0	03	1	9002-9002	●	●
77	BOLT; COVER TO C/BL M10X35 W/LK WASHER	0-50051-035-0	03	1	9003-	●	●	●
77	BOLT; COVER TO C/BL M10X40 W/LK WASHER	9-01931-040-0	02	1	9002-9002	●	●
77	BOLT; COVER TO C/BL M10X40 W/LK WASHER	0-50051-040-0	02	1	9003-	●	●	●
78	STUD; COVER OIL PUMP M8X30 L=41	9-04110-830-0	02	1	9002-	●		●
79	NIPPLE; OIL FEED,TURBOCHARGER	1-09660-359-1	01	1	9012-			●
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	14	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	15	1	9002-9306		●
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	13	1	9012-9306			●
81	PLUG; WATER JACKET	9-09864-050-1	06	1	9002-	●	●	●
82	STUD; FLYWHEEL HSG M14X42 L=63	9-04411-442-0	01	1	9002-	●	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9002-	●	●	●
84	PLUG; CAM BRG	9-09201-371-0	01	1	9002-	●	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●	●	●
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9307-		●	●
137	COCK; DRAIN,WATER	1-09680-026-0	01	1	9307-		●	●
165	COVER; C/BL SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-262-0	01	1	9411-			●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-020-0	04	1	9411-			●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-23332-003-0	04	1	9411-			●
170	WASHER; COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.5 OD=26	9-09160-710-0	08	1	9411-			●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-	●	●	●
254	WASHER; LK,TAPPET CHAMBER COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.2	9-09150-508-0	02	1	9411-			●
289	WOOL; GLASS,COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-097-0	01	1	9411-			●
290	STUD; NOISE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10X30 L=45	9-04411-030-0	02	1	9411-			●
344	NUT; NOISE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10	9-09110-410-0	04	1	9411-			●
410	JET; OIL,TIMING GEAR	9-13342-002-0	01	1	9002-	●	●	●
463	STUD; TIMING GEAR CASE M12X77 L=95	9-09831-161-0	06	1	9307-		●	●
