◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#18458) — 614 parça

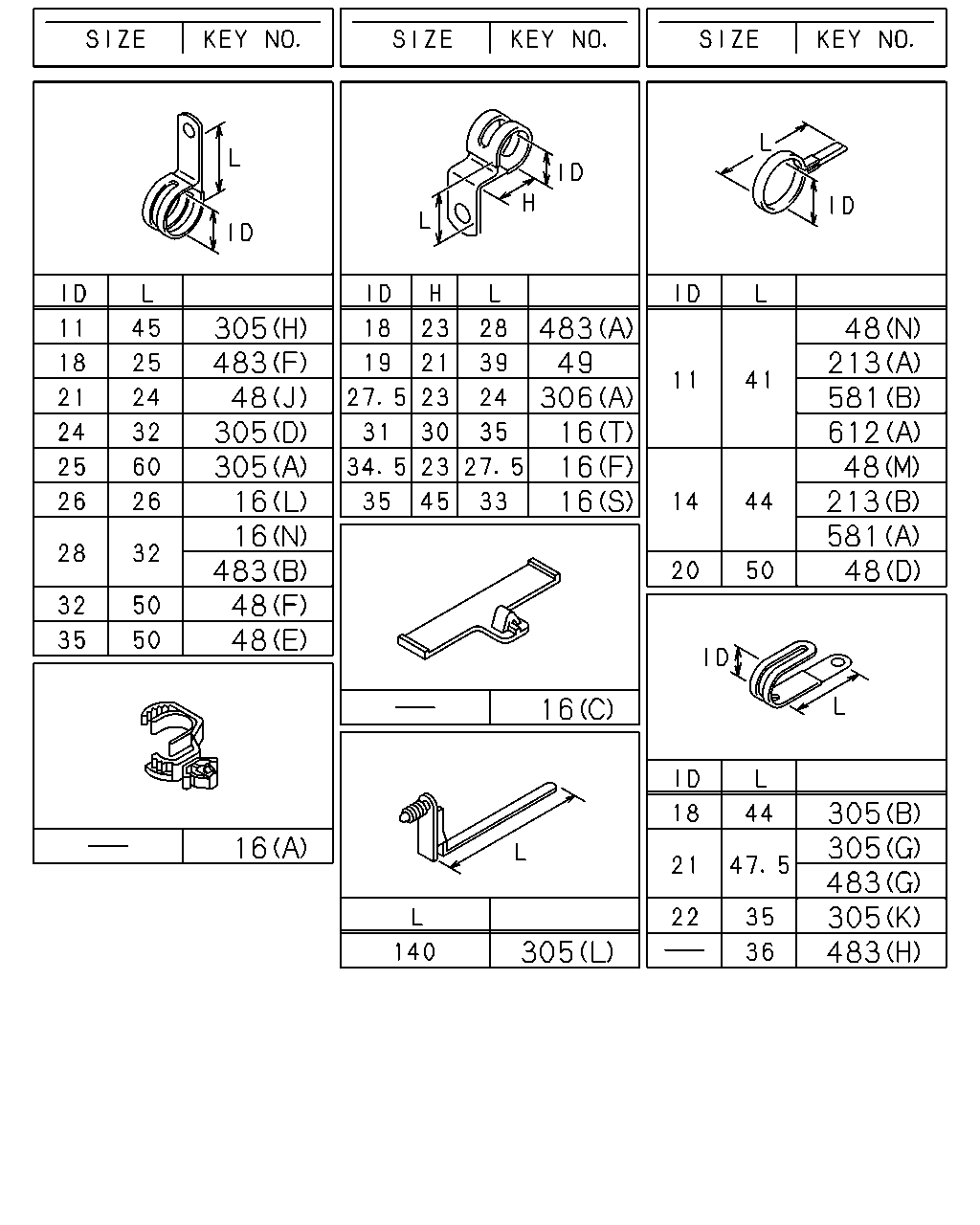

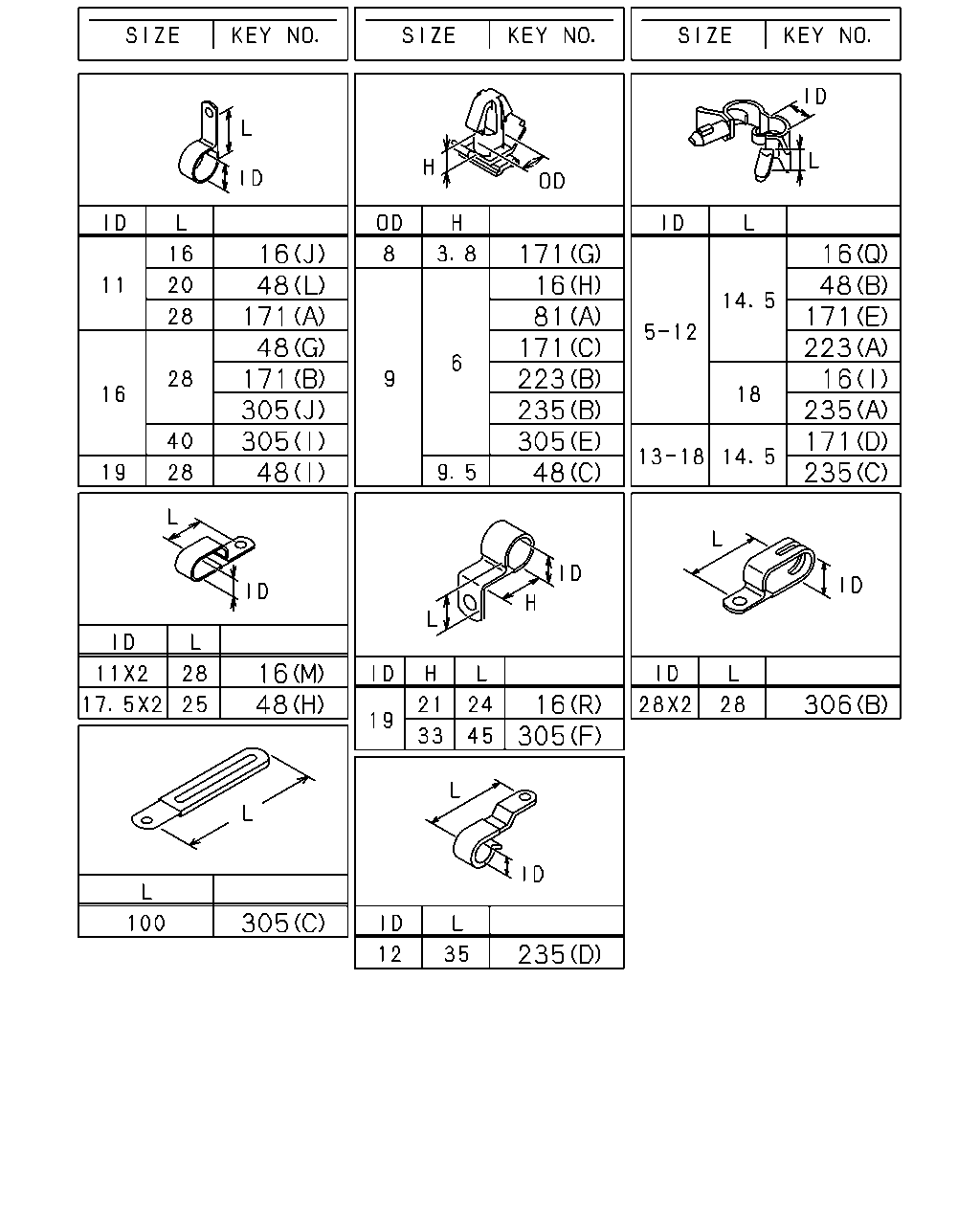

çizim 15203
483 116 16 162 16 483 16 81 612 483 171 183
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 1205- ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1205- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1205- ●
16 CLIP; HARNESS
(P) ID=10 & 10 		1-09709-277-1 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1205- ●
16 CLIP; HARNESS
(Q) ID=5-12 L=14.5 		1-09987-221-0 01 1 1205- ●
16 CLIP; HARNESS
(R) ID=19 H=21 L=24 		5-09700-360-0 01 1 1205- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=35 H=45 L=33 		1-09701-047-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (T) ID=31 H=30 L=35 		1-09700-994-0 01 1 1205- ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 1205- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1205- ● ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1205- ●
16 CLIP; HARNESS
(L) ID=26 L=26 		1-09701-236-0 01 1 0906- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 01 1 0906- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1205- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-1204 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1205- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1205- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1205- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906-1204 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1205- ● ●
81 CLIP; HARNESS
6HK1-TCN ENG(82L) (A) OD=9 H=6 		1-09709-178-0 01 1 1011-1204 ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1205- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0906-1204 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1205- ● ●
162 CLIP; SW HARNESS
DIFF LOCK<C3N> ID=4.8 		1-09701-218-0 01 1 1206- ●
171 CLIP; STARTER HARNESS
(F) 		8-97101-436-0 01 1 1205- ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) OD=8 H=3.8 		1-09709-309-0 01 1 1205- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0906- ●
183 CLIP; CONNECTOR
DIFF LOCK<C3N> OD=8.95 H=6.25 		8-97375-754-0 01 1 1206- ●
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(B) ID=28 L=32 		1-09701-107-1 01 1 1205- ●
483 CLIP; ENG HARNESS
(C) ID=21 L=24 		1-09701-201-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(D) 		1-09987-281-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(F) ID=18 L=25 		8-94121-004-1 01 1 1205- ●
483 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(H) L=36 		8-94224-891-1 01 1 1205- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 0906-1204 ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1205- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1205- ● ●

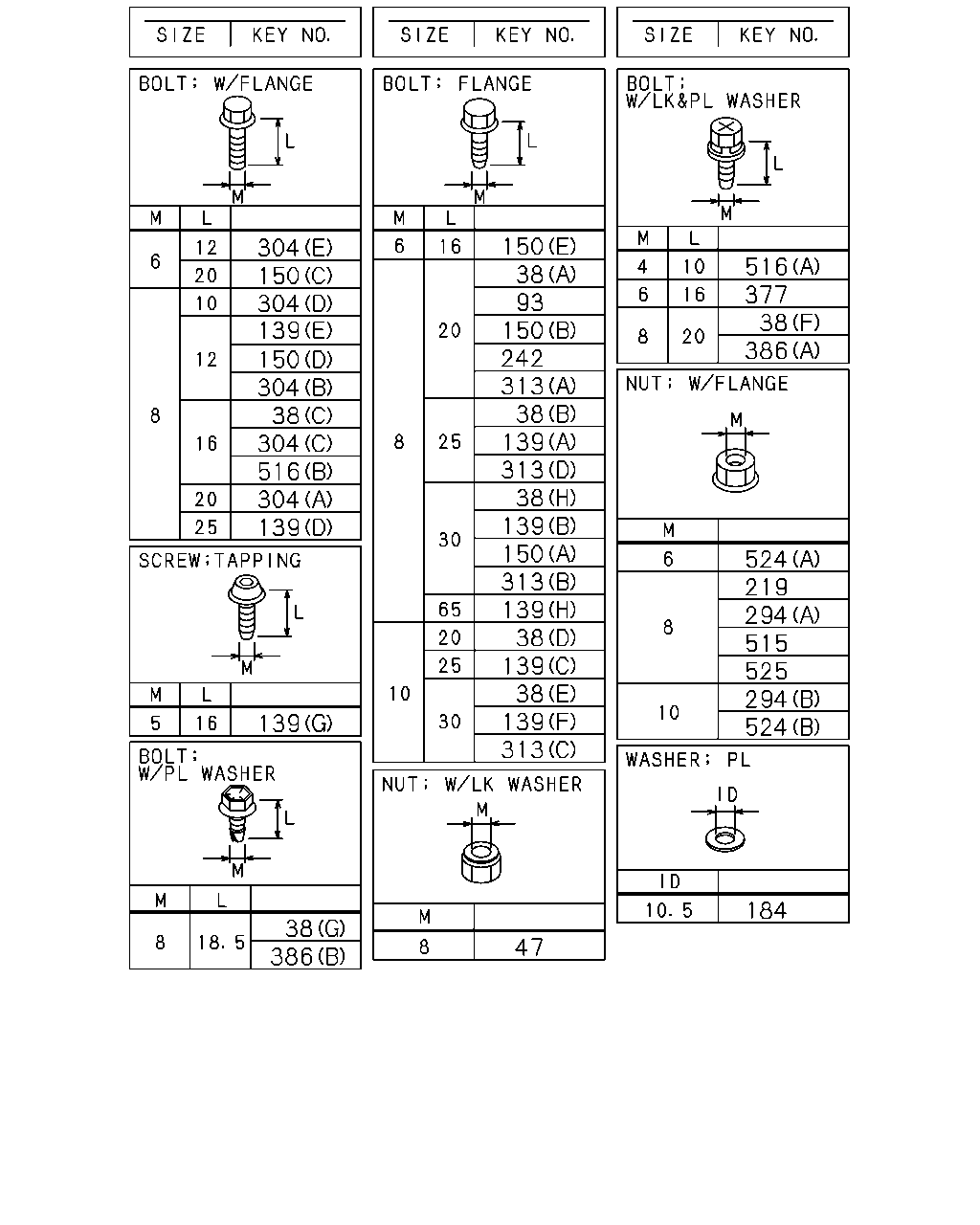

çizim 61779
304 150 304 139 150 304 38 304 516 304 139 139 38 386 150 38 93 150 242 313 38 139 313 38 139 150 313 139 38 139 38 139 313 47 516 377 38 386 524 219 294 515 525 294 524 184
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> (H) M8X30 FLANGE 		0-28650-830-0 02 1 1206- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0906-1204 ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1205- ● ●
38 BOLT; CLIP,HARNESS
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1204 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1204 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0906- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0906- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0906- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0906-1204 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0906-1204 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1205- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1205- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0906-1204 ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 1205- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0906-1201 ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-1204 ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1205- ● ●
38 BOLT; CLIP,HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) M10X20 FLANGE 		0-28751-020-0 01 1 0906- ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1205- ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 01 1 1205- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1205-1205 ●
139 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X30 FLANGE 		0-28650-830-0 01 1 1206- ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1205- ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE 		1-09044-072-1 01 1 1205- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1101-1204 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1205- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0906-1204 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1205- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0906-1204 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1205- ● ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-1204 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-1204 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-1204 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1205- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1205- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1205- ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0906-1204 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1205- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0906-1204 ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0906-1204 ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1205- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1205- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0906-1204 ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1205- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-1204 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1205- ● ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1205- ●
150 BOLT; CLIP
(C) M6X20 FLANGE 		0-28050-620-0 02 1 1205- ●
150 BOLT; CLIP
(D) M8X12 FLANGE 		0-28050-812-0 01 1 1205- ●
150 BOLT; CLIP
(E) M6X16 FLANGE 		0-28650-616-0 01 1 1205- ●
150 BOLT; CLIP
6HK1-TCN ENG(82L) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0906- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0906-1204 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1205- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0906- ●
219 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0906-1204 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0906-1204 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1205-1205 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1205-1205 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1206- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1206- ●
219 NUT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1206- ●
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0908-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001-1204 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1205- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0906-1204 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1205- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0908-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001-1204 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001-1204 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1205-1205 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1205-1205 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1206- ● ●
294 NUT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 01 1 1206- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-0907 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0908-1204 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1205- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0906-1010 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1204 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1204 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1205- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1205- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0906-1010 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1204 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1205- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0906- ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0906-1010 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0906- ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0906- ●
313 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1205- ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0906-1204 ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1205- ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-1204 ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1205- ● ●
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0906- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0906-1204 ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1205- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0906-1202 ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-1204 ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1205- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1205- ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906- ●
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0906- ●
516 BOLT; HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ●
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 0906-1204 ●
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1205- ● ●
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 1205- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0906-1204 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1205- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0906-1204 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1205- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0906- ●
çizim 61886
16 48 171 48 171 305 305 48 171 16 81 171 223 235 305 48 16 48 171 223 16 235 171 235 16 48 16 305 306 305 235
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 1205- ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1205- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1205- ●
16 CLIP; HARNESS
(P) ID=10 & 10 		1-09709-277-1 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1205- ●
16 CLIP; HARNESS
(Q) ID=5-12 L=14.5 		1-09987-221-0 01 1 1205- ●
16 CLIP; HARNESS
(R) ID=19 H=21 L=24 		5-09700-360-0 01 1 1205- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=35 H=45 L=33 		1-09701-047-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (T) ID=31 H=30 L=35 		1-09700-994-0 01 1 1205- ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 1205- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1205- ● ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1205- ●
16 CLIP; HARNESS
(L) ID=26 L=26 		1-09701-236-0 01 1 0906- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 01 1 0906- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1205- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-1204 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1205- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1205- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1205- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906-1204 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 09 1 0906- ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (N) ID=11 L=41 		1-09700-403-0 06 1 1206- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 08 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (M) ID=14 L=44 		9-09917-427-0 12 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 15 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 04 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 13 1 1205- ●
48 CLIP; FRAME HARNESS
(N) ID=11 L=41 		1-09700-403-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0906-0908 ●
48 CLIP; FRAME HARNESS
(L) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0906- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1205- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 1205- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 1205- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1205- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1205- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0906- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-1201 ●
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 1202-1204 ●
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 11 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
81 CLIP; HARNESS
6HK1-TCN ENG(82L) (A) OD=9 H=6 		1-09709-178-0 01 1 1011-1204 ●
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1205- ●
171 CLIP; STARTER HARNESS
(F) 		8-97101-436-0 01 1 1205- ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) OD=8 H=3.8 		1-09709-309-0 01 1 1205- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0906- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0906- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002-1204 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1205- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0906-1204 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1205- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 1205- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCN ENG(82L) (B) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCN ENG(82L) (A) ID=5-12 L=18 		1-09709-287-0 02 1 0906- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 0906-1204 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=13-18 L=14.5 		1-09709-290-0 01 1 1205- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=12 L=35 		5-09700-206-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(M) L=300 		1-09707-001-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(N) L=140 		5-09707-031-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(N) L=140 		5-09707-031-1 02 1 1205- ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (O) L=250 		5-09707-030-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(O) L=250 		5-09707-030-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906- ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0906- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906- ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 01 1 1205- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0906- ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0906- ●
çizim 62092
305 483 48 305 305 16 16 483 48 48 483 49 306 16 16 16 48 213 581 612 48 213 581 48 16 305 305 483 305 483 16 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 1205- ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1205- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1205- ●
16 CLIP; HARNESS
(P) ID=10 & 10 		1-09709-277-1 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1205- ●
16 CLIP; HARNESS
(Q) ID=5-12 L=14.5 		1-09987-221-0 01 1 1205- ●
16 CLIP; HARNESS
(R) ID=19 H=21 L=24 		5-09700-360-0 01 1 1205- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=35 H=45 L=33 		1-09701-047-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (T) ID=31 H=30 L=35 		1-09700-994-0 01 1 1205- ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 1205- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1205- ● ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1205- ●
16 CLIP; HARNESS
(L) ID=26 L=26 		1-09701-236-0 01 1 0906- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 01 1 0906- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1205- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-1204 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1205- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1205- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1205- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906-1204 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 09 1 0906- ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (N) ID=11 L=41 		1-09700-403-0 06 1 1206- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 08 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (M) ID=14 L=44 		9-09917-427-0 12 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 15 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 04 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 13 1 1205- ●
48 CLIP; FRAME HARNESS
(N) ID=11 L=41 		1-09700-403-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0906-0908 ●
48 CLIP; FRAME HARNESS
(L) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0906- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1205- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 1205- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 1205- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1205- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1205- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0906- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-1201 ●
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 1202-1204 ●
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 11 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1205- ●
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0906-1204 ●
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1205- ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 0906-1204 ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 1205- ● ●
305 CLIP; ENG HARNESS
(M) L=300 		1-09707-001-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(N) L=140 		5-09707-031-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(N) L=140 		5-09707-031-1 02 1 1205- ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (O) L=250 		5-09707-030-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(O) L=250 		5-09707-030-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906- ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0906- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906- ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 01 1 1205- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0906- ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0906- ●
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(B) ID=28 L=32 		1-09701-107-1 01 1 1205- ●
483 CLIP; ENG HARNESS
(C) ID=21 L=24 		1-09701-201-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(D) 		1-09987-281-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(F) ID=18 L=25 		8-94121-004-1 01 1 1205- ●
483 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1205- ●
483 CLIP; ENG HARNESS
(H) L=36 		8-94224-891-1 01 1 1205- ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=14 L=44 		9-09917-427-0 03 1 0906-0908 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 03 1 0909-0910 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 02 1 0911- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 0906-1204 ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1205- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1205- ● ●

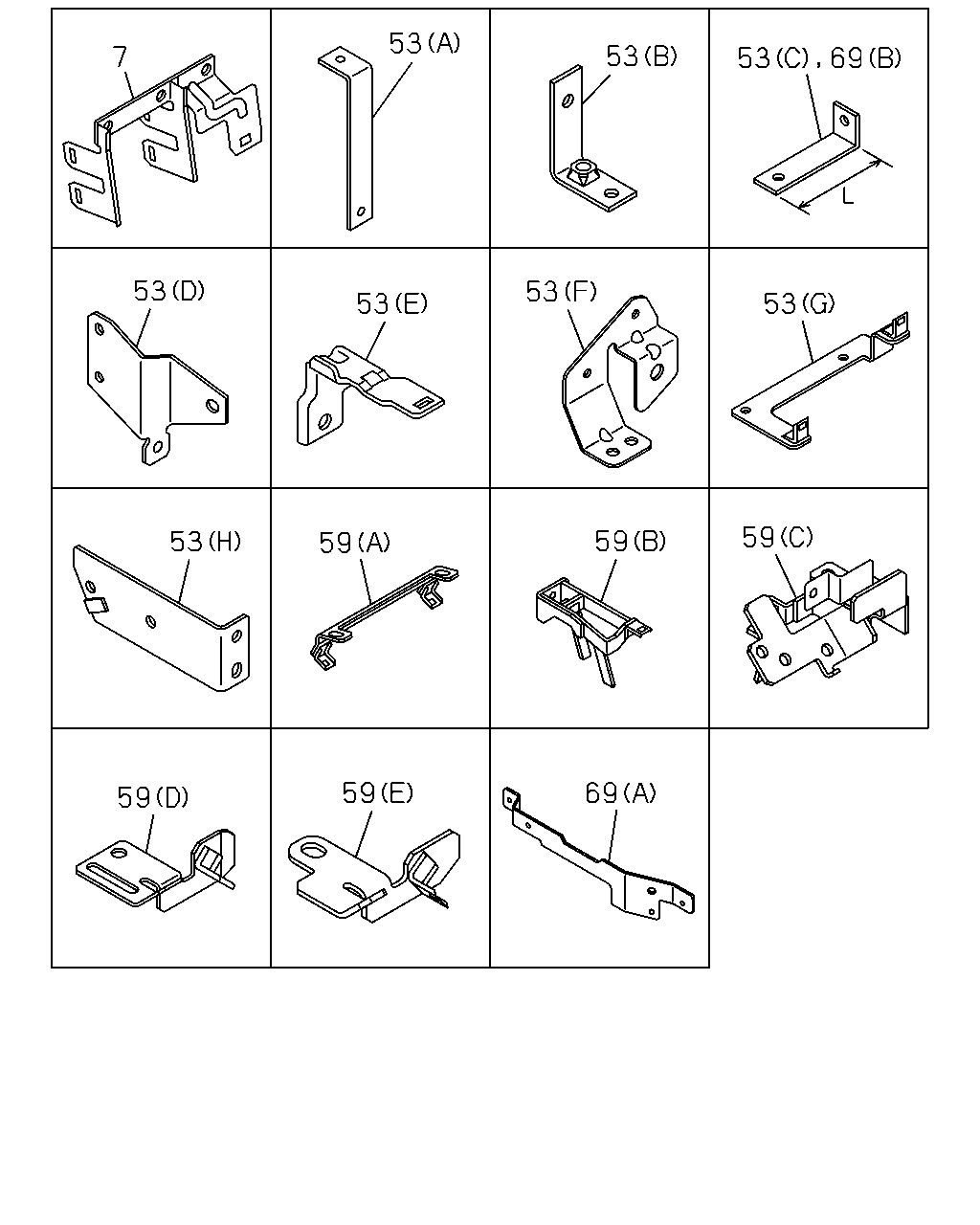

çizim 62579
69 59 59 53 59 59 59 53 53 53 53 7 53 53 53 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 0906-1204 ●
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1205- ● ●
53 BRACKET; HARNESS
DIFF LOCK<C3N> (H) 		8-98216-631-0 01 1 1206- ●
53 BRACKET; HARNESS
(G) 		8-98125-300-1 01 1 1205- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-98084-699-0 01 1 1101-1204 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-98084-699-0 01 1 1205- ● ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0906- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0906- ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 01 1 0906- ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0906-1204 ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 1205- ● ●
53 BRACKET; HARNESS
(B) 		8-98125-684-0 01 1 0906- ●
53 BRACKET; HARNESS
(D) 		8-98047-891-0 01 1 0906-1204 ●
53 BRACKET; HARNESS
(D) 		8-98047-891-0 01 1 1205- ● ●
53 BRACKET; HARNESS
(D) 		8-98047-890-0 01 1 0906-1204 ●
53 BRACKET; HARNESS
(D) 		8-98047-890-0 01 1 1205- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97619-535-0 01 1 1205- ●
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1205- ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0906-1204 ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1205-1502 ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97619-533-0 01 1 0906-1204 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97619-533-0 01 1 1205- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97619-534-0 01 1 0906- ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0906- ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 0906- ●
69 BRACKET; CLIP
(A) 		8-97614-738-0 01 1 0906-1204 ●
69 BRACKET; CLIP
(A) 		8-97614-738-0 01 1 1205- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=95 		1-82699-085-0 01 1 1205- ●

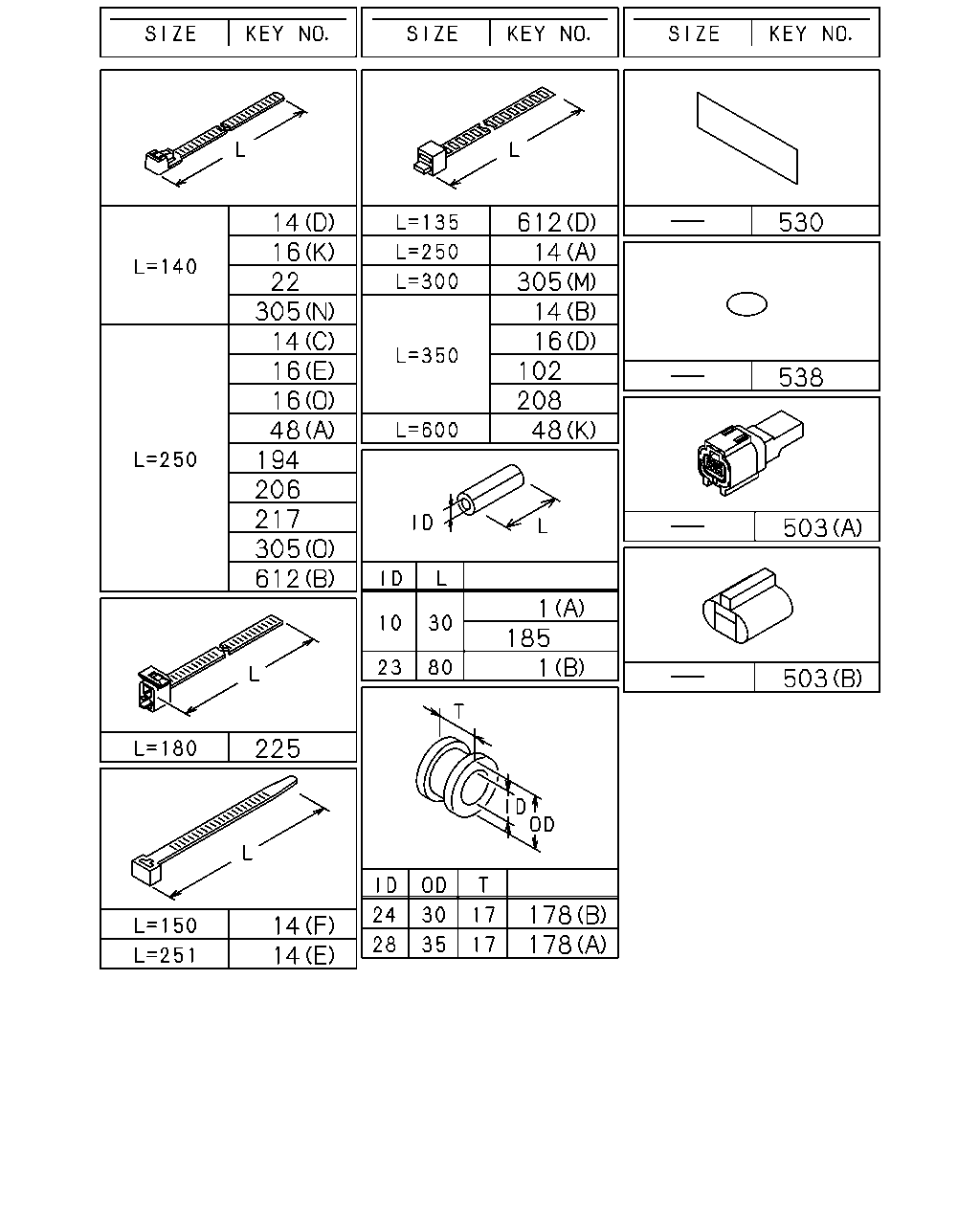

çizim 63133
14 16 22 305 14 16 16 48 194 206 217 305 612 612 14 305 14 16 102 208 48 530 538 503 1 185 1 503 225 178 178 14 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0906- ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0906- ●
14 CLIP; BAND,HARNESS
(E) L=251 		8-97619-917-0 01 1 1205- ●
14 CLIP; BAND,HARNESS
(D) L=140 		5-09707-031-1 02 1 1205- ●
14 CLIP; BAND,HARNESS
(D) L=140 		5-09707-031-1 02 1 1205- ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1205- ●
14 CLIP; BAND,HARNESS
(F) L=150 		8-97355-273-0 02 1 1205- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0906-1204 ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1205- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0906- ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 14 1 0906-1205 ●
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 14 1 1206- ●
14 CLIP; BAND,HARNESS
(D) L=140 		5-09707-031-1 01 1 0906-1109 ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 30 1 0906-1204 ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 30 1 1205-1205 ● ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 30 1 1205- ● ●
16 CLIP; HARNESS
(N) ID=28 L=32 		1-09701-107-1 02 1 1205- ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1205- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 1205- ●
16 CLIP; HARNESS
(P) ID=10 & 10 		1-09709-277-1 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1205- ●
16 CLIP; HARNESS
(Q) ID=5-12 L=14.5 		1-09987-221-0 01 1 1205- ●
16 CLIP; HARNESS
(R) ID=19 H=21 L=24 		5-09700-360-0 01 1 1205- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (S) ID=35 H=45 L=33 		1-09701-047-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (T) ID=31 H=30 L=35 		1-09700-994-0 01 1 1205- ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(J) ID=11 L=16 		0-95235-025-0 02 1 1205- ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 1205- ● ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1205- ●
16 CLIP; HARNESS
(L) ID=26 L=26 		1-09701-236-0 01 1 0906- ●
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 01 1 0906- ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6 		1-09709-178-0 01 1 1205- ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0906- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0906- ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-1204 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1205- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-1204 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1205- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1205- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-1204 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1205- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0906-1204 ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 1205- ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 09 1 0906- ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (N) ID=11 L=41 		1-09700-403-0 06 1 1206- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (M) ID=14 L=44 		9-09917-427-0 08 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (M) ID=14 L=44 		9-09917-427-0 12 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 15 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 04 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (M) ID=14 L=44 		9-09917-427-0 13 1 1205- ●
48 CLIP; FRAME HARNESS
(N) ID=11 L=41 		1-09700-403-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0906-0908 ●
48 CLIP; FRAME HARNESS
(L) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0906- ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1205- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 1205- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 1205- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 1205- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906-1204 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1205- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1205- ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0906- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-1201 ●
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 1202-1204 ●
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 1205- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 11 1 0906- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0906-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
102 CLIP; BAND
L=350 		1-09707-183-0 02 1 1205- ●
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0906- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1205- ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0906- ●
178 GROMMET; HARNESS
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906-1204 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1205- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0906-1204 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1205- ● ●
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1205- ●
194 CLIP; BAND
WHEEL BASE 3700MM(37W) L=250 		5-09707-030-1 01 1 0906- ●
194 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) L=250 		5-09707-030-1 02 1 0906- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0906-1204 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 1205- ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0906-1204 ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1205- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101-1204 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1205- ● ●
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 0906-1204 ●
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 1205- ● ●
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 0906-1204 ●
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 1205- ● ●
305 CLIP; ENG HARNESS
(M) L=300 		1-09707-001-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(N) L=140 		5-09707-031-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(N) L=140 		5-09707-031-1 02 1 1205- ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (O) L=250 		5-09707-030-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(O) L=250 		5-09707-030-1 01 1 1205- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906- ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906- ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0906- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906- ●
503 CONNECTOR
(A) 		1-82691-191-0 01 1 0906-1204 ●
503 CONNECTOR
(A) 		1-82691-191-0 01 1 1205- ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 1205- ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0906- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0906-1204 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1205-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0906-1204 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1205-1305 ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0906-1204 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 0906-1204 ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1205- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1205- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906-1204 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1205- ● ●

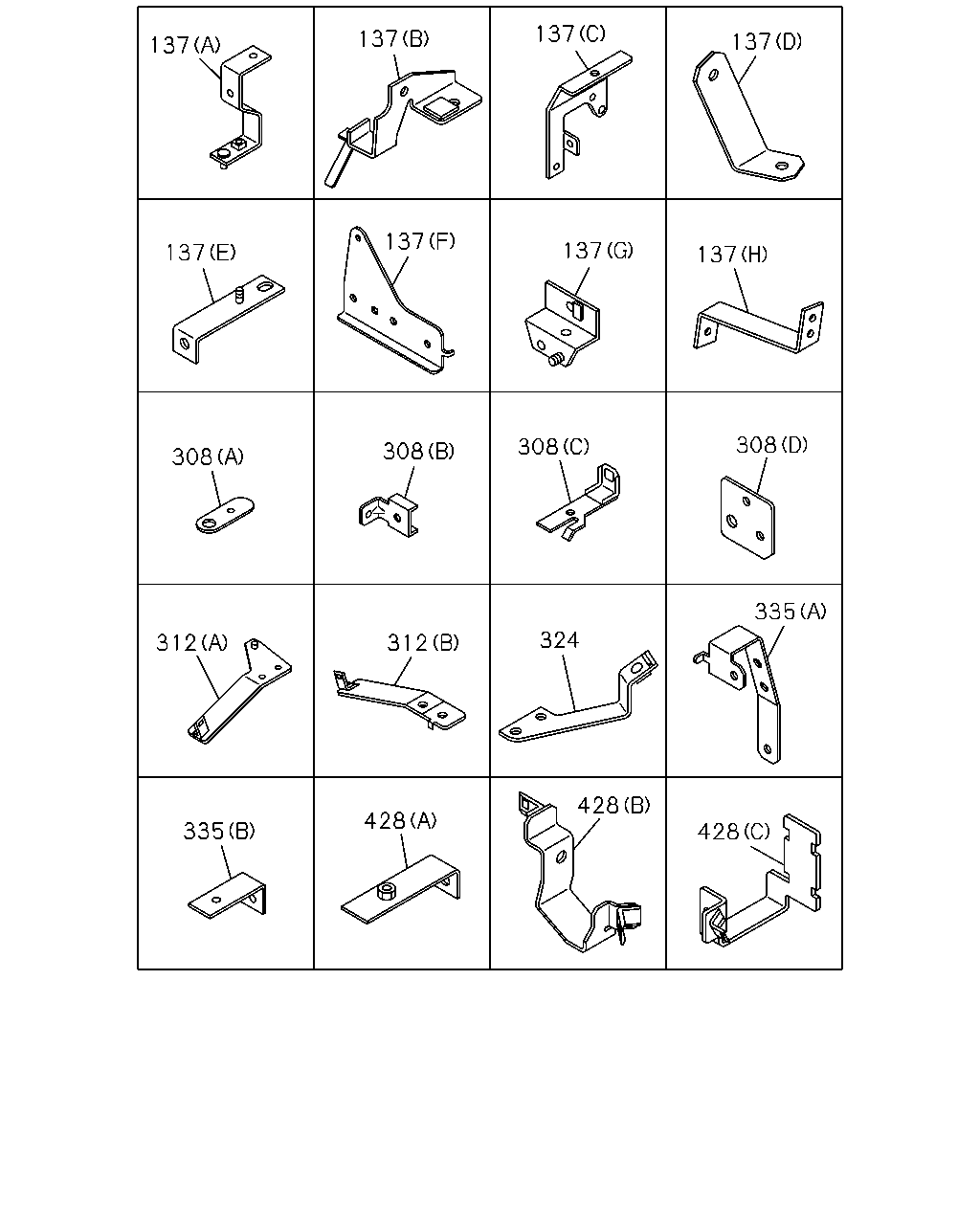

çizim 283379
137 137 137 137 137 137 137 137 308 308 308 308 312 312 324 335 335 428 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(F) 		8-97624-016-0 01 1 1205- ●
137 BRACKET; HARNESS CLAMP
(G) 		8-98058-354-1 01 1 1205- ●
137 BRACKET; HARNESS CLAMP
(H) 		8-98170-409-0 01 1 1205- ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 0906- ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 0906- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0906-1204 ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 1205- ● ●
137 BRACKET; HARNESS CLAMP
6HK1-TCN ENG(82L) (B) 		8-98047-324-0 01 1 0906- ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0906-1204 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 1205- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0906-1010 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0906- ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0906- ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0906- ●
312 BRACKET; CLIP HARNESS
(A) 		8-98143-865-0 01 1 1205- ●
312 BRACKET; CLIP HARNESS
(B) 		8-98094-804-0 01 1 1205- ●
324 BRACKET; CLIP 8-98148-821-0 01 1 1205- ●
324 BRACKET; CLIP 8-98051-649-1 01 1 0906- ●
324 BRACKET; CLIP 8-98051-648-1 01 1 0906-1204 ●
324 BRACKET; CLIP 8-98051-648-1 01 1 1205- ● ●
335 BRACKET; CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4900MM(49W) (A) 		8-97619-097-1 01 1 0906-1204 ●
335 BRACKET; CONNECTOR
(A) 		8-97619-097-1 01 1 1205- ● ●
335 BRACKET; CONNECTOR
DIFF LOCK<C3N> (B) L=55 		1-47475-304-0 01 1 1206- ●
428 BRACKET
(C) 		8-98116-461-0 01 1 1205- ●
428 BRACKET
(A) 		1-47475-519-0 01 1 0906- ●
428 BRACKET
(B) 		8-98090-952-0 01 1 0906- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
