Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#18457) — 461 parça

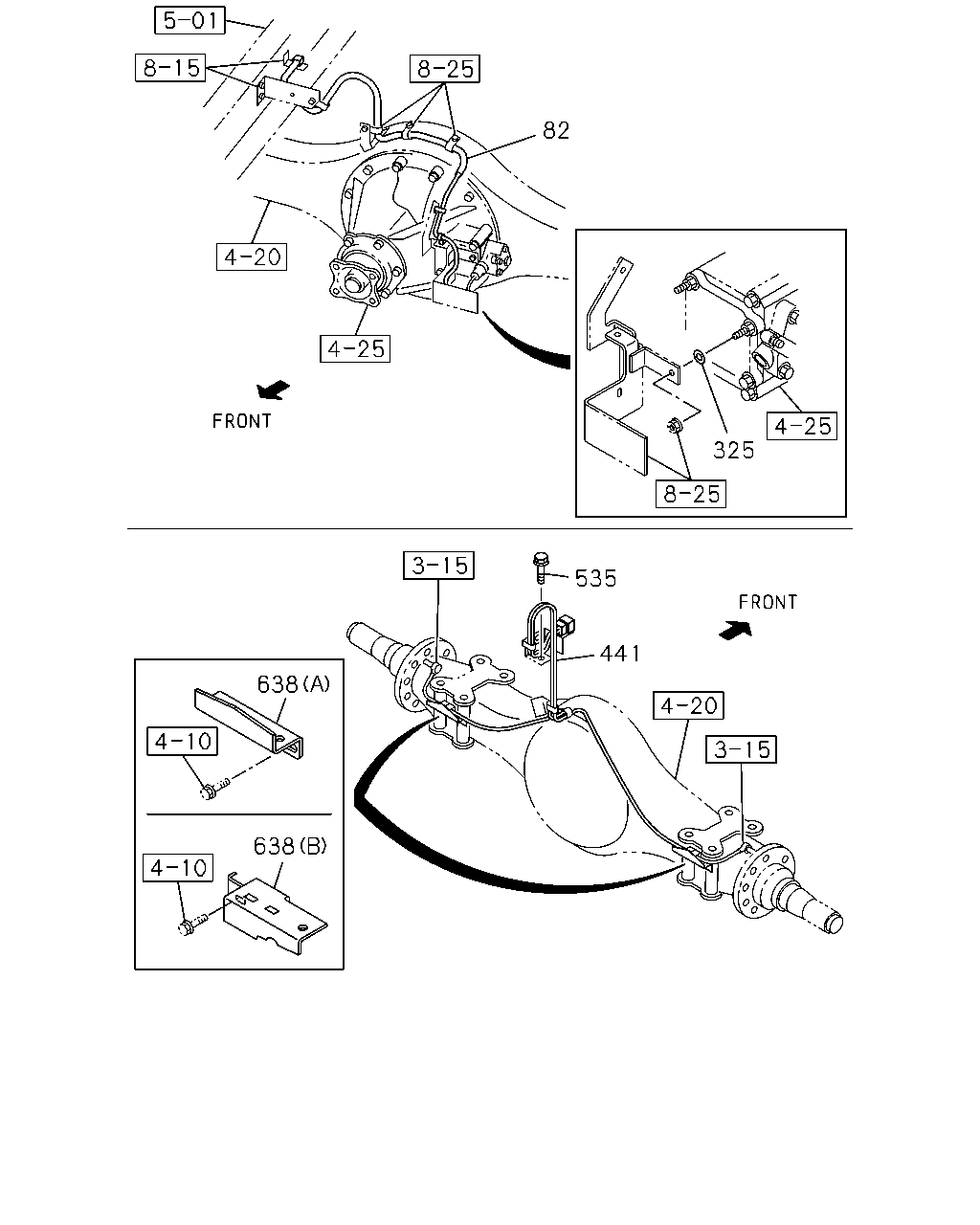

82 325 535 441 638 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	HARNESS; DIFF LOCK DIFF LOCK<C3N>	8-98215-660-0	01	1	1206-	●
325	WASHER; PL,BRKT DIFF LOCK<C3N> ID=6.4	0-91614-506-0	03	1	1206-	●
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	0906-1204		●
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1205-	●	●
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	0906-1204		●
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	1205-	●	●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1205-	●
638	BRACKET; SPD SENSOR (B)	8-98012-540-0	01	1	0906-		●
638	BRACKET; SPD SENSOR (B)	8-98012-539-0	01	1	0906-		●

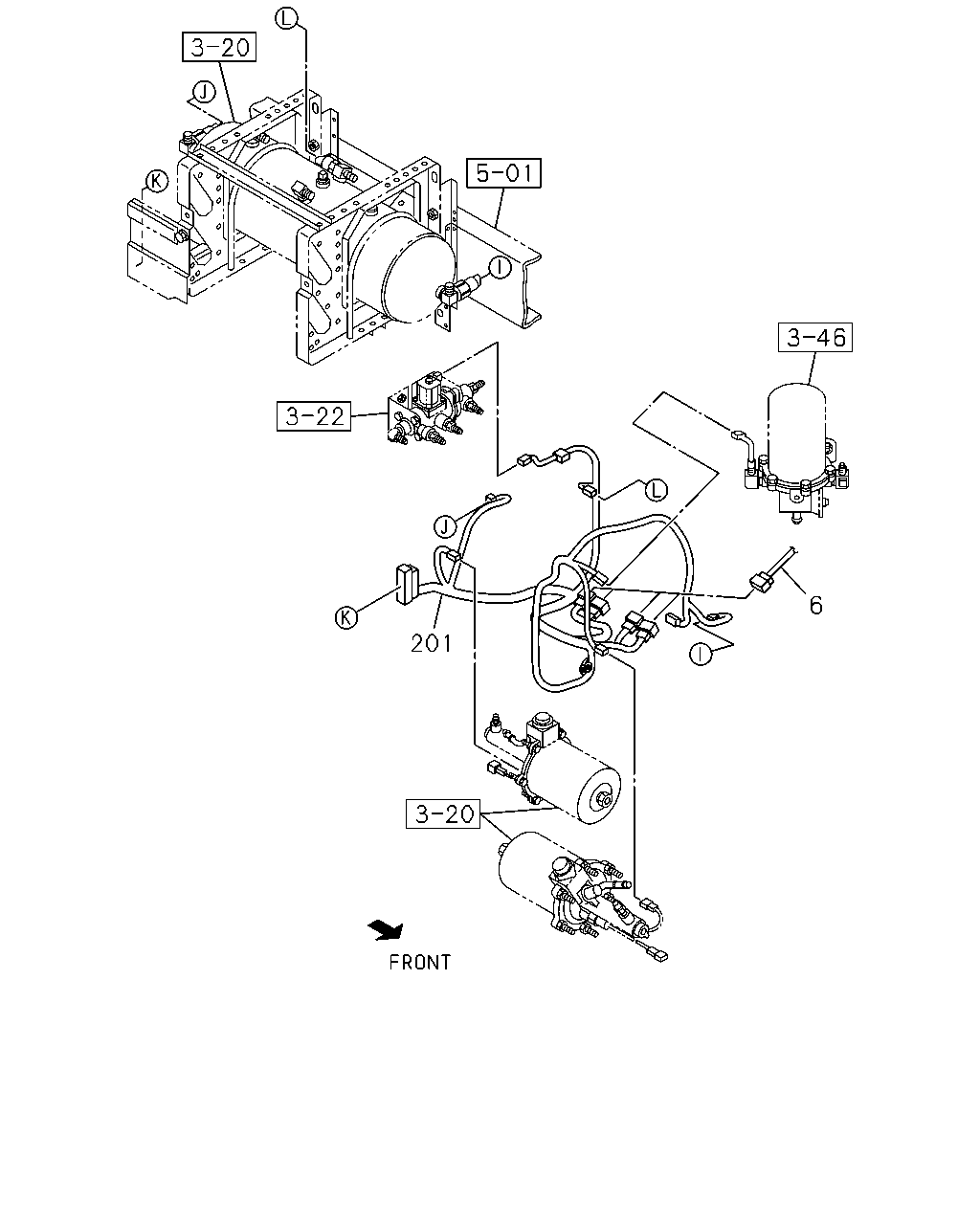

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1205-	●
201	HARNESS; AIR TANK	8-98090-507-1	01	1	0906-1001		●
201	HARNESS; AIR TANK	8-98156-705-2	01	1	1002-1204		●
201	HARNESS; AIR TANK	8-98156-705-2	01	1	1205-		●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1205-	●

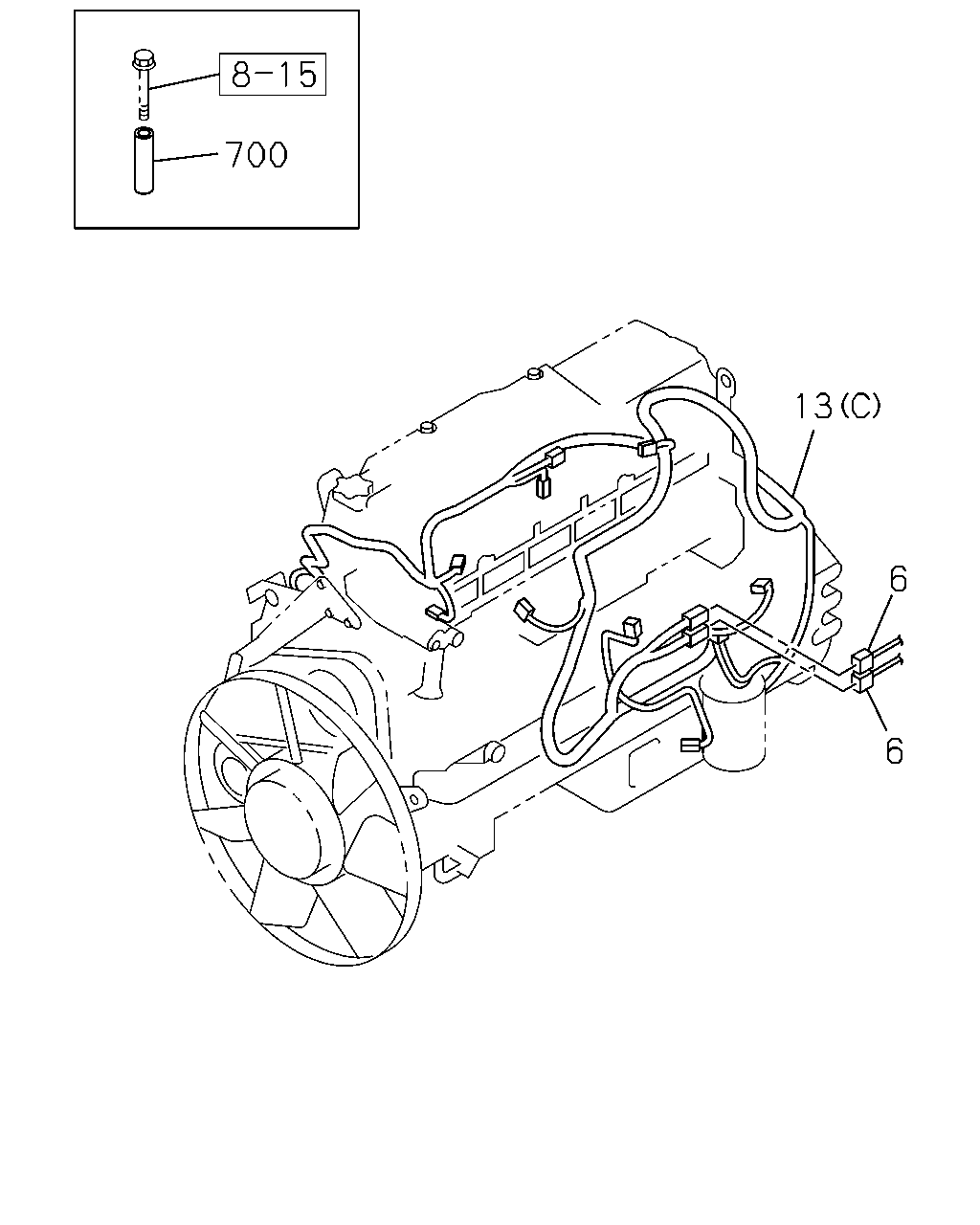

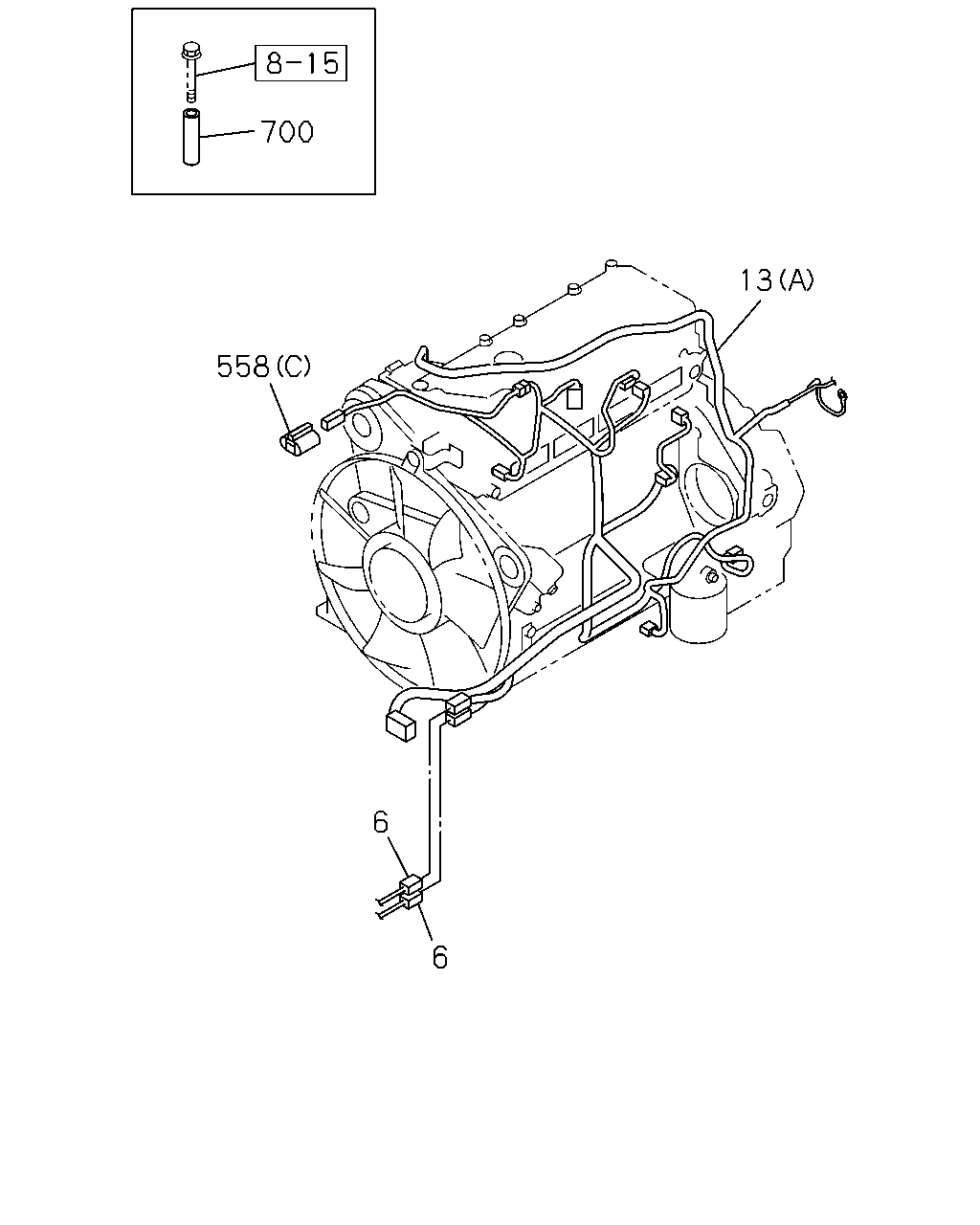

700 13 558 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98171-162-1	01	1	1205-1405	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-044-0	01	1	1406-	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1205-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-161-1	01	1	1205-1405	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-043-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98088-064-1	01	1	0906-1010		●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-204-0	01	1	1011-		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) (C)	8-98088-065-1	01	1	0906-1010		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) (C)	8-98177-205-0	01	1	1011-		●
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1205-	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98108-678-0	01	1	0908-1204		●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98108-678-0	01	1	1205-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98108-679-0	01	1	0908-1204		●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98108-679-0	01	1	1205-	●	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1205-	●

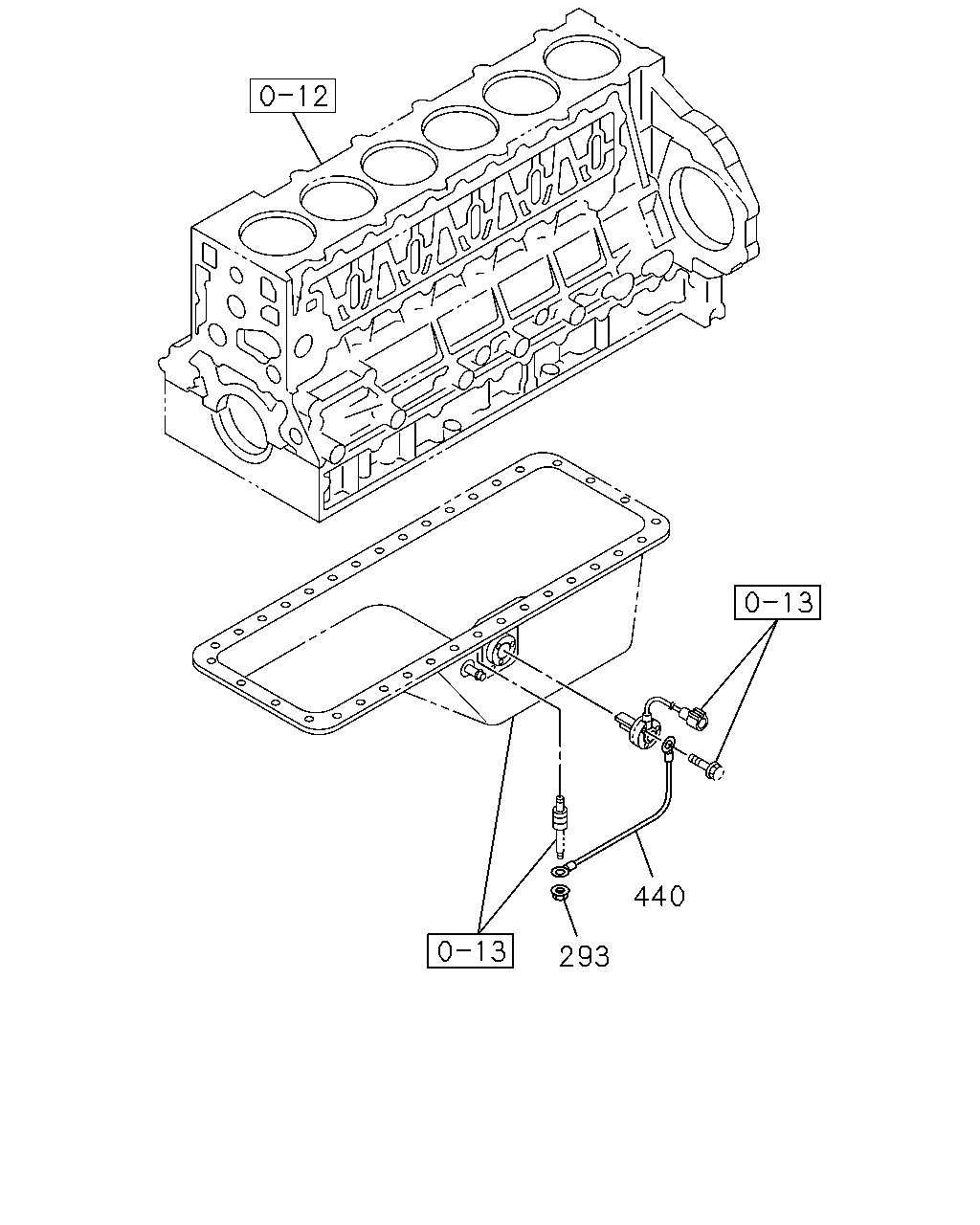

440 293

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	293	NUT M8 FLANGE	0-91180-108-0	01	1	0906-		●
	440	CABLE; EARTH	8-97606-639-0	01	1	0906-		●

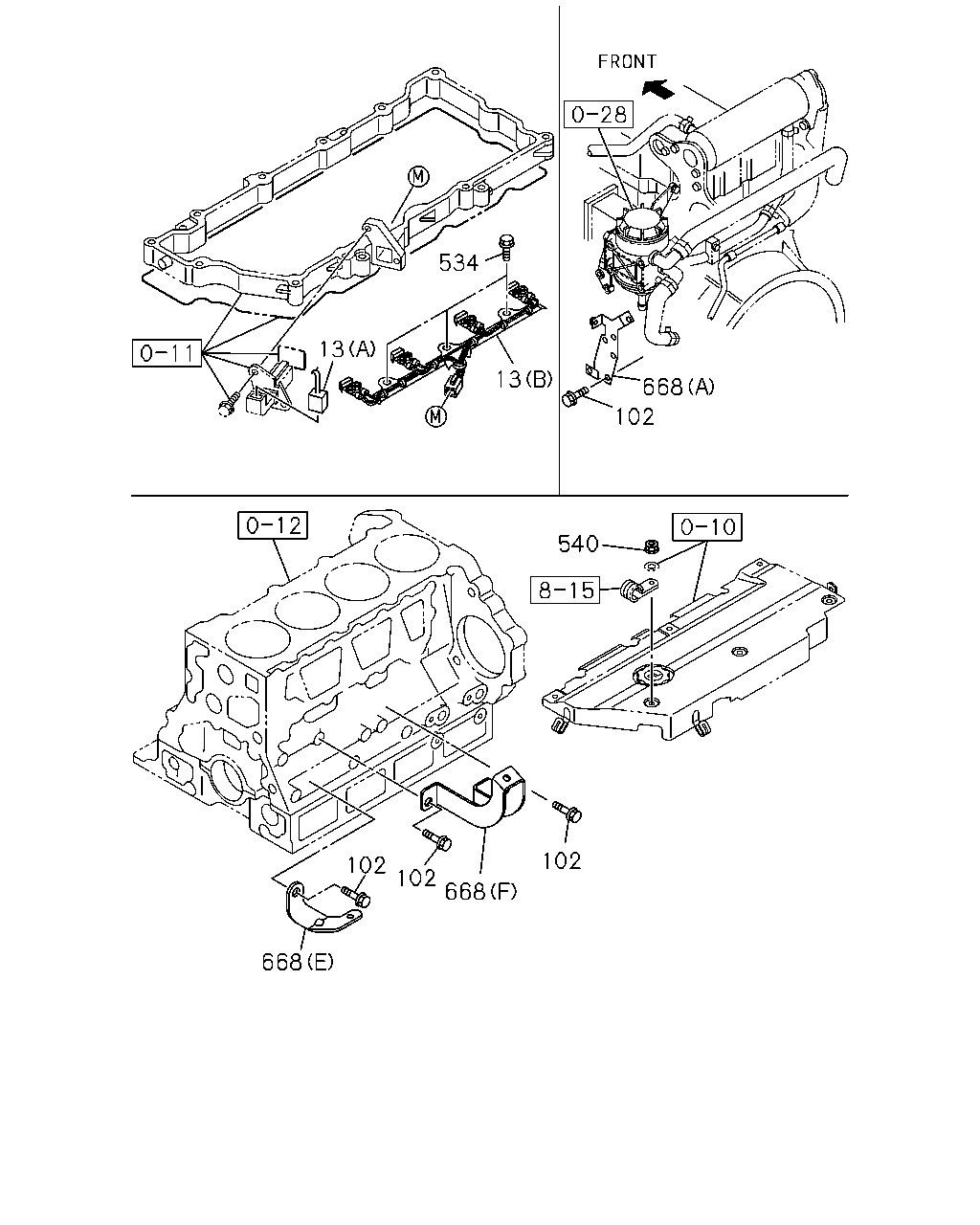

13 13 668 102 540 102 102 102 668 668 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98171-162-1	01	1	1205-1405	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-044-0	01	1	1406-	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1205-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-161-1	01	1	1205-1405	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-043-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98088-064-1	01	1	0906-1010		●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-204-0	01	1	1011-		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) (C)	8-98088-065-1	01	1	0906-1010		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) (C)	8-98177-205-0	01	1	1011-		●
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1205-	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1205-	●
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	1205-	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	1205-	●
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1205-1408	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1205-	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1205-	●
668	BRACKET; HARNESS (B)	8-98061-780-0	01	1	1205-	●
668	BRACKET; HARNESS (D)	8-98097-674-0	01	1	1205-	●
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0906-1204		●
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	1205-	●	●

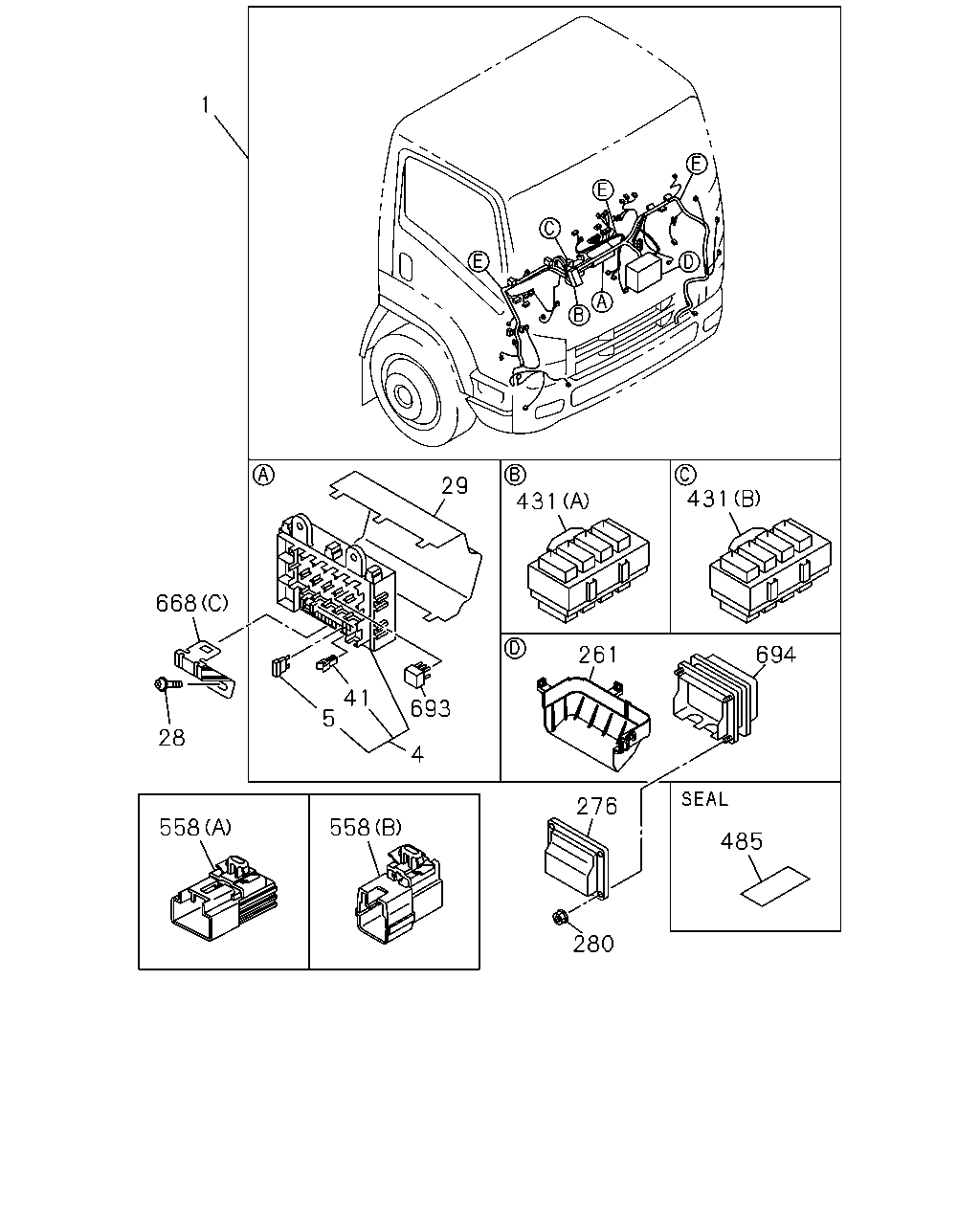

1 431 431 29 668 261 694 41 5 693 28 4 276 558 558 485 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-940-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98187-940-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-940-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF>	8-98187-941-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98187-941-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-941-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98205-643-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98223-830-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98205-639-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98223-828-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-642-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-644-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-831-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-638-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-640-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-829-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98084-009-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-009-4	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98084-008-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-008-4	01	1	1110-1203		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-1204		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1205-	●	●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> 25A WHITE	8-98062-982-0	AR	1	1205-		●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25A WHITE	8-98062-982-0	AR	1	1205-	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0906-1204		●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1205-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0906-1204		●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1205-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0906-1204		●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1205-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	0906-1204		●
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 25A WHITE	8-98062-982-0	01	1	1205-		●
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	01	1	1006-1204		●
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	01	1	1205-	●	●
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0906-1005		●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1006-1204		●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1205-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	0906-1204		●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1205-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	0906-1204		●
41	PULLER; FUSE	8-98054-260-0	01	1	1205-	●	●
261	COVER; CONNECTOR BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98065-986-1	01	1	1205-		●
261	COVER; CONNECTOR BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-986-1	01	1	1205-	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0906-1204		●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1205-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0906-1204		●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1205-	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-1204		●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1205-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-1204		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-1204		●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1205-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	03	1	0906-1204		●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	03	1	1205-		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1205-		●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1205-		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1205-		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1205-		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1205-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1205-	●	●
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-1204		●
485	SEAL; CONNECTOR EXC. VIN MODEL YEAR 2012<VZC> 180X40	1-72498-019-1	01	1	1205-		●
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1205-	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98108-678-0	01	1	0908-1204		●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98108-678-0	01	1	1205-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98108-679-0	01	1	0908-1204		●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98108-679-0	01	1	1205-	●	●
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1205-1408	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1205-	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1205-	●
668	BRACKET; HARNESS (B)	8-98061-780-0	01	1	1205-	●
668	BRACKET; HARNESS (D)	8-98097-674-0	01	1	1205-	●
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0906-1204		●
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	1205-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-1204		●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1205-	●	●
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98057-771-0	01	1	1205-		●
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98057-771-0	01	1	1205-	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0906-1204		●
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC>	8-98063-269-1	01	1	1205-		●

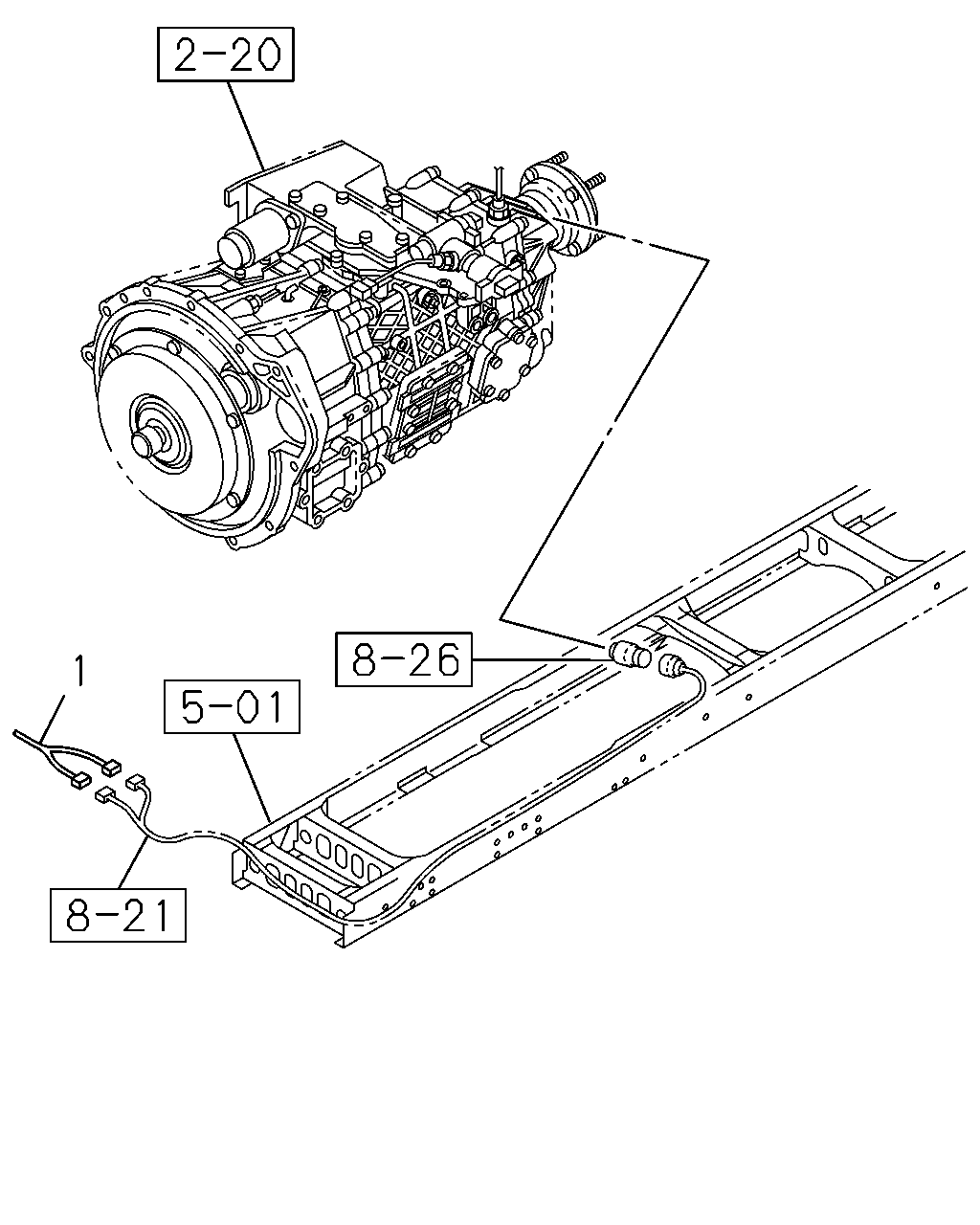

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-940-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98187-940-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-940-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF>	8-98187-941-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98187-941-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-941-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98205-643-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98223-830-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98205-639-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98223-828-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-642-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-644-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-831-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-638-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-640-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-829-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98084-009-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-009-4	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98084-008-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-008-4	01	1	1110-1203		●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (A) BLACK 10P	1-82699-703-0	AR	1	1205-		●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK 10P	1-82699-703-0	AR	1	1205-	●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1205-		●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1205-	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0906-1204		●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (A) BLACK 10P	1-82699-703-0	01	1	1205-		●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0906-1204		●
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1205-		●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0906-1204		●
314	RESISTOR; HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> BLUE	1-82691-204-0	01	1	1205-		●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1205-	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-1204		●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1205-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-1204		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-1204		●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1205-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	03	1	0906-1204		●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	03	1	1205-		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1205-		●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1205-		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1205-		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1205-		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1205-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1205-	●	●

1 1 1 570 186 6 483 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-940-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98187-940-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-940-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF>	8-98187-941-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98187-941-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-941-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98205-643-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98223-830-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98205-639-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98223-828-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-642-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-644-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-831-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-638-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-640-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-829-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98084-009-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-009-4	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98084-008-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-008-4	01	1	1110-1203		●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●

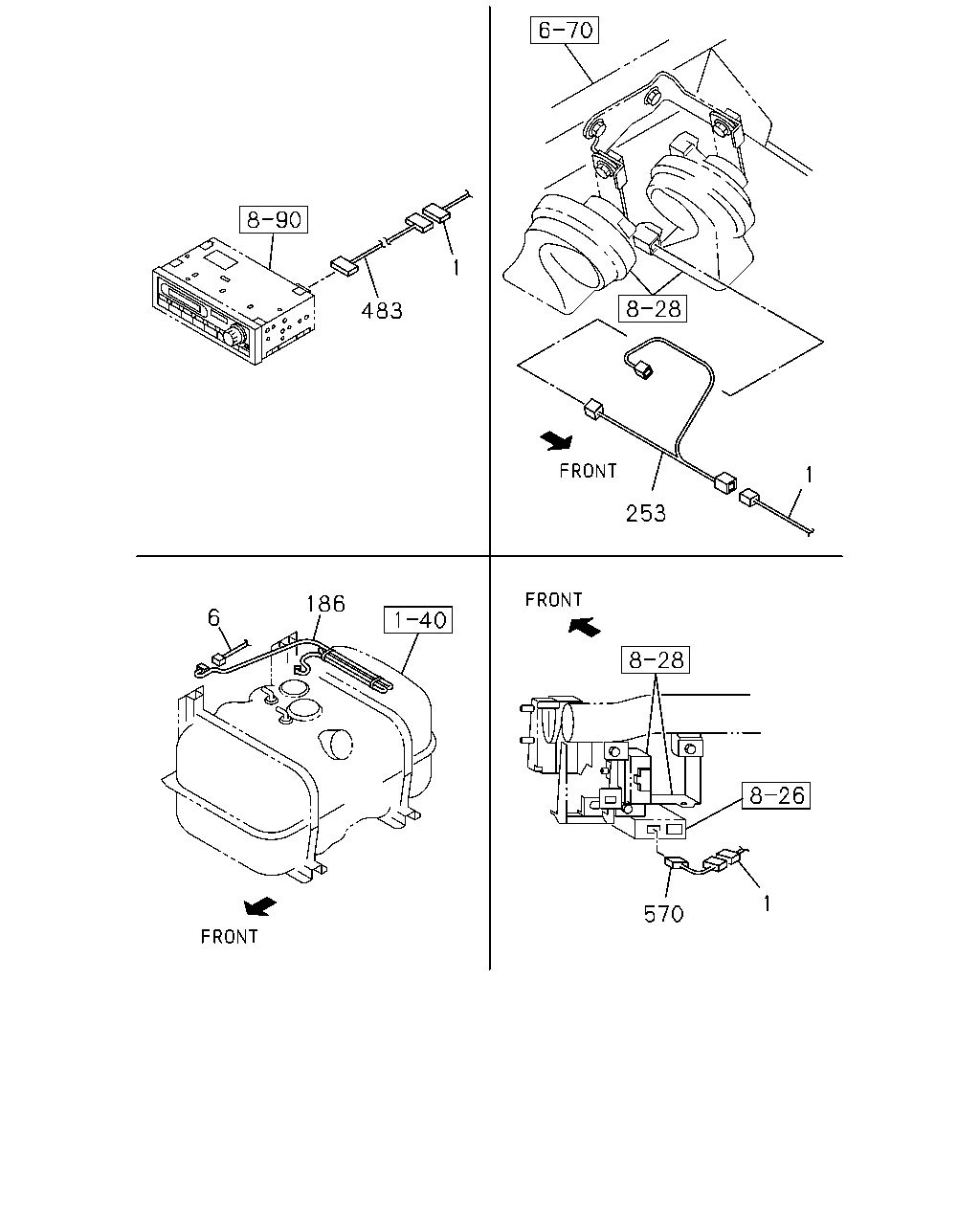

186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	0906-1204		●
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	1205-	●	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0906-1204		●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1205-	●	●
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	0906-1204		●
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	1205-	●	●
570	HARNESS; SPEED SENSOR	8-98058-327-1	01	1	0906-1109		●
570	HARNESS; SPEED SENSOR TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> EXC. KD PREPARATORY PACK<6HF>	8-98058-327-1	01	1	1110-1204		●
570	HARNESS; SPEED SENSOR TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. KD PREPARATORY PACK<6HF>	8-98058-327-1	01	1	1205-		●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98058-327-1	01	1	1205-	●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF>	8-98058-327-1	01	1	1205-	●
570	HARNESS; SPEED SENSOR TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98091-562-0	01	1	1205-		●
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98091-562-0	01	1	1205-	●

180 533 486 663 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-940-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98187-940-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-940-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF>	8-98187-941-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98187-941-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-941-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98205-643-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98223-830-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98205-639-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98223-828-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-642-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-644-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-831-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-638-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-640-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-829-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98084-009-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-009-4	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98084-008-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-008-4	01	1	1110-1203		●
180	HARNESS; CABLE WHEEL BASE 3700MM(37W)	8-97620-962-0	01	1	0906-1010		●
180	HARNESS; CABLE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98173-177-0	01	1	1011-		●
180	HARNESS; CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W)	8-97620-958-0	01	1	0906-		●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	0906-1204		●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1205-	●	●
533	CLIP L=180	1-09707-162-1	01	1	0906-1206		●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	1207-		●
663	HARNESS; EXTENSION,RR WHEEL PARKING	8-98126-779-2	01	1	1205-	●

700 6 6 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98171-162-1	01	1	1205-1405	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-044-0	01	1	1406-	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1205-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-161-1	01	1	1205-1405	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-043-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98088-064-1	01	1	0906-1010		●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-204-0	01	1	1011-		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) (C)	8-98088-065-1	01	1	0906-1010		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) (C)	8-98177-205-0	01	1	1011-		●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1205-	●

6 10 174 27 184 453 431 431 388 431 431 431 720 184 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●

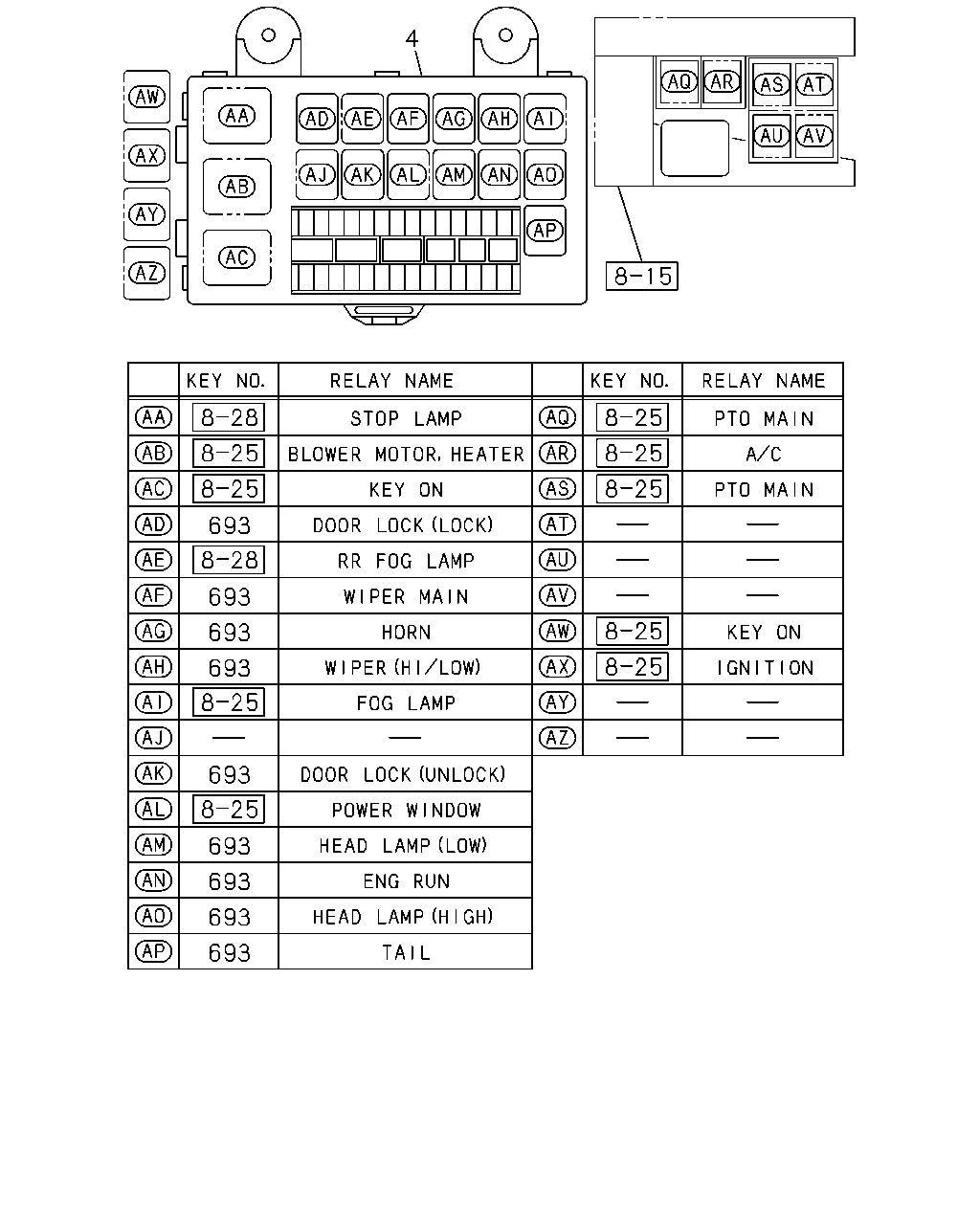

10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0906-1204		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1205-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0906-1204		●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1205-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	0906-1204		●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1205-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1205-	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-1204		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1205-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	0906-1204		●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) 30A PINK	8-98079-191-0	01	1	1205-		●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	0906-1204		●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1205-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0906-1204		●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1205-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0906-1106		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1107-1204		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1205-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0906-1204		●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1205-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	0906-1204		●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1205-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0906-1204		●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1205-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0906-1204		●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1205-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1205-	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-1204		●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1205-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-1204		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-1204		●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1205-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1205-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	03	1	0906-1204		●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	03	1	1205-		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1205-		●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1205-		●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1205-		●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1204		●
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1205-		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1205-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1204		●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1205-	●	●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	01	1	0906-1204		●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	01	1	1205-	●	●
453	PROTECTOR; HARNESS (B)	8-98042-155-0	01	1	0906-		●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0906-1204		●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1205-	●	●

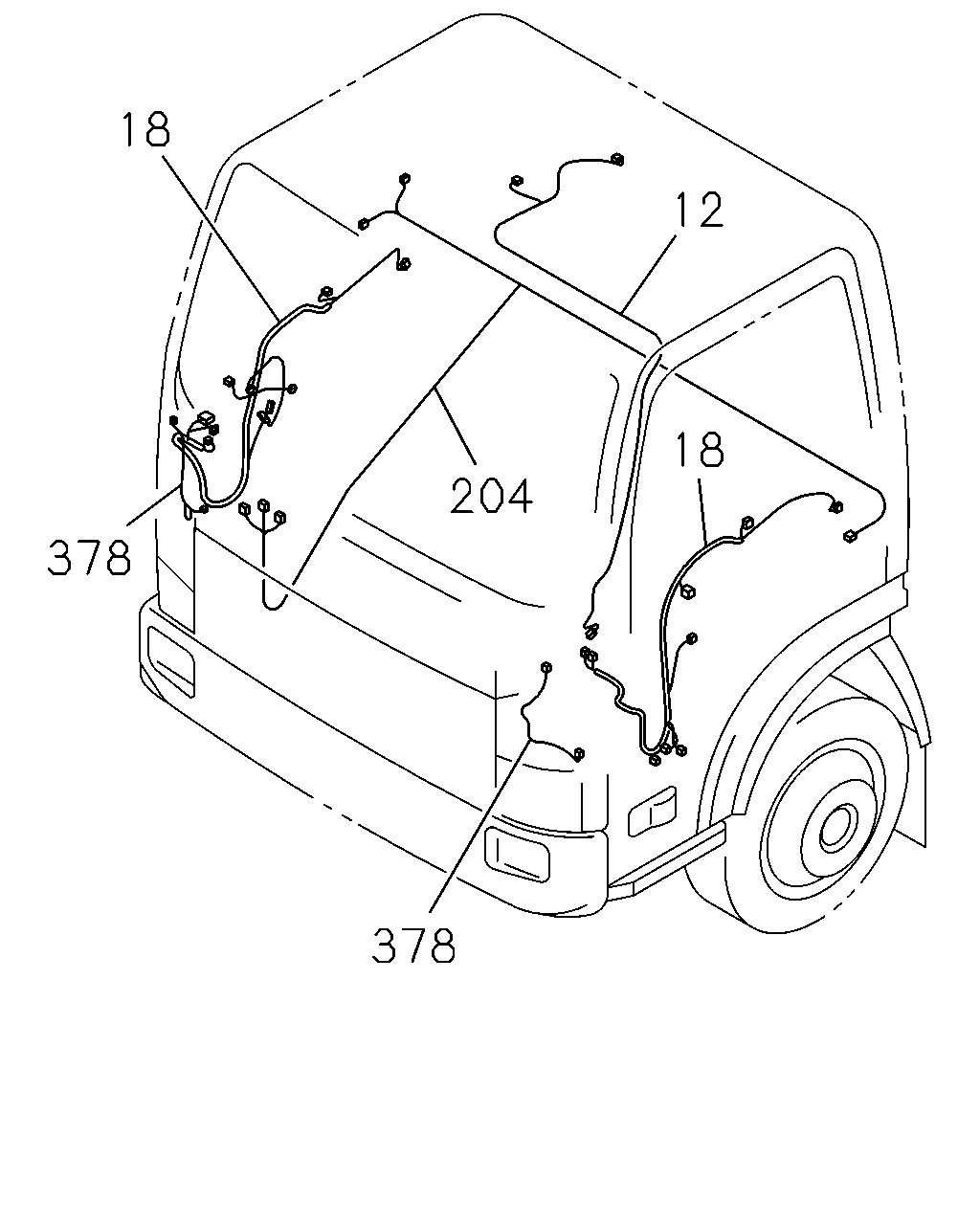

12 18 378 378 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-073-2	01	1	0906-1204		●
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-073-2	01	1	1205-	●	●
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-249-1	01	1	0906-1204		●
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-249-1	01	1	1205-	●	●
18	HARNESS; DOOR	8-98080-127-3	01	1	0906-1204		●
18	HARNESS; DOOR	8-98080-127-3	01	1	1205-	●	●
18	HARNESS; DOOR	8-98080-128-3	01	1	0906-1204		●
18	HARNESS; DOOR	8-98080-128-3	01	1	1205-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-225-1	01	1	1205-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-219-1	01	1	1205-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-227-1	01	1	1205-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-222-1	01	1	1205-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5)	8-98084-223-2	01	1	0906-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98084-220-1	01	1	0906-		●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4)	8-98125-653-0	02	1	0906-1204		●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. ISRAEL COUNTRY(CV4)	8-98125-653-0	02	1	1205-	●	●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. ISRAEL COUNTRY(CV4)	8-98125-654-0	02	1	0906-1204		●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. ISRAEL COUNTRY(CV4)	8-98125-654-0	02	1	1205-	●	●

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-1204		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1205-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-1204		●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1205-	●	●

6 9 9 453 537

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) EXC. DIFF LOCK<C3N>	8-98215-657-0	01	1	1206-	●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) EXC. DIFF LOCK<C3N>	8-98215-659-0	01	1	1206-	●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) DIFF LOCK<C3N>	8-98206-563-1	01	1	1205-	●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) EXC. DIFF LOCK<C3N>	8-98168-612-0	01	1	1205-	●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98206-566-0	01	1	1205-1205	●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) DIFF LOCK<C3N>	8-98206-566-1	01	1	1206-	●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) DIFF LOCK<C3N>	8-98206-569-1	01	1	1205-	●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) EXC. DIFF LOCK<C3N>	8-98168-615-0	01	1	1205-	●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W)	8-98206-570-0	01	1	1205-1205	●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W) DIFF LOCK<C3N>	8-98206-570-1	01	1	1206-	●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98114-795-3	01	1	0906-1007		●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-616-0	01	1	1008-		●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98114-796-3	01	1	0906-1007		●
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-617-0	01	1	1008-		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98114-797-4	01	1	0906-1007		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98168-618-0	01	1	1008-		●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	01	1	0906-1204		●
453	PROTECTOR; HARNESS (A)	1-82699-709-0	01	1	1205-	●	●
453	PROTECTOR; HARNESS (B)	8-98042-155-0	01	1	0906-		●
537	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0906-		●

102 668 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1205-	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1205-	●
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1205-1408	●
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-	●
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1205-	●
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1205-	●
668	BRACKET; HARNESS (B)	8-98061-780-0	01	1	1205-	●
668	BRACKET; HARNESS (D)	8-98097-674-0	01	1	1205-	●
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0906-1204		●
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	1205-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-940-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98187-940-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-940-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF>	8-98187-941-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98187-941-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-941-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98205-643-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98223-830-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98205-639-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98223-828-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-642-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-644-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-831-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-638-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-640-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-829-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98084-009-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-009-4	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98084-008-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-008-4	01	1	1110-1203		●

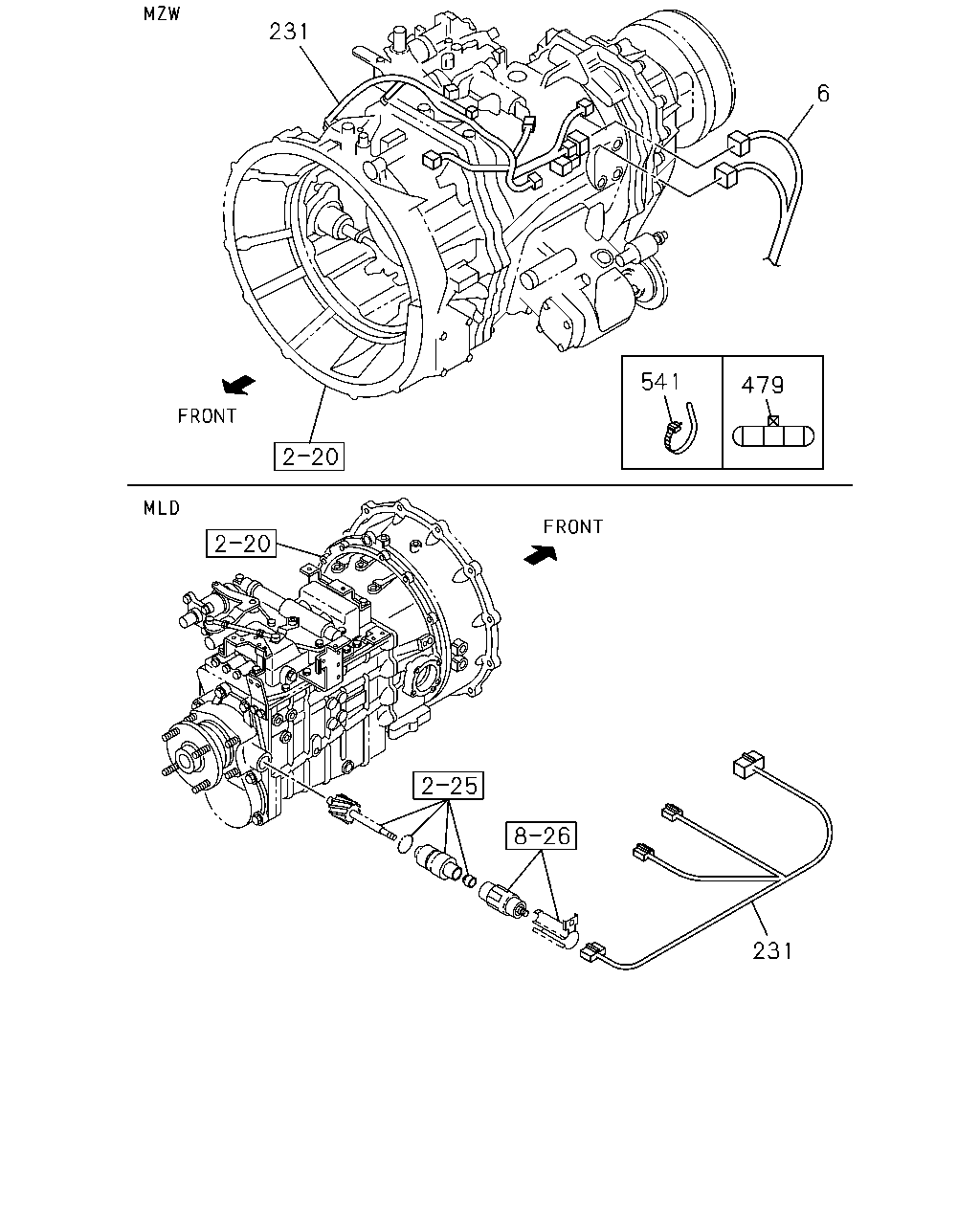

231 6 231 479 541

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-560-5	01	1	1205-	●
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-561-4	01	1	1205-	●
6	HARNESS; FRAME	8-98139-629-3	01	1	0906-1204		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98139-629-3	01	1	1205-		●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	1205-	●
231	HARNESS; TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98151-320-1	01	1	1205-	●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C)	8-97626-769-1	01	1	0906-		●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-97618-932-1	01	1	0906-0908		●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98151-321-1	01	1	0909-		●
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>	1-82690-667-0	01	1	0909-1204		●
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>	1-82690-667-0	01	1	1205-1205		●
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82690-667-0	01	1	1205-1205	●
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	1-82690-667-0	01	1	1205-		●
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82690-667-0	01	1	1205-	●
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> L=180	1-09707-162-1	01	1	0909-1204		●
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> L=180	1-09707-162-1	01	1	1205-1205		●
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180	1-09707-162-1	01	1	1205-1205	●
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> L=180	1-09707-162-1	01	1	1205-		●
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH ECC REGULATIONSKIENZLE<UC9>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180	1-09707-162-1	01	1	1205-	●

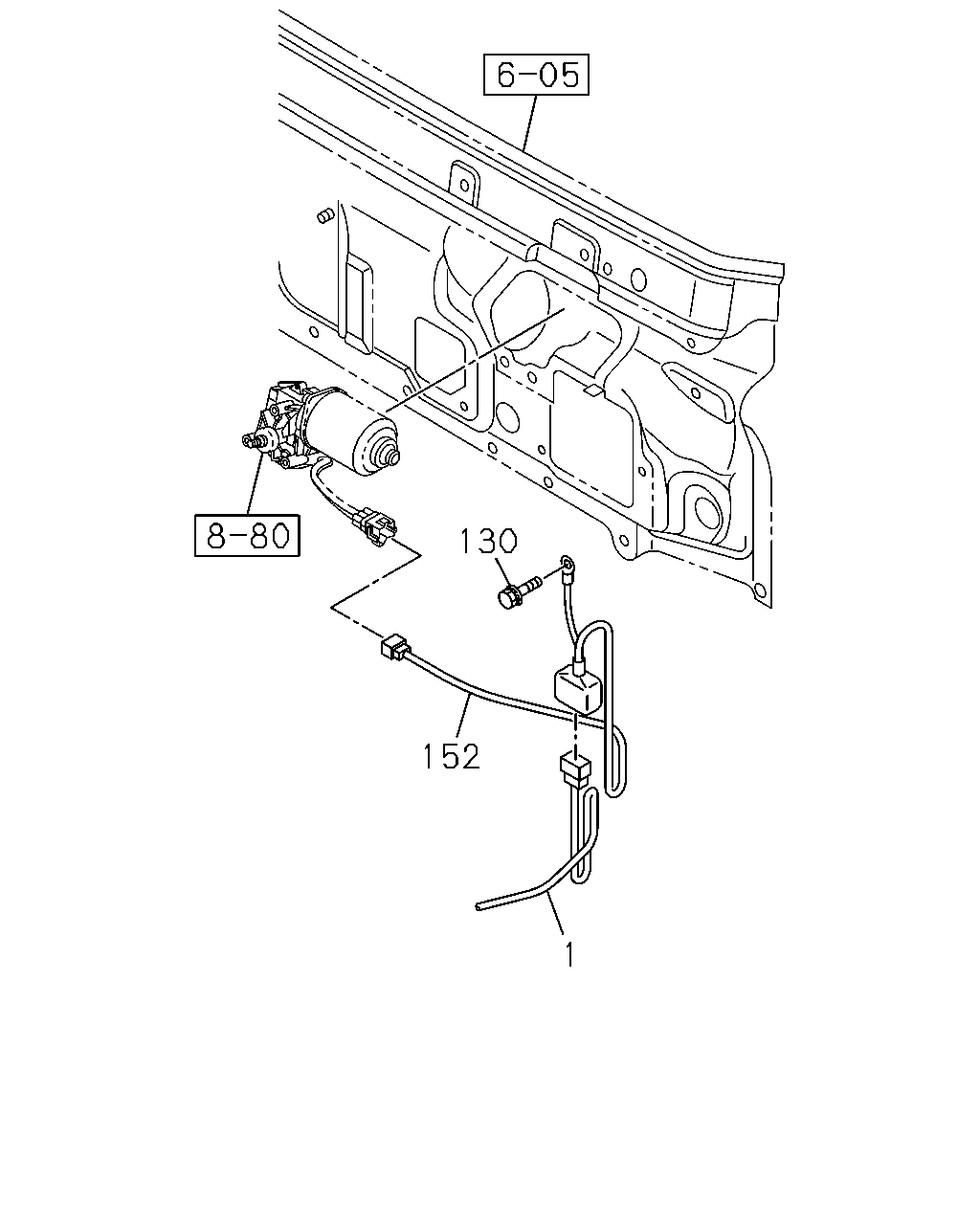

130 152 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-940-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98187-940-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-940-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF>	8-98187-941-0	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98187-941-0	01	1	1204-1204		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-941-0	01	1	1205-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98205-643-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC>	8-98223-830-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98205-639-1	01	1	1205-1305		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC>	8-98223-828-1	01	1	1306-		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-642-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-644-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-831-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-638-2	01	1	1205-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-640-1	01	1	1205-1210	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-829-1	01	1	1211-	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5)	8-98084-009-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-009-4	01	1	1110-1203		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98084-008-4	01	1	0906-1109		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-008-4	01	1	1110-1203		●
130	BOLT; HARNESS EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0906-1204		●
130	BOLT; HARNESS EARTH EXC. VIN MODEL YEAR 2012<VZC> M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	1205-1309		●
130	BOLT; HARNESS EARTH EXC. VIN MODEL YEAR 2012<VZC> M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-		●
152	HARNESS; WIPER	8-98148-961-0	01	1	0906-1204		●
152	HARNESS; WIPER EXC. VIN MODEL YEAR 2012<VZC>	8-98148-961-0	01	1	1205-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
