◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#18455) — 68 parça

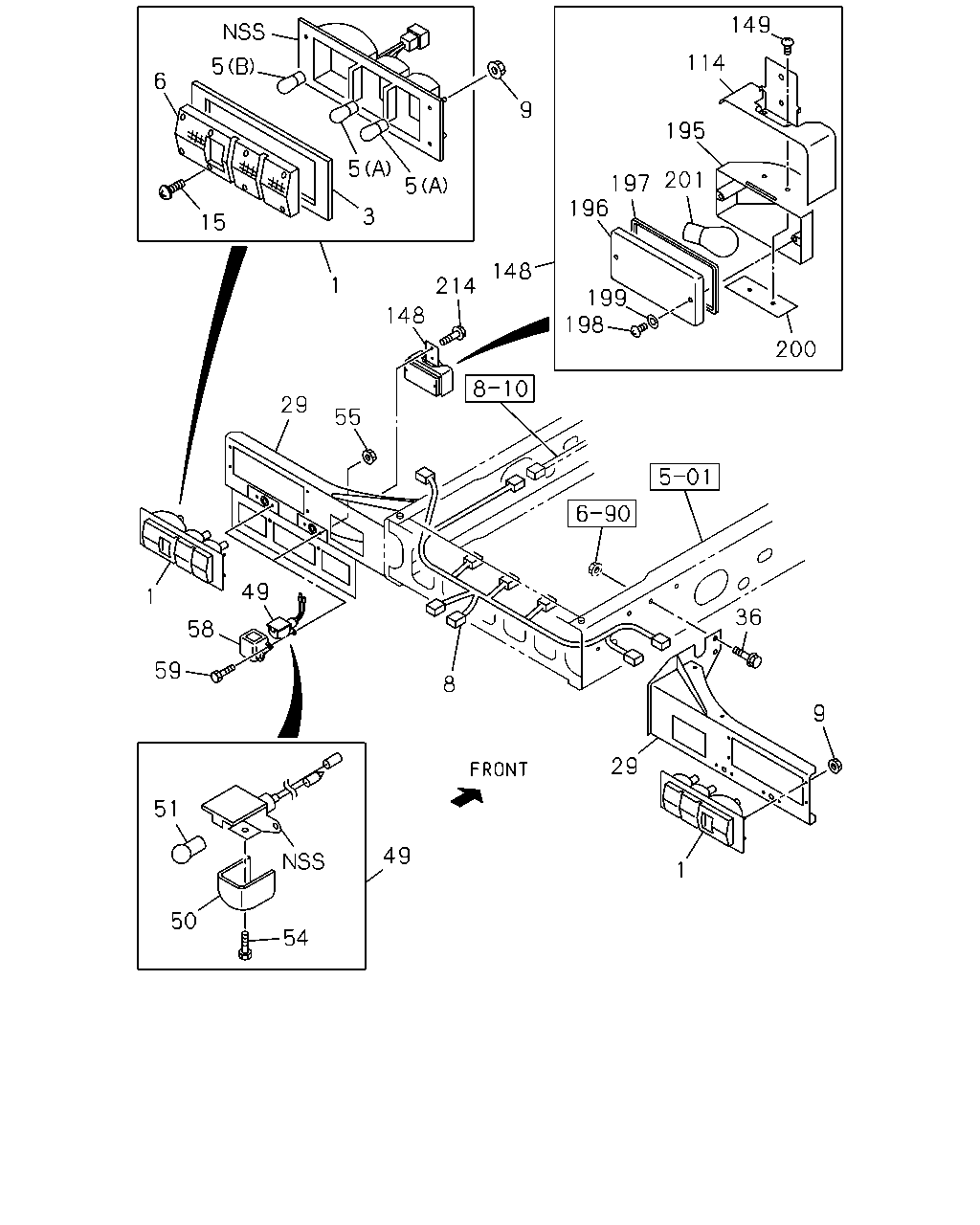

çizim 15151
149 114 5 6 9 195 5 201 197 196 5 3 15 148 1 214 199 198 148 200 29 55 49 1 36 58 59 8 9 29 51 49 1 50 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-98020-846-2 01 1 0906-1204 ●
1 LAMP ASM; RR COMB 8-98020-846-2 01 1 1205-1207 ● ●
1 LAMP ASM; RR COMB 8-98223-616-0 01 1 1208- ● ●
1 LAMP ASM; RR COMB 8-98020-845-2 01 1 0906-1204 ●
1 LAMP ASM; RR COMB 8-98020-845-2 01 1 1205-1207 ● ●
1 LAMP ASM; RR COMB 8-98223-615-0 01 1 1208- ● ●
3 GASKET; RR COMB LAMP 5-82236-002-0 01 1 0906-1204 ●
3 GASKET; RR COMB LAMP 5-82236-002-0 01 1 1205- ● ●
3 GASKET; RR COMB LAMP 5-82236-001-0 01 1 0906-1204 ●
3 GASKET; RR COMB LAMP 5-82236-001-0 01 1 1205- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-98017-972-0 04 1 0906-1204 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-98017-972-0 04 1 1205- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-98017-973-0 02 1 0906-1204 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-98017-973-0 02 1 1205- ● ●
6 LENS; RR COMB LAMP 5-82235-002-0 01 1 0906-1204 ●
6 LENS; RR COMB LAMP 5-82235-002-0 01 1 1205- ● ●
6 LENS; RR COMB LAMP 5-82235-001-0 01 1 0906-1204 ●
6 LENS; RR COMB LAMP 5-82235-001-0 01 1 1205- ● ●
8 HARNESS; RR COMB LAMP 8-98115-347-3 01 1 0906-1201 ●
8 HARNESS; RR COMB LAMP 8-98203-884-0 01 1 1202-1204 ●
8 HARNESS; RR COMB LAMP 8-98203-884-0 01 1 1205- ● ●
9 NUT; LAMP,RR COMB
M5 FLANGE 		1-09984-170-0 08 1 0906-1204 ●
9 NUT; LAMP,RR COMB
M5 FLANGE 		1-09984-170-0 08 1 1205- ● ●
15 SCREW; RR COMB LAMP 8-97017-759-0 16 1 0906-1204 ●
15 SCREW; RR COMB LAMP 8-97017-759-0 16 1 1205- ● ●
29 BRACKET; LAMP,RR COMB 8-98112-146-2 01 1 0906-1204 ●
29 BRACKET; LAMP,RR COMB 8-98112-146-2 01 1 1205- ● ●
29 BRACKET; LAMP,RR COMB 8-98112-148-2 01 1 0906-1204 ●
29 BRACKET; LAMP,RR COMB 8-98112-148-2 01 1 1205- ● ●
36 BOLT; BRKT,RR COMB
M10X30 FLANGE 		0-28651-030-0 04 1 0906-1204 ●
36 BOLT; BRKT,RR COMB
M10X30 FLANGE 		0-28651-030-0 04 1 1205- ● ●
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 0906-1204 ●
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1205-1509 ● ●
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510- ● ●
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 0906-1204 ●
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1205- ● ●
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 0906-1204 ●
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1205- ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 0906-1204 ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1205- ● ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		1-09984-170-0 04 1 0906-1204 ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		1-09984-170-0 04 1 1205- ● ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 0906-1204 ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1205- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 0906-1204 ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 1205- ● ●
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 0906-1204 ●
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1205- ● ●
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 0906-1204 ●
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 1205- ● ●
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 0906-1204 ●
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1205- ● ●
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 0906-1204 ●
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1205- ● ●
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 0906-1204 ●
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1205- ● ●
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 0906-1204 ●
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1205- ● ●
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 0906-1204 ●
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1205- ● ●
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 0906-1204 ●
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1205- ● ●
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 0906-1204 ●
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1205- ● ●
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 0906-1204 ●
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1205- ● ●
214 BOLT; RR FOG LAMP
M6X16 FLANGE 		0-28650-616-0 01 1 0906-1204 ●
214 BOLT; RR FOG LAMP
M6X16 FLANGE 		0-28650-616-0 01 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
