◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11231 - FSR-LHD(EU)SPACE EU5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#18451) — 243 parça

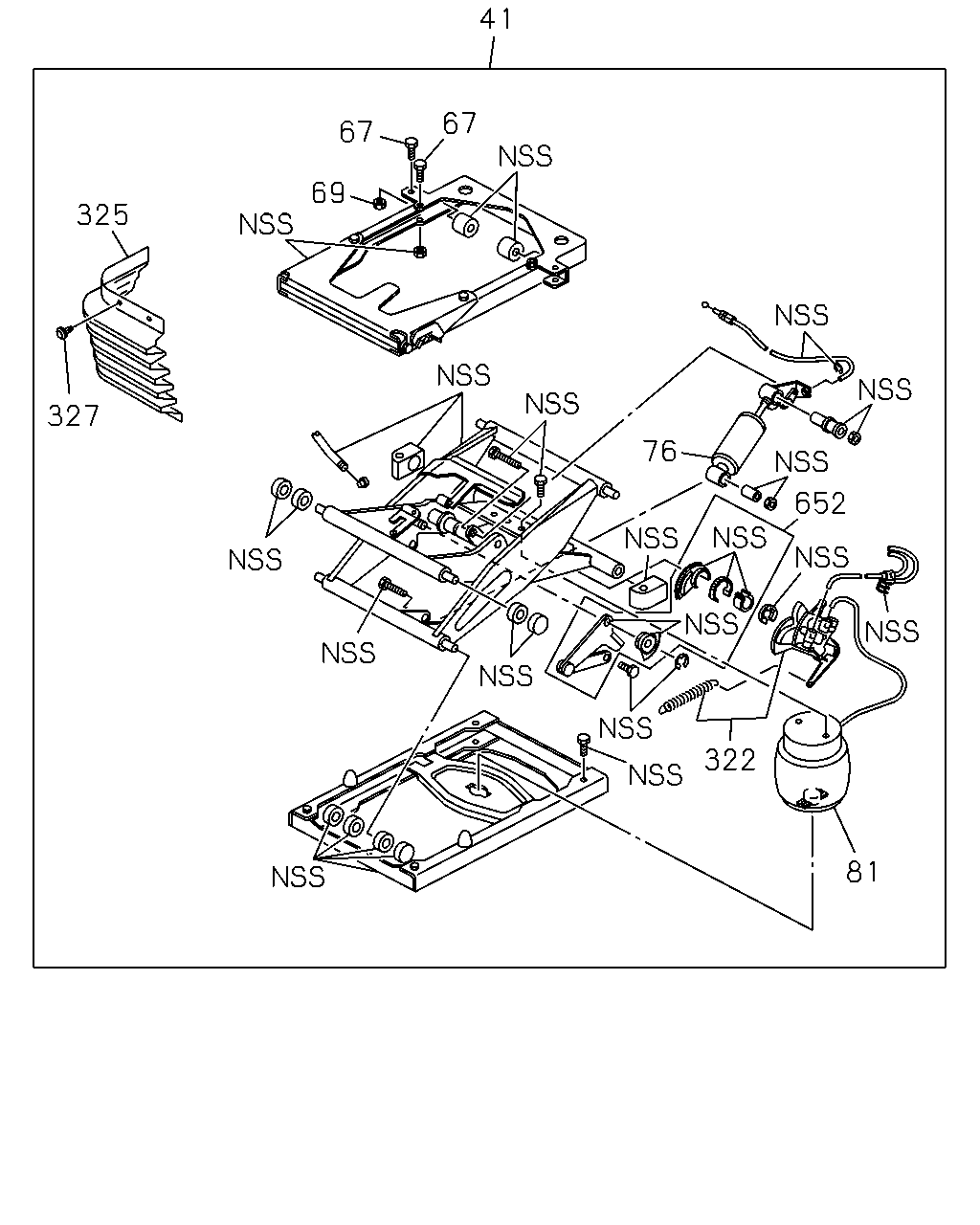

çizim 15553
41 67 67 69 325 327 76 322 81 652
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 0906-1204 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 1205-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-065-1 01 1 1301- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0906-1204 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1205- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0906-1204 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1205- ● ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-999-0 01 1 0906-1204 ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-999-0 01 1 1205- ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 0906-1204 ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1205- ● ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-001-0 01 1 0906-1204 ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-001-0 01 1 1205-1508 ● ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 0906-1204 ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1205- ● ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 0906-1204 ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1205- ● ●
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 0906-1204 ●
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1205- ● ●

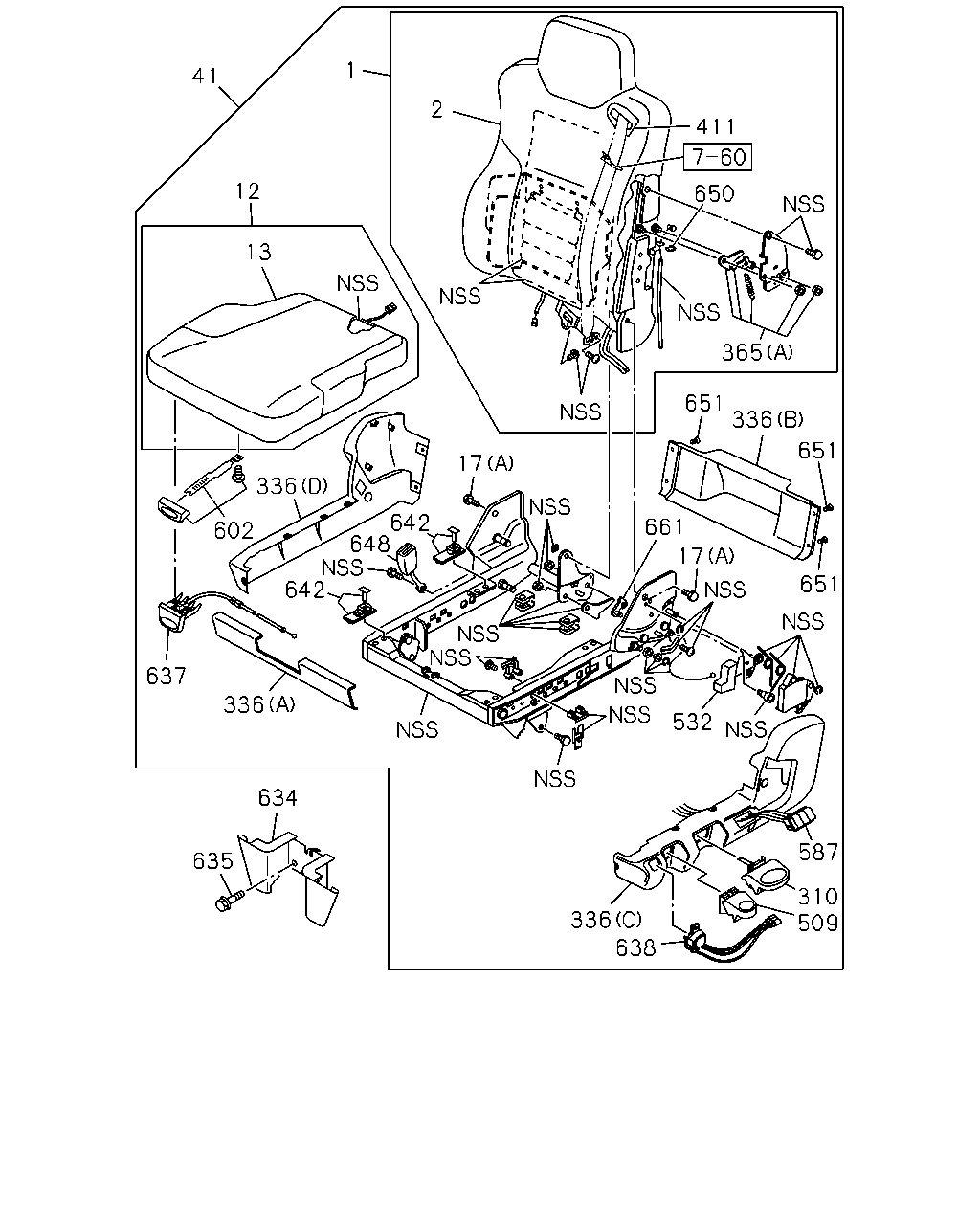

çizim 61562
411 650 365 336 651 651 651 17 661 532 587 310 509 638 336 634 635 336 637 602 336 648 642 17 642 2 1 12 13 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-962-0 01 1 0906-1204 ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-962-0 01 1 1205- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-965-0 01 1 0906-1204 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-965-0 01 1 1205-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-352-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-006-0 01 1 0906-1204 ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-006-0 01 1 1205- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-007-0 01 1 0906-1204 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-007-0 01 1 1205- ● ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 0906-1204 ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1205- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0906-1204 ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1205- ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 0906-1204 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 1205-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-065-1 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-991-0 01 1 0906-1204 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-991-0 01 1 1205- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98097-977-0 01 1 0906-1204 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98097-977-0 01 1 1205-1508 ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98333-916-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-983-0 01 1 0906-1204 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-983-0 01 1 1205- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 0906-1204 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1205- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 0906-1204 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1205- ● ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 0906-1204 ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1205- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0906-1204 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1205- ● ●
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 0906-1204 ●
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1205- ● ●
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-987-0 01 1 0906-1204 ●
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-987-0 01 1 1205- ● ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-981-0 01 1 0906-1204 ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-981-0 01 1 1205- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-985-0 01 1 0906-1204 ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-985-0 01 1 1205- ● ●
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 0906-1204 ●
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1205- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0906-1204 ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1205- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0906-1204 ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1205- ● ●
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 0906-1204 ●
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1205- ● ●
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-993-0 01 1 0906-1204 ●
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-993-0 01 1 1205- ● ●
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 0906-1204 ●
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1205- ● ●
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 0906-1204 ●
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1205- ● ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-973-0 01 1 0906-1204 ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-973-0 01 1 1205-1212 ● ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1301- ● ●
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 0906-1204 ●
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1205- ● ●
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-979-0 01 1 0906-1204 ●
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-979-0 01 1 1205- ● ●

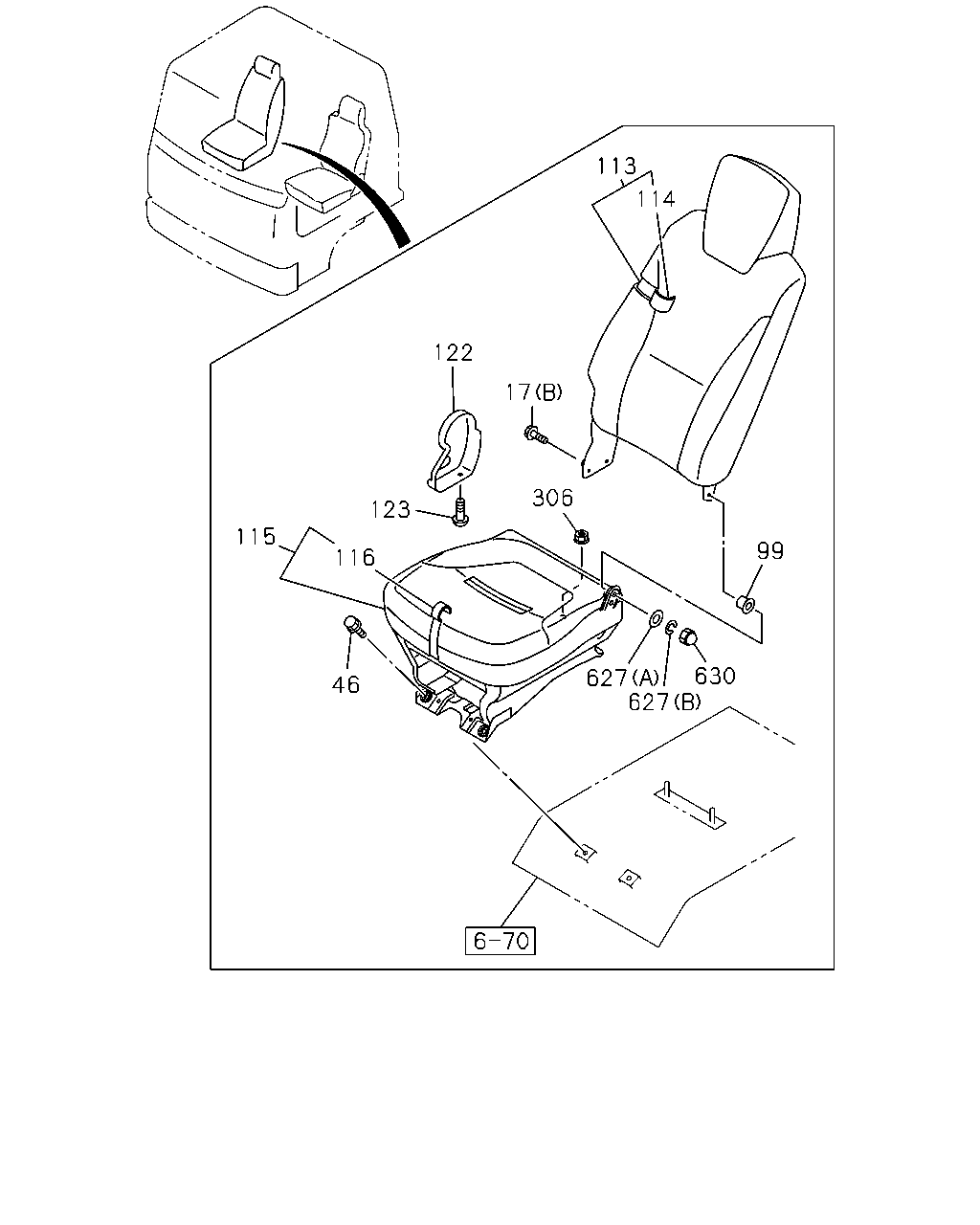

çizim 61713
113 114 17 122 306 123 116 115 46 99 630 627 627
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 0906-1204 ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1205- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0906-1204 ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1205- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0906-1204 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1205- ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0906-1009 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-1204 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1205- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-222-0 01 1 0906-1009 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-423-0 01 1 1010-1204 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-423-0 01 1 1205- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-224-0 01 1 0906-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1010-1204 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1205- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-226-0 01 1 0906-1009 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-1 01 1 1010-1204 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-1 01 1 1205- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-228-0 01 1 0906-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-0 01 1 1010-1204 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-0 01 1 1205- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 0906-1204 ●
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1205- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 0906-1204 ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1205- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 0906-1204 ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1205- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0906-1204 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1205- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0906-1204 ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1205- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0906-1204 ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1205- ● ●

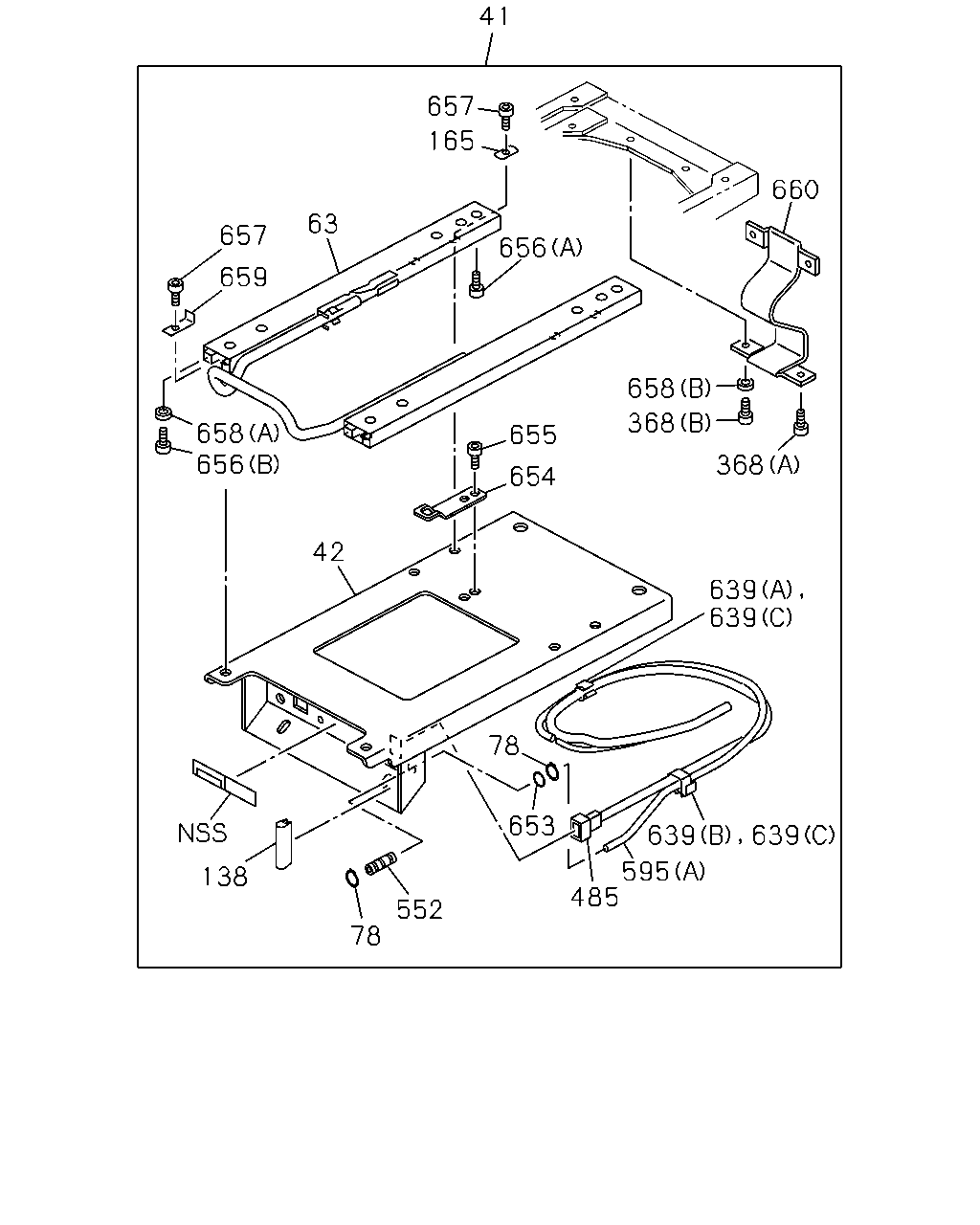

çizim 63125
41 657 63 657 165 656 660 658 655 368 368 654 42 656 658 659 138 78 485 653 552 78 595 639 639 639 639
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 0906-1204 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-985-2 01 1 1205-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-065-1 01 1 1301- ● ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 0906-1204 ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1205- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-005-0 01 1 0906-1204 ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-005-0 01 1 1205- ● ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-900-0 02 1 0906-1204 ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-900-0 02 1 1205- ● ●
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 0906-1204 ●
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1205- ● ●
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 0906-1204 ●
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1205- ● ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 0906-1204 ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1205- ● ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 0906-1204 ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1205- ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0906-1204 ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1205- ● ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-902-0 01 1 0906-1204 ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-902-0 01 1 1205-1508 ● ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 0906-1204 ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1205- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0906-1204 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1205- ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-350-0 01 1 0906-1204 ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-350-0 01 1 1205-1508 ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-349-0 01 1 0906-1204 ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-349-0 01 1 1205-1508 ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98308-100-0 02 1 1509- ● ●
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 0906-1204 ●
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1205- ● ●
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 0906-1204 ●
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1205- ● ●
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 0906-1204 ●
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1205- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 0906-1204 ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1205- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 0906-1204 ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1205- ● ●
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 0906-1204 ●
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1205- ● ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 0906-1204 ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1205- ● ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 0906-1204 ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1205- ● ●
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 0906-1204 ●
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1205- ● ●
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 0906-1204 ●
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1205- ● ●

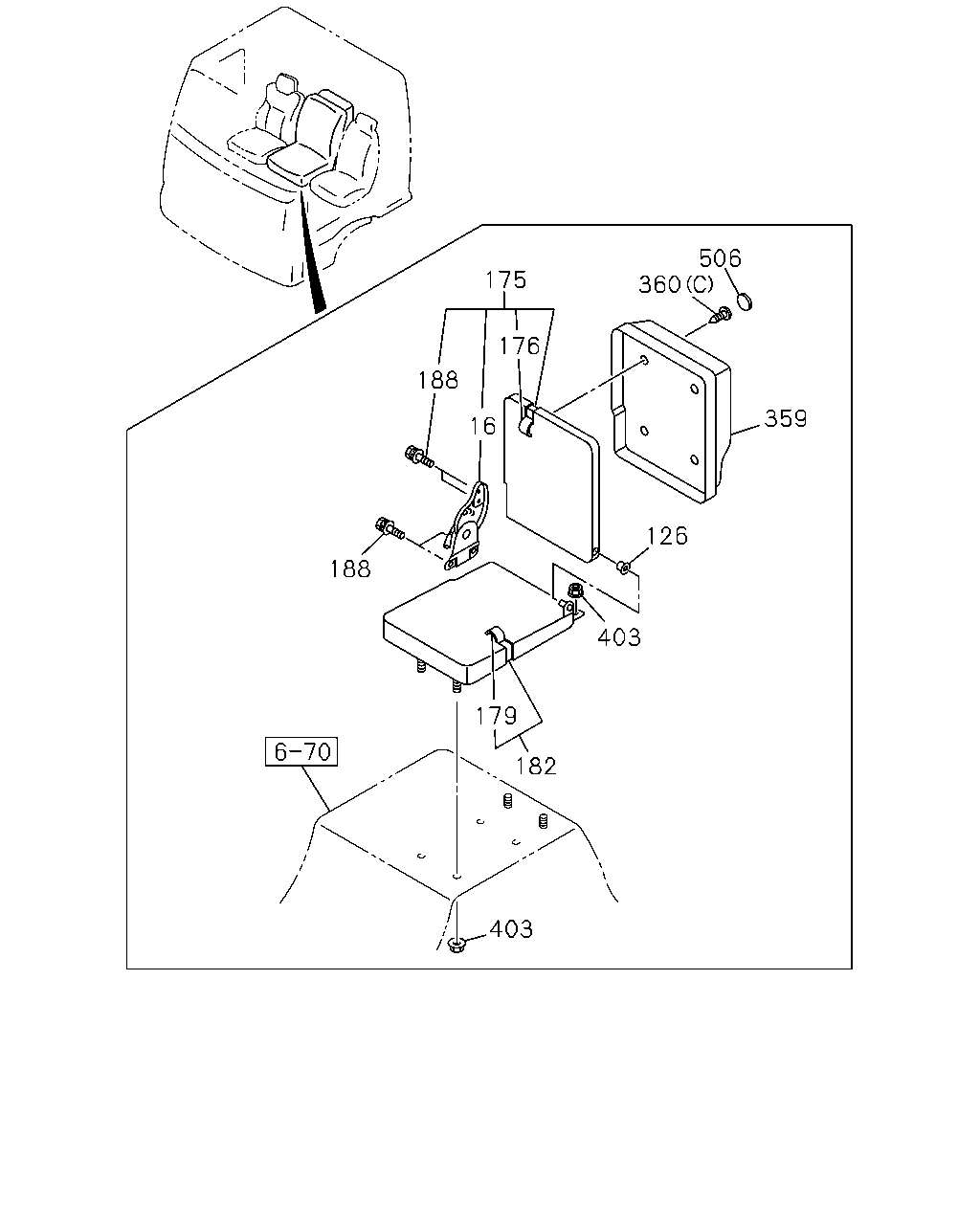

çizim 63254
506 360 359 126 403 179 182 403 188 16 188 176 175
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 0906-1204 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1205- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 0906-1204 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1205- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 0906-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010-1204 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1205- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 0906-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010-1204 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1205- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-238-0 01 1 0906-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-433-1 01 1 1010-1204 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-433-1 01 1 1205- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-236-0 01 1 0906-1009 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-431-3 01 1 1010-1204 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-431-3 01 1 1205- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 0906-1204 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1205- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0906-1006 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-1204 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0906-1009 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1204 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0906-1204 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0906-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-1204 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0906-1009 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0906-1204 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1205- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 0906-1204 ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1205- ● ●

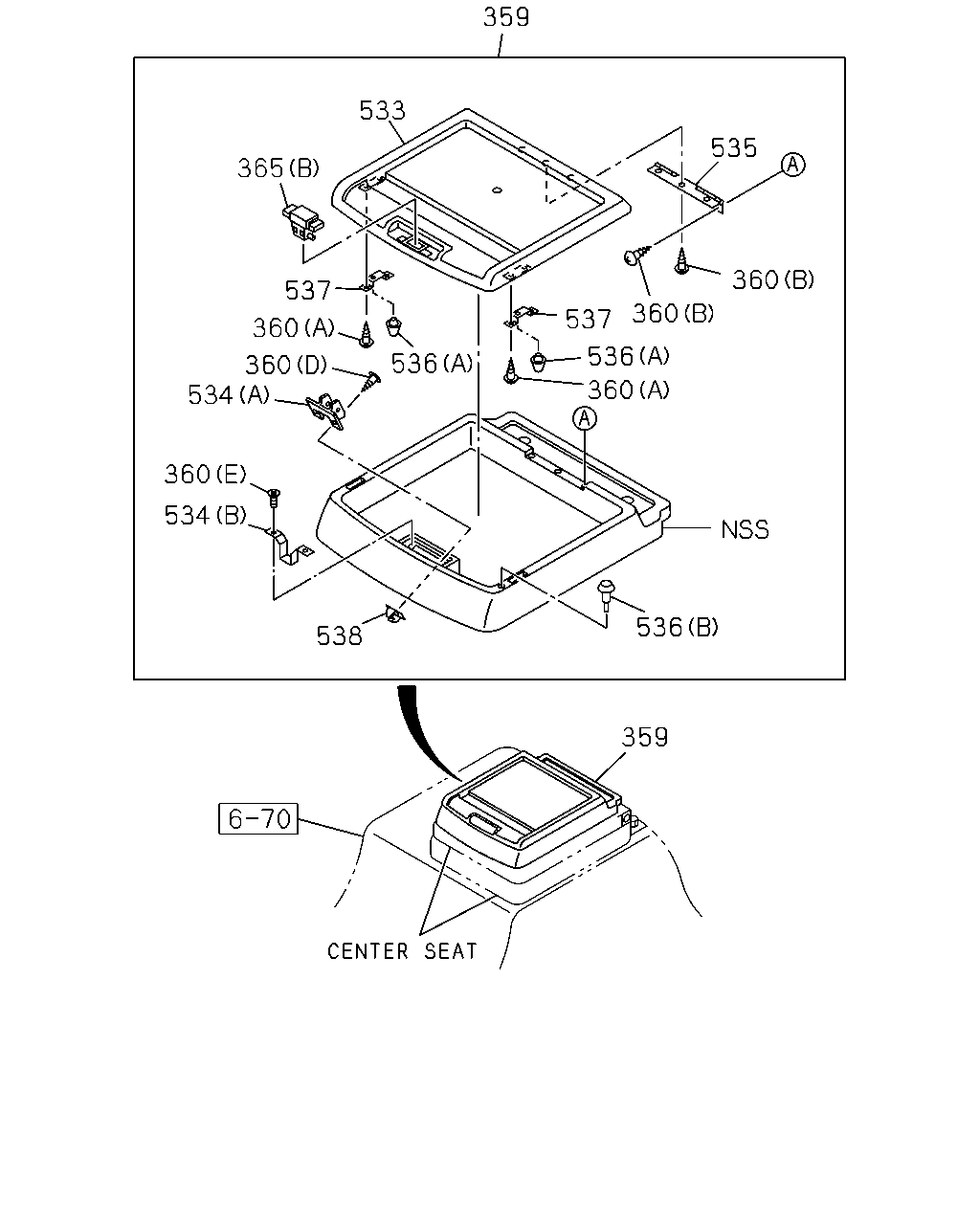

çizim 63278
359 533 365 537 360 360 534 360 534 538 359 536 360 536 537 360 360 535 536
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0906-1006 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-1204 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0906-1009 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1204 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0906-1204 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0906-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-1204 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1205- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0906-1009 ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 0906-1204 ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1205- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0906-1204 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1205- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 0906-1006 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007-1204 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1205- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 0906-1009 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-1204 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1205- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 0906-1204 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1205- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 0906-1009 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-1204 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1205- ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 0906-1009 ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 0906-1009 ●

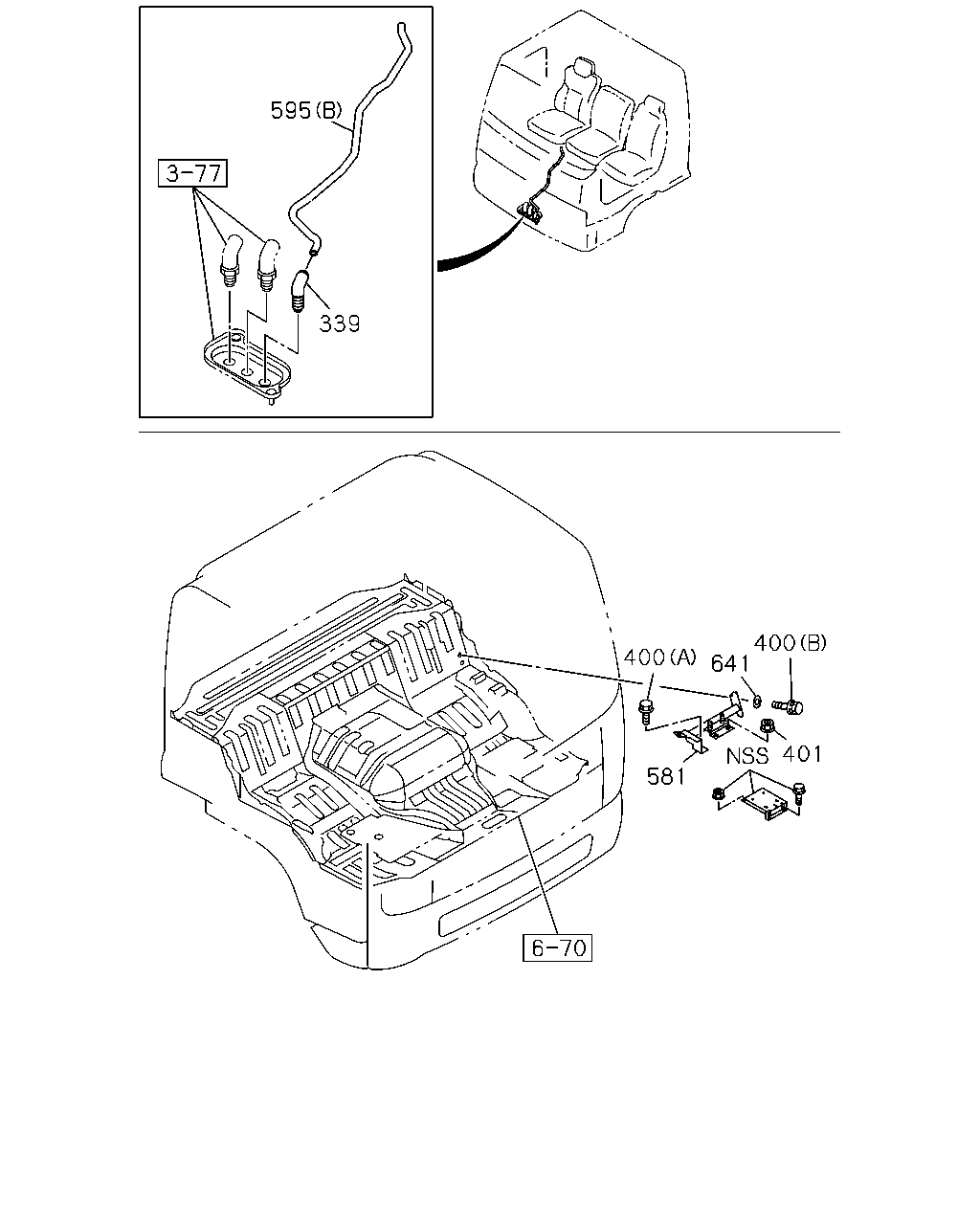

çizim 320064
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0906-1204 ●
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1205- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1204 ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1205- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0906-1204 ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1205- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0906-1204 ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1205- ● ●
581 PIPE; SEAT 8-98049-531-3 01 1 0906-1204 ●
581 PIPE; SEAT 8-98049-531-3 01 1 1205- ● ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 0906-1204 ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1205- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0906-1204 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1205- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0906-1204 ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1205- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
