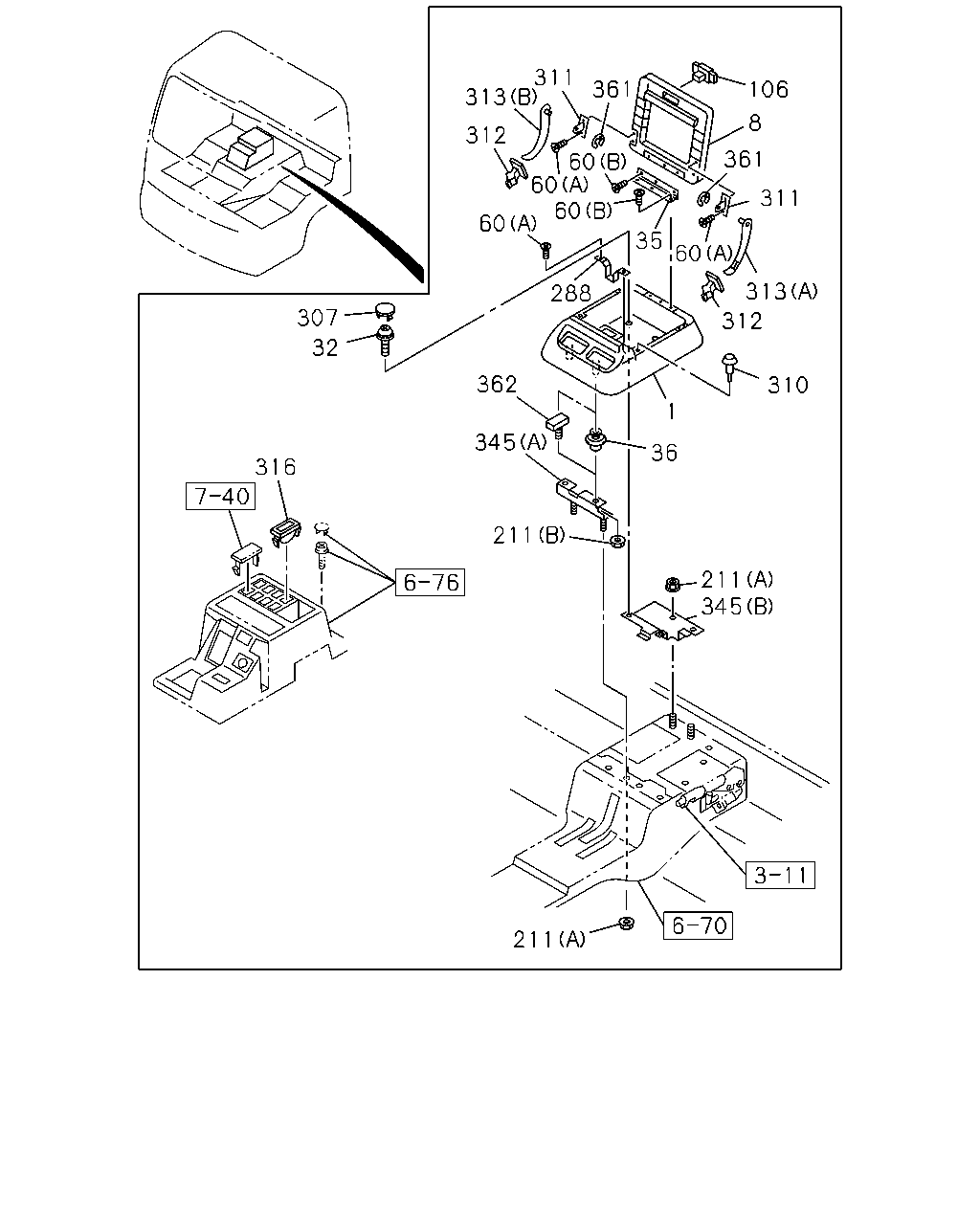

7-45 — CONSOLE BOX (#18450) — 45 parça

311 313 361 106 8 312 60 60 60 361 311 60 35 60 313 288 307 312 32 362 310 1 345 36 316 211 211 345 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOX; PARCEL CENTER SEAT DELETE<SP9> GRAY	8-97408-710-0	01	1	0906-1204	●
1	BOX; PARCEL CENTER SEAT DELETE<SP9> GRAY	8-97408-710-0	01	1	1205-	●	●
8	LID; CENTER CONSOLE CENTER SEAT DELETE<SP9> GRAY	8-97408-712-0	01	1	0906-1204	●
8	LID; CENTER CONSOLE CENTER SEAT DELETE<SP9> GRAY	8-97408-712-0	01	1	1205-	●	●
32	SCREW; PARCEL BOX CENTER SEAT DELETE<SP9> M6X16	0-38050-616-0	02	1	0906-1204	●
32	SCREW; PARCEL BOX CENTER SEAT DELETE<SP9> M6X16	0-38050-616-0	02	1	1205-	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE<SP9>	1-72538-182-1	01	1	0906-1204	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE<SP9>	1-72538-182-1	01	1	1205-	●	●
36	FASTENER; CENTER CONSOLE CENTER SEAT DELETE<SP9>	1-09984-190-0	02	1	0906-1204	●
36	FASTENER; CENTER CONSOLE CENTER SEAT DELETE<SP9>	1-09984-190-0	02	1	1205-	●	●
60	SCREW; BOX CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	06	1	0906-1204	●
60	SCREW; BOX CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	06	1	1205-	●	●
60	SCREW; BOX CENTER SEAT DELETE<SP9> (B) M5X14	8-94279-325-0	04	1	0906-1204	●
60	SCREW; BOX CENTER SEAT DELETE<SP9> (B) M5X14	8-94279-325-0	04	1	1205-	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE<SP9>	1-72538-312-0	01	1	0906-1204	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE<SP9>	1-72538-312-0	01	1	1205-	●	●
211	NUT; CENTER CONSOLE CENTER SEAT DELETE<SP9> (A) M8 FLANGE	0-91180-108-0	04	1	0906-1204	●
211	NUT; CENTER CONSOLE CENTER SEAT DELETE<SP9> (A) M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
211	NUT; CENTER CONSOLE CENTER SEAT DELETE<SP9> (B) M8 FLANGE	8-94279-518-0	02	1	0906-1204	●
211	NUT; CENTER CONSOLE CENTER SEAT DELETE<SP9> (B) M8 FLANGE	8-94279-518-0	02	1	1205-	●	●
288	STOPPER; LID,CONSOLE CENTER SEAT DELETE<SP9>	1-72538-190-0	01	1	0906-1204	●
288	STOPPER; LID,CONSOLE CENTER SEAT DELETE<SP9>	1-72538-190-0	01	1	1205-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE<SP9> GRAY	8-97407-951-0	02	1	0906-1204	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE<SP9> GRAY	8-97407-951-0	02	1	1205-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE<SP9>	1-72538-187-0	02	1	0906-1204	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE<SP9>	1-72538-187-0	02	1	1205-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE<SP9>	1-72538-188-2	02	1	0906-1204	●
311	HOLDER; CONSOLE CENTER SEAT DELETE<SP9>	1-72538-188-2	02	1	1205-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE<SP9>	1-72538-186-1	02	1	0906-1204	●
312	STOPPER; CONSOLE CENTER SEAT DELETE<SP9>	1-72538-186-1	02	1	1205-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE<SP9> (A)	1-72538-184-3	01	1	0906-1204	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE<SP9> (A)	1-72538-184-3	01	1	1205-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE<SP9> (B)	1-72538-185-3	01	1	0906-1204	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE<SP9> (B)	1-72538-185-3	01	1	1205-	●	●
316	BOX; COIN	8-94482-280-2	02	1	1009-1204	●
316	BOX; COIN	8-94482-280-2	02	1	1205-	●	●
316	BOX; COIN	8-94482-280-2	02	1	0906-1004	●
345	BRACKET; CTR CONSOLE CENTER SEAT DELETE<SP9> (A)	1-72538-232-1	01	1	0906-1204	●
345	BRACKET; CTR CONSOLE CENTER SEAT DELETE<SP9> (A)	1-72538-232-1	01	1	1205-	●	●
345	BRACKET; CTR CONSOLE CENTER SEAT DELETE<SP9> (B)	1-72538-233-0	01	1	0906-1204	●
345	BRACKET; CTR CONSOLE CENTER SEAT DELETE<SP9> (B)	1-72538-233-0	01	1	1205-	●	●
361	RING; SNAP CENTER SEAT DELETE<SP9> ID=5	9-09185-405-0	02	1	0906-1204	●
361	RING; SNAP CENTER SEAT DELETE<SP9> ID=5	9-09185-405-0	02	1	1205-	●	●
362	STUD; CONSOLE BOX CENTER SEAT DELETE<SP9>	1-72538-308-0	02	1	0906-1204	●
362	STUD; CONSOLE BOX CENTER SEAT DELETE<SP9>	1-72538-308-0	02	1	1205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
