Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#18442) — 247 parça

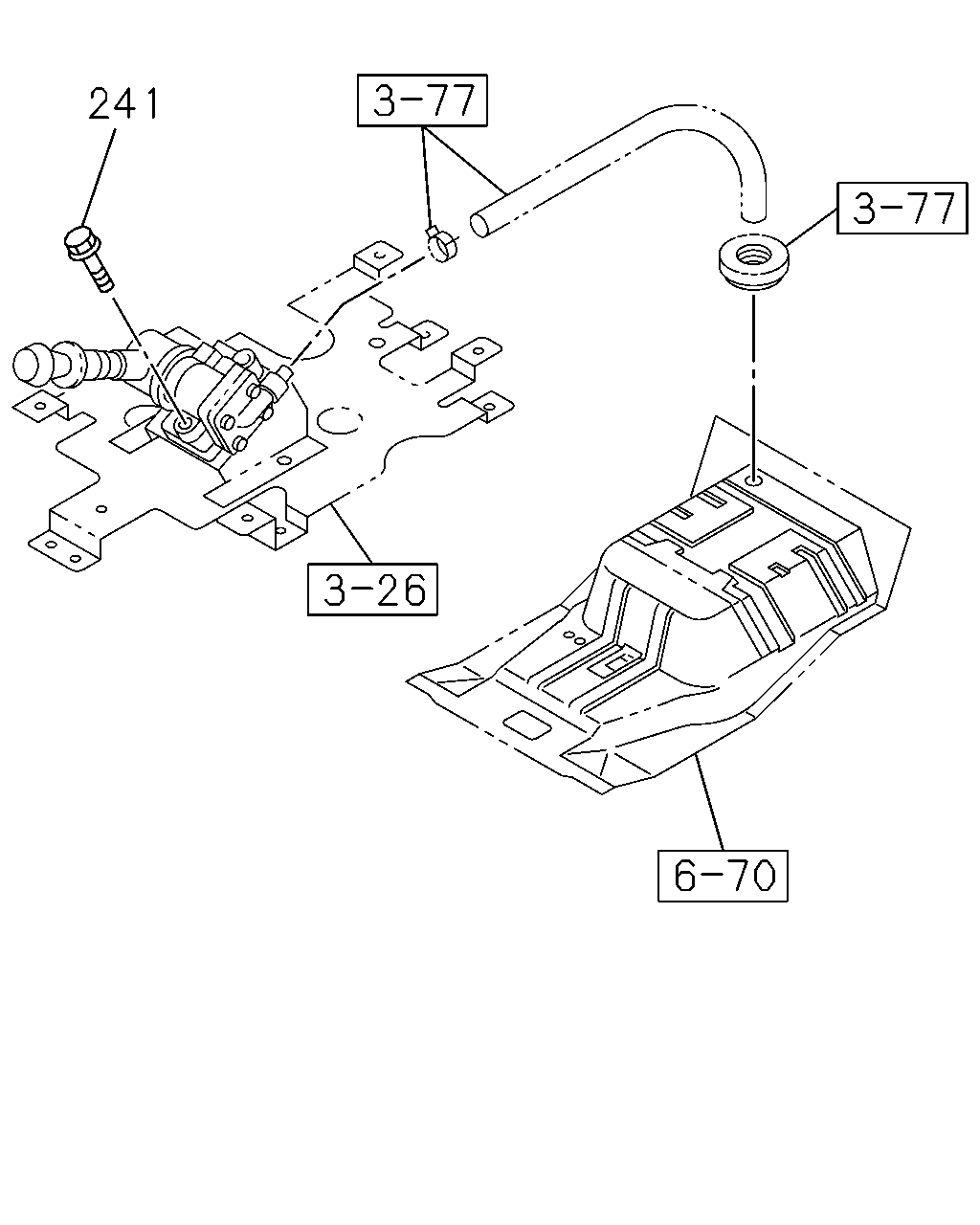

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X70 FLANGE SOU	0-28050-870-0	02	1	1001-

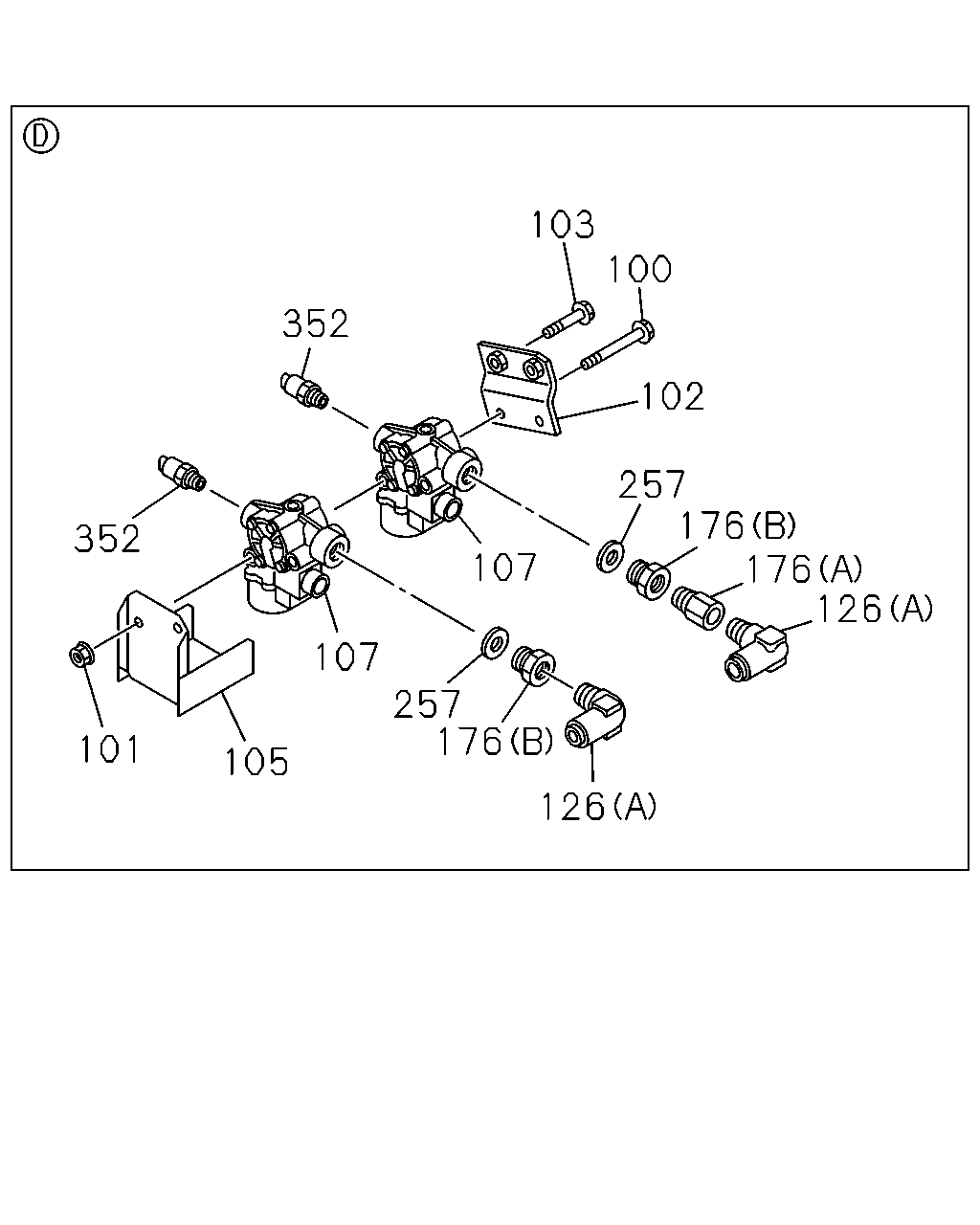

103 100 352 102 257 176 176 126 352 107 107 257 176 101 105 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	1001-
101	NUT; MODULATOR M8 FLANGE SOU	0-91180-108-0	02	1	1001-
102	BRACKET; MODULATOR	8-98075-781-0	01	1	1001-1410
102	BRACKET; MODULATOR	8-98272-718-0	01	1	1411-
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1001-
105	COVER; MODULATOR	1-47479-792-0	01	1	1001-1410
105	COVER; MODULATOR	8-98272-749-0	01	1	1411-
107	MODULATOR; RR SOU	1-48240-115-0	02	1	1001-1410
107	MODULATOR; RR SOU	8-98215-454-0	02	1	1411-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW SOU	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1012-1102
126	CONNECTOR; ELBOW (G) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
126	CONNECTOR; ELBOW (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1103-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	04	1	1001-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1001-
176	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	02	1	1001-
176	ADAPTER (A) PT3/8	1-09664-210-0	01	1	1001-
257	GASKET; PLUG ID=22.5 SOU	9-09571-422-0	02	1	1001-
352	CONNECTOR; STRAIGHT DIN12 & M22 STRAIGHT SOU	1-09661-050-0	02	1	1001-

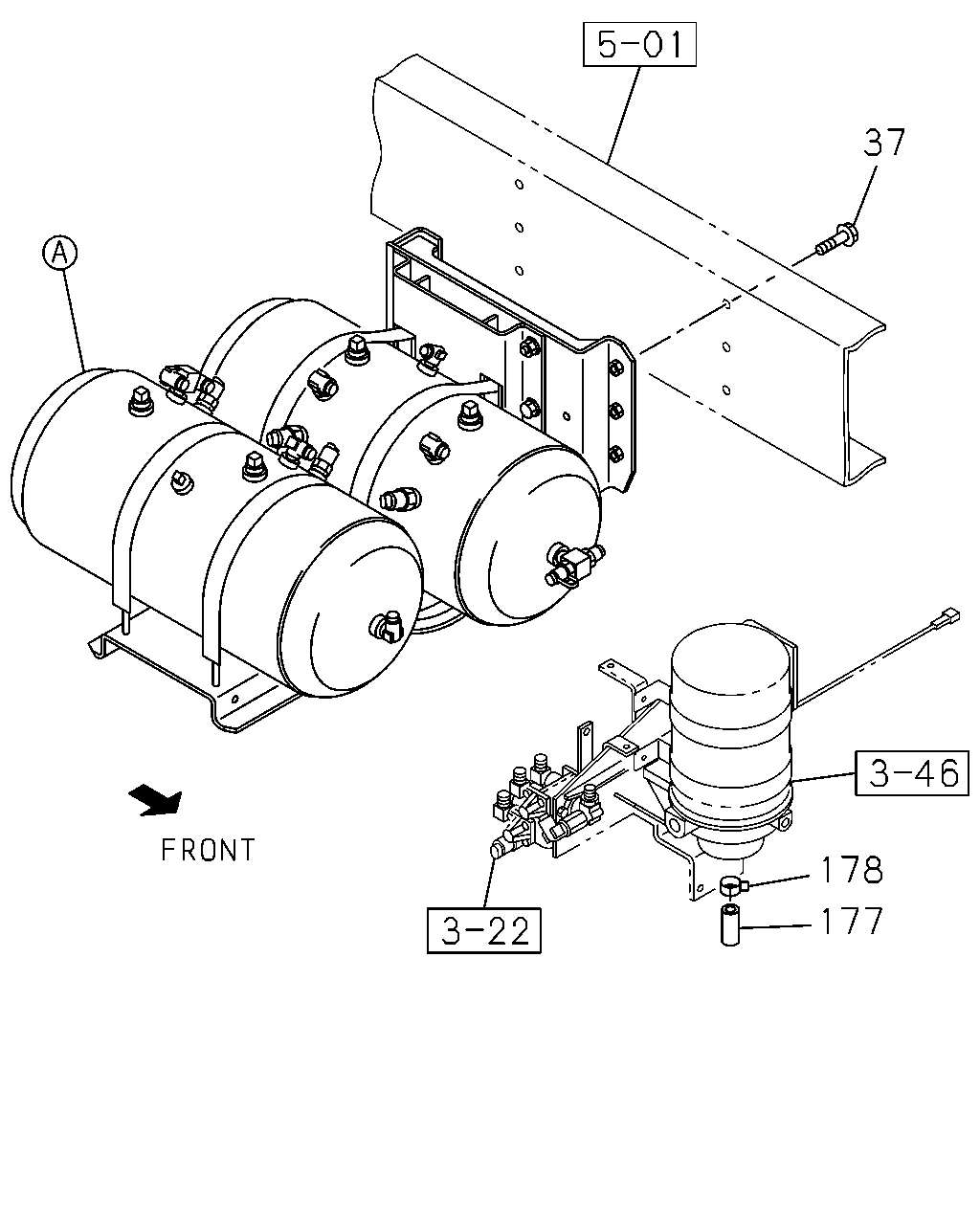

37 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE SOU	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK M12X40 FLANGE SOU	0-28651-240-0	06	1	1001-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> M12X40 FLANGE SOU	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK M12X40 FLANGE SOU	0-28651-240-0	08	1	1103-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	1001-

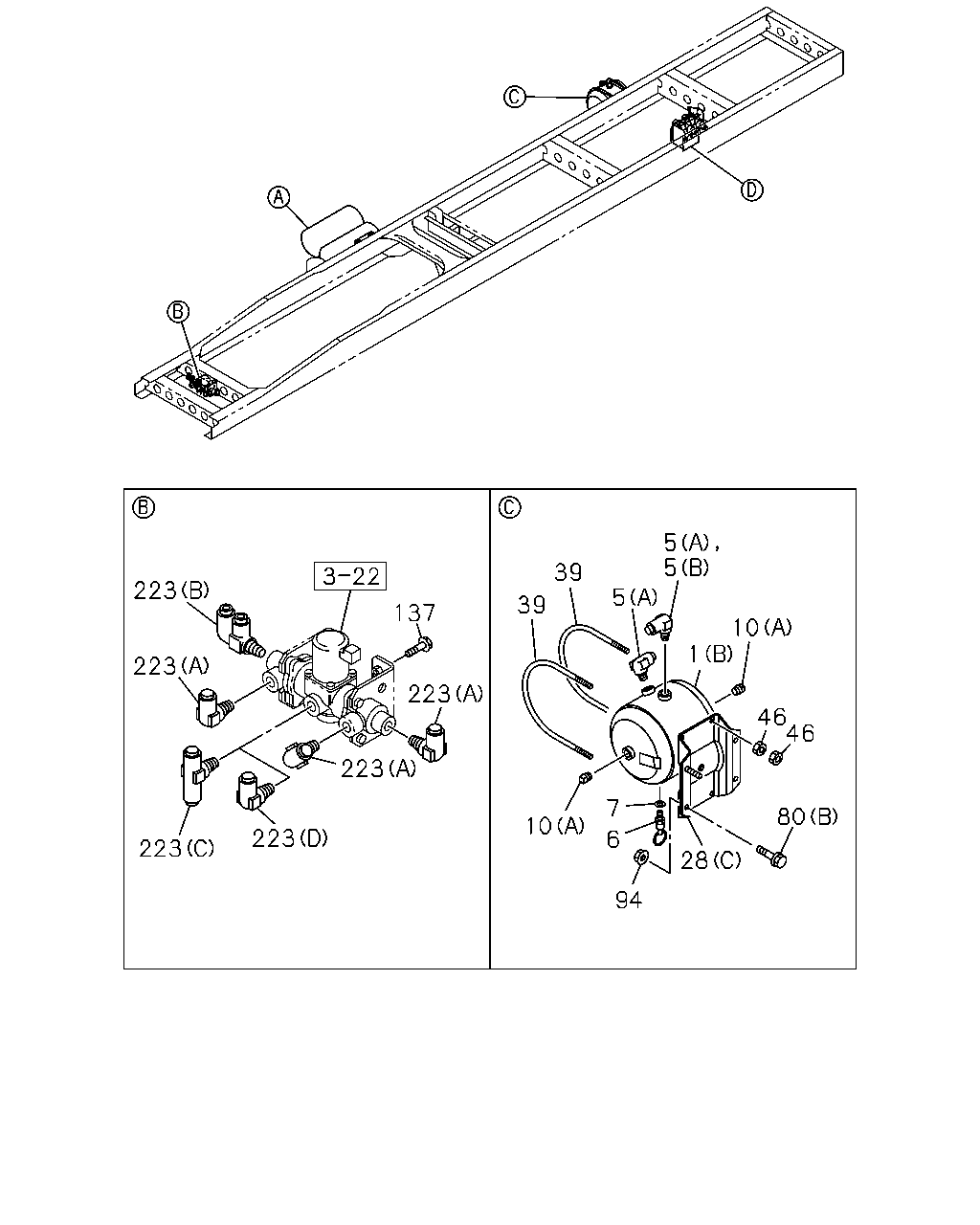

5 5 39 223 5 39 137 10 1 223 223 46 46 223 7 80 10 223 6 223 28 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	02	1	1001-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR (B) SOU	8-98081-870-1	01	1	1001-
5	UNION; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1102
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1001-1011
5	UNION; AIR TANK VIN MODEL YEAR 2011<VZB> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1001-1011
5	UNION; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1012-1102
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1001-1011
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1001-1011
10	PLUG; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (B) PT3/4 SOU	9-09204-526-0	03	1	1001-
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A) SOU	8-98048-199-0	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B) SOU	8-98048-200-2	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) SOU	8-98048-200-2	01	1	1012-1102
28	BRACKET; AIR TANK (C) SOU	8-98100-165-3	01	1	1001-
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	1001-
46	NUT; U-BOLT M8 SOU	0-91110-508-0	08	1	1001-
80	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	03	1	1001-
80	BOLT; BRKT (A) M12X35 FLANGE SOU	0-28651-235-0	04	1	1001-1011
80	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M12X35 FLANGE SOU	0-28651-235-0	04	1	1012-1102
94	NUT; BRKT FIX M10 FLANGE SOU	0-91180-210-0	04	1	1001-
137	BOLT; BRKT H.S.A SYSTEM<6EP> M8X25 FLANGE SOU	0-28650-825-0	04	1	1001-
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	03	1	1001-
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-025-0	01	1	1001-
223	UNION H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1001-
223	UNION H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) SOU	1-09661-073-0	01	1	1001-

126 10 126 126 126 126 126 126 126 38 185 28 126 1 9 126 185 37 28 42 126 9 41 7 45 45 38 42 6 64 41 43 126 126 126 43 10 64 43 126 38 9 38 126 126 126 126 9 126 126 45 45 10 126 10 7 1 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	02	1	1001-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR (B) SOU	8-98081-870-1	01	1	1001-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW SOU	1-48410-412-0	01	1	1001-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW SOU	1-48410-134-3	01	1	1001-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 SOU	8-97609-249-0	04	1	1001-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1001-1011
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1001-1011
10	PLUG; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (B) PT3/4 SOU	9-09204-526-0	03	1	1001-
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A) SOU	8-98048-199-0	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B) SOU	8-98048-200-2	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) SOU	8-98048-200-2	01	1	1012-1102
28	BRACKET; AIR TANK (C) SOU	8-98100-165-3	01	1	1001-
37	BOLT; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE SOU	0-28651-240-0	06	1	1012-1102
37	BOLT; AIR TANK M12X40 FLANGE SOU	0-28651-240-0	06	1	1001-1011
37	BOLT; AIR TANK VIN MODEL YEAR 2011<VZB> M12X40 FLANGE SOU	0-28651-240-0	08	1	1012-1102
37	BOLT; AIR TANK M12X40 FLANGE SOU	0-28651-240-0	08	1	1103-
38	BAND; AIR TANK (A) SOU	1-48317-108-2	02	1	1001-
38	BAND; AIR TANK (B) SOU	1-48317-109-2	02	1	1001-
41	PIN; BAND FIX VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1102
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1103-
41	PIN; BAND FIX	1-09744-068-0	01	1	1001-1011
41	PIN; BAND FIX EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-1102
42	WASHER; PL VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	02	1	1012-1102
42	WASHER; PL ID=10.5 SOU	0-91614-510-0	02	1	1103-
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	1001-1011
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	01	1	1102-1102
43	BOLT; STAY,AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> M8X25 FLANGE SOU	0-28650-825-0	06	1	1012-1102
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE SOU	0-28650-825-0	06	1	1103-
45	NUT; AIR TANK,MAIN M8 SOU	0-91110-508-0	12	1	1001-
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> (A)	1-48317-607-0	01	1	1012-1102
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1103-
64	STAY; AIR TANK,MAIN VIN MODEL YEAR 2011<VZB> (B)	1-48317-691-0	01	1	1012-1102
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW SOU	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1012-1102
126	CONNECTOR; ELBOW (G) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
126	CONNECTOR; ELBOW (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1103-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	04	1	1001-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1001-
185	PIN; SNAP EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	1001-1011
185	PIN; SNAP VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1103-

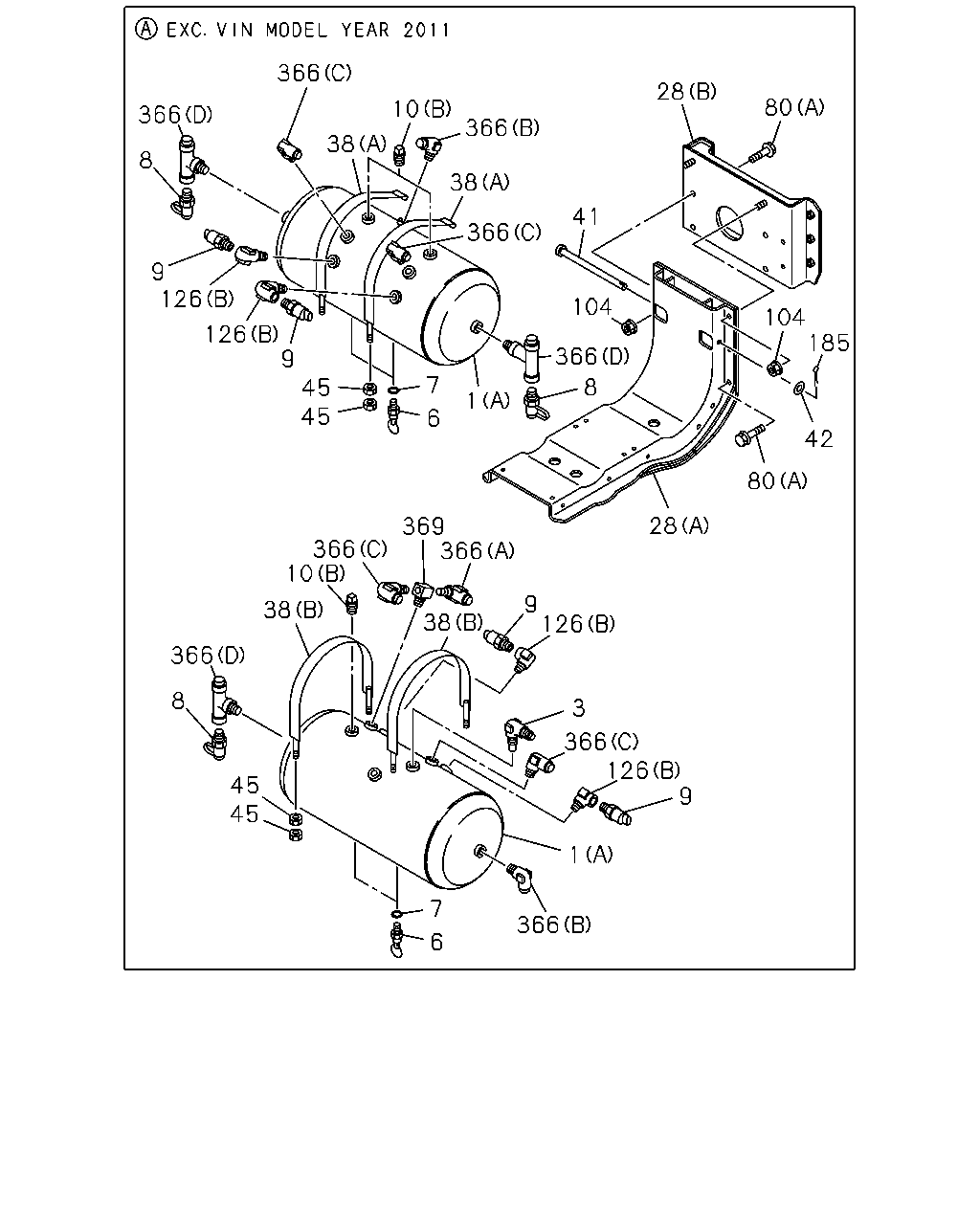

366 28 80 10 366 366 38 8 38 41 366 9 126 104 104 185 126 9 45 45 366 7 8 1 6 42 80 28 369 366 366 10 9 126 38 3 366 8 3 366 126 9 45 45 1 7 366 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (C)	8-98184-783-0	01	1	1012-1102
1	TANK ASM; AIR (C)	8-98184-783-0	01	1	1103-
1	TANK ASM; AIR EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	02	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	02	1	1001-1011
1	TANK ASM; AIR VIN MODEL YEAR 2011<VZB> (A) SOU	1-48370-181-1	01	1	1012-1102
1	TANK ASM; AIR (A) SOU	1-48370-181-1	01	1	1103-
1	TANK ASM; AIR (B) SOU	8-98081-870-1	01	1	1001-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> M20 & PT3/4 ELBOW SOU	1-48410-412-0	01	1	1001-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW SOU	1-48410-134-3	01	1	1001-
6	COCK; DRAIN,AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1001-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1001-1011
6	COCK; DRAIN,AIR TANK VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1102
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1103-
7	GASKET; DRAIN COCK EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1001-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1001-1011
7	GASKET; DRAIN COCK VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1102
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1103-
8	CONNECTOR; AIR TANK R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1001-1011
8	CONNECTOR; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5 SOU	8-97609-249-0	04	1	1001-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1001-1011
10	PLUG; AIR TANK VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1012-1102
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1103-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1001-1011
10	PLUG; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/8	9-09204-517-0	01	1	1012-1102
10	PLUG; AIR TANK (B) PT3/4 SOU	9-09204-526-0	03	1	1001-
28	BRACKET; AIR TANK VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1102
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	1103-
28	BRACKET; AIR TANK (A) SOU	8-98048-199-0	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (A) SOU	8-98048-199-0	01	1	1012-1102
28	BRACKET; AIR TANK (B) SOU	8-98048-200-2	01	1	1001-1011
28	BRACKET; AIR TANK EXC. VIN MODEL YEAR 2011<VZB> (B) SOU	8-98048-200-2	01	1	1012-1102
28	BRACKET; AIR TANK (C) SOU	8-98100-165-3	01	1	1001-
38	BAND; AIR TANK (A) SOU	1-48317-108-2	02	1	1001-
38	BAND; AIR TANK (B) SOU	1-48317-109-2	02	1	1001-
41	PIN; BAND FIX VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1102
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1103-
41	PIN; BAND FIX	1-09744-068-0	01	1	1001-1011
41	PIN; BAND FIX EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-1102
42	WASHER; PL VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	02	1	1012-1102
42	WASHER; PL ID=10.5 SOU	0-91614-510-0	02	1	1103-
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	1001-1011
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL EXC. VIN MODEL YEAR 2011<VZB> ID=10.5 SOU	0-91614-510-0	01	1	1102-1102
45	NUT; AIR TANK,MAIN M8 SOU	0-91110-508-0	12	1	1001-
80	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	03	1	1001-
80	BOLT; BRKT (A) M12X35 FLANGE SOU	0-28651-235-0	04	1	1001-1011
80	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M12X35 FLANGE SOU	0-28651-235-0	04	1	1012-1102
104	NUT; BRKT M12 FLANGE SOU	0-91180-212-0	02	1	1001-1011
104	NUT; BRKT EXC. VIN MODEL YEAR 2011<VZB> M12 FLANGE SOU	0-91180-212-0	02	1	1012-1102
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (C) M12 & PT3/8 ELBOW SOU	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
126	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
126	CONNECTOR; ELBOW (E) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (G) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1012-1102
126	CONNECTOR; ELBOW (G) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1012-1102
126	CONNECTOR; ELBOW (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1103-
126	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1012-1102
126	CONNECTOR; ELBOW (H) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	04	1	1103-
126	CONNECTOR; ELBOW (B) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	04	1	1001-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1001-
185	PIN; SNAP EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	1001-1011
185	PIN; SNAP VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1102
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1103-
366	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
366	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1012-1102
366	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1012-1102
366	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 & RC1/4 3WAY	1-09660-988-1	03	1	1001-1011
366	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R3/8 & RC1/4 3WAY	1-09660-988-1	03	1	1012-1102
369	CONNECTOR; 3WAY PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1001-1011
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1012-1101
369	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1102-1102

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
