2-85 — POWER TAKE OFF CONTROL (#18437) — 29 parça

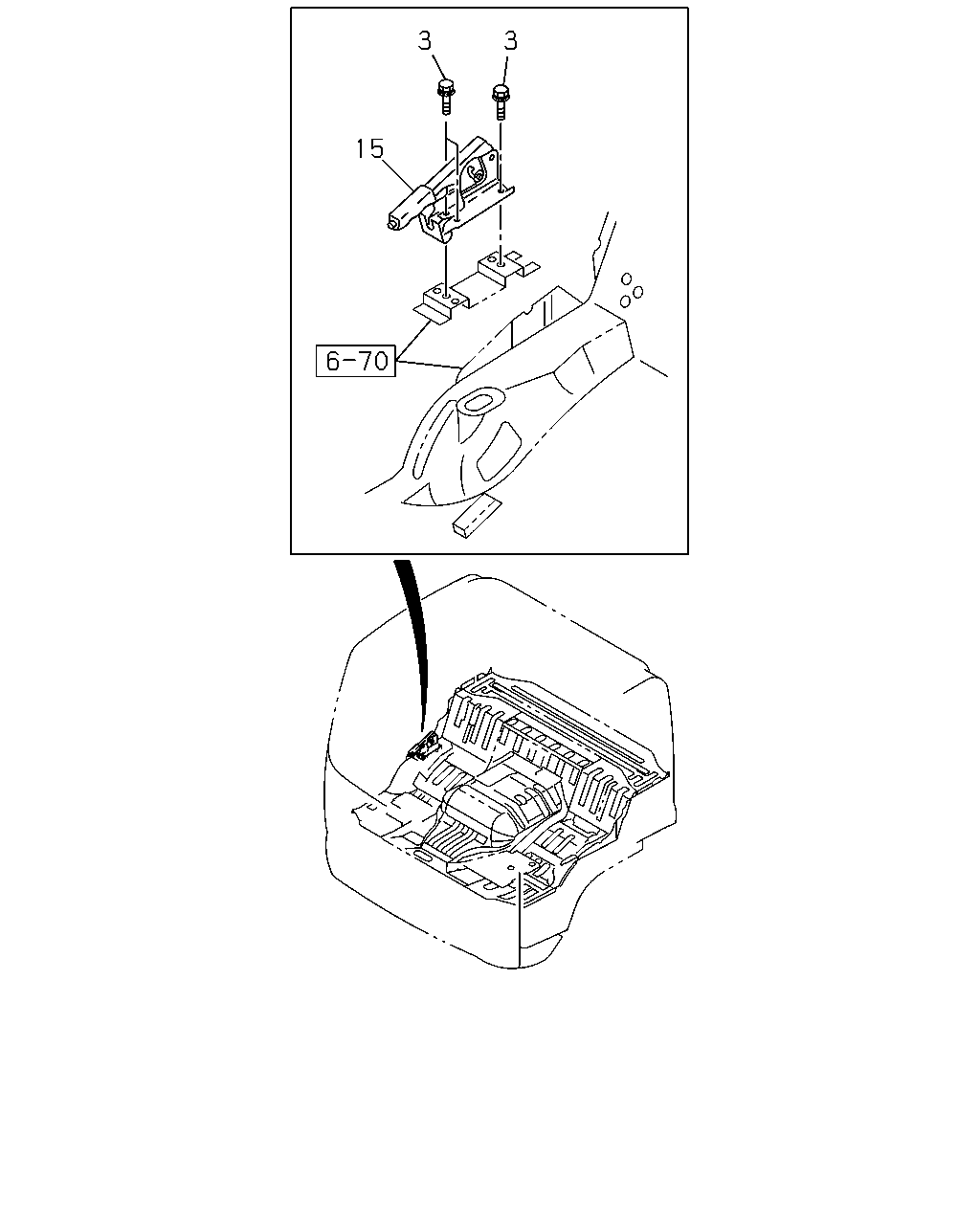

3 3 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	1001-
	15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4> SOU	1-79996-092-0	01	1	1001-

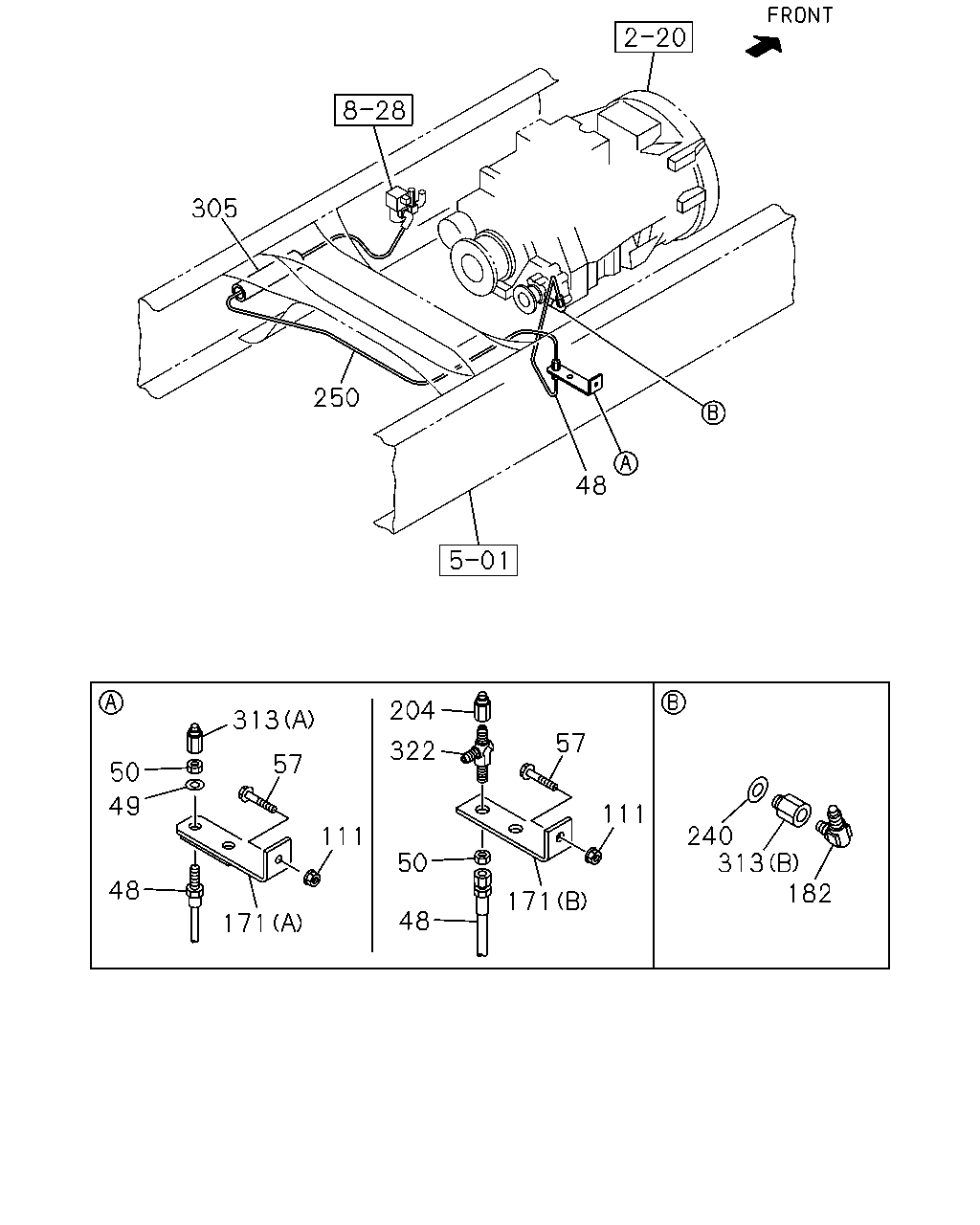

305 250 48 204 313 57 322 57 50 49 111 240 313 182 111 50 48 171 48 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=320	1-09363-625-0	01	1	1012-1102
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) L=320	1-09363-625-0	01	1	1103-
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) L=230	1-09363-666-0	01	1	1001-1011
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> L=230	1-09363-666-0	01	1	1012-1102
49	WASHER; LK,FLEX HOSE PTO ZF TRANS RR(BDM) ID=12.2	9-09150-512-0	01	1	1001-1011
50	NUT; FLEX HOSE PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12	0-91111-512-0	01	1	1012-1102
50	NUT; FLEX HOSE PTO ZF TRANS RR(BDM) M12	0-91111-512-0	01	1	1103-
50	NUT; FLEX HOSE PTO ZF TRANS RR(BDM) M12	9-09840-280-0	01	1	1001-1011
50	NUT; FLEX HOSE PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> M12	9-09840-280-0	01	1	1012-1102
57	BOLT; BRKT PTO ZF TRANS RR(BDM) M8X30 FLANGE	0-28650-830-0	01	1	1001-
111	NUT; BRKT PTO ZF TRANS RR(BDM) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
171	BRACKET; FLEX HOSE PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> (B)	8-98172-810-0	01	1	1012-1102
171	BRACKET; FLEX HOSE PTO ZF TRANS RR(BDM) (B)	8-98172-810-0	01	1	1103-
171	BRACKET; FLEX HOSE PTO ZF TRANS RR(BDM) (A)	8-98100-228-0	01	1	1001-1011
171	BRACKET; FLEX HOSE PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98100-228-0	01	1	1012-1102
182	CONNECTOR; FLARE PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1102
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1103-
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	1-09630-084-0	01	1	1001-1312
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	8-98251-344-0	01	1	1401-
250	TUBE; NYLON PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1001-
305	TUBE; CORRUGATE PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1001-
313	ADAPTER PTO ZF TRANS RR(BDM) (B) PT1/4	1-09654-396-0	01	1	1001-
313	ADAPTER PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1001-1011
313	ADAPTER PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1102
322	UNION PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> M12 2WAY SOU	1-09654-059-2	01	1	1012-1102
322	UNION PTO ZF TRANS RR(BDM) M12 2WAY SOU	1-09654-059-2	01	1	1103-
