Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#18430) — 295 parça

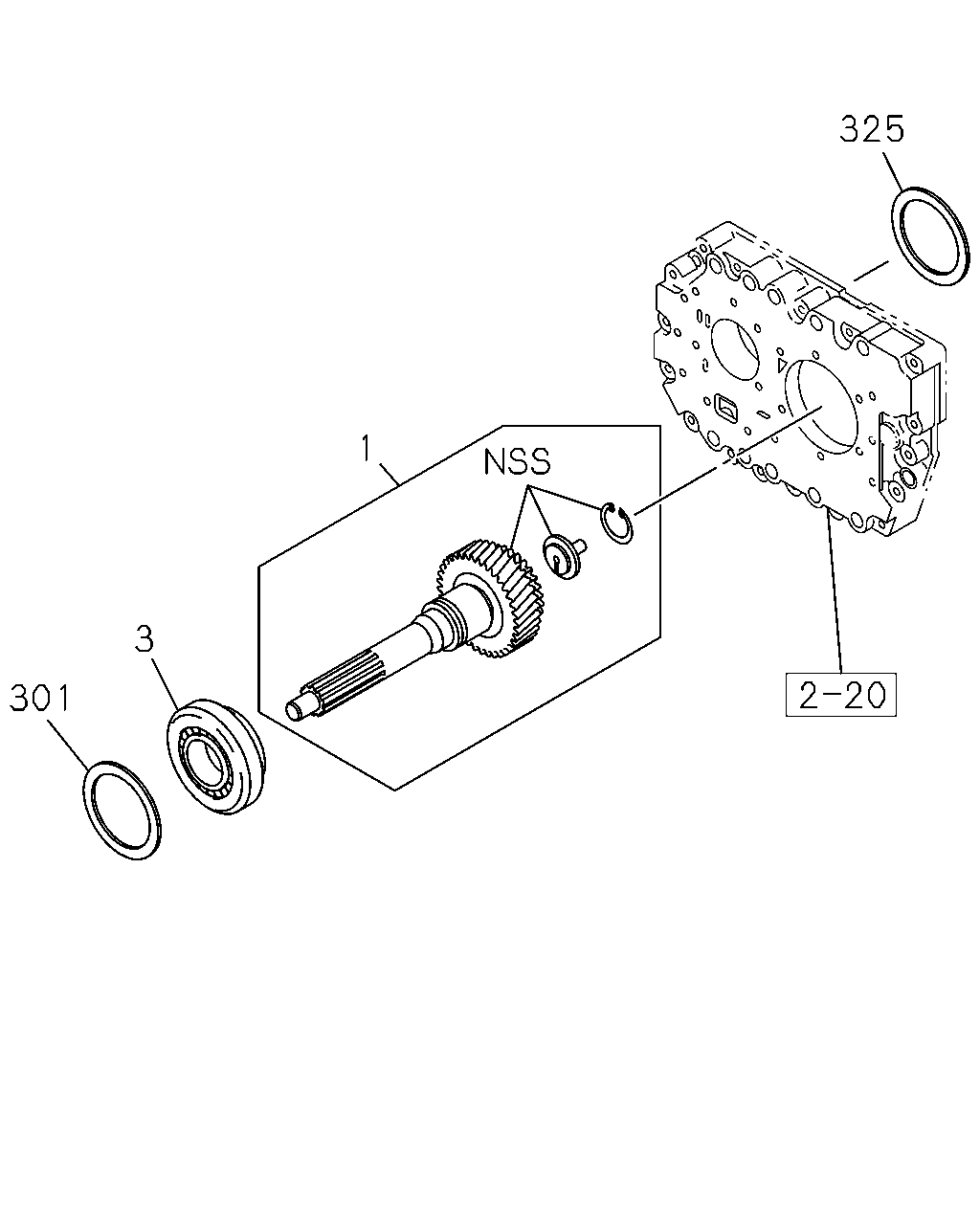

325 1 3 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS	1-33215-036-0	01	1	1001-
3	BEARING; TOP GEAR SHAFT	1-33219-320-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.60	1-33139-042-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.50	1-33139-043-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.40	1-33139-045-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.30	1-33139-046-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.45	1-33139-201-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.55	1-33139-202-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT T=1.35	1-33139-206-0	01	1	1001-
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=1.20	1-33139-047-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.20	1-33139-047-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=1.10	1-33139-050-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.10	1-33139-050-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=1.05	1-33139-203-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=1.15	1-33139-204-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.15	1-33139-204-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=1.25	1-33139-205-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.25	1-33139-205-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=0.90	1-33139-207-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=0.95	1-33139-208-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT ASSISTOR SHIFT CONTROL<WX8> T=1.00	1-33139-209-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.80	1-33139-039-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.80	1-33139-039-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.70	1-33139-041-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.70	1-33139-041-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30	1-33139-223-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.30	1-33139-223-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25	1-33139-224-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.25	1-33139-224-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.20	1-33139-225-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.20	1-33139-225-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.15	1-33139-226-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.15	1-33139-226-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.10	1-33139-227-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.10	1-33139-227-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.05	1-33139-228-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.05	1-33139-228-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.00	1-33139-229-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=2.00	1-33139-229-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.95	1-33139-230-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.95	1-33139-230-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.90	1-33139-231-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.90	1-33139-231-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.85	1-33139-232-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.85	1-33139-232-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.75	1-33139-233-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.75	1-33139-233-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.65	1-33139-234-0	01	1	1001-1305
301	SHIM; TOP GEAR SHAFT T=1.65	1-33139-234-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG T=1.60	1-33389-047-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.40	1-33389-086-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33389-048-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.50	1-33389-049-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.30	1-33389-088-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33389-073-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.90	1-33389-074-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.80	1-33389-075-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33389-076-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33389-077-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33389-078-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.85	1-33389-079-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.95	1-33389-080-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.05	1-33389-081-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.10	1-33389-082-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.15	1-33389-083-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33389-084-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.45	1-33389-050-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.50	8-98080-571-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.50	8-98080-571-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.40	1-33389-051-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.60	8-98080-572-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.60	8-98080-572-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40	1-33389-086-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60	1-33389-047-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35	1-33389-087-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.35	1-33389-087-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30	1-33389-088-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50	1-33389-049-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25	1-33389-089-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.25	1-33389-089-0	01	1	1306-

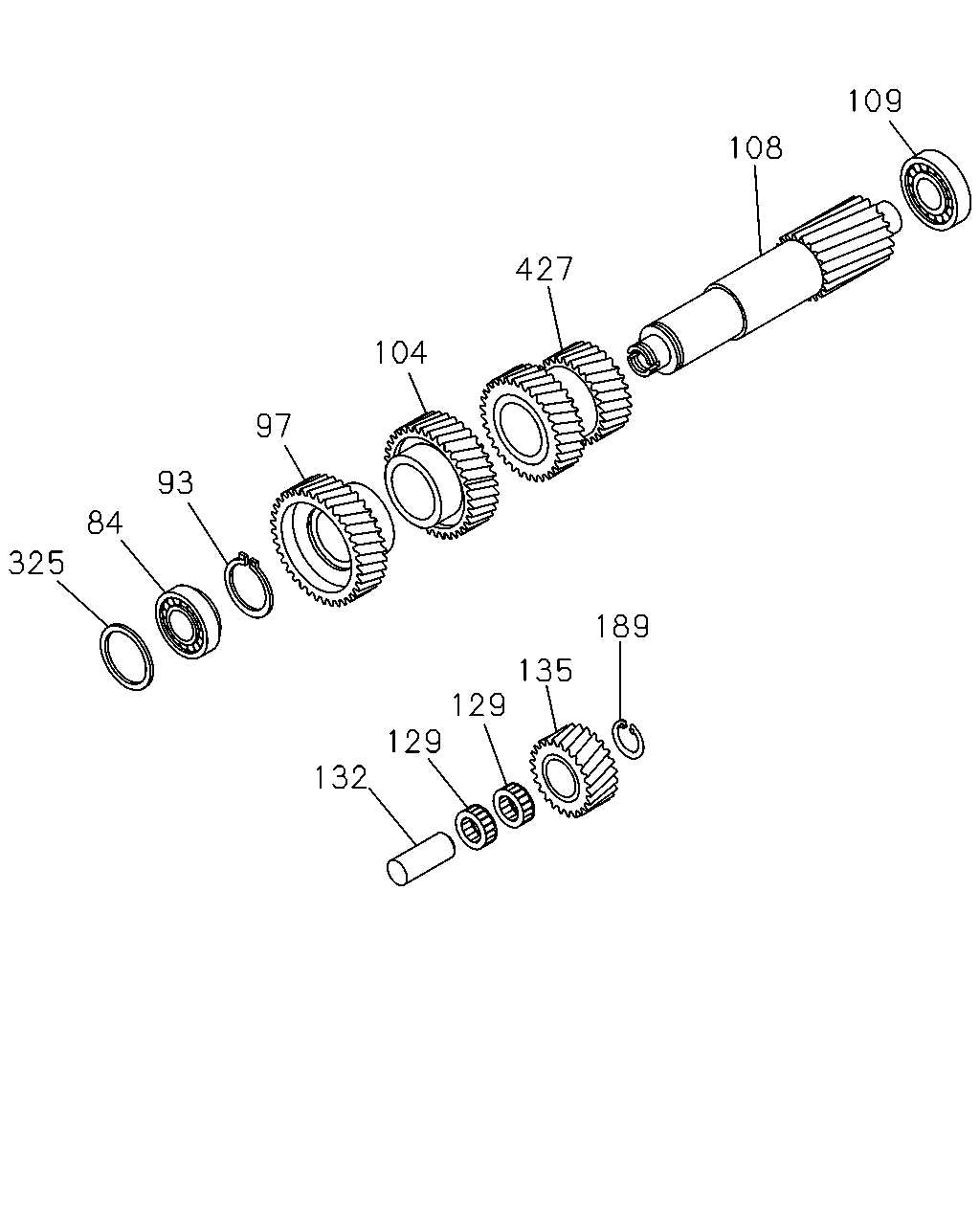

109 108 427 104 97 93 84 325 189 135 129 129 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BEARING; COUNTER SHAFT,FRT ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33312-015-0	01	1	1001-1305
84	BEARING; COUNTER SHAFT,FRT EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33312-016-0	01	1	1001-1305
84	BEARING; COUNTER SHAFT,FRT PTO ZF TRANS RR(BDM)	1-33312-016-0	01	1	1001-1305
84	BEARING; COUNTER SHAFT,FRT	1-33312-016-0	01	1	1306-
93	RING; SNAP,COUNTER FRT BRG T=2.6	1-33319-264-0	01	1	1306-
93	RING; SNAP,COUNTER FRT BRG T=2.0	1-33319-251-0	01	1	1001-
93	RING; SNAP,COUNTER FRT BRG T=2.5	1-33319-252-0	01	1	1001-
93	RING; SNAP,COUNTER FRT BRG T=2.4	1-33319-253-0	01	1	1001-
93	RING; SNAP,COUNTER FRT BRG T=2.3	1-33319-254-0	01	1	1001-
93	RING; SNAP,COUNTER FRT BRG T=2.2	1-33319-255-0	01	1	1001-
93	RING; SNAP,COUNTER FRT BRG T=2.1	1-33319-256-0	01	1	1001-
97	GEAR; 5TH,COUNTER	1-33338-398-0	01	1	1001-
104	GEAR; 4TH,COUNTER	1-33338-397-0	01	1	1001-
108	SHAFT; COUNTER	1-33311-347-0	01	1	1001-
109	BEARING; COUNTER SHAFT,RR	1-33312-006-0	01	1	1001-
129	BEARING; NEEDLE,IDLER ASSISTOR SHIFT CONTROL<WX8>	1-33369-013-0	02	1	1001-1305
129	BEARING; NEEDLE,IDLER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33369-026-0	02	1	1001-1305
129	BEARING; NEEDLE,IDLER	1-33369-026-0	02	1	1306-
132	SHAFT; REV	1-33351-024-0	01	1	1001-
135	GEAR; REV IDLER	1-33361-092-0	01	1	1001-1305
135	GEAR; REV IDLER	1-33361-096-0	01	1	1306-
189	RING; SNAP,REV,GEAR	1-44519-224-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.60	1-33389-047-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.40	1-33389-086-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33389-048-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.50	1-33389-049-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.30	1-33389-088-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33389-073-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.90	1-33389-074-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.80	1-33389-075-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33389-076-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33389-077-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33389-078-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.85	1-33389-079-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=1.95	1-33389-080-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.05	1-33389-081-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.10	1-33389-082-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.15	1-33389-083-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33389-084-0	01	1	1001-
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.45	1-33389-050-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.50	8-98080-571-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.50	8-98080-571-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.40	1-33389-051-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG ASSISTOR SHIFT CONTROL<WX8> T=1.60	8-98080-572-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> T=1.60	8-98080-572-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40	1-33389-086-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60	1-33389-047-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35	1-33389-087-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.35	1-33389-087-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30	1-33389-088-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50	1-33389-049-0	01	1	1306-
325	SHIM; COUNTER SHAFT BRG EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25	1-33389-089-0	01	1	1001-1305
325	SHIM; COUNTER SHAFT BRG T=2.25	1-33389-089-0	01	1	1306-
427	GEAR; 2ND & 3RD,COUNTER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33332-130-0	01	1	1001-1305
427	GEAR; 2ND & 3RD,COUNTER	1-33332-132-0	01	1	1306-
427	GEAR; 2ND & 3RD,COUNTER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33332-131-0	01	1	1001-1305
427	GEAR; 2ND & 3RD,COUNTER PTO ZF TRANS RR(BDM)	1-33332-131-0	01	1	1001-1305

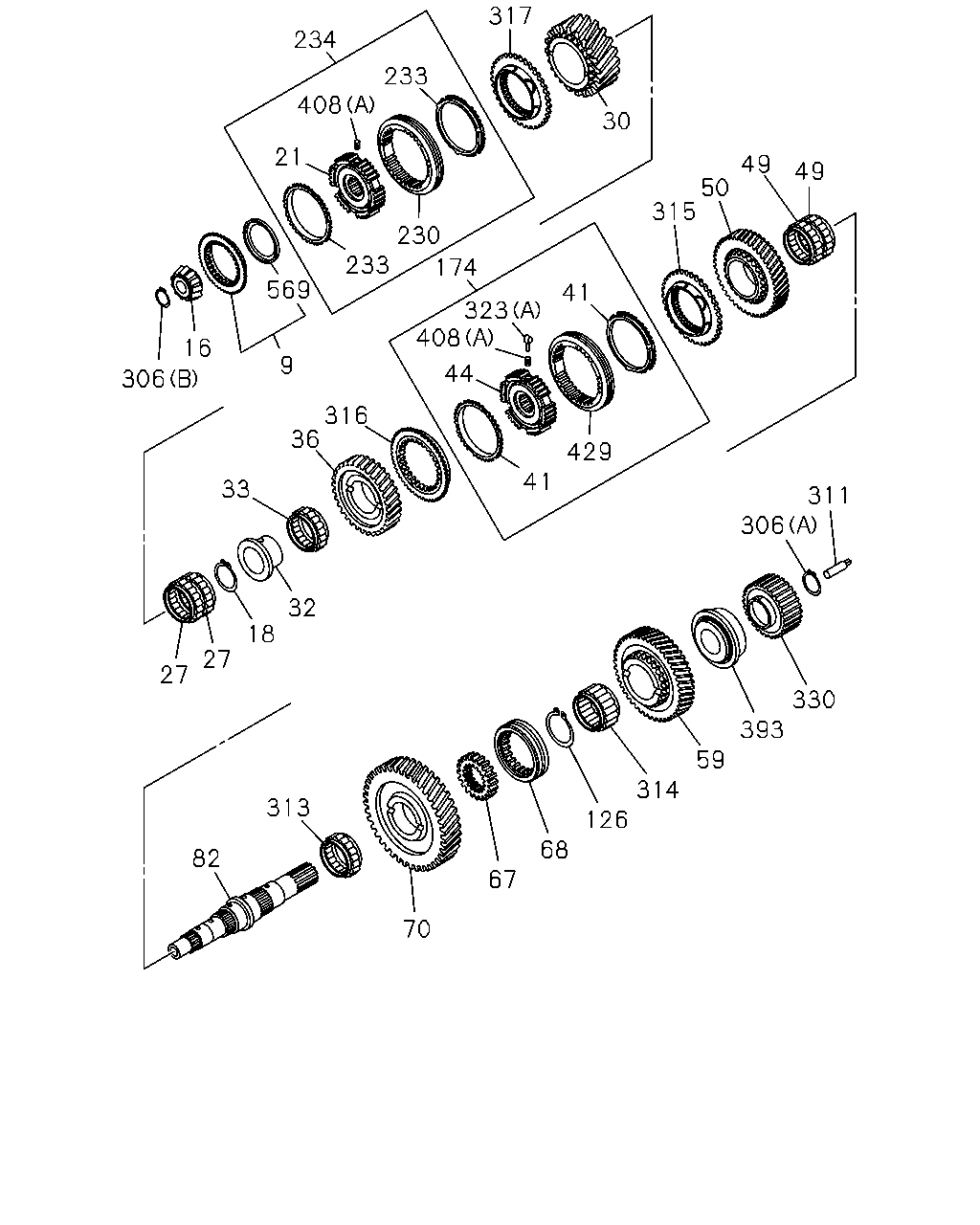

317 234 233 408 30 21 49 49 50 315 230 233 174 569 41 323 408 16 9 44 306 316 36 429 41 33 311 306 32 18 27 27 330 393 59 314 313 126 68 82 67 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	1001-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	1001-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1001-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	1001-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	1001-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	1001-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	1001-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	1001-
21	HUB; CLU,4TH & 5TH	1-33261-295-0	01	1	1001-
27	BEARING; 4TH GEAR ASSISTOR SHIFT CONTROL<WX8>	1-33259-106-0	02	1	1001-1305
27	BEARING; 4TH GEAR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33259-128-0	02	1	1001-1305
27	BEARING; 4TH GEAR	1-33259-128-0	02	1	1306-
30	GEAR; 4TH,MAINSHAFT	1-33251-436-0	01	1	1001-
32	COLLAR; 3RD GEAR	1-33259-059-0	01	1	1001-1305
32	COLLAR; 3RD GEAR	1-33259-140-0	01	1	1306-
33	BEARING; NEEDLE,3RD GEAR ASSISTOR SHIFT CONTROL<WX8>	1-33259-065-0	01	1	1001-1305
33	BEARING; NEEDLE,3RD GEAR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33259-127-0	01	1	1001-1305
33	BEARING; NEEDLE,3RD GEAR	1-33259-127-0	01	1	1306-
36	GEAR; 3RD,MAINSHAFT	1-33252-478-0	01	1	1001-
41	RING; BLOCK,2ND & 3RD	1-33265-498-0	02	1	1001-
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-231-0	01	1	1001-1305
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-303-0	01	1	1306-
49	BEARING; NEEDLE,2ND GEAR ASSISTOR SHIFT CONTROL<WX8>	1-33259-058-0	02	1	1001-1305
49	BEARING; NEEDLE,2ND GEAR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33259-126-0	02	1	1001-1305
49	BEARING; NEEDLE,2ND GEAR	1-33259-126-0	02	1	1306-
50	GEAR; 2ND,MAINSHAFT	1-33251-435-0	01	1	1001-1305
50	GEAR; 2ND,MAINSHAFT	1-33251-448-0	01	1	1306-
59	GEAR; REV MAINSHAFT	1-33257-100-0	01	1	1001-1305
59	GEAR; REV MAINSHAFT	1-33257-101-0	01	1	1306-
67	HUB; CLU,1ST TO REV ASSISTOR SHIFT CONTROL<WX8>	1-33259-048-0	01	1	1001-1305
67	HUB; CLU,1ST TO REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33259-135-0	01	1	1001-1305
67	HUB; CLU,1ST TO REV	1-33259-135-0	01	1	1306-
68	SLEEVE; 1ST TO REV	1-33259-049-0	01	1	1001-
70	GEAR; 1ST,MAINSHAFT	1-33251-434-0	01	1	1001-
82	SHAFT; MAIN,TRANS	1-33231-337-0	01	1	1001-

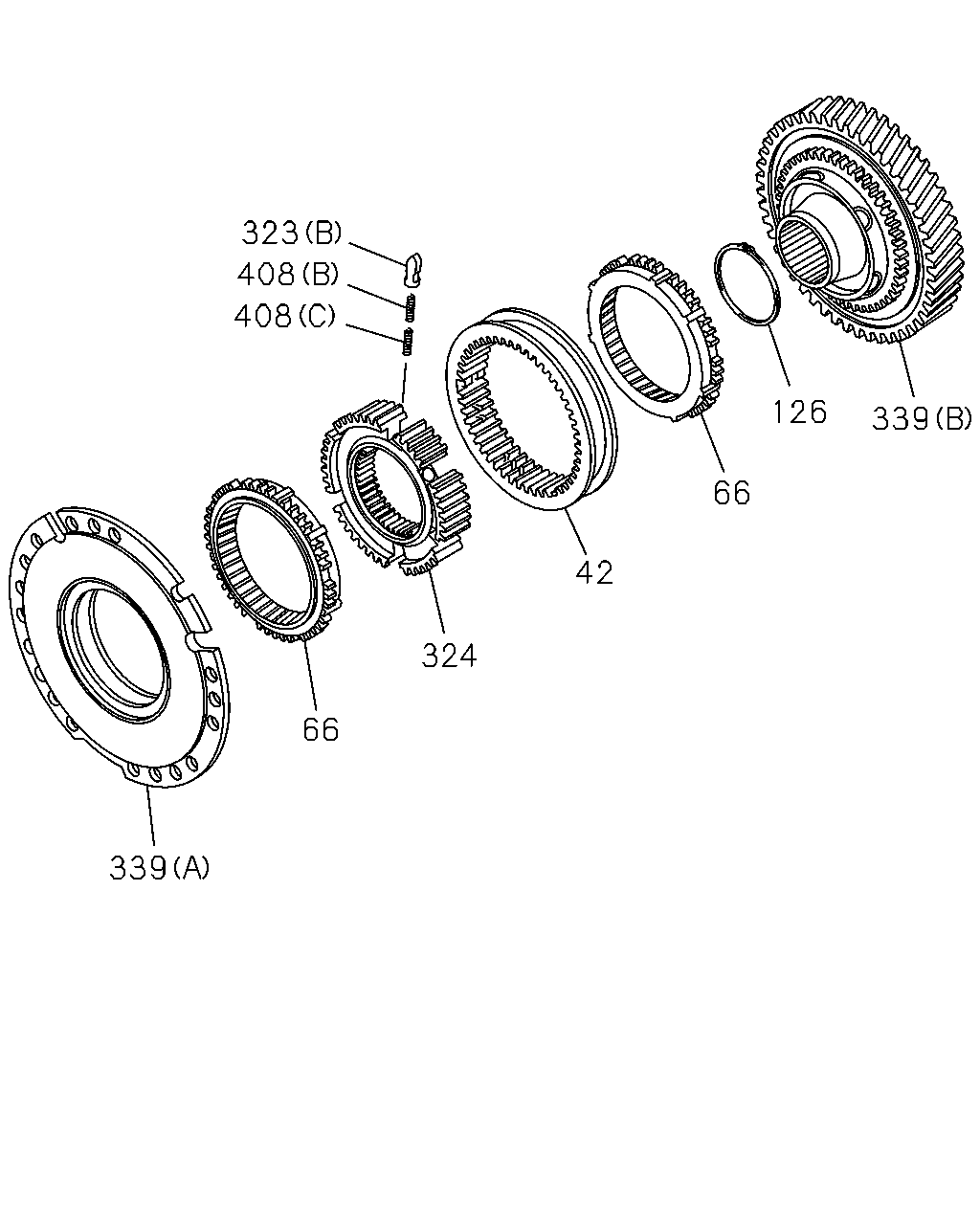

126	RING; SNAP,CLU HUB T=2.8	1-33259-050-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.7	1-33259-051-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.6	1-33259-052-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.5	1-33259-053-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1001-
126	RING; SNAP,CLU HUB T=4.0	1-33269-047-0	01	1	1001-
126	RING; SNAP,CLU HUB T=3.9	1-33269-048-0	01	1	1001-
126	RING; SNAP,CLU HUB T=3.8	1-33269-049-0	01	1	1001-
126	RING; SNAP,CLU HUB T=3.7	1-33269-050-0	01	1	1001-
174	SYNCHRONIZER ASM; 2ND-3RD ASSISTOR SHIFT CONTROL<WX8>	1-33260-169-0	01	1	1001-1305
230	SLEEVE; 4TH TO 5TH	1-33262-239-0	01	1	1001-
233	RING; BLOCK 4TH TO 5TH	1-33269-096-0	02	1	1001-
234	SYNCHRONIZER ASM; 4TH TO 5TH ASSISTOR SHIFT CONTROL<WX8>	1-33260-170-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	1001-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	1001-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	1001-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	1001-
313	BEARING; NEEDLE,LOW GEAR ASSISTOR SHIFT CONTROL<WX8>	1-33259-047-0	01	1	1001-1305
313	BEARING; NEEDLE,LOW GEAR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33259-124-0	01	1	1001-1305
313	BEARING; NEEDLE,LOW GEAR	1-33259-124-0	01	1	1306-
314	BEARING; NEEDLE,REV GEAR ASSISTOR SHIFT CONTROL<WX8>	1-33259-055-0	01	1	1001-1305
314	BEARING; NEEDLE,REV GEAR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33259-125-0	01	1	1001-1305
314	BEARING; NEEDLE,REV GEAR	1-33259-125-0	01	1	1306-
315	CLUTCH; DOG,2ND GEAR	1-33265-629-0	01	1	1001-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	1001-
317	CLUTCH; DOG,4TH GEAR	1-33265-630-0	01	1	1001-
323	INSERT (B)	1-33263-027-0	09	1	1001-
323	INSERT (A)	1-33263-030-0	06	1	1001-
330	GEAR; SUN	1-33259-105-0	01	1	1001-1305
330	GEAR; SUN	1-33259-134-0	01	1	1306-
393	BEARING; MAINSHAFT END	1-33259-104-0	01	1	1001-
408	SPRING (B)	1-33269-038-0	09	1	1001-
408	SPRING (C)	1-33269-039-0	09	1	1001-
408	SPRING (A)	1-33269-042-0	06	1	1001-
429	SLEEVE; 2ND & 3RD	1-33262-192-0	01	1	1001-1305
429	SLEEVE; 2ND & 3RD	1-33262-244-0	01	1	1306-
569	DAM; OIL	1-33269-097-0	01	1	1001-

323 408 408 126 339 66 42 324 66 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	SLEEVE	1-33262-195-0	01	1	1001-
66	RING; BLOCK,SYN	1-33339-069-0	02	1	1001-
126	RING; SNAP,CLU HUB T=2.8	1-33259-050-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.7	1-33259-051-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.6	1-33259-052-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.5	1-33259-053-0	01	1	1001-
126	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1001-
126	RING; SNAP,CLU HUB T=4.0	1-33269-047-0	01	1	1001-
126	RING; SNAP,CLU HUB T=3.9	1-33269-048-0	01	1	1001-
126	RING; SNAP,CLU HUB T=3.8	1-33269-049-0	01	1	1001-
126	RING; SNAP,CLU HUB T=3.7	1-33269-050-0	01	1	1001-
323	INSERT (B)	1-33263-027-0	09	1	1001-
323	INSERT (A)	1-33263-030-0	06	1	1001-
324	HUB; CLU	1-33261-230-0	01	1	1001-
339	CLUTCH; PLANETARY GEAR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33265-649-0	01	1	1306-
339	CLUTCH; PLANETARY GEAR (A)	1-33265-453-0	01	1	1001-1305
339	CLUTCH; PLANETARY GEAR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33265-453-0	01	1	1306-
339	CLUTCH; PLANETARY GEAR (B)	1-33265-632-0	01	1	1001-
408	SPRING (B)	1-33269-038-0	09	1	1001-
408	SPRING (C)	1-33269-039-0	09	1	1001-
408	SPRING (A)	1-33269-042-0	06	1	1001-

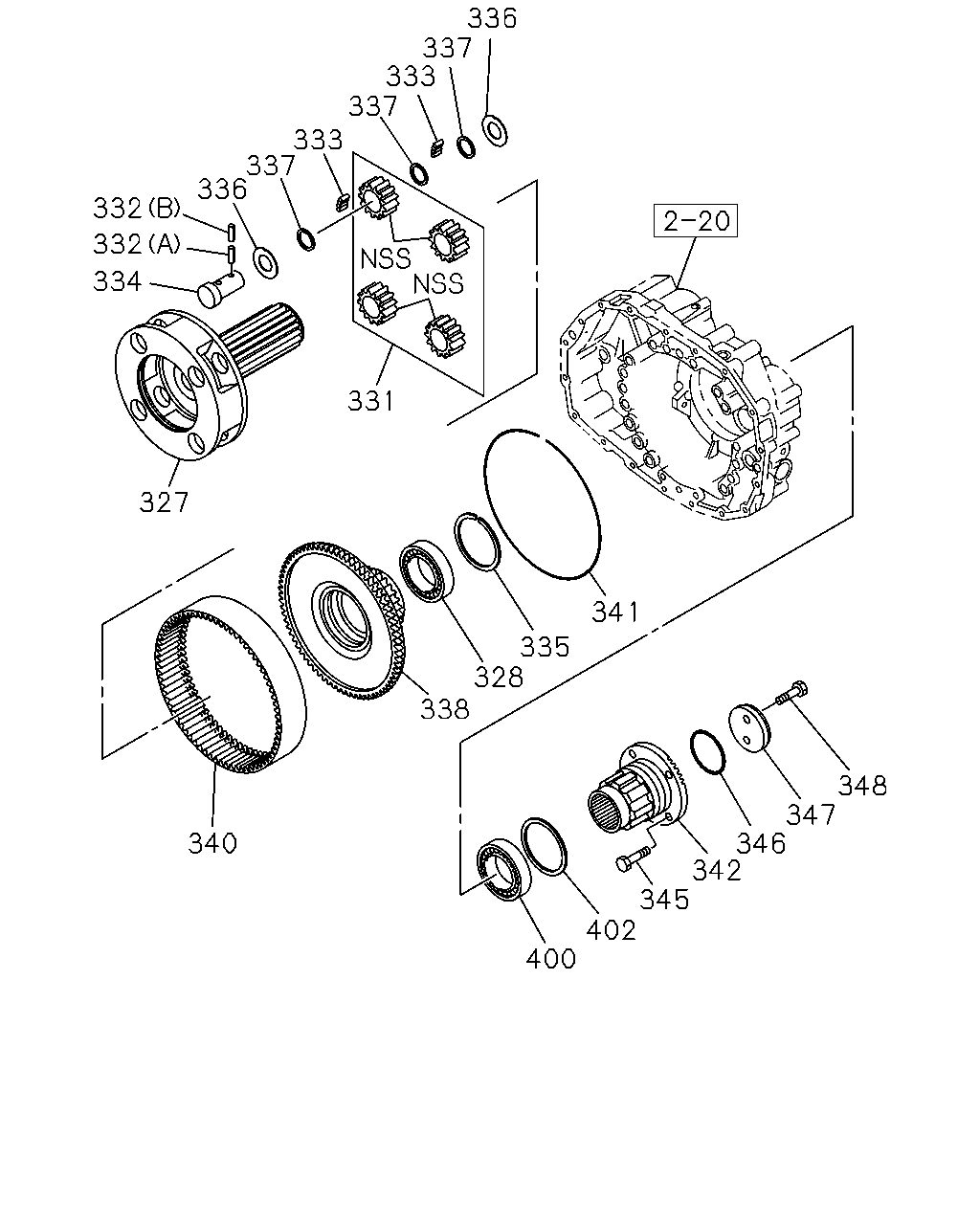

336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 402 400 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
327	CARRIER; PLANETARY GEAR	1-33231-338-0	01	1	1001-
328	BEARING; CARRIER	1-33339-094-0	01	1	1001-
331	GEAR SET; PLANETARY	1-33239-350-0	01	1	1001-
332	PIN; LOCK,SHAFT (A)	1-33239-178-0	04	1	1001-
332	PIN; LOCK,SHAFT (B)	1-33239-179-0	04	1	1001-
333	ROLLER; PLANETARY GEAR	1-33239-232-0	AR	1	1001-
334	SHAFT; PLANETARY GEAR ASSISTOR SHIFT CONTROL<WX8>	1-33239-351-0	04	1	1001-1305
334	SHAFT; PLANETARY GEAR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33239-359-0	04	1	1001-1305
334	SHAFT; PLANETARY GEAR	1-33239-359-0	04	1	1306-
335	RING; SNAP,BEARING T=2.50	1-33339-075-0	01	1	1001-
335	RING; SNAP,BEARING T=2.40	1-33339-076-0	01	1	1001-
335	RING; SNAP,BEARING T=2.30	1-33339-077-0	01	1	1001-
335	RING; SNAP,BEARING T=2.20	1-33339-078-0	01	1	1001-
335	RING; SNAP,BEARING T=2.10	1-33339-079-0	01	1	1001-
335	RING; SNAP,BEARING T=2.00	1-33339-080-0	01	1	1001-
336	WASHER; THRUST,PLANETARY GEAR	1-33239-174-0	08	1	1001-
337	WASHER; PLANETARY GEAR,INNER	1-33239-176-0	12	1	1001-
338	CARRIER; RING GEAR	1-33331-275-0	01	1	1001-
340	GEAR; RING ASSISTOR SHIFT CONTROL<WX8>	1-33339-095-0	01	1	1001-1305
340	GEAR; RING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33339-099-0	01	1	1001-1305
340	GEAR; RING	1-33339-099-0	01	1	1306-
341	WIRE; LOCK,CARRIER	1-33339-096-0	01	1	1001-
342	FLANGE; OUTPUT	1-37243-429-0	01	1	1001-
345	BOLT; FLANGE TO YOKE	1-37249-147-0	04	1	1001-
346	GASKET; FLANGE	1-37249-156-0	01	1	1001-
347	WASHER; FLANGE	1-09509-060-0	01	1	1001-
348	BOLT; SHAFT	1-37249-207-0	02	1	1001-1305
348	BOLT; SHAFT	1-37249-215-0	02	1	1306-
400	BEARING; OUTPUT SHAFT RR	1-33139-212-0	01	1	1001-
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=2.20	1-33139-064-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=2.10	1-33139-065-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=2.00	1-33139-066-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.90	1-33139-067-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.80	1-33139-068-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.70	1-33139-069-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.60	1-33139-070-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.50	1-33139-071-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.40	1-33139-072-0	01	1	1001-1305
402	SHIM ASSISTOR SHIFT CONTROL<WX8> T=1.30	1-33139-073-0	01	1	1001-1305

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
