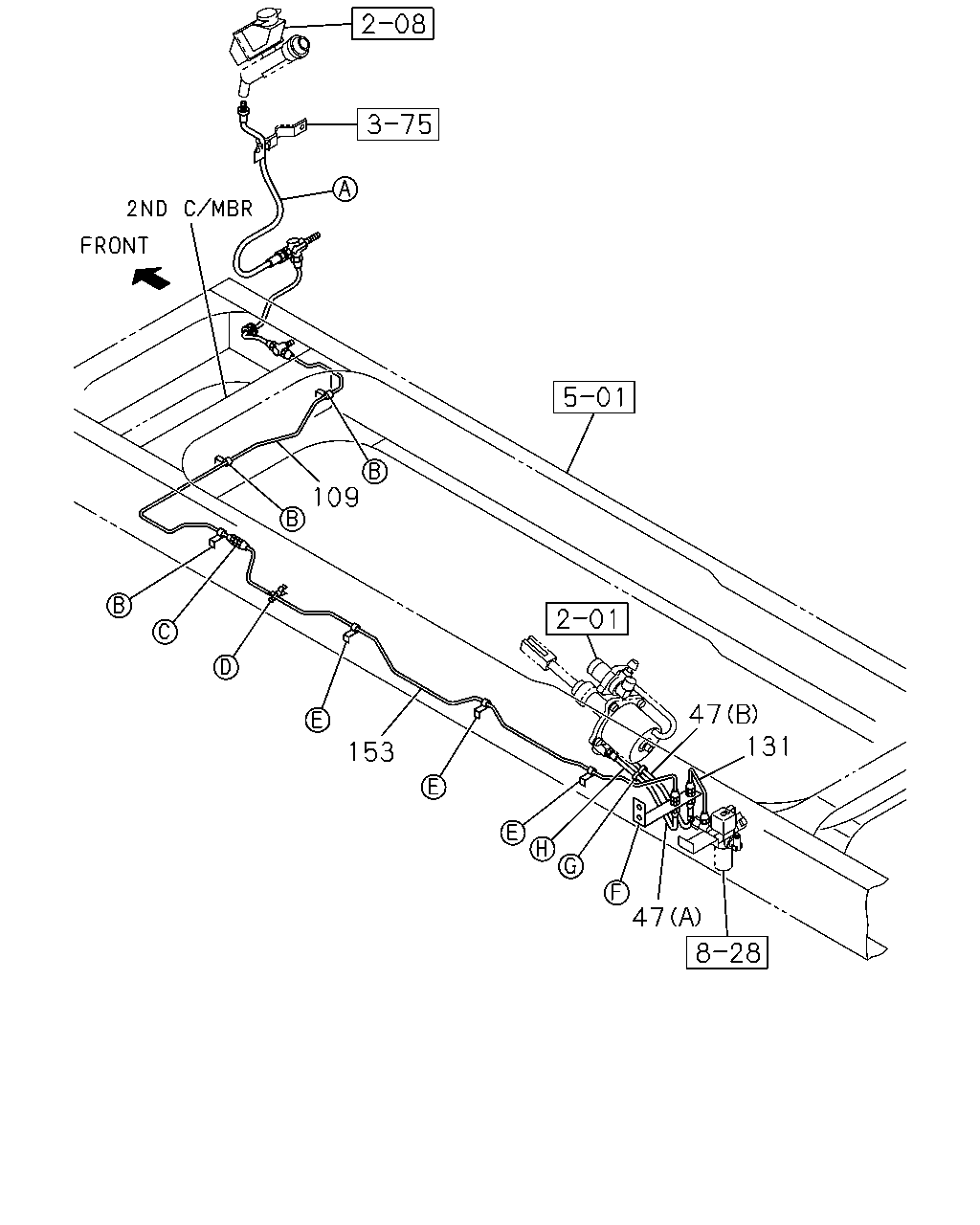

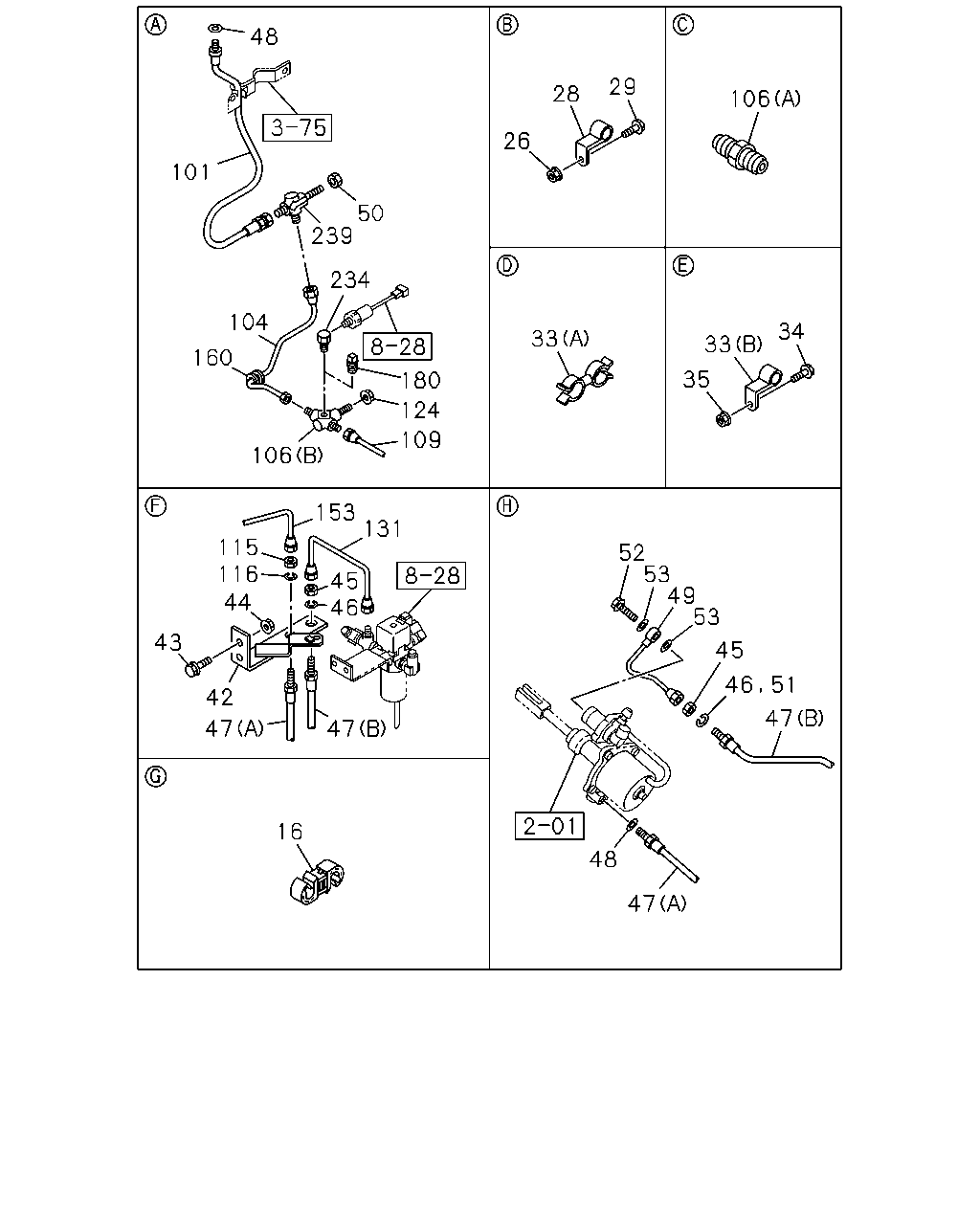

2-05 — CLUTCH PIPING (#18425) — 47 parça

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT (B) L=500	1-09363-720-0	01	1	1001-
47	HOSE; FLEX,CLU CONT (A) L=500	1-09364-329-0	01	1	1001-
109	PIPE; AIR,UNION TO UNION L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1001-
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1001-
131	PIPE; AIR,UNION TO FLEX HOSE EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1001-
131	PIPE; AIR,UNION TO FLEX HOSE RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1001-
153	PIPE ASM; CLU,UNION TO FLEX L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1001-

48 29 28 106 26 101 50 239 234 104 34 33 33 160 35 180 124 109 106 153 131 115 116 44 52 53 49 53 45 46 43 45 42 47 47 47 16 48 47 46 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1001-
26	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	03	1	1001-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	1001-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1001-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1001-
33	CLIP; OIL PIPE (A) ID=8.3 & 10	8-94176-792-0	01	1	1001-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1001-
35	NUT; PIPE CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1001-
42	BRACKET; FLEX HOSE,CLU CONT	8-98099-521-1	01	1	1001-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1001-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE SOU	0-91180-108-0	02	1	1001-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	1001-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2 SOU	0-91510-512-0	02	1	1001-1009
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011
47	HOSE; FLEX,CLU CONT (B) L=500	1-09363-720-0	01	1	1001-
47	HOSE; FLEX,CLU CONT (A) L=500	1-09364-329-0	01	1	1001-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1001-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232	1-49124-795-0	01	1	1001-
50	NUT; UNION M12	0-91111-512-0	01	1	1001-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1012-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1001-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1001-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	1001-
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1001-
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1001-
109	PIPE; AIR,UNION TO UNION L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1001-
115	NUT; FLEX HOSE,CLU CONT M14 SOU	0-91111-514-0	01	1	1001-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2 SOU	0-91510-814-0	01	1	1001-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1001-
131	PIPE; AIR,UNION TO FLEX HOSE H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1001-
131	PIPE; AIR,UNION TO FLEX HOSE EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1001-
131	PIPE; AIR,UNION TO FLEX HOSE RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1001-
153	PIPE ASM; CLU,UNION TO FLEX L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1001-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1001-
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1001-
239	UNION; CLU HOSE	8-98107-850-0	01	1	1001-
