1-50 — EXHAUST PIPE AND SILENCER (#18420) — 127 parça

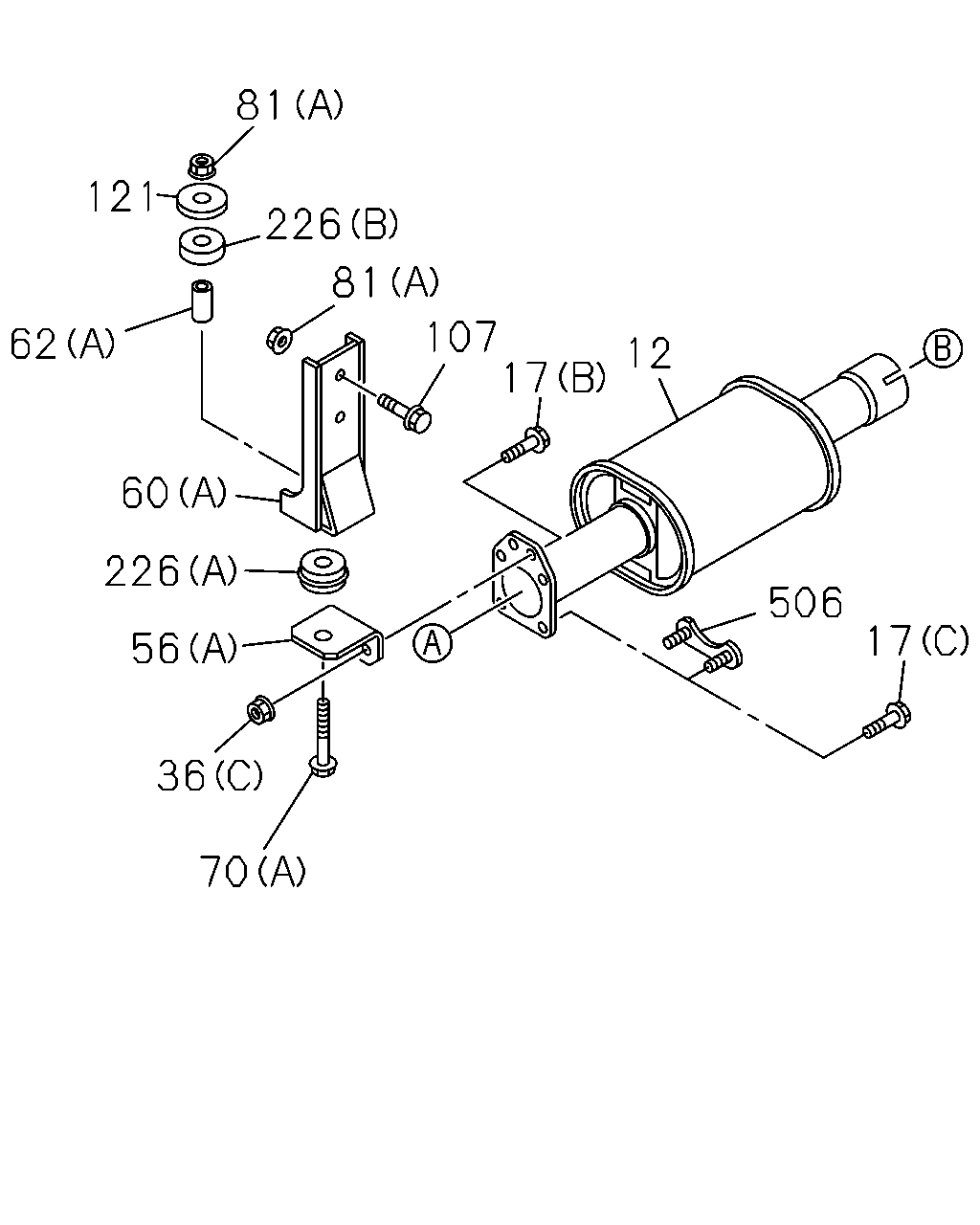

çizim 127652
17 506 12 17 107 81 226 81 121 62 60 56 226 36 70
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98101-274-1 01 1 1001-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1001-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
36 NUT; EXH PIPE
(C) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
36 NUT; EXH PIPE
(B) M12 FLANGE SOU 		0-91180-212-0 07 1 1001-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98070-639-0 01 1 1001-1309
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(B) L=22 SOU 		9-22159-024-0 01 1 1001-
70 BOLT; BRKT
(B) M10X50 FLANGE SOU 		0-28051-050-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1001-1203

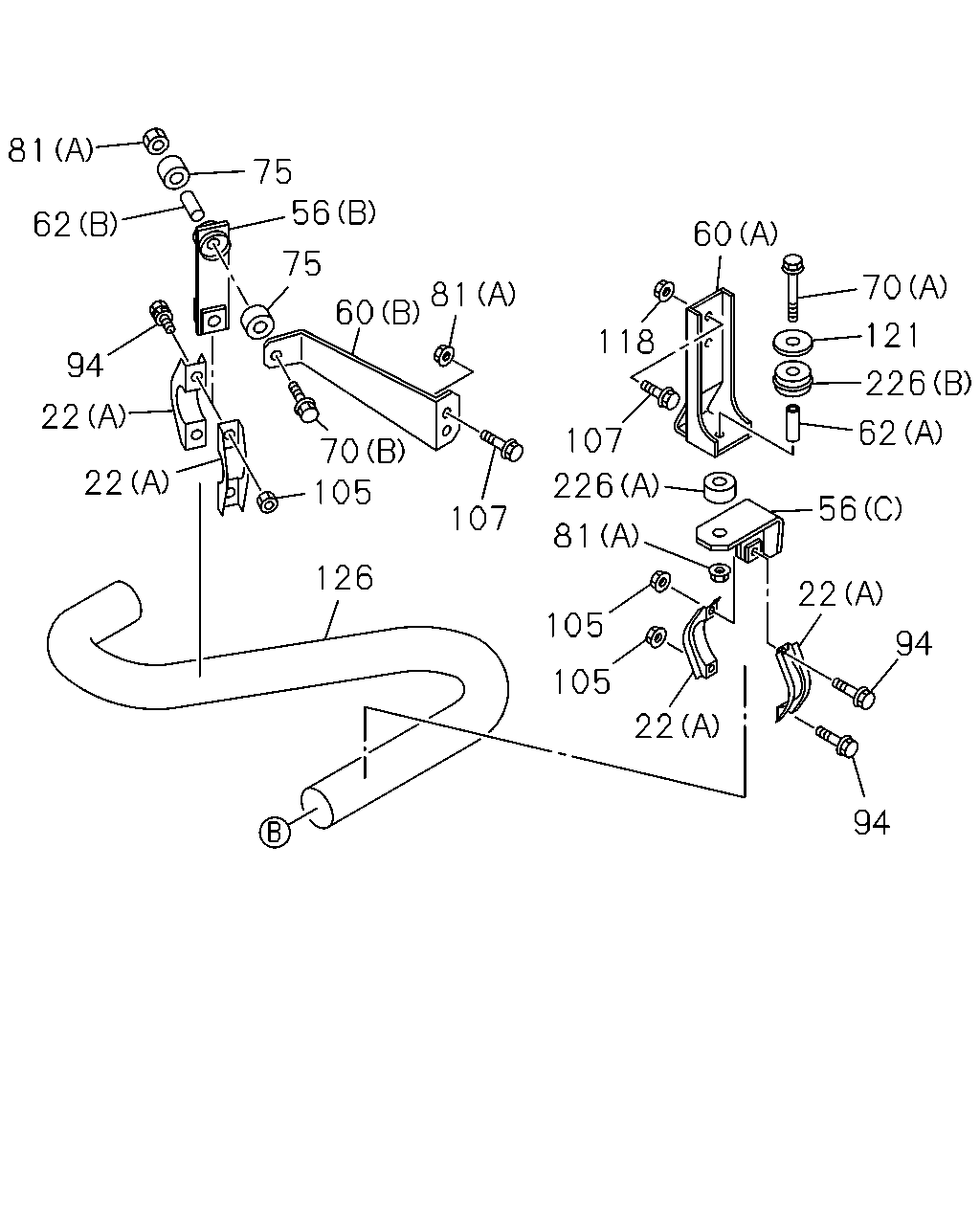

çizim 127654
94 94 22 56 62 226 121 70 22 105 105 81 226 107 118 60 126 107 105 70 81 60 75 56 75 22 22 94 62 81
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98070-639-0 01 1 1001-1309
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(B) L=22 SOU 		9-22159-024-0 01 1 1001-
70 BOLT; BRKT
(B) M10X50 FLANGE SOU 		0-28051-050-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
75 RUBBER; SUPPORT,BRKT
OD=40 SOU 		1-22159-193-0 02 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
94 BOLT; CLAMP
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1001-
94 BOLT; CLAMP
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1001-
105 NUT; CLAMP
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
105 NUT; CLAMP
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
118 NUT; SILENCER MTG BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
126 PIPE; EXH,RR 8-98069-920-0 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-

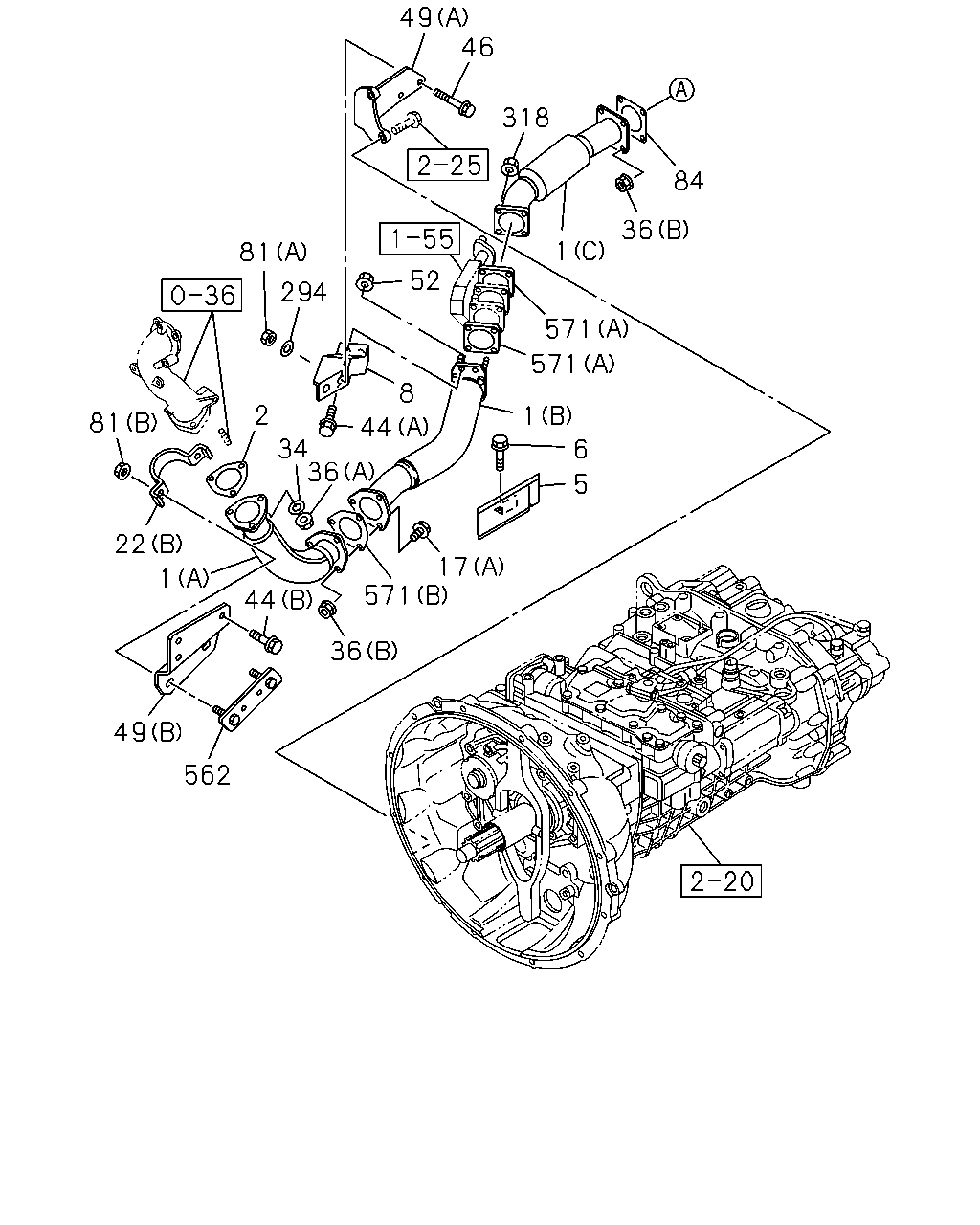

çizim 127655
81 81 22 44 49 562 36 571 5 6 1 571 571 1 36 84 318 46 49 52 8 44 36 34 2 294 1 17
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98060-615-0 01 1 1001-1309
1 PIPE; EXH
(B) 		8-98245-500-0 01 1 1310-
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 1001-
1 PIPE; EXH
(C) 		8-98090-386-0 01 1 1001-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1001-
5 PROTECTOR; HEAT 8-98073-436-0 01 1 1001-1406
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1001-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1001-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
22 CLAMP; EXH PIPE
(B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1001-
36 NUT; EXH PIPE
(C) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
36 NUT; EXH PIPE
(B) M12 FLANGE SOU 		0-91180-212-0 07 1 1001-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1001-
44 BOLT; BRKT
(B) M10X20 FLANGE 		0-28751-020-0 03 1 1305-
44 BOLT; BRKT
(A) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1001-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98120-497-0 01 1 1001-
52 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1304
81 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1001-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1001-
318 NUT; EXH PIPE,FRT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-
562 PLATE; STUD,BOLT 8-97615-333-1 01 1 1305-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1001-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1001-
