Isuzu WW
▶
TRUCKS
▶
FVR
▶
11167 - FVR(SOUTH AFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#18418) — 76 parça
◀

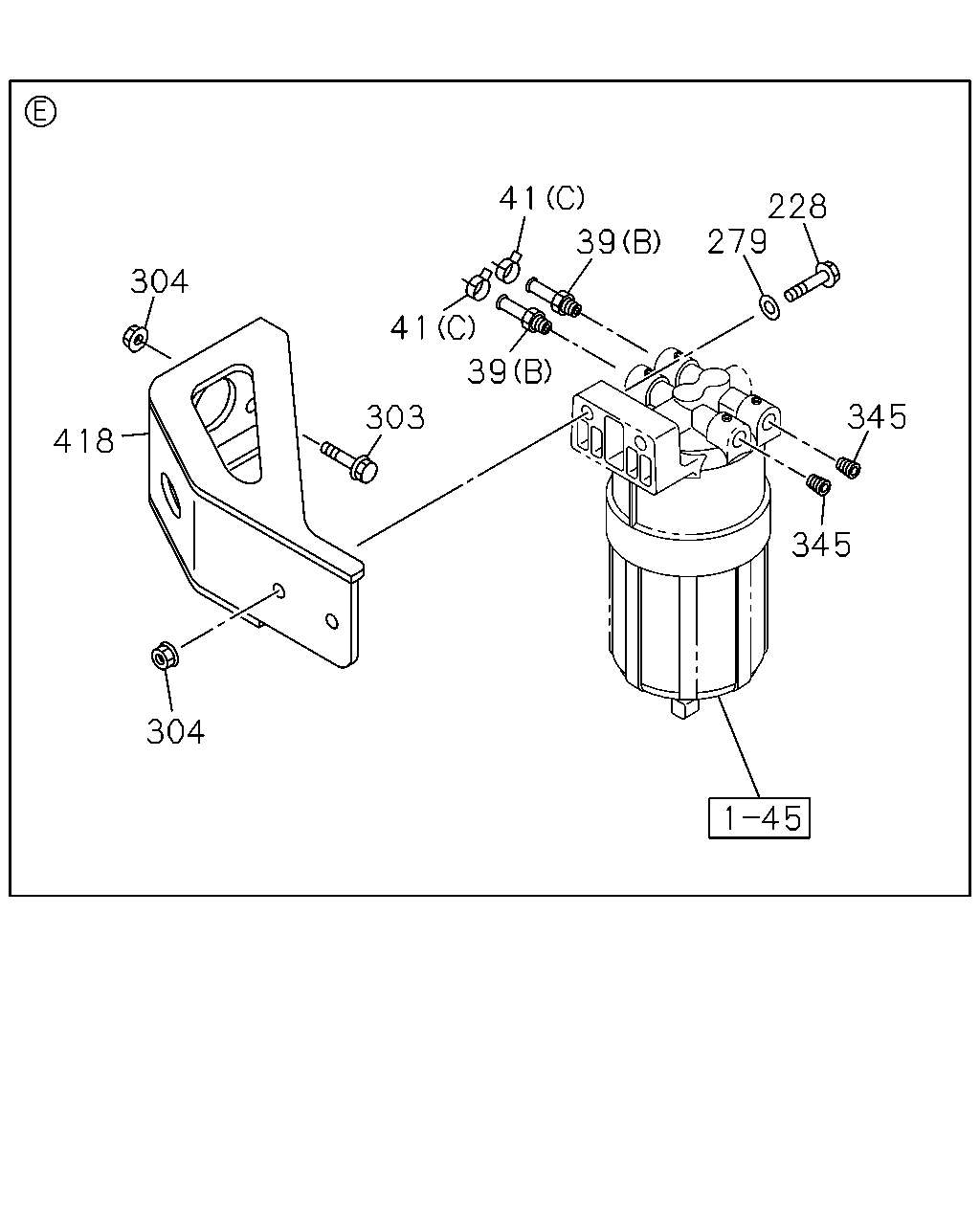

[141A] PRE FUEL FILTER FIXING (19 parça)

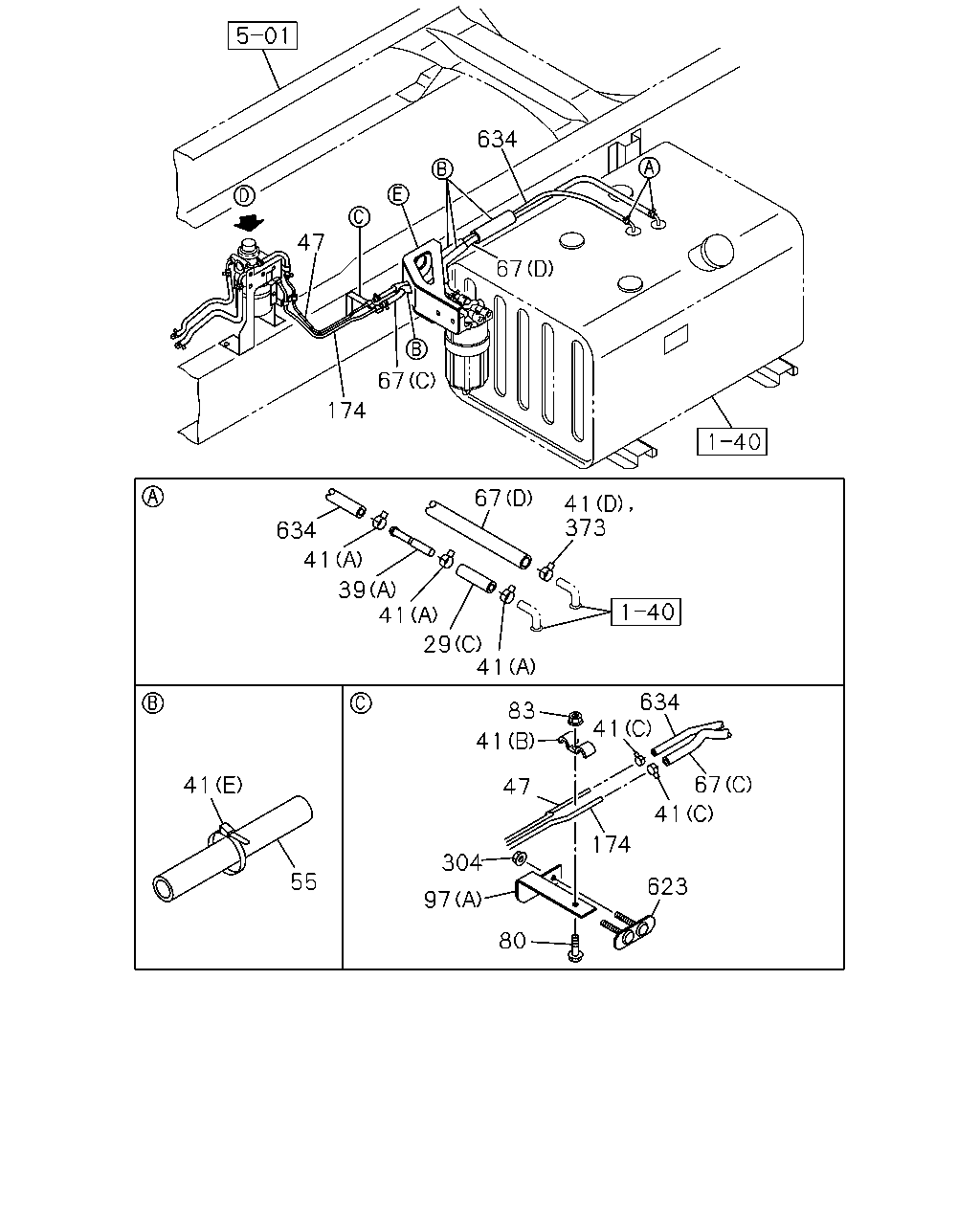

[141A] PIPING (29 parça)

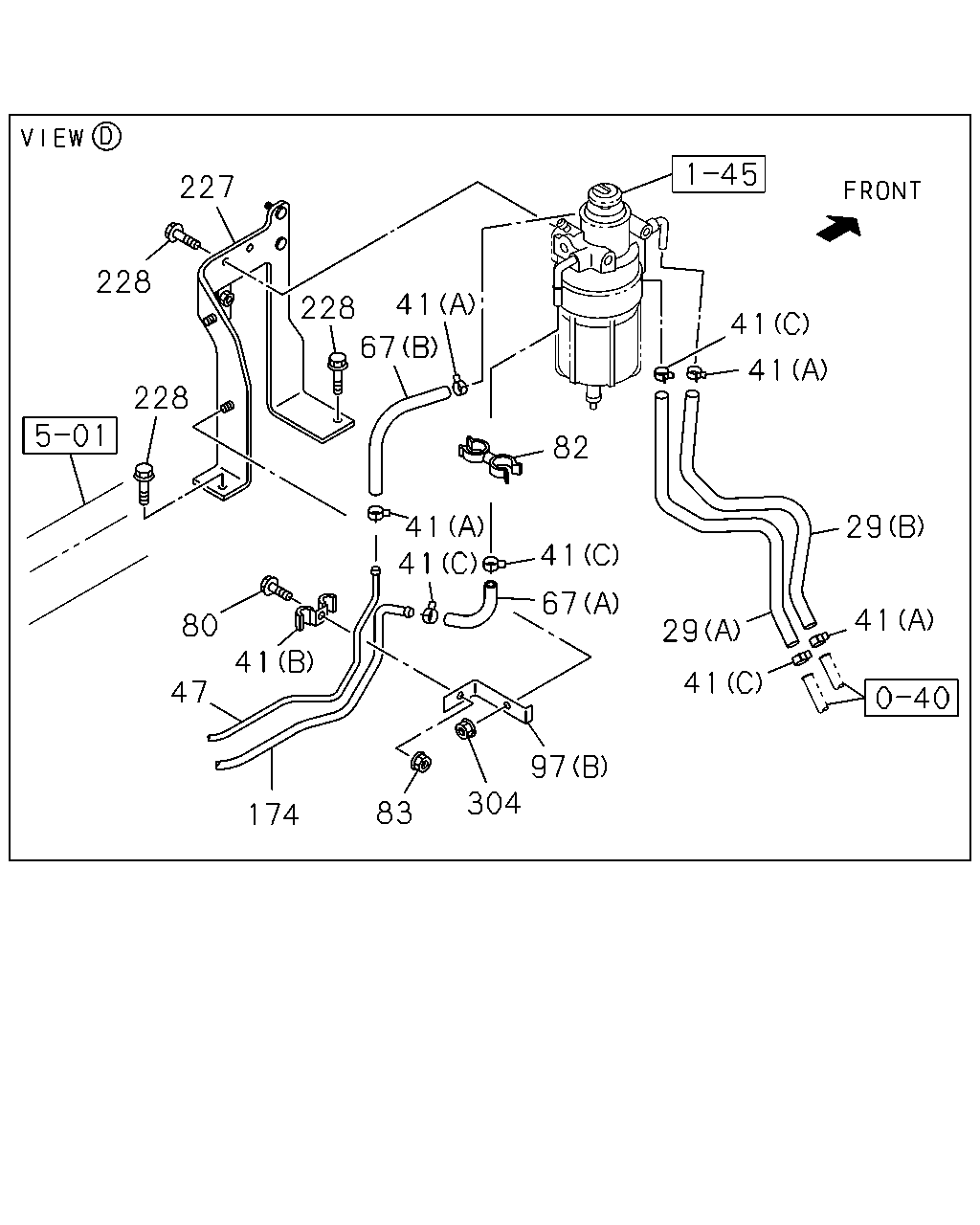

[141A] FUEL SEDIMENTER FIXING (28 parça)
▶
41
228
279
39
304
41
39
345
303
418
345
304
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
PIPE; FUEL
(A)
8-98009-438-1
01
1
1001-
39
PIPE; FUEL
(B) NPTF3/8-18 OD=10
8-98122-953-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14
1-09704-102-0
06
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU
5-09707-030-1
01
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU
5-09707-030-1
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 SOU
8-94238-568-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13
8-94238-571-0
06
1
1001-
228
BOLT; BRKT,SEDIMENTER
M8X25 FLANGE SOU
0-28050-825-0
02
1
1001-
228
BOLT; BRKT,SEDIMENTER
M10X50 FLANGE SOU
0-28051-050-0
02
1
1001-
228
BOLT; BRKT,SEDIMENTER
M8X20 FLANGE
0-28650-820-0
02
1
1001-
279
WASHER
ID=10.5 OD=26
0-91614-710-0
02
1
1001-
303
BOLT; BRKT
M10X35 FLANGE SOU
0-28651-035-0
02
1
1001-
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
02
1
1010-
304
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
03
1
1001-
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
03
1
1001-1009
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1010-
345
PLUG
NPTF3/8-18
8-97329-623-0
02
1
1001-
418
BRACKET; PRE FUEL FILTER
8-98128-254-0
01
1
1001-
634
67
67
47
174
41
67
373
634
41
39
41
29
41
83
634
41
41
47
67
41
174
623
304
97
80
55
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(C) L=60 SERVICED BY L=3000
0-01259-300-0
01
1
1001-
29
HOSE; FUEL
(A)
8-98078-196-2
01
1
1001-
29
HOSE; FUEL
(B)
8-98078-197-1
01
1
1001-
39
PIPE; FUEL
(A)
8-98009-438-1
01
1
1001-
39
PIPE; FUEL
(B) NPTF3/8-18 OD=10
8-98122-953-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14
1-09704-102-0
06
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU
5-09707-030-1
01
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU
5-09707-030-1
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 SOU
8-94238-568-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13
8-94238-571-0
06
1
1001-
47
PIPE; FUEL,RETURN
L=539
8-98117-709-0
01
1
1001-
55
COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1001-
67
HOSE; FUEL,DELIVERY
(B) L=110 SERVICED BY L=3000
0-01260-300-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(A) L=210 SERVICED BY L=3000
0-01558-300-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(C) L=300
8-98157-878-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(D) L=960
8-98157-880-0
01
1
1001-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
02
1
1001-
83
NUT; CLIP,FUEL TANK
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
97
BRACKET; CLIP
(B)
8-98053-654-0
01
1
1001-
97
BRACKET; CLIP
(A)
8-98126-612-0
01
1
1001-
174
PIPE; FUEL,FEED,FRT
L=548
8-98117-708-0
01
1
1001-
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
02
1
1010-
304
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
03
1
1001-
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
03
1
1001-1009
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1010-
373
CLAMP; HOSE,FUEL
ID=16 SOU
8-94238-568-0
02
1
1001-
623
PLATE; STUD BOLT
8-98126-633-0
01
1
1001-
634
HOSE; RUBBER RETURN
L=1050
8-98128-212-0
01
1
1001-
227
228
228
228
41
67
82
41
41
80
41
47
174
83
304
97
7
41
41
41
29
41
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(C) L=60 SERVICED BY L=3000
0-01259-300-0
01
1
1001-
29
HOSE; FUEL
(A)
8-98078-196-2
01
1
1001-
29
HOSE; FUEL
(B)
8-98078-197-1
01
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5
1-09700-747-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14
1-09704-102-0
06
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU
5-09707-030-1
01
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(E) L=250 SOU
5-09707-030-1
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 SOU
8-94238-568-0
02
1
1001-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=13
8-94238-571-0
06
1
1001-
47
PIPE; FUEL,RETURN
L=539
8-98117-709-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(B) L=110 SERVICED BY L=3000
0-01260-300-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(A) L=210 SERVICED BY L=3000
0-01558-300-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(C) L=300
8-98157-878-0
01
1
1001-
67
HOSE; FUEL,DELIVERY
(D) L=960
8-98157-880-0
01
1
1001-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
02
1
1001-
82
CLIP; FUEL HOSE
ID=13 & 16.5
8-94169-028-0
01
1
1001-
83
NUT; CLIP,FUEL TANK
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
97
BRACKET; CLIP
(B)
8-98053-654-0
01
1
1001-
97
BRACKET; CLIP
(A)
8-98126-612-0
01
1
1001-
174
PIPE; FUEL,FEED,FRT
L=548
8-98117-708-0
01
1
1001-
227
BRACKET; FUEL SEDIMENTER
8-98044-366-3
01
1
1001-
228
BOLT; BRKT,SEDIMENTER
M8X25 FLANGE SOU
0-28050-825-0
02
1
1001-
228
BOLT; BRKT,SEDIMENTER
M10X50 FLANGE SOU
0-28051-050-0
02
1
1001-
228
BOLT; BRKT,SEDIMENTER
M8X20 FLANGE
0-28650-820-0
02
1
1001-
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
02
1
1010-
304
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
03
1
1001-
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
03
1
1001-1009
304
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1010-
