Isuzu WW
▶
TRUCKS
▶
FVR
▶
11167 - FVR(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#18407) — 51 parça
◀
[060A] STARTER AND GENERATOR (20 parça)
[060A] ENG SIDE (15 parça)
[060A] ENG CONTROL UNIT AND OTHER PARTS (12 parça)
[060A] FRAME SIDE (4 parça)
▶

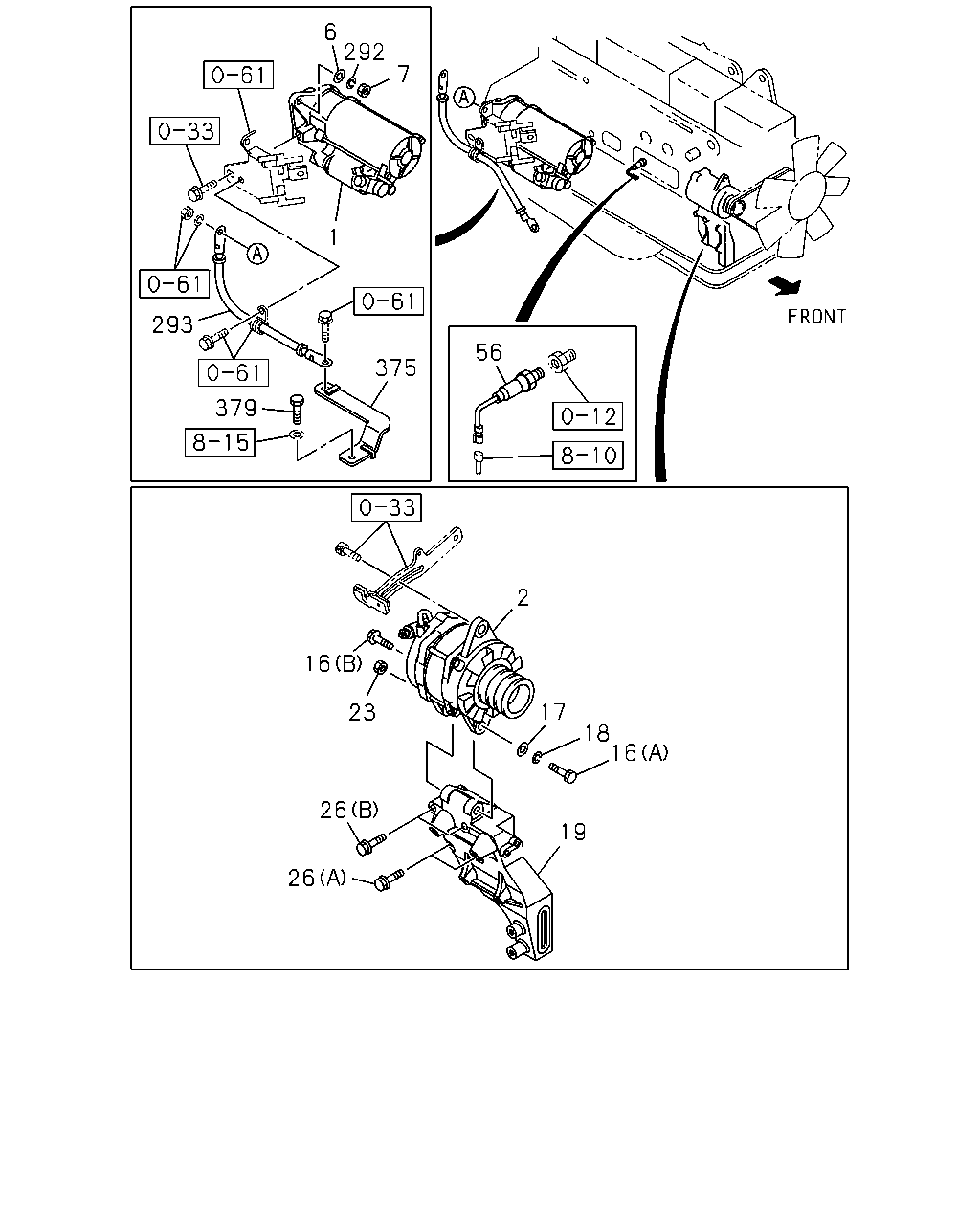

292
6
7
1
293
379
375
56
2
17
18
16
19
16
23
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98141-206-3
01
1
1001-1409
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98261-669-0
01
1
1410-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO
8-98013-461-5
01
1
1001-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98013-462-5
01
1
1001-
6
WASHER; PL,STARTER
ID=15
0-91610-514-0
01
1
1001-
7
NUT; STARTER
M14 SOU
0-91110-514-0
02
1
1001-
16
BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU
0-28050-610-0
03
1
1001-
16
BOLT; GEN
(A) M14X135
1-09000-133-1
01
1
1001-
16
BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU
0-28050-610-0
01
1
1001-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1001-
18
WASHER; LK,GEN
ID=14.2 SOU
0-91510-514-0
01
1
1001-
19
BRACKET; GEN
8-98082-615-1
01
1
1001-
23
NUT; GEN
M14 SOU
0-91110-514-0
01
1
1001-
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28151-040-0
02
1
1001-
26
BOLT; GEN BRKT
(B) M10X80 FLANGE
0-28151-080-0
02
1
1001-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
1001-
292
WASHER; LK,STARTER
ID=14.2 SOU
0-91510-514-0
01
1
1001-
293
CABLE; STARTER EARTH
L=420
8-98131-856-0
01
1
1001-
375
BRACKET
8-98131-726-0
01
1
1001-
379
BOLT; BRKT
M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
1001-

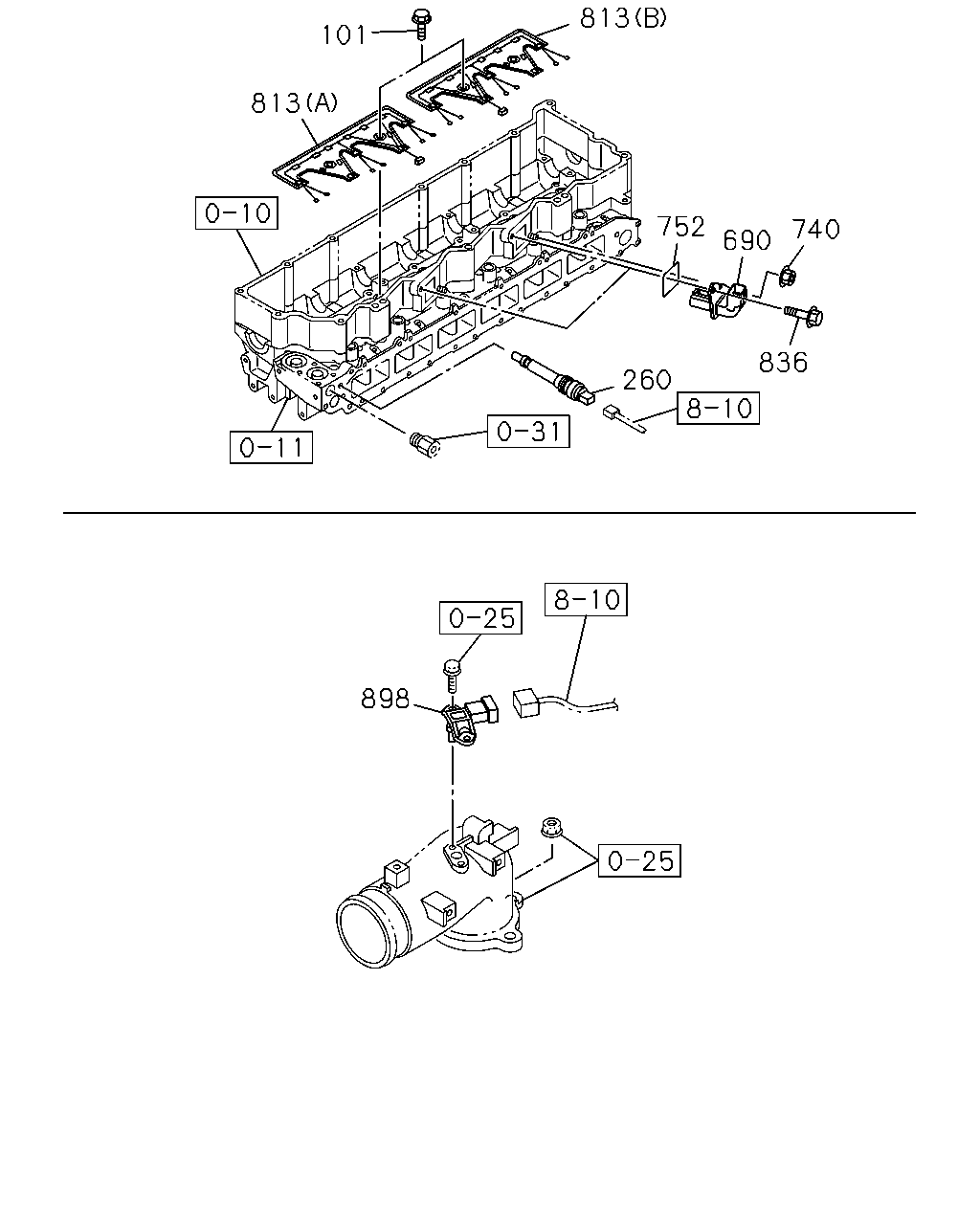

101
813
813
752
740
690
836
260
898
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; HARNESS
M8X40 FLANGE SOU
0-28650-840-0
04
1
1001-
260
SENSOR; WATER TEMP
MITSUBISHI
8-98023-883-0
01
1
1001-1503
260
SENSOR; WATER TEMP
NISHIDA
8-98260-257-0
01
1
1504-
690
CONNECTOR
8-94390-858-1
02
1
1001-
740
NUT
M8 FLANGE SOU
0-91180-108-0
04
1
1001-1011
740
NUT
M8 FLANGE SOU
0-91180-108-0
02
1
1012-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1001-
813
HARNESS; INJECTOR
(A) FRONT
8-97602-748-2
01
1
1001-1008
813
HARNESS; INJECTOR
(A) FRONT
8-98177-447-0
01
1
1009-1112
813
HARNESS; INJECTOR
(A) FRONT
8-98204-717-0
01
1
1201-
813
HARNESS; INJECTOR
(B) REAR
8-97602-749-2
01
1
1001-1008
813
HARNESS; INJECTOR
(B) REAR
8-98177-448-0
01
1
1009-1112
813
HARNESS; INJECTOR
(B) REAR
8-98204-718-0
01
1
1201-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1012-
898
SENSOR; BOOST
8-98009-418-0
01
1
1001-

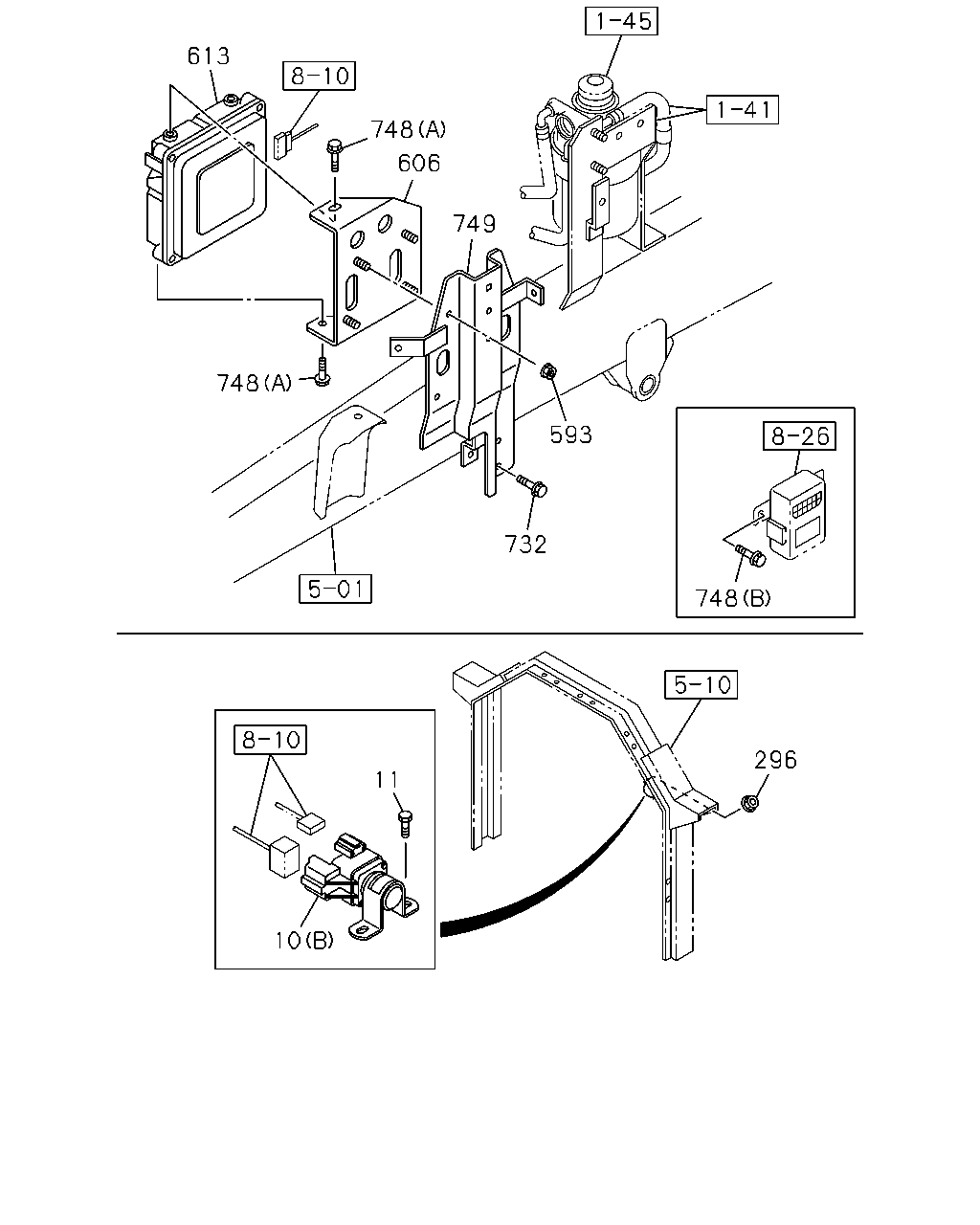

613
748
748
606
749
593
732
11
10
296
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
1001-1005
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1006-
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1001-
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28650-820-0
02
1
1001-
296
NUT; RELAY,STARTER
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
593
NUT; BRKT
M6 FLANGE SOU
0-91180-106-0
04
1
1001-
606
BRACKET; CONT UNIT
1-53194-675-0
01
1
1001-
613
CONTROL UNIT; ENG
8-98074-910-4
01
1
1001-
732
BOLT; BRKT
M10X30 FLANGE SOU
0-28651-030-0
03
1
1001-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE SOU
0-28050-612-0
03
1
1001-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE SOU
0-28650-616-0
02
1
1001-
749
STAY; CONT UNIT
1-53194-595-3
01
1
1001-

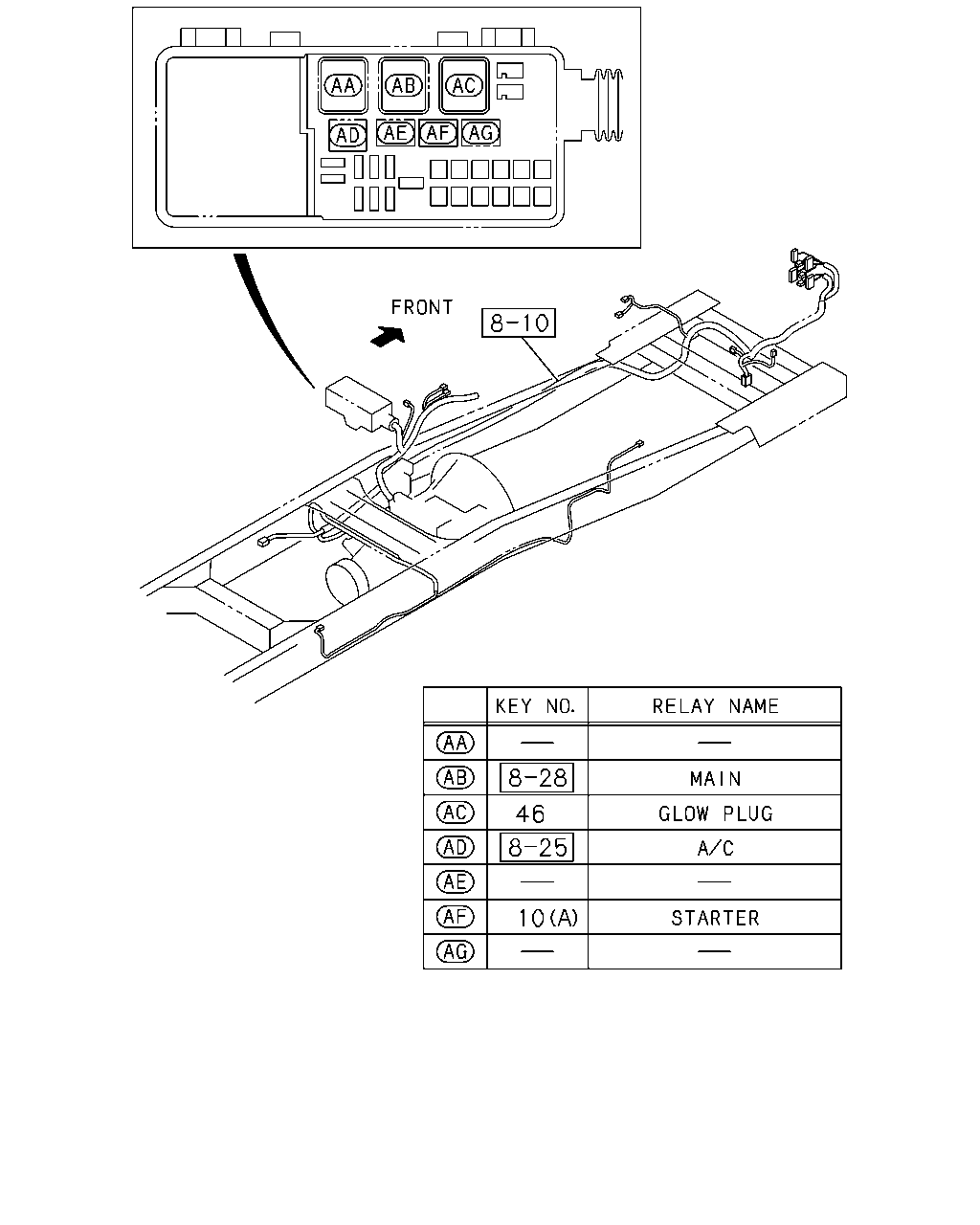

46
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
1001-1005
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1006-
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1001-
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1001-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
