◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#184) — 34 parça

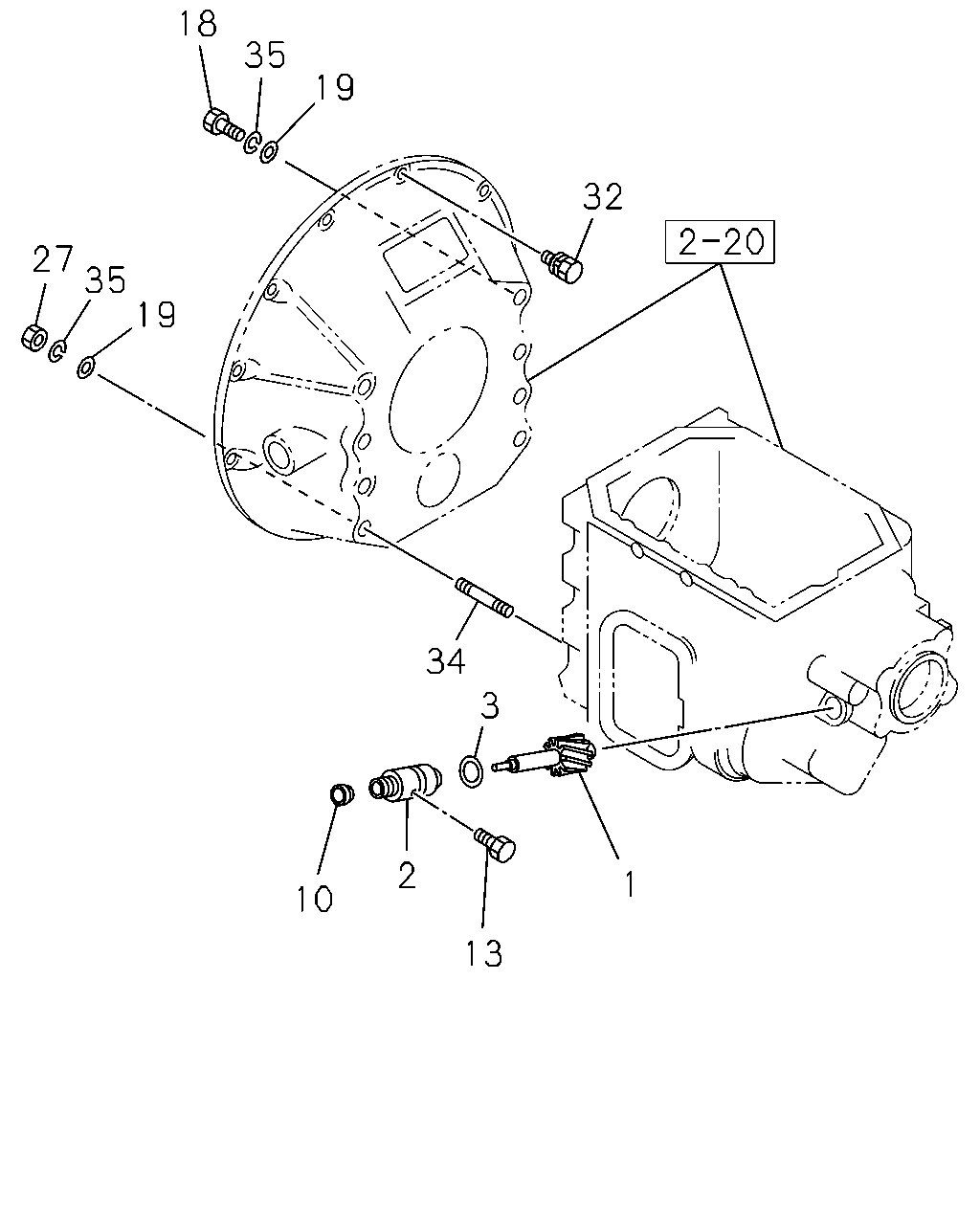

çizim 92386
18 35 19 32 27 35 19 34 3 2 1 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/8 14.5"(W1U) RR TIRE 8.25-20<93X> Z=15 		1-33372-118-3 01 1 9212- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 15.5"(W4H) RR TIRE 9.00-20<94X> Z=15 		1-33372-118-3 01 1 9212- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/9 13.5"(W1N) Z=15 		1-33372-118-3 01 1 9212- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/8 14.5"(W1U),FINAL GEAR 39/7 15.5"(W3K) RR TIRE 7.50-20<91X>,RR TIRE 9.00-20<94X> Z=16 		1-33372-119-3 01 1 9212- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 15.5"(W4H) RR TIRE 8.25-20<93X> Z=16 		1-33372-119-3 01 1 9212- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 41/8 13.5"(W4E) RR TIRE 8.25-16<92X>,RR TIRE 9.00-20<94X> Z=18 		1-33372-121-3 01 1 9212- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 14.5"(W1H) RR TIRE 7.50-20<91X> Z=18 		1-33372-121-3 01 1 9212- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 38/7 13.5"(W1B) Z=19 		1-33372-122-3 01 1 9212- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R) RR TIRE 8.25-20<93X> Z=19 		1-33372-122-3 01 1 9212- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 38/8 13.5"(W1A),FINAL GEAR 39/7 14.5"(W1H) RR TIRE 8.25-16<92X>,RR TIRE 8.25-20<93X> Z=17 		1-33372-120-3 01 1 9212- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5"(W3K) RR TIRE 8.25-20<93X> Z=17 		1-33372-120-3 01 1 9212- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5"(W3K) Z=19 		1-33372-114-4 01 1 9212- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/8 15.5"(W4H) Z=18 		1-33372-113-4 01 1 9212- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5"(W1R) Z=15 		1-33372-133-4 01 1 9405- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/9 15.5"(W4P) Z=16 		1-33372-111-4 01 1 9212- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-039-1 01 1 9212- ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9212- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-370-0 01 1 9212- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9212- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9212- ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9212- ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M14X40 		0-50151-440-0 05 1 9212- ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 		0-50151-640-0 06 1 9212- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=15 		9-09160-514-0 01 1 9212- ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9212- ●
27 NUT; CLU HSG TO TRANS
M14 		9-99110-514-0 01 1 9212- ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9212- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK&PL WASHER 		0-50151-030-0 10 1 9212- ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X35 W/LK&PL WASHER 		0-50151-035-0 02 1 9212- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9212- ●
34 STUD; CLU HSG 1-09302-024-2 01 1 9212- ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9212- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=14.2 		9-09150-514-0 01 1 9212- ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9212- ●
